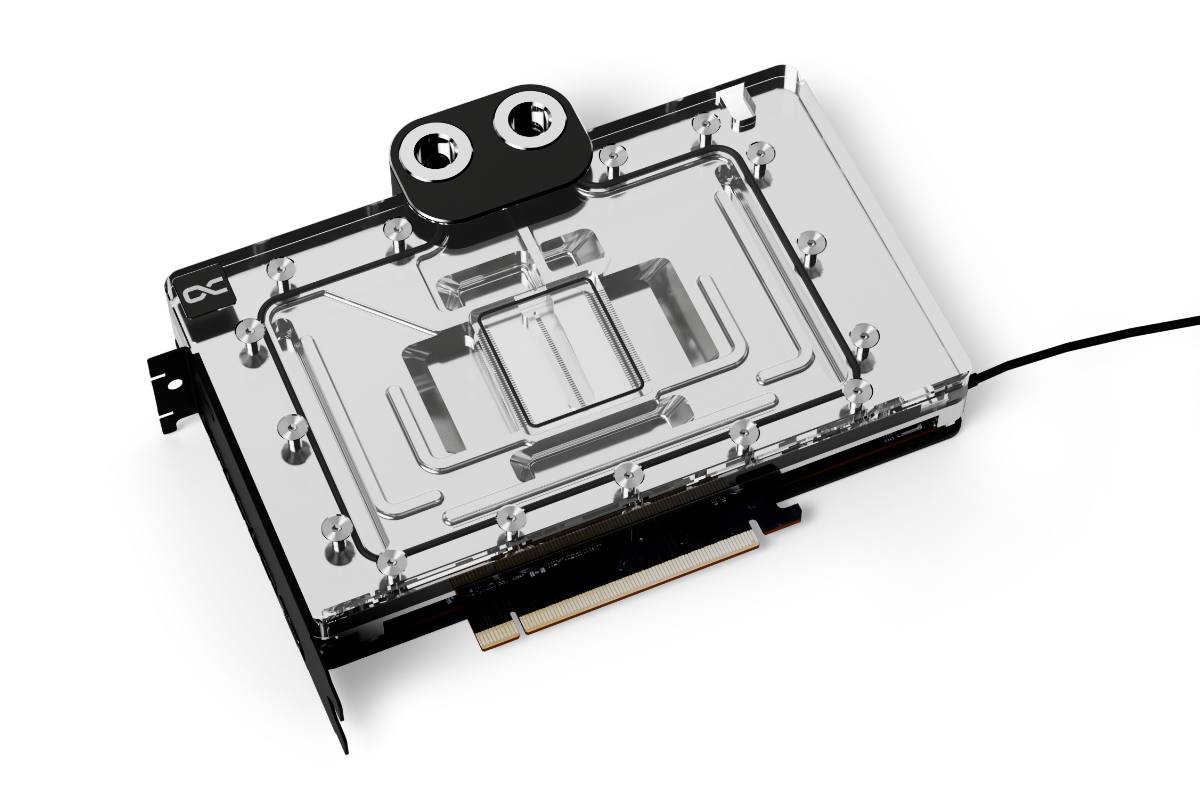

Alphacool Core Geforce RTX 4080 Reference Design with Backplate
- Article no.: 13439
- EAN: 4250197134392
- Weight: 1,754 kg
- Available: There are more than 50 units available
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
in stock
Alphacool's Core product series is characterized by high quality, outstanding performance and the uniform and functional design language.

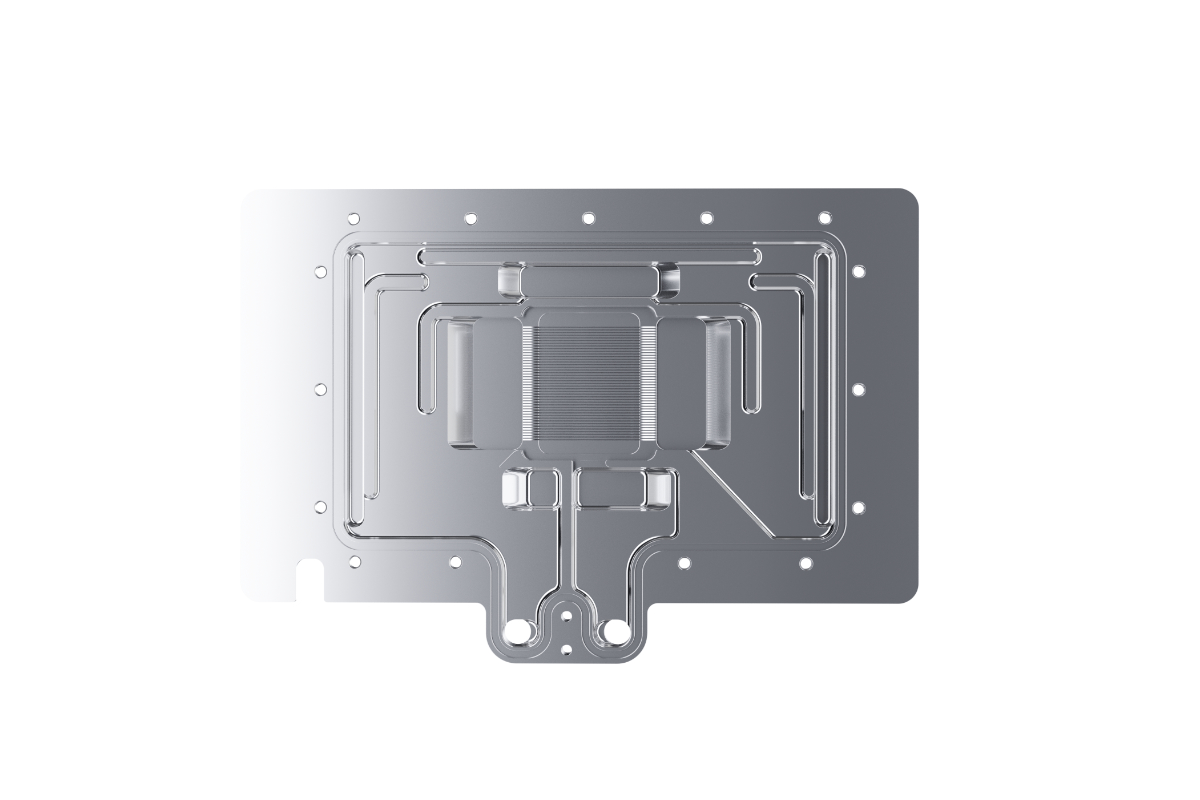

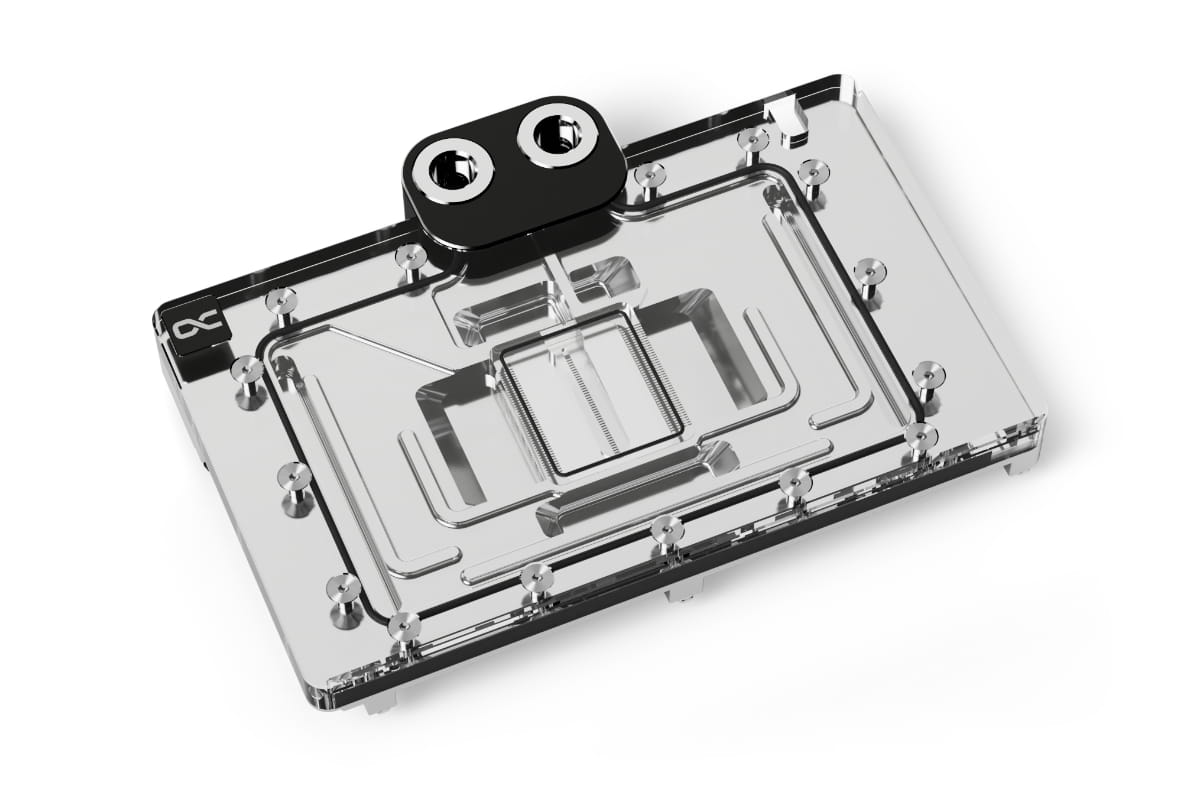

The copper cooler which, like the end terminal, is milled from a single piece of copper and is the core of this cooler. The fine workmanship, paired with the hard and resistant chrome plating covering the entire copper cooler, meet the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides stand out visually from the terminal. They are a central feature of the new design language that will be evident in all products in the Core series.

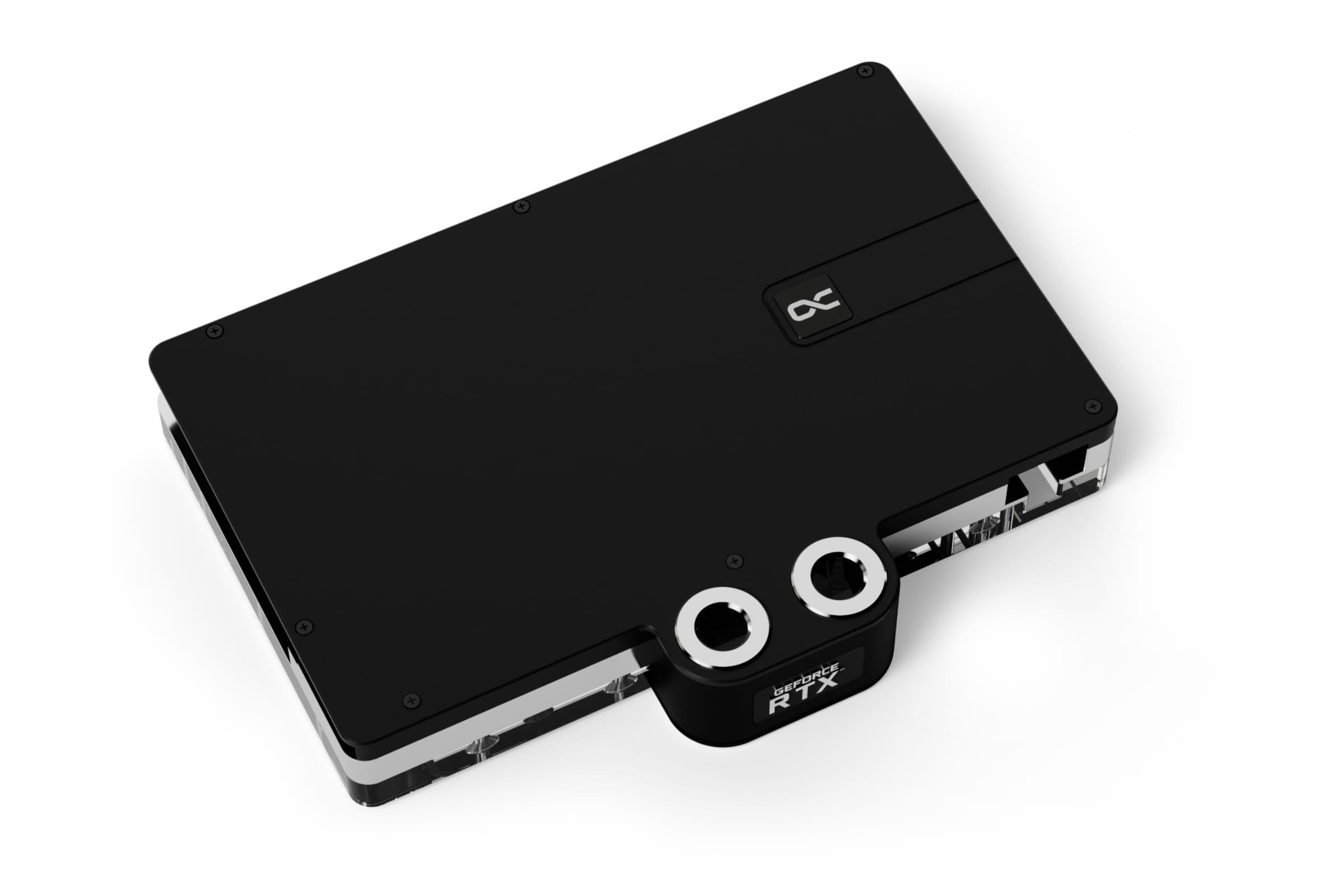

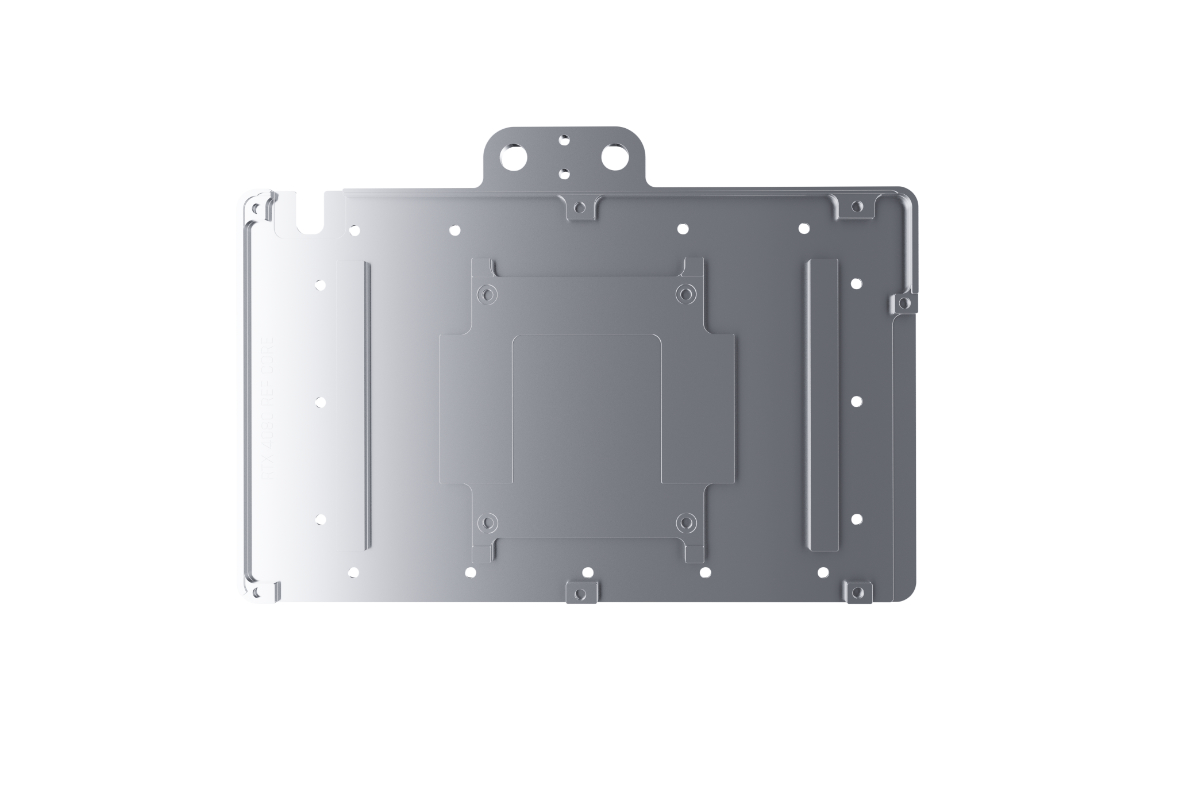

The aluminum backplate adapted to the design, together with the terminal, makes up the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which illuminate the entire cooler evenly and effectively.
The technical advancements can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.
Compatibility:
Attention! For PNY GeForce RTX 4080 the rear part of the PCB is not covered. This has no negative effect on the cooling performance
Note: The Inno3D GeForce RTX 4080 SUPER X3 is only compatible with the OC variant!
- Inno3D GeForce RTX 4080 iCHILL X3, 16GB GDDR6X (C40803-166XX-187049H)
- Inno3D GeForce RTX 4080 X3 OC, 16GB GDDR6X
- Inno3D GeForce RTX 4080 X3, 16GB GDDR6X
- Inno3D GeForce RTX 4080 SUPER iCHILL Black, 16GB GDDR6X (C408SB-166XX-18700006)
- Inno3D GeForce RTX 4080 SUPER iCHILL Frostbite, 16GB GDDR6X (C408S-166XX-1870FB)
- Inno3D GeForce RTX 4080 SUPER iCHILL X3, 16GB GDDR6X (C408S3-166XX-187049H)
- Inno3D GeForce RTX 4080 SUPER X3 OC, 16GB GDDR6X (N408S3-166XX-187049N)
| Technical data cooler | |
| Dimensions (L x W x H) | 201,36 x 145,90 x 32,80mm |
| Material cooler | chrome-plated copper |
| Material cooler top | acrylic |
| Max working temperature | 60°C |
| Pressure tested | 0,8 bar |
| Threads | 4 x G1/4" |
| Thickness cooler bottom | 11,3mm |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 11 |
| Color | transparent |
| Technical data backplate | |
| Dimensions (L x W x H) | 201,36 x 122,90 x 5mm |
| Material | aluminium |
| Color | black |
Warranty: 3 years
🔗 Warranty Terms
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
| Manufacturer: | Alphacool |
| Cooler type: | Complete cooler |
| Material base plate: | Copper |
| Material Lid: | Acrylic |
| SLI compatible: | Yes |
| Dimensions: | 201,36 x 145,90 x 32,80mm |
| Connection: | 4x G1/4" |
| Hardware manufacturers: | NVIDIA |
| Hardware model: | RTX 4080 |
| Notice: | Compatible up to 16/13mm straight, Compatible up to 19/13mm angled |
