Alphacool Core Storm 360mm XT45 water cooling Set

  • 11990
  • 4250197119900
  • 6,12 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€329.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
90334 Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
1x
Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
€59.98*
17386 Alphacool HF 13/10 compression fitting G1/4 - chrome sixpack
1x
Alphacool HF 13/10 compression fitting G1/4 - chrome sixpack
€15.98*
17464 Alphacool Eisfluegel Aurora flow indicator "HighFlow" with RPM-Signal
1x
Alphacool Eisfluegel Aurora flow indicator "HighFlow" with RPM-Signal
€34.98*
18651 Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
13009 Alphacool Subzero Thermal grease 20g
1x
Alphacool Subzero Thermal grease 20g
€42.98*
13395 Alphacool ES Geforce RTX 4090 Reference Design with Backplate
1x
Alphacool ES Geforce RTX 4090 Reference Design with Backplate
€99.98*
18412 Alphacool tubing AlphaTube HF 13/10 (3/8"ID) - clear
1x
Alphacool tubing AlphaTube HF 13/10 (3/8"ID) - clear
€6.98*
With the Core Storm water cooling kit, Alphacool provides all the components needed to get... more
Product information

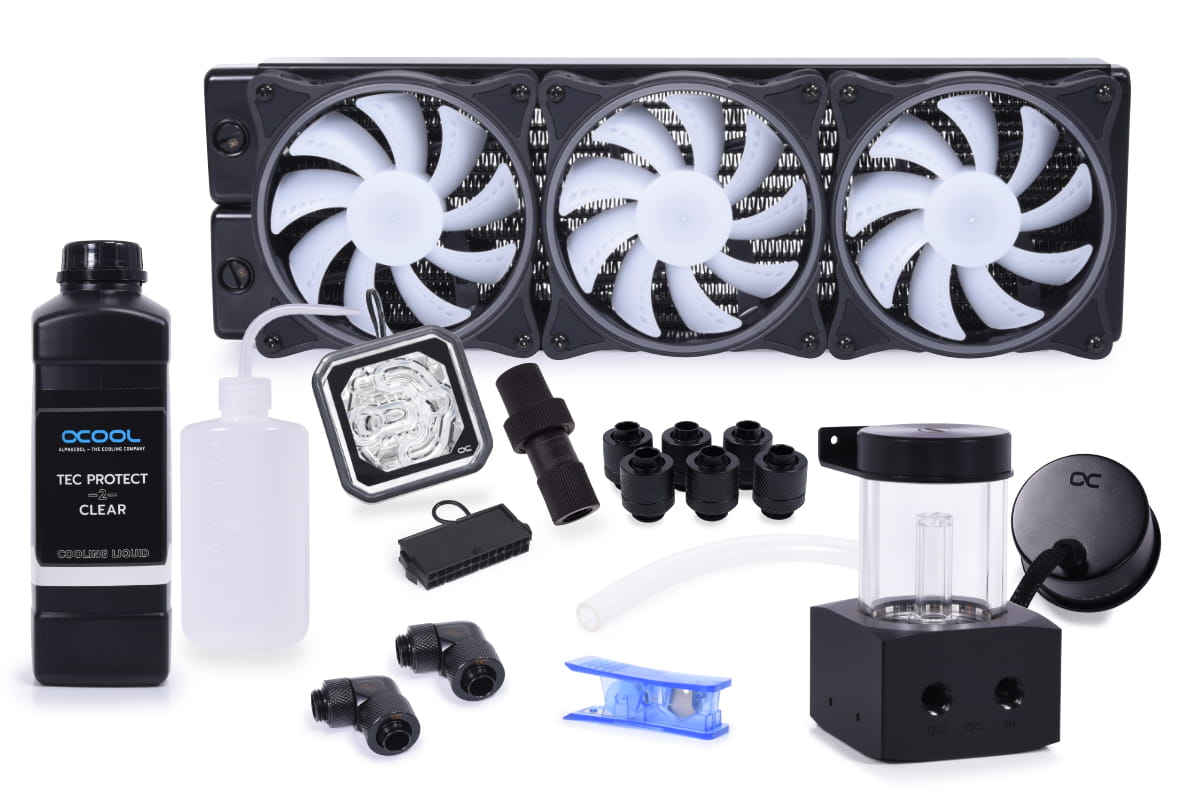

With the Core Storm water cooling kit, Alphacool provides all the components needed to get started in the world of water cooling. The set is aimed not only at beginners, but also at enthusiasts. The selected components are optimally matched and come from Alphacool's DIY program. The choice of materials is still uncompromisingly based on copper or brass for all metals in order to guarantee performance-oriented CPU cooling. Due to the included quick-release fastener, additional components like radiators or GPU coolers can be integrated afterwards without having to drain or rebuild the water loop.

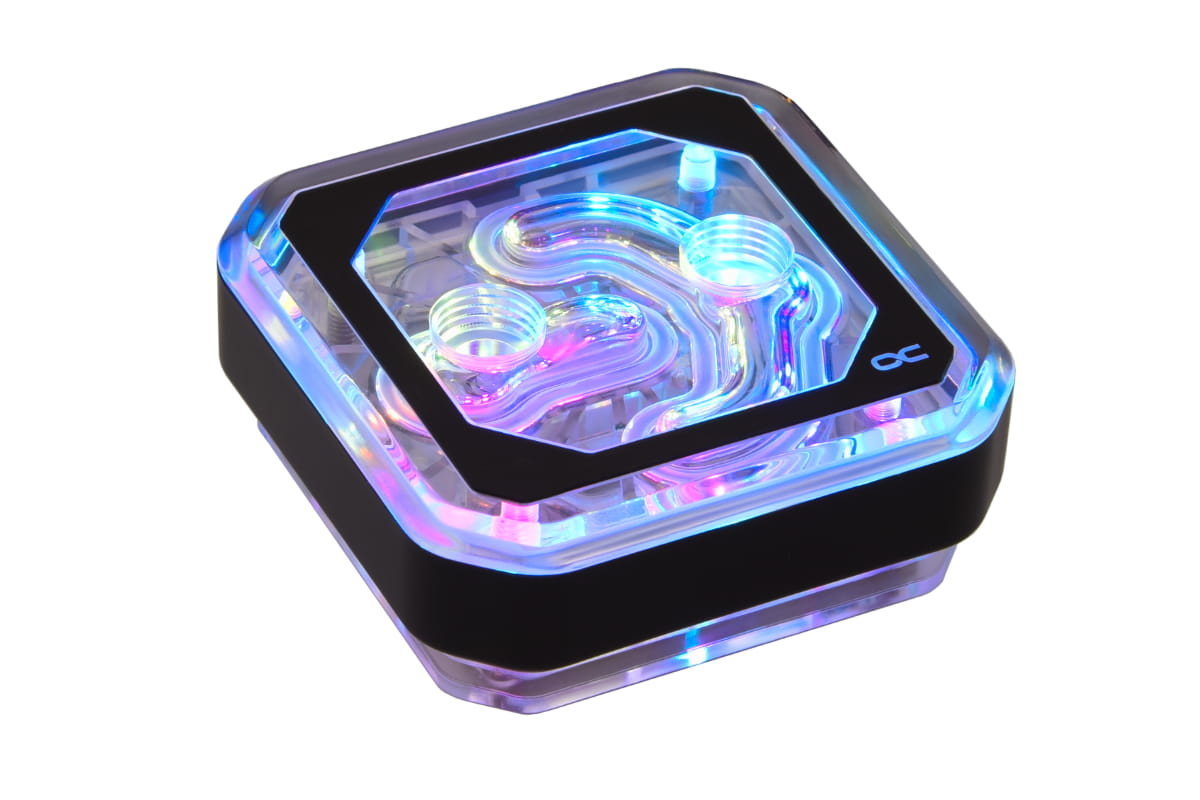

Eisblock XPX Aurora CPU Cooler
Alphacool's Eisblock XPX Aurora CPU water cooler offers the highest performance and impresses with its outstanding quality. The patented ramp system ensures optimal water flow within the cooler as water is forced evenly through the jet plate. 81 cooling fins are distributed on the CPU cooler base, occupying an area of 34 x 32mm and thus accommodating the ever-growing CPU DIEs. The Aurora design in combination with the 15 addressable digital aRGB LEDs provides many options for outstanding CPU water cooler illumination. The included mounting hardware makes the CPU cooler compatible with popular mainstream sockets from AMD and Intel.

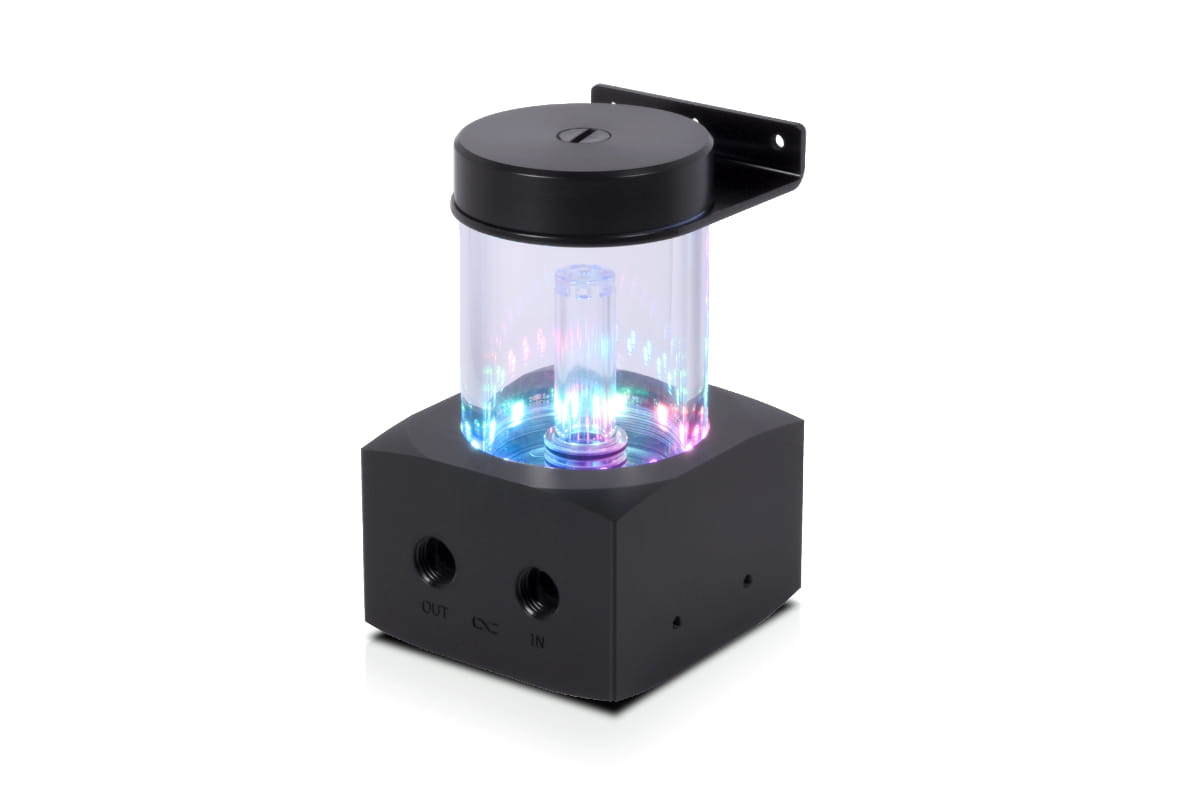

Core 100 Aurora Reservoir & VPP Apex Pump

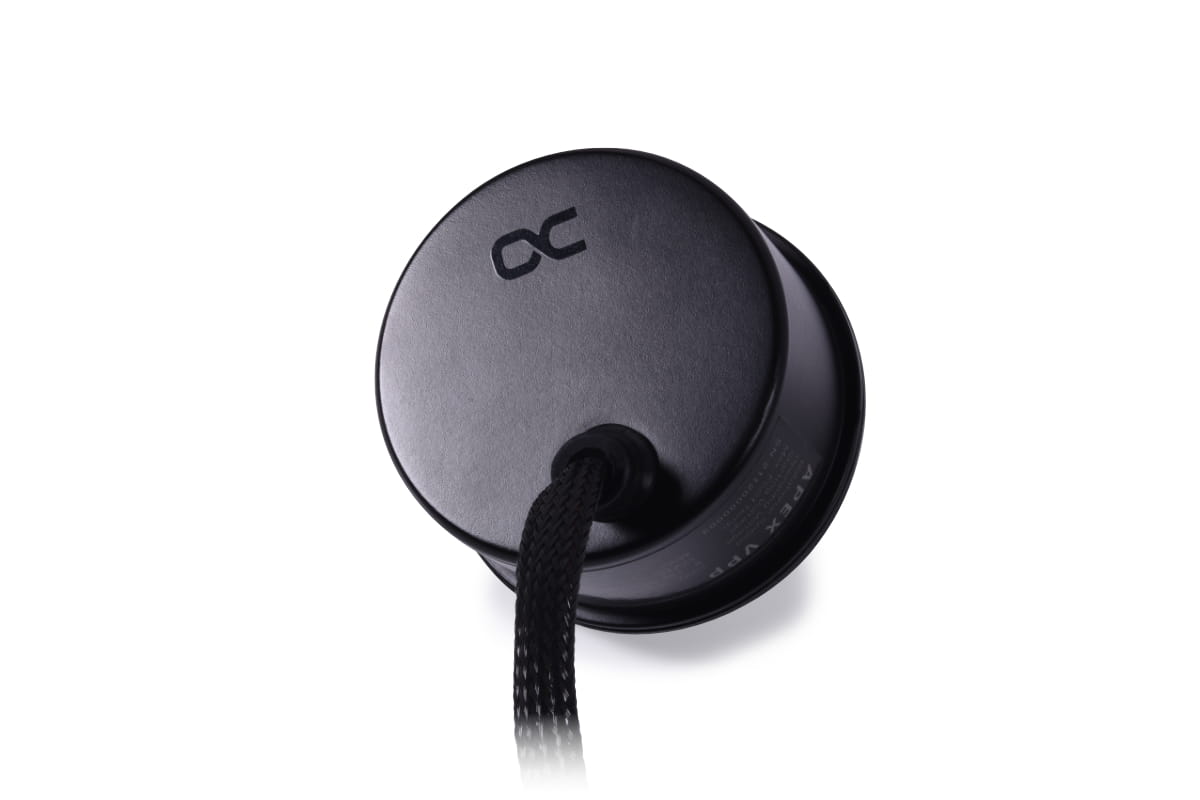

The Core reservoir combines performance with design. The reservoir tube is made of acrylic, while the D5/VPP pump top and lid are made of acetal. The combination of these two materials gives the expansion tank a subtle appearance. The wow effect is provided by 12 digitally addressable RGB LEDs in the pump top and the Lighttower water effect inside the acrylic tube. The Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. The pump's speed can be read out via the 4-pin fan connector and controlled via PWM signal. The Apex VPP is supplied with power via a SATA connector.

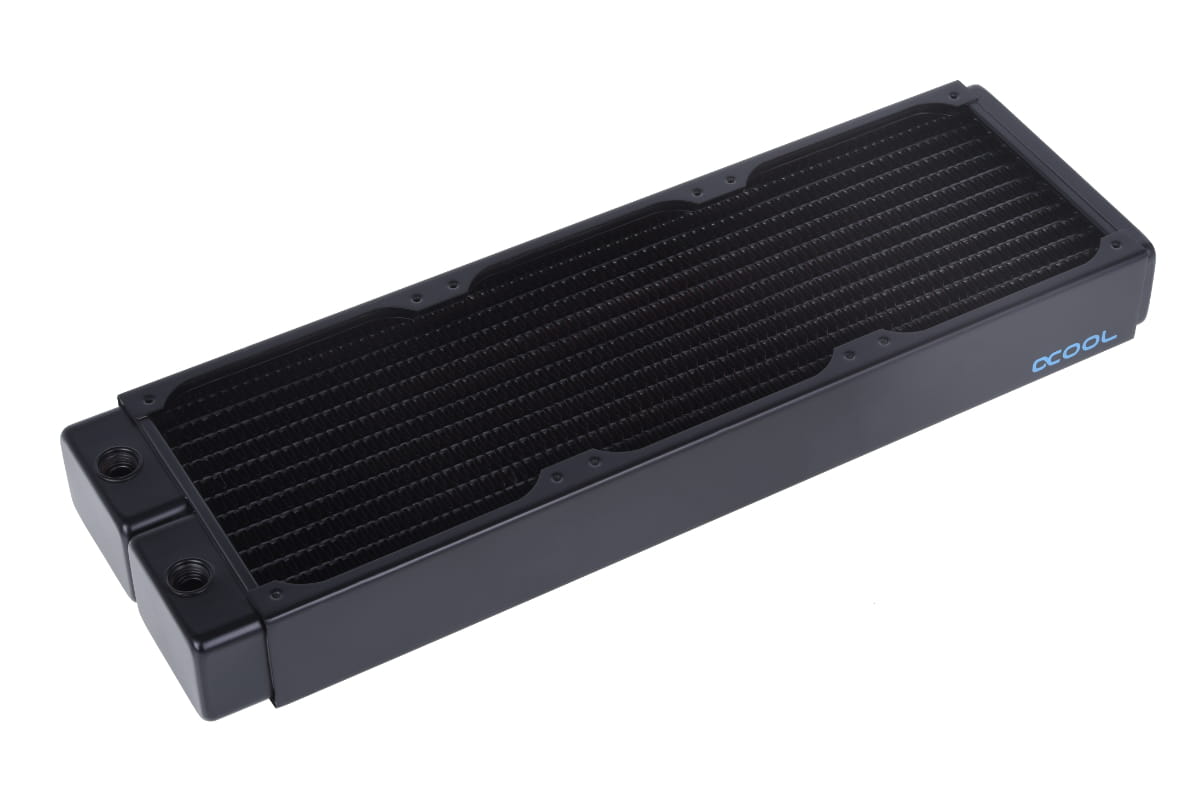

NexXxoS XT45 Full Copper 360mm Radiator V.2
All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS XT45 achieves the highest thermal conductivity value of all radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

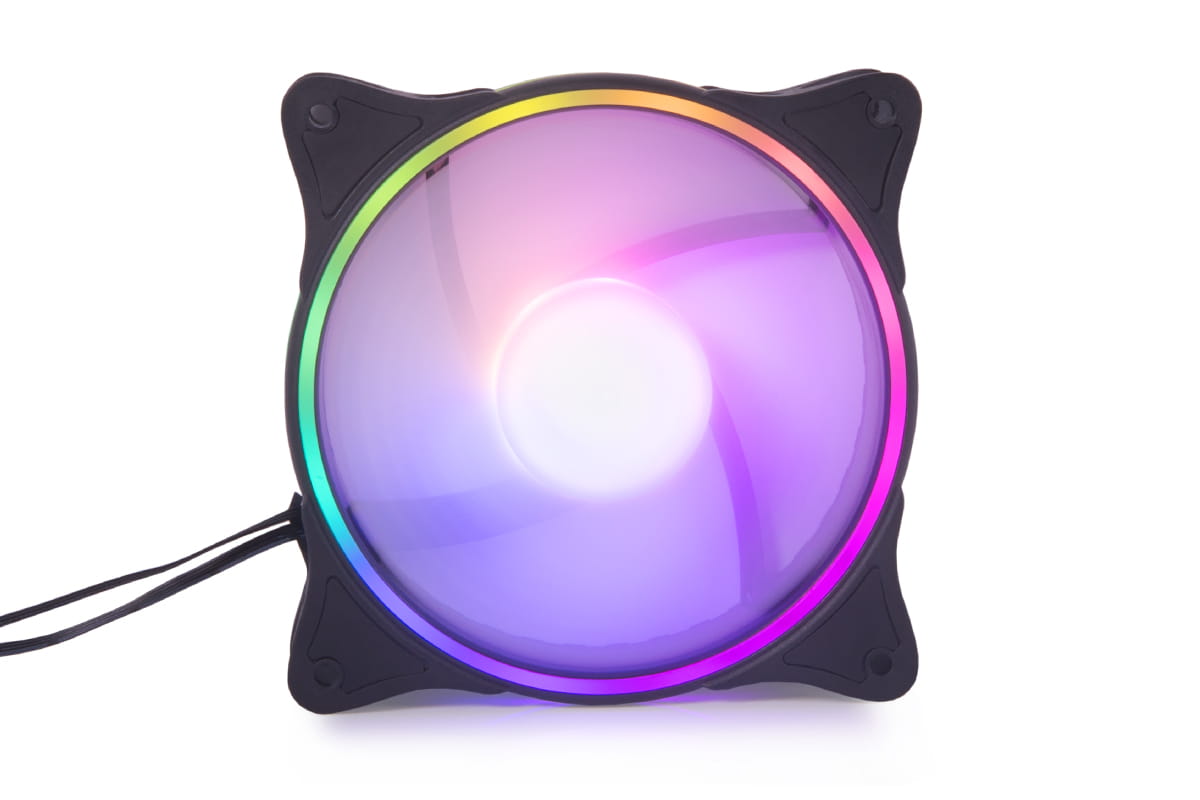

Rise Aurora 120mm fans
The fans can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m3/h) coupled with high static pressure (3.17mm/H2O). In addition to a wide control range, the Rise fan also offers superior digital aRGB lighting. The frame and hub feature 20 digitally addressable 5V RGB LEDs that illuminate the entire fan.

AlphaTube HF 13/10mm tubing & HF G1/4" quick connect coupling
The clear 13/10mm hose made of PVC offers comfortable handling when routing and connecting water cooling components. It has good routing and kinking characteristics and allows uncomplicated bridging of tight bend radii. The HF quick-connect coupling included in the scope of delivery allows easy integration of further components at a later date without having to drain or rebuild the water loop.

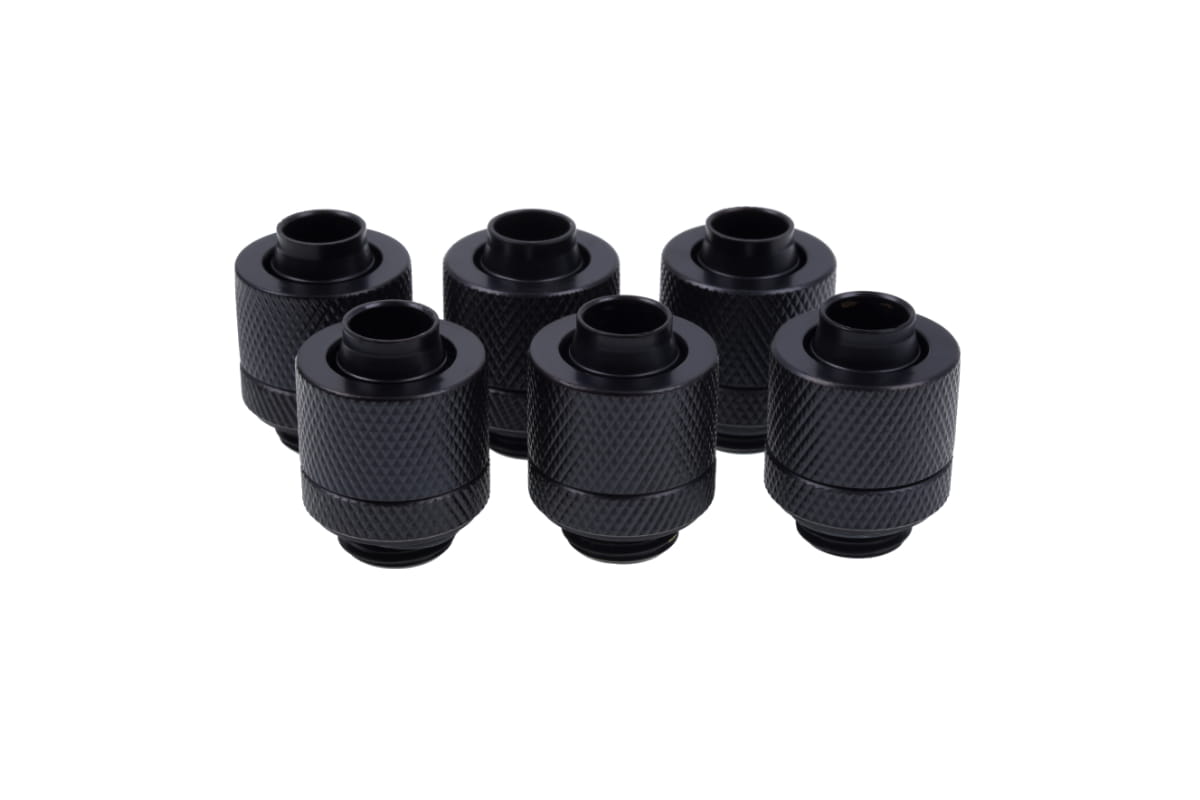

Eiszapfen 13/10mm G1/4" Connections
All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

Thermal Paste & Coolant
The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1 liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used straight from the bottle.

aRGB Controller, Cables, Tools & Accessories

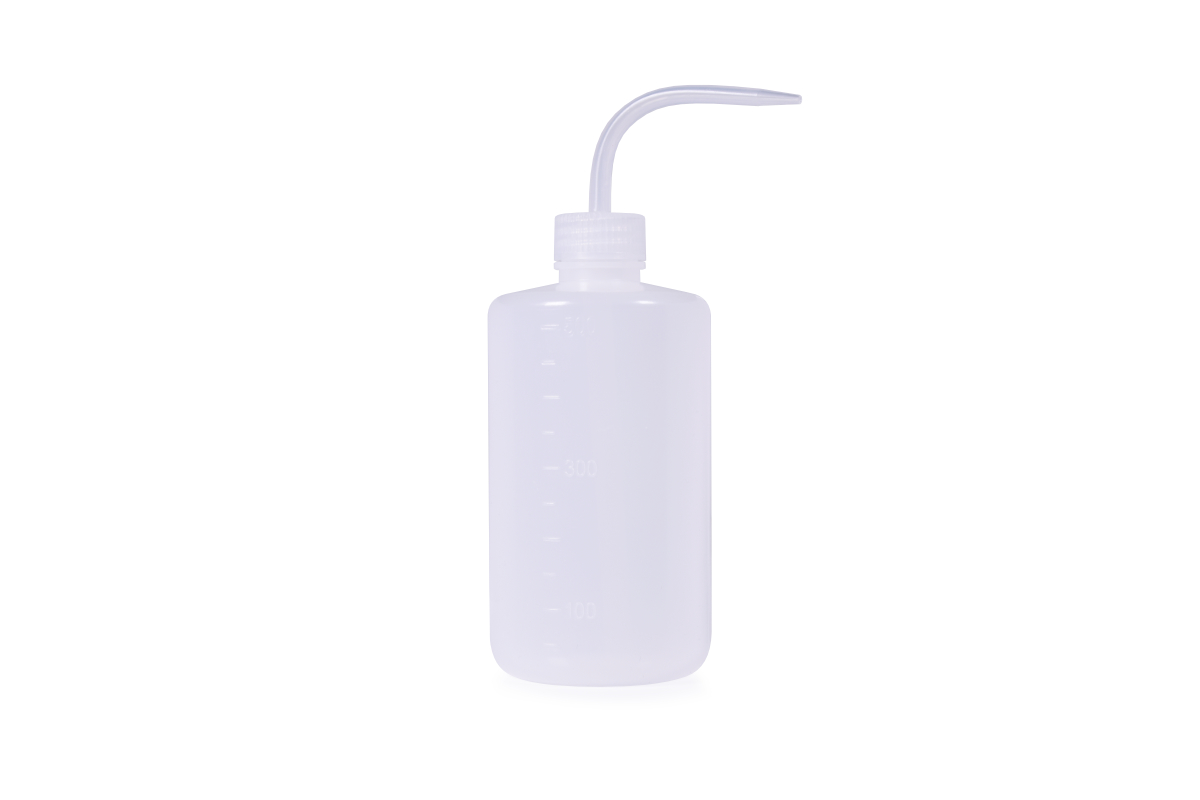

All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes important tools like hose cutter, filling bottle and an ATX 24-pin jumper. Thus, the construction of the custom loop can be started "out-of-the-box" immediately.



Compatibility:
Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5



Technical data CPU cooler
Dimensions (L x W x H)75,8 x 75,8 x 33mm
Material coolernickel-plated copper
Material housingnylon, acrylic
Threads2 x G1/4“
Illumination3-Pin 5V, 15 digital aRGB LEDs
Max working temperature60°C
Pressure tested0,8 Bar

Technical data reservoir
Dimensions (L x W x H)131 x 76,5 x 76,5mm
Capacity200 ml
Material Pump top & coveracetal
Material tubeacrylic
Threads3x G1/4“ IT
Illumination3-Pin 5V, 12 digital aRGB LEDs
Max working temperature60°C
Pressure tested0,8 Bar

Technical data pump
Dimensions (L x W x H)65 x 65 x 41mm
Materialsynthetic material, aluminium, ceramics
Threads4-Pin PWM | SATA
Rotational speed2500 - 4500 RPM
Operating voltage8-13V DC / 14W IP32
Starting voltage12V DC
Maximum pumping head4,25m
Maximum flow rate340L/h
Max working temperature60°C
Pressure tested0,8 Bar

Technical data radiator
Dimensions (L x W x H)391,5 x 124 x 45mm (+/- 3%)
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4"
Possible fan size120mm
Possible fan assembly3x one-sided / 6x both-sided
Fin density12
Max working temperature60°C
Pressure tested0,8 Bar

Technical data fan
Dimensions (L x W x H)120 x 120 x 25mm
Speed0 - 2500 RPM (+/- 10%)
Threads4-Pin PWM
Voltage12V DC
Current consumption0,65A (0,72 max)
Static pressure3,17 mm H2O
Max. air flow118,9 m³/h
Noisemax. 31,5 dB(A)
Speedometer signalyes
Auto-Restartyes
Illumination3-Pin 5V, 20 digital aRGB LEDs, 3.5W

Technical data tube
Dimensions (outer/inner)13/10mm
MaterialPVC
Length3m
Colorclear

Technical data 13/10mm G1/4" fittings
Materialbrass
Threads1x G1/4" OT
Colorblack

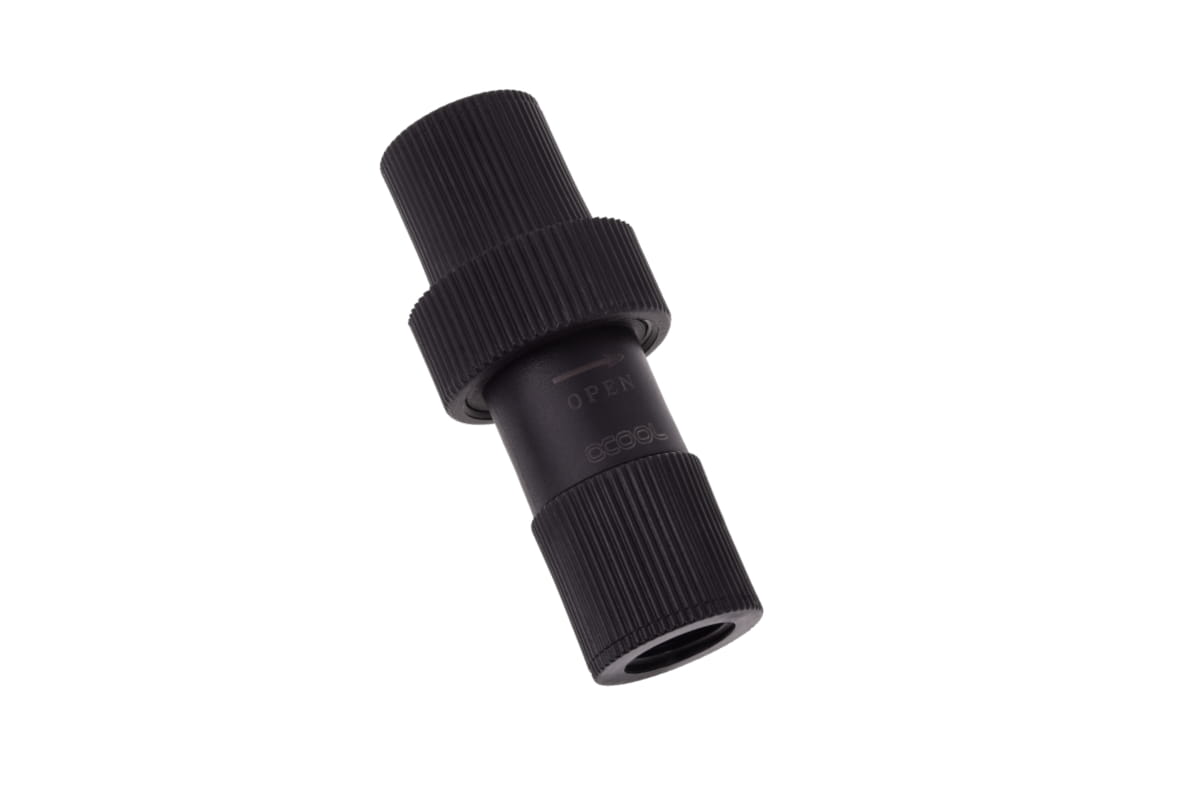

Technical data quick release coupling
Dimensions (L x D)60,3 x 26,1mm
Materialsynthetic material
Threads2x G1/4“ IT
Colorblack

Technical data coolant
Ingredientsosmose water(93,8%), glysofor L (4,2%), RHOBA KLA (2%)
Boiling point105°C
Freezing point-10°C
Packaging unit1L bottle
Colorclear (not UV-active)

Technical thermal grease
Viscosity (mPa. s)3.000.000
Specific Gravity (g/cm³)2,7
Thermal Conductivity (w/m-K)16
Temperature Stability (Degree Celcius)-50 ~ 200
Colorgray

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Awards & Videos
Technical details mehr
Technical details
Hersteller: Alphacool
Radiatorgröße: 360mm
Vorbefüllt: Nein
Schlauchabmessungen: 13/10mm
Radiatordicke: 39 - 49mm
Radiatorabmessung: 391,5 x 124 x 45mm
Sockel: AMD AM3(+), AMD AM4, AMD AM5, Intel 115x, Intel 2011(-3), Intel 2066, Intel LGA 1200, Intel LGA 1700
