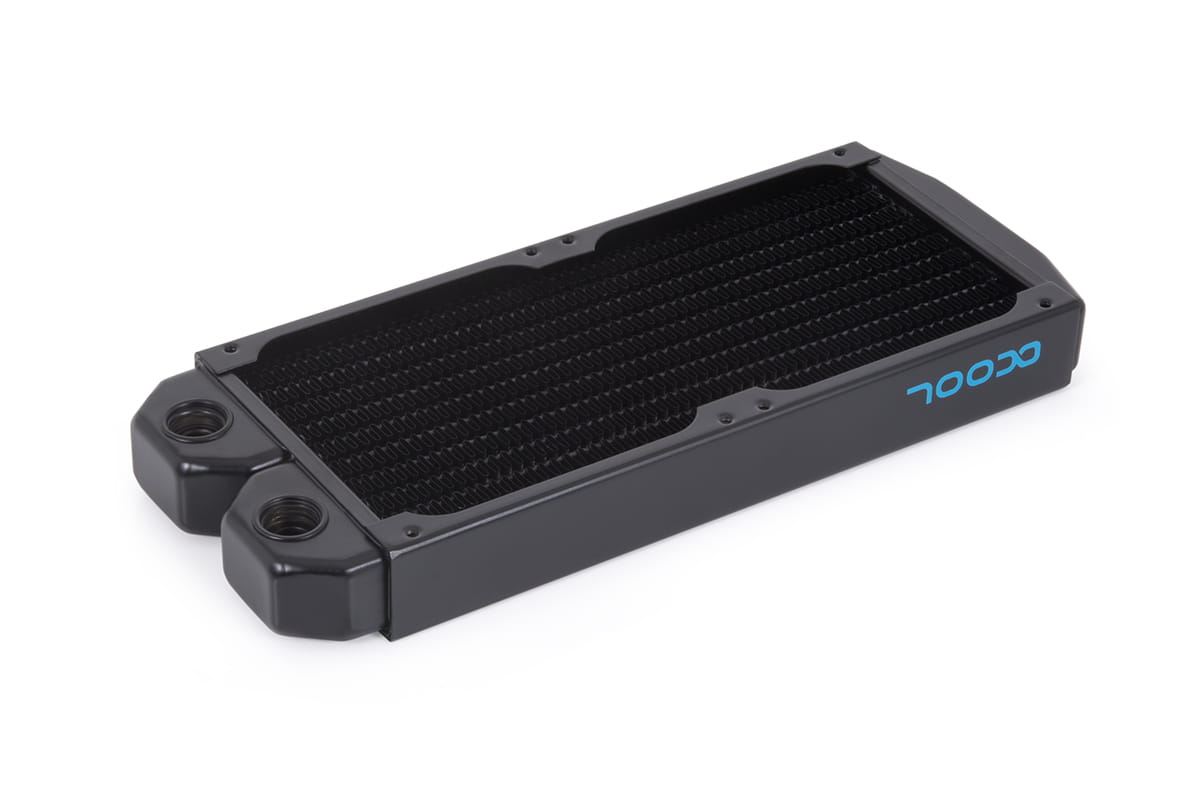

Alphacool NexXxoS ST25 Full Copper 92mm Dual Radiator (184mm)

  • 14397
  • 4250197143974
  • 0,42 kg
  • Images may differ slightly from the original
€57.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
17387 Alphacool HF 13/10 compression fitting G1/4 - deep black sixpack
1x
Alphacool HF 13/10 compression fitting G1/4 - deep black sixpack
€27.98*
15382 Alphacool Eisbecher Aurora D5 Acetal/Glas - 150mm
1x
Alphacool Eisbecher Aurora D5 Acetal/Glas - 150mm
€95.98*
17529 Alphacool tubing AlphaTube HF 16/10 (3/8"ID) - UV black 3m (9,8ft) Retailbox
1x
Alphacool tubing AlphaTube HF 16/10 (3/8"ID) - UV black 3m (9,8ft) Retailbox
€17.98*
24814 Alphacool Eiszyklon Aurora LUX Digital RGB (92x92x25mm)
1x
Alphacool Eiszyklon Aurora LUX Digital RGB (92x92x25mm)
€6.99*
11958 Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 TUF/DUAL mit Backplate
1x
Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 TUF/DUAL mit Backplate
€77.04*
13122 Alphacool VPP655 - single edition
1x
Alphacool VPP655 - single edition
€69.98*
Alphacool is an internationally renowned company in the field of water cooling solutions for... more
Product information

Alphacool is an internationally renowned company in the field of water cooling solutions for both industrial and home users. To ensure that customers receive the best products available, Alphacool is constantly developing new products and making improvements to existing products.

Make No Compromises, Use Copper.
As usual, Alphacool uses pure copper for the NexXxoS ST25 slim radiators. The end chambers, the water channels and the cooling fins are all made of copper, a unique selling point worldwide. No other manufacturer relies on pure copper for all these components combined. As a result, Alphacool has been producing one of the most popular and highest performing radiators on the market for many years, providing the perfect foundation for every water cooling system.

Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result is a fin spacing of 15 FPI. This means that the air flow is only slightly obstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Compact
The ST25 slim radiators offer the ideal liquid cooling solution for Mini-PCs or SSF (Small Form Factor) systems. Due to the extremely flat design, the NexXxoS ST25 radiators are ideal for such small cases and due to the reduced size, they give you the extra space you need to work in the case.

Technical details
L x W x H 225 x 92 x 25 mm
Fins per Inch 15
Material cooling fins, chambers & cooling channels copper
Material thread brass
Material outer housing stainless steel
G 1/4“ thread 2 x
For fan size 92 mm
Possible fan assembly 2 x one-sided / 4 x both-sided
Pressure tested 1,5 bar
Max working temperature 60 °C



Download Datasheet PDF: Alphacool NexXxoS ST25 Full Copper 92mm Dual Radiator (184mm)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Anzahl Lüfter: 3;
Lamellen: Kupfer
Kühlkanäle: Kupfer
Farbe: schwarz
Anschluss: 2x G1/4"
Lüftergewinde: M3
Druckgetestet: 1,5 bar
Hersteller: Alphacool
Fins per inch: 15
Dicke: 0 - 29mm
Lüftergröße: 92mm;
Abmessungen (L x B x H): 225 x 92 x 25,5
Gehäuse: Stahl;
