92 mm Lüfter mit aRGB Beleuchtung

L92 Alphacool Eiszyklon Aurora LUX Digital RGB (92x92x25mm) EOL

Article no.: 24814
EAN: 4250197136181
Weight: 0,113 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€6.99 * €8.98 * (22.16% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Digital RGB LED Y-cable 3-way with JST connector - black 60cm

€7.98*

Alphacool Eis-Matrix II - Adapter 5-Pin to PWM + 5V Digital RGB (3pcs) each 20cm

€4.47*

The Alphacool Eiszyklon fan is the ideal combination of a silent and a performance fan in terms... more

Close menu

Product information

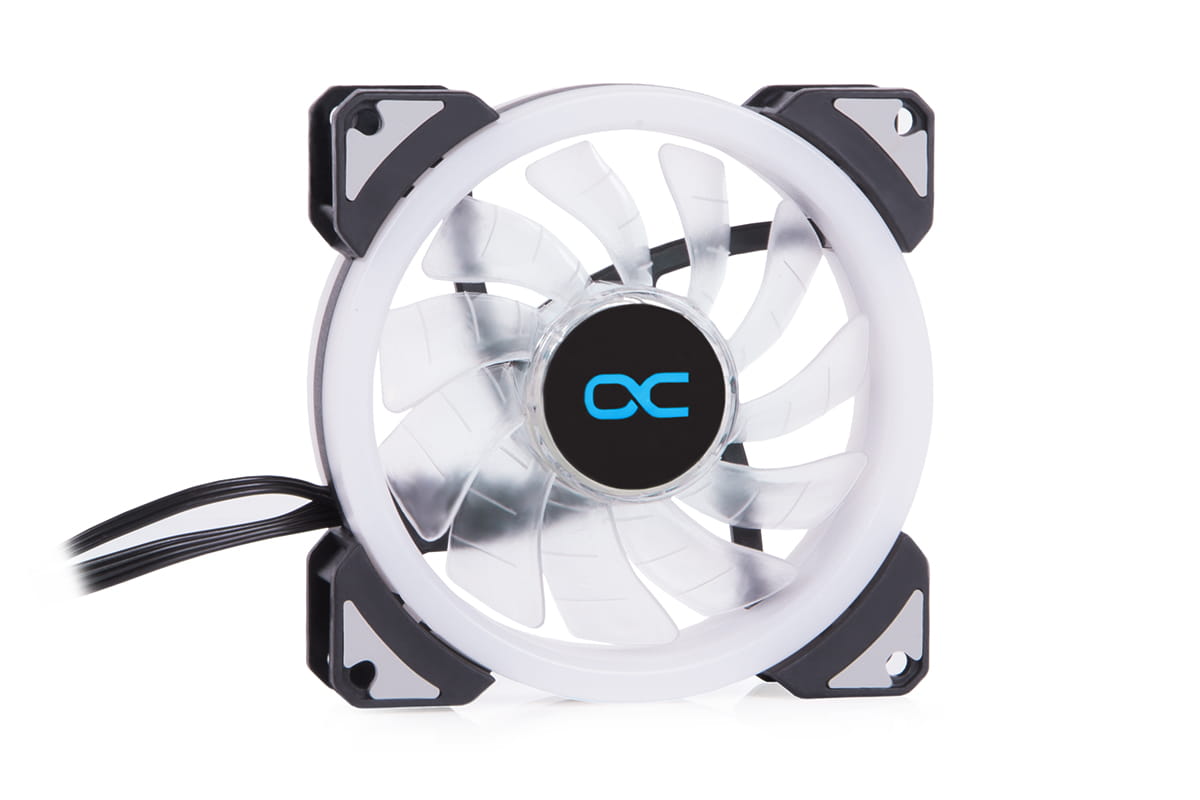

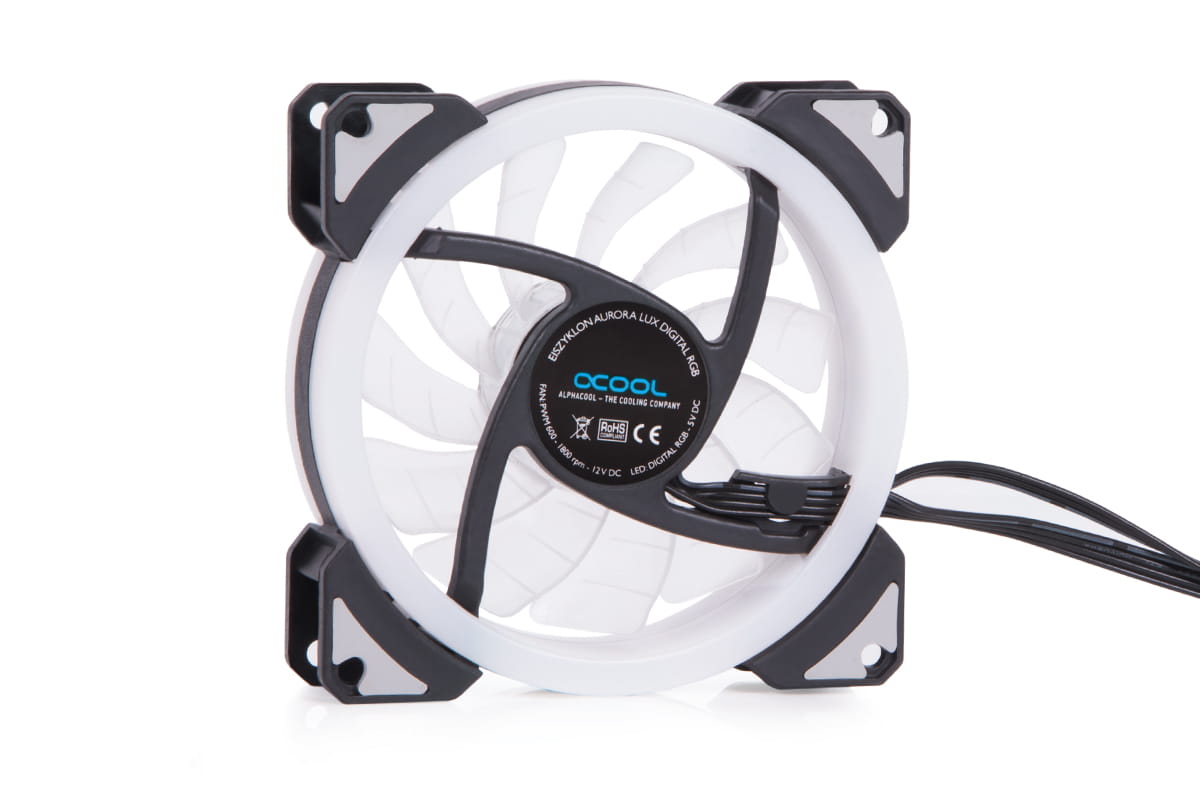

The Alphacool Eiszyklon fan is the ideal combination of a silent and a performance fan in terms of its size. Its air flow and high static pressure in a small space make it the ideal fan for 92 mm radiators. The extensive digital RGB lighting also ensures the right mood in the system.

Wide control range and silent

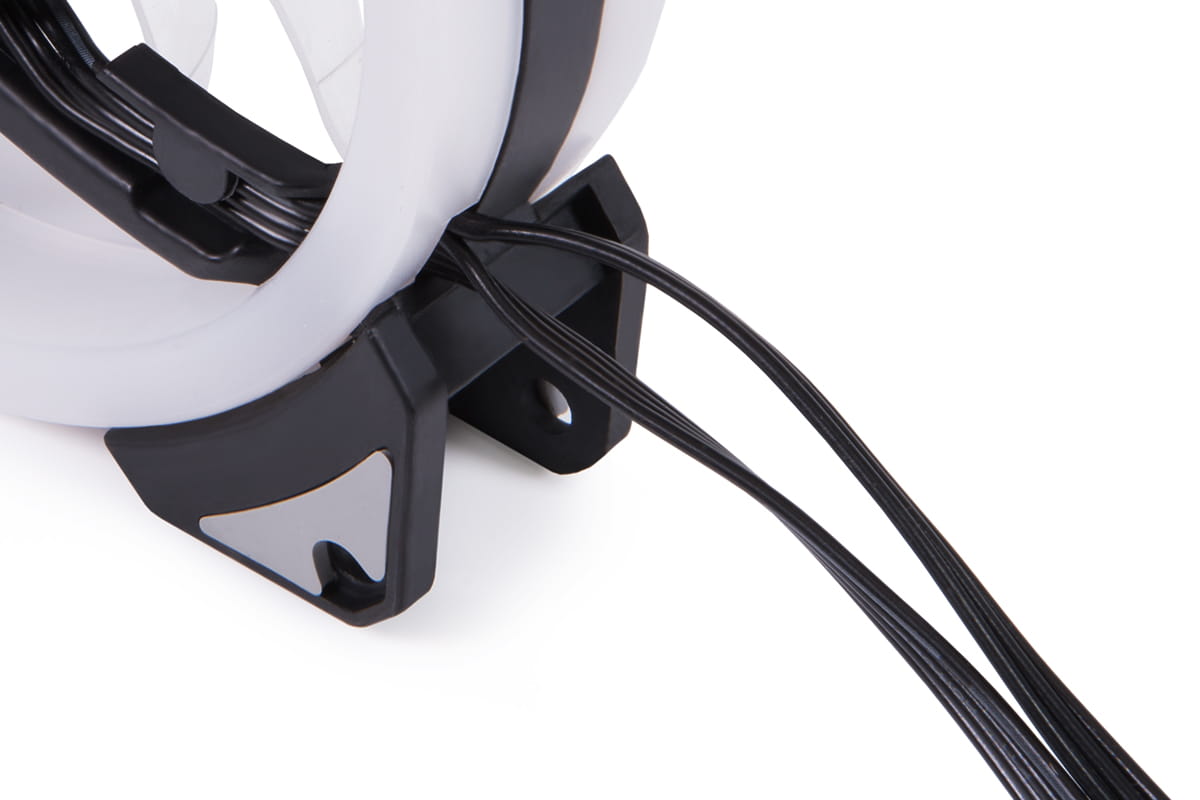

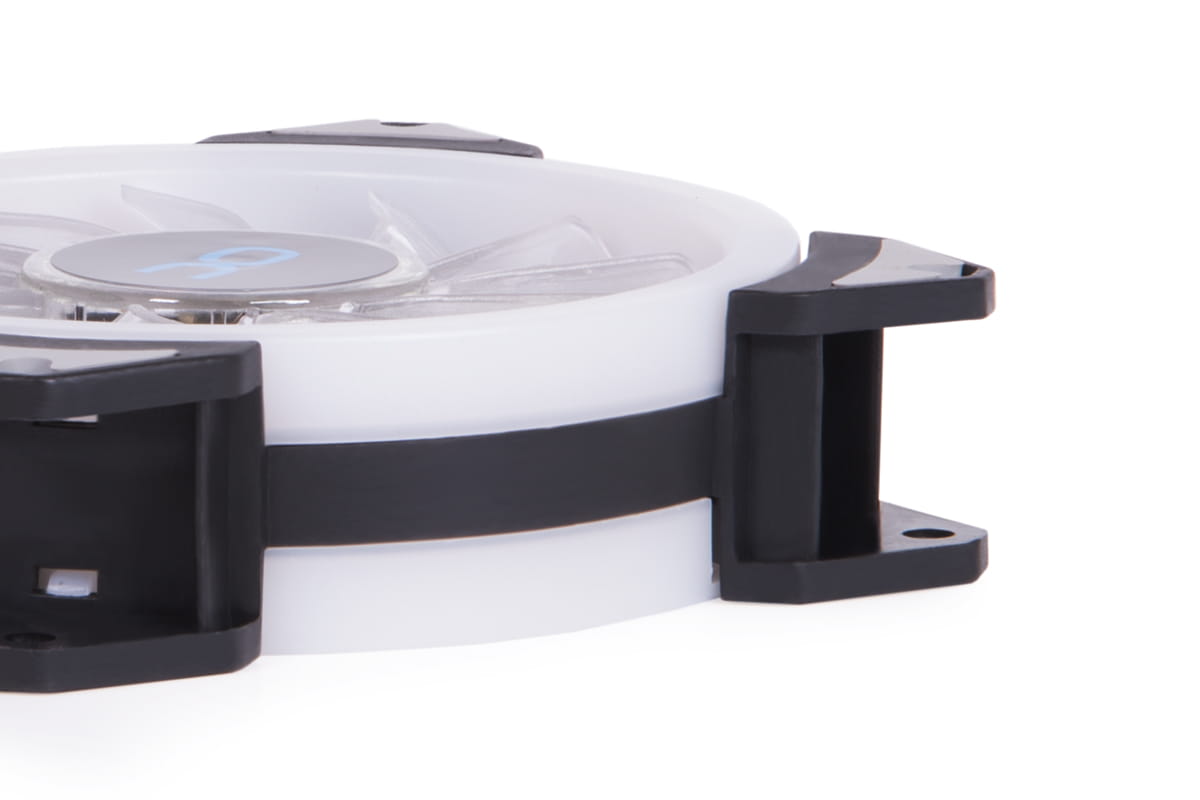

With a fan speed of 600 - 1800 rpm, Alphacool Eiszyklon offers a very high control range and is therefore also well suited for silent systems. The 11 fan blades with a steep angle of attack ensure a high static pressure and are therefore ideal for operation on radiators. Decouplers can also be found directly on the frame. The soft foam padding reduces the transmission of vibrations to the case.

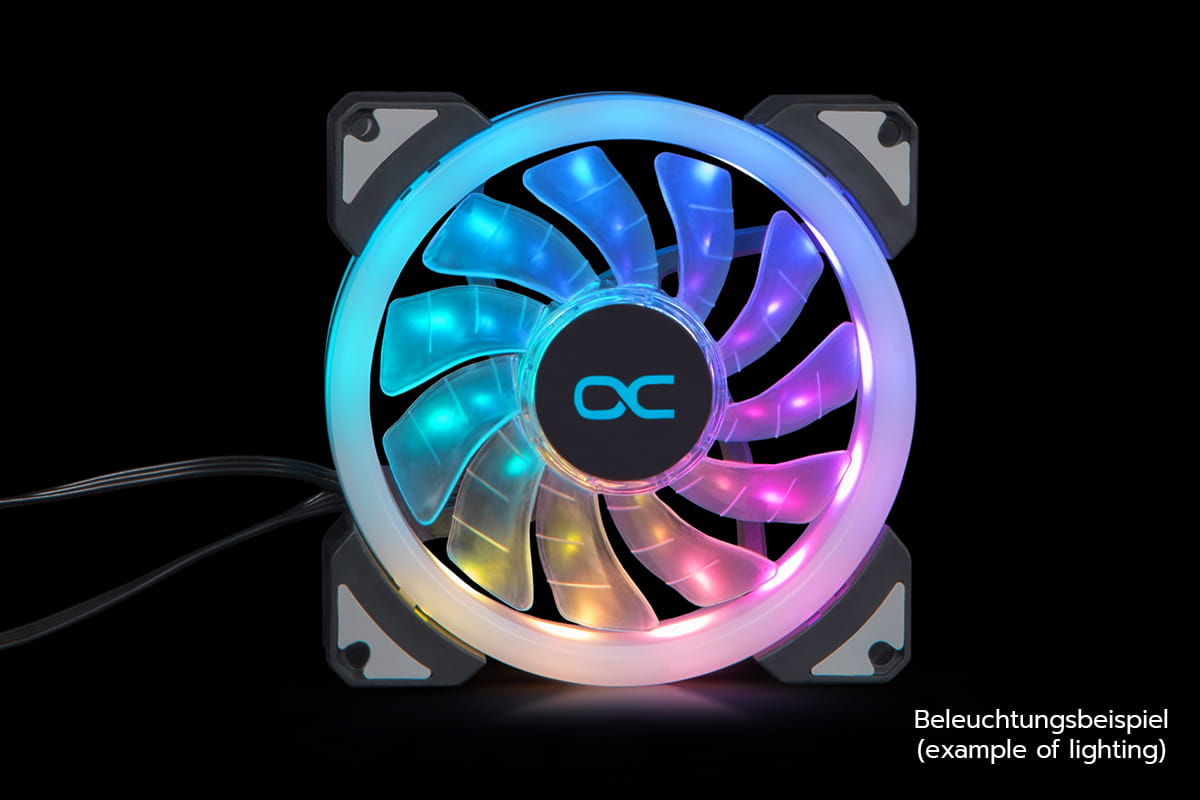

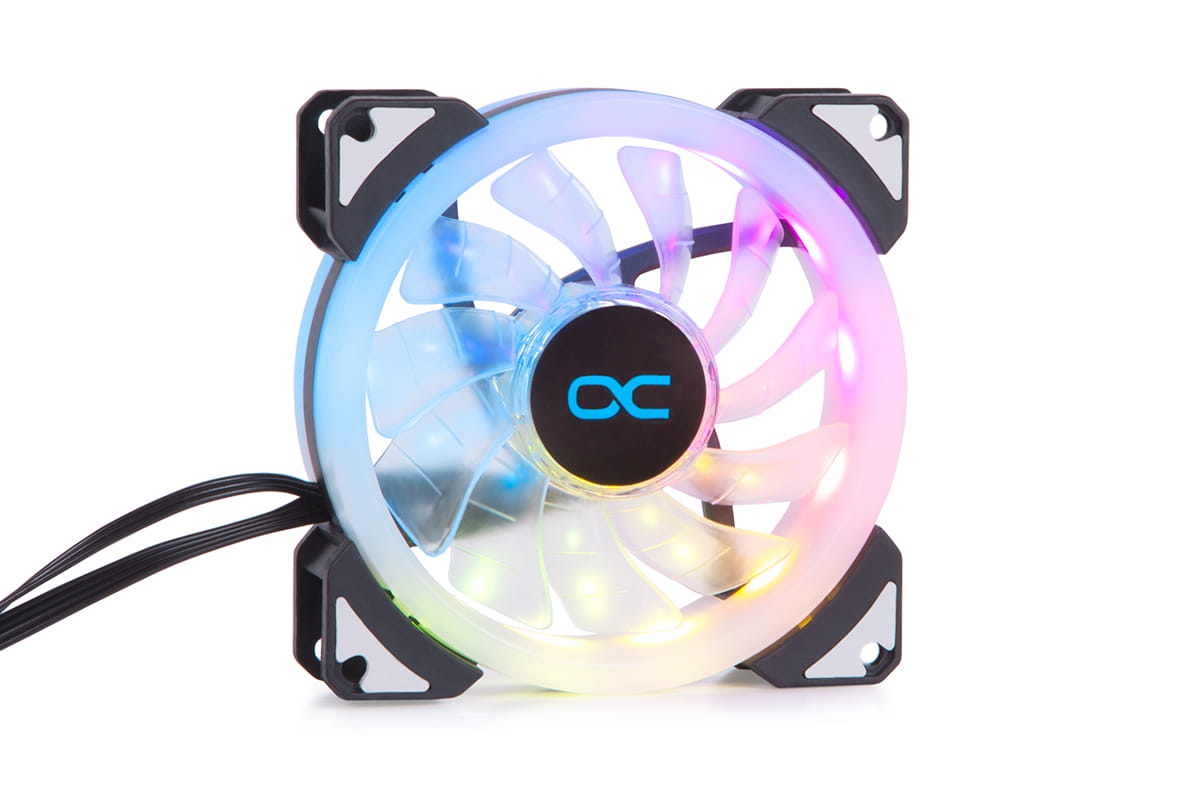

Addressable digital RGB lighting
The Alphacool Eiszyklon houses a total of 12 digital RGB LEDs. The entire fan frame serves as a diffuser, which distributes the light evenly across the entire frame. This not only optimally illuminates the transparent fan blades, but also the area around the fan. This not only ensures homogeneous lighting of the entire fan, but also around the area around the fan.

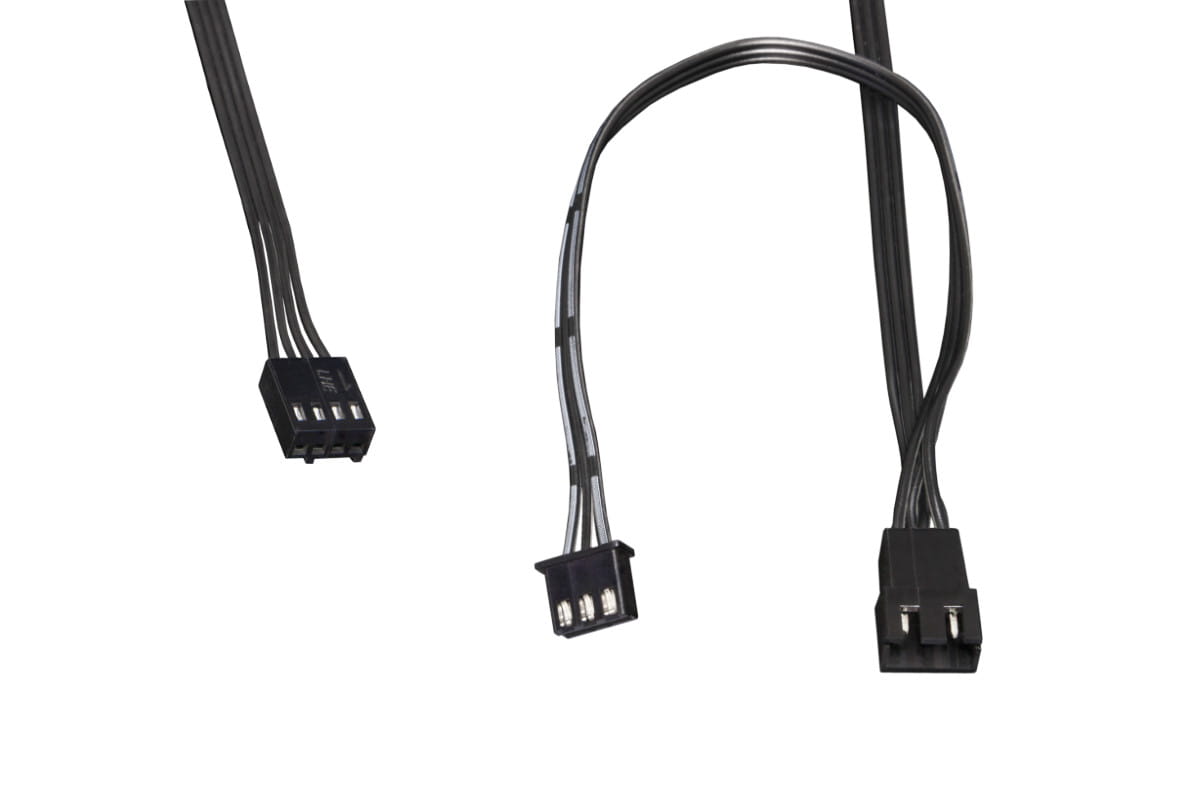

How is the fan controlled?
The fan is controlled via a 4-pin PWM connection. The fan cable is 23cm long. The digital RGB LED lighting is controlled via a JST 3-pin connector. The cable of the JST connector is 50cm long and has a splitter at the end that allows additional digital RGB products with a JST connection to be connected in series. This reduces the cable chaos and allows you to control all products simultaneously via one controller connection.

The Alphacool Aurora LUX fan is an all-round worry-free package with perfect airflow and outstanding 5V digital RGB LED lighting. And all functions can be controlled via just one cable on a controller. It couldn't be easier.

Technical data:
L x W x H: 92 x 92 x 25 mm
Weight: 94g
Speed: 600 - 1800rpm
Fan bearing: Hydraulic
Fan connection: 4-pin PWM
Digital RGB connector: 3-pin JSP + 3-pin 5V
Power consumption: 0.14A (1.68W)
Cable length PWM: 23 cm
Cable length 3-pin JST: 50 cm
Operating voltage: 12V
Static pressure: 0.4 - 0.9 H2O
Air flow: 23 - 51 m³/h
Volume: 17.9 - 32 dB(A)
MTBF 50,000h

Download data sheet PDF: Alphacool Eiszyklon Aurora LUX Digital RGB (92x92x25mm)

Technical details mehr

Technical details

Hersteller:	Alphacool
Nennspannung:	12V DC
Stromanschluss:	4Pin
RPM Signalübertragung:	Ja
Lautstärkebereich:	10 - 19,9 dB(A)
Luftförderbereich:	50 - 99 m³/h
Größe:	92mm
Abmessungen:	92 x 92 x 25mm
Nenndrehzahlbereich:	1000 - 1450 U/min
Nenndrehzahl:	1800 U/min
Lebensdauer (bei 25°C):	50.000 h
Leistungsaufnahme:	1,68W
Druck:	0,90mm H2O
Luftförderleistung:	51 m³/h
Lautstärke:	32 dB(A)
Farbe Rahmen:	schwarz
Farbe Rotor:	transparent, weiß
LED:	ARGB
Lüfterbundle:	nein
