Alphacool NexXxoS 200mm Monsta Radiator

RAD Alphacool NexXxoS Monsta Full Copper 200mm Radiator

Article no.: 14393
EAN: 4250197143936
Weight: 2,035 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€109.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool Eisbaer screw kit M3 x 5/M3 x 30mm

€4.98*

Alphacool HF screw-on nozzle TPV metal - 12.7/7.6mm straight - black - kit of 6

€27.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack

€33.97*

Alphacool ice cyclone Aurora LUX PRO Digital RGB (200x200x25mm)

€14.98*

Bigger is better… right!? Make No Compromises, Use Copper. As usual, Alphacool also uses... more

Close menu

Product information

Bigger is better… right!?

Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS Monsta 200 mm Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.

Full cooling performance
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Which fans?
The Monsta 200 mm radiator offers space for a 200 mm fan with 154 or 165 mm mounting holes on the mounting frame. The fans are screwed onto a mounting frame which can also be removed for purely passive operation in order not to obstruct the natural airflow.

Connection options

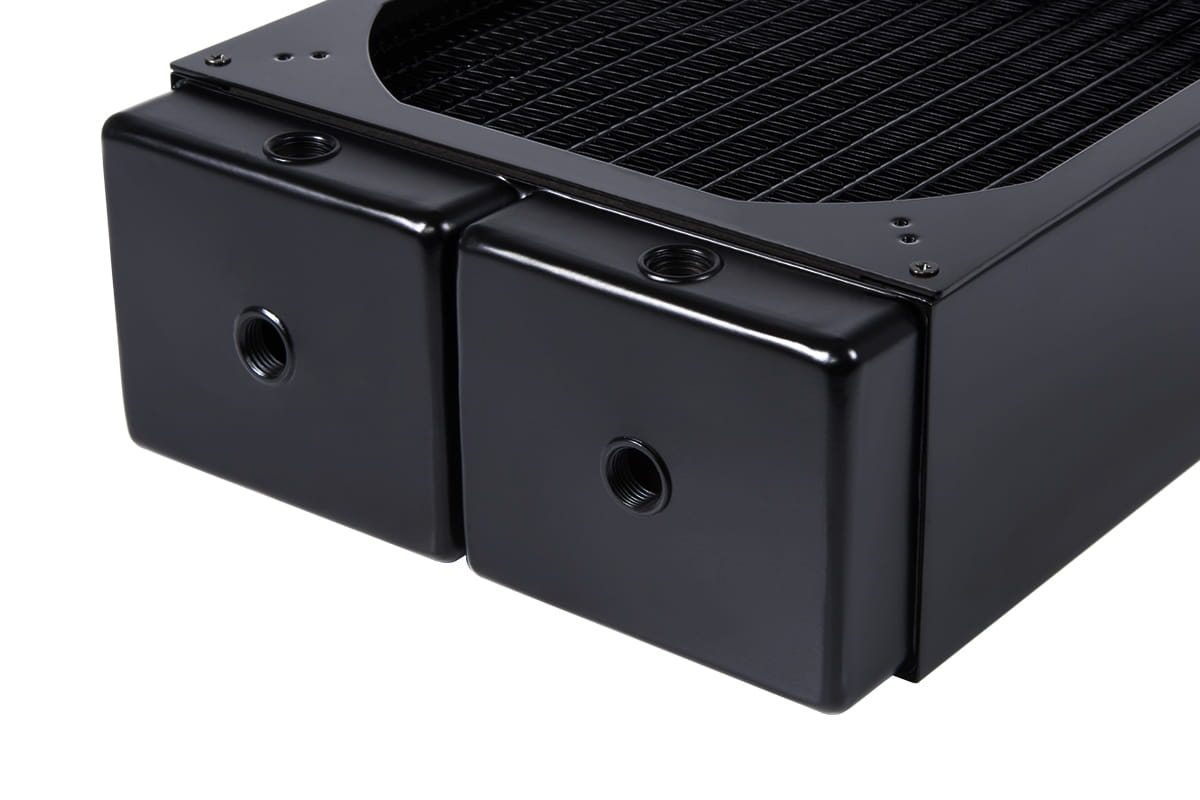

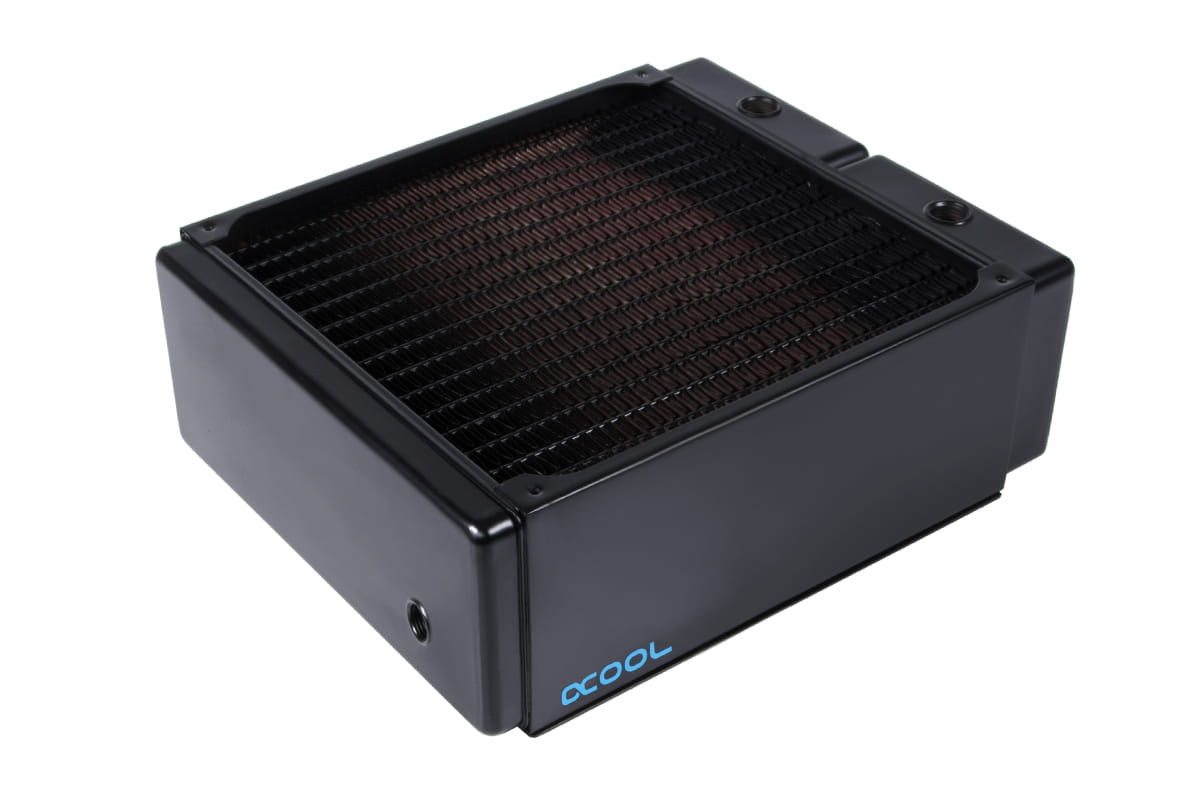

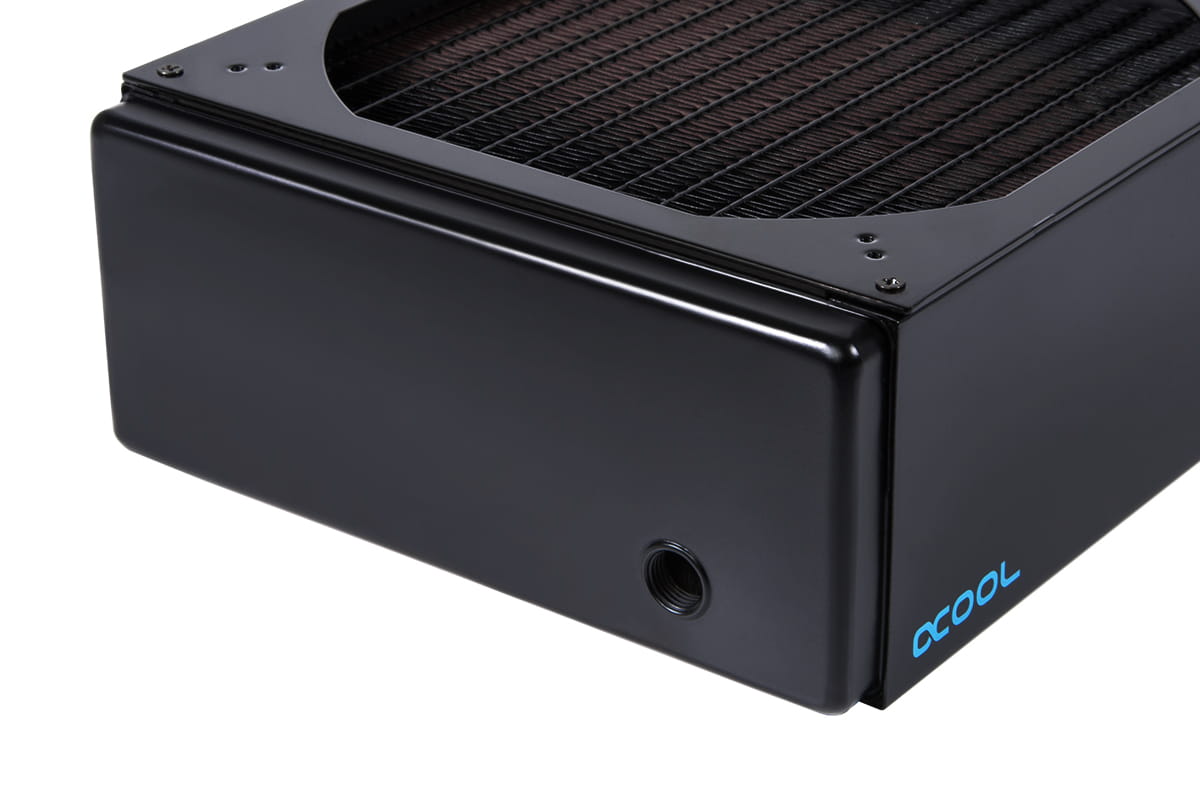

The Alphacool NexXxoS Monsta 200 mm radiator offers six G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.

Small was yesterday. With a cooling surface of 20 x 20 cm the 200 mm Radiator offers more than enough cooling power to cool every CPU and every graphics card.

Technical data
L x W x H	24,8 x 19,9 x 8,7 cm
Quantity of cooling channels	16
Net weight	1700 g
Material cooling fins	copper
Material cooling channels	copper
Material prechamber	copper
Material outer housing	steel
Fins per Inch	12
Threads	7 x G1/4“
Thread size fan mounting	M3
Fan size	180 oder 200 mm
Fan slots	2 x 185x185 mm, 1 x 165x165 mm, 1 x 155x155 mm
Pressure tested	0,8 bar

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Fins per inch:	12
Dicke:	69 - 100mm
Anschluss:	7x G1/4"
Anzahl Lüfter:	2
Abmessungen (L x B x H):	248 x 199 x 87mm
Lüftergröße:	180mm, 200mm
