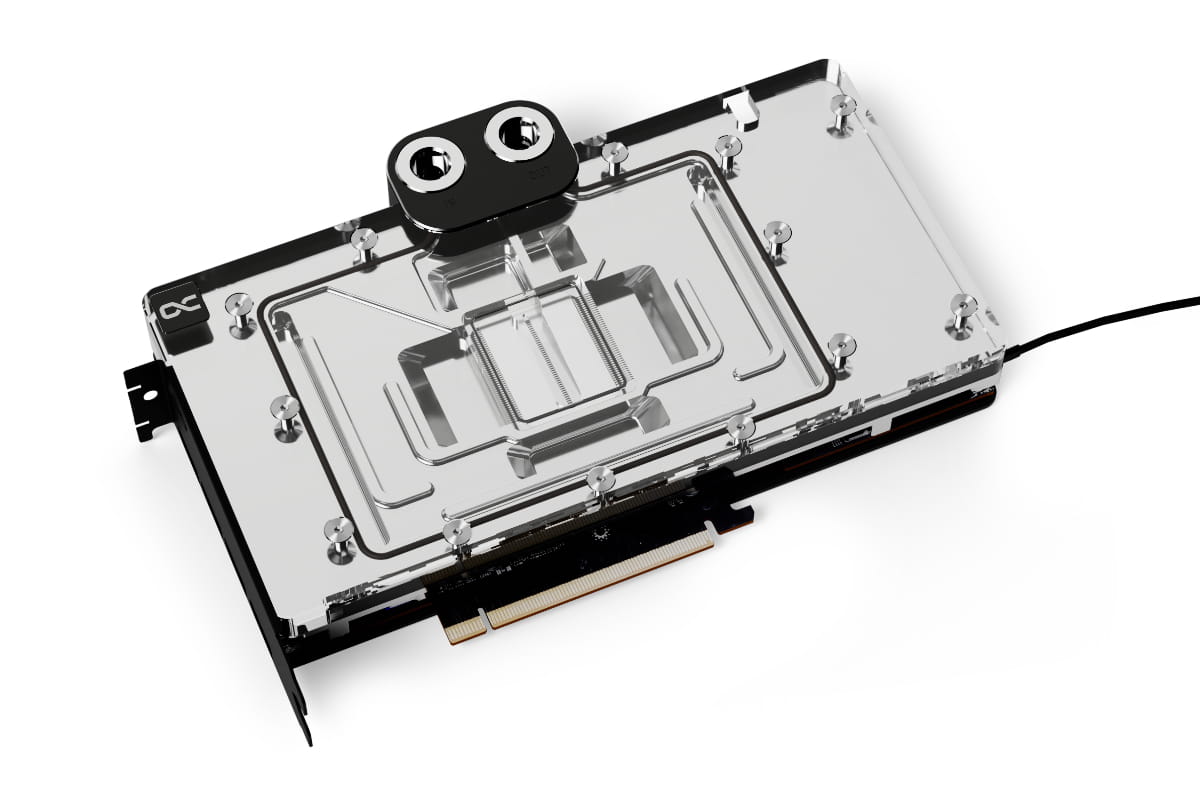

Alphacool Core Geforce RTX 4090 AMP with Backplate

  • 13481
  • 4250197134811
  • 1,955 kg
  • There are more than 25 units available
  • Images may differ slightly from the original
€169.98 * €199.98 * (15% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
S13 Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
1x
Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
€18.98*
ANK Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black
1x
Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black
€9.98*
ANS Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
1x
Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
€16.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
11988 Alphacool Core Storm 420mm ST30 water cooling Set
1x
Alphacool Core Storm 420mm ST30 water cooling Set
€329.98*
13074 Alphacool Eisbaer Pro HPE Aurora 360 CPU AIO
1x
Alphacool Eisbaer Pro HPE Aurora 360 CPU AIO
€219.98*
Alphacool's Core product series is characterized by high quality, outstanding performance and... more
Product information

Alphacool's Core product series is characterized by high quality, outstanding performance and the uniform and functional design language.

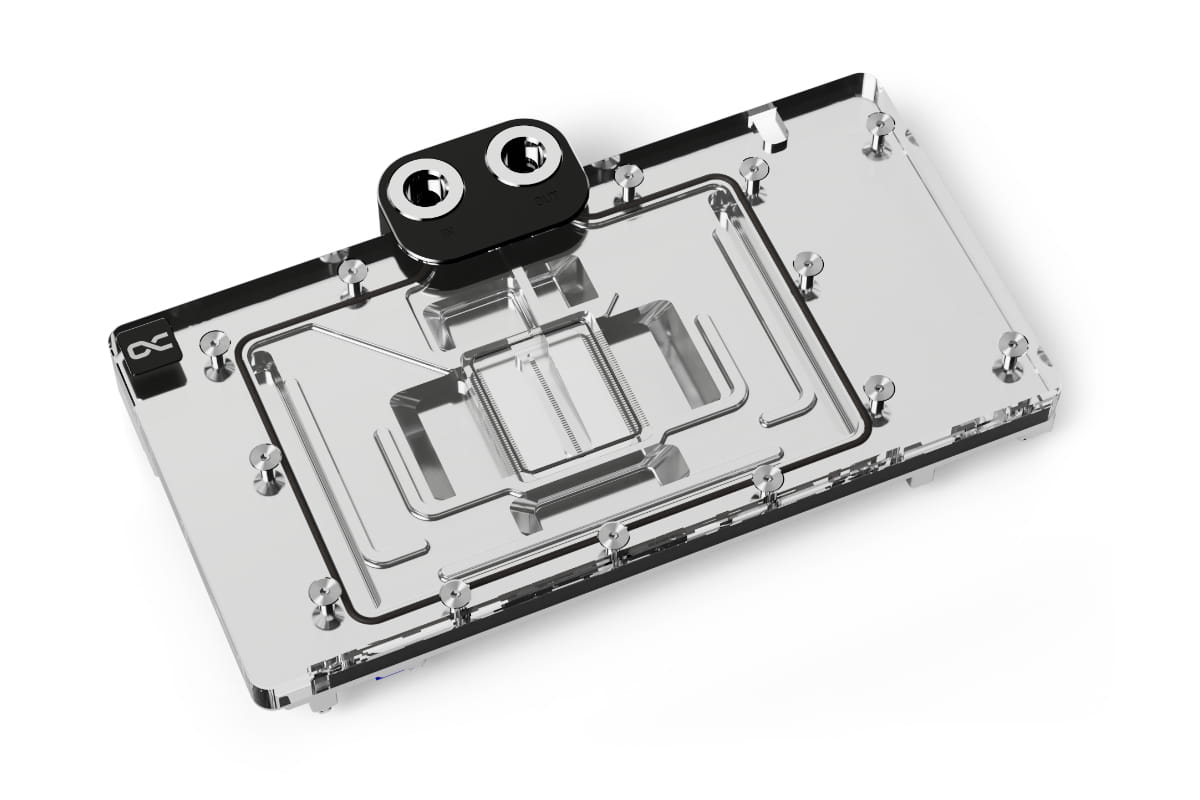

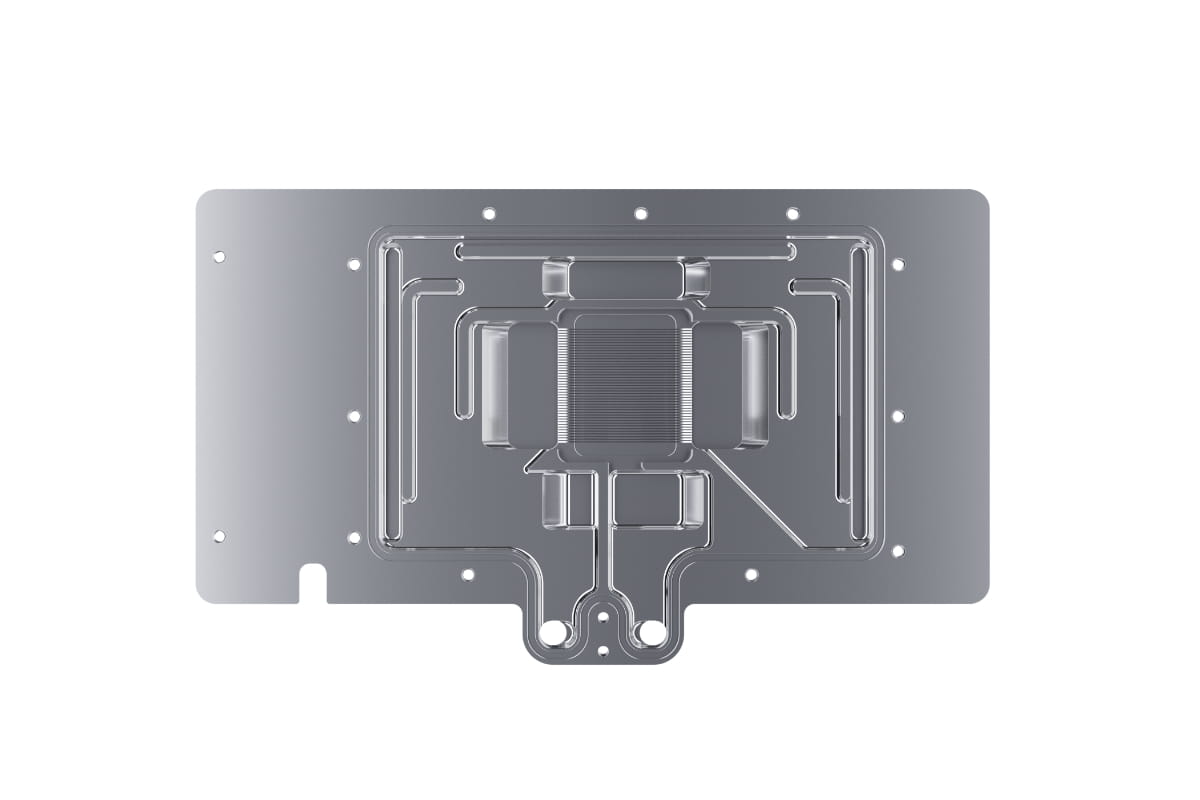

The copper cooler which, like the end terminal, is milled from a single piece of copper and is the core of this cooler. The fine workmanship, paired with the hard and resistant chrome plating covering the entire copper cooler, meet the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides stand out visually from the terminal. They are a central feature of the new design language that will be evident in all products in the Core series.

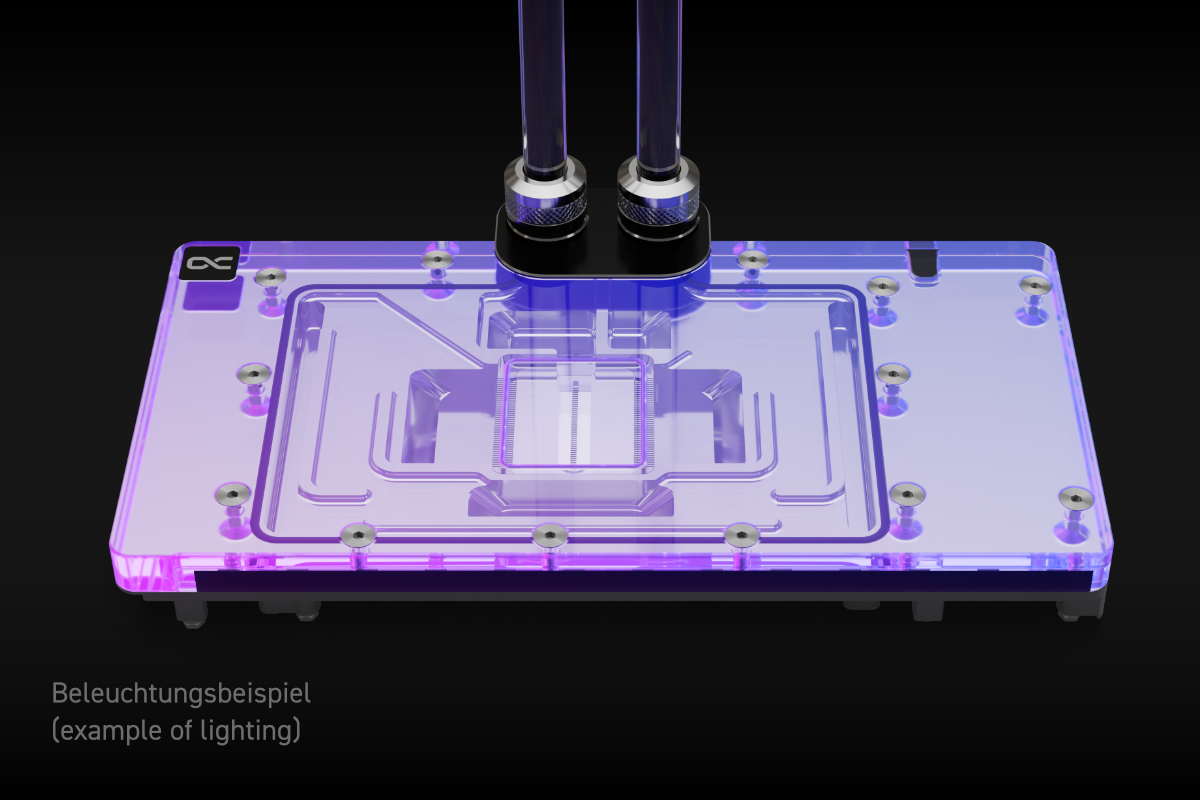

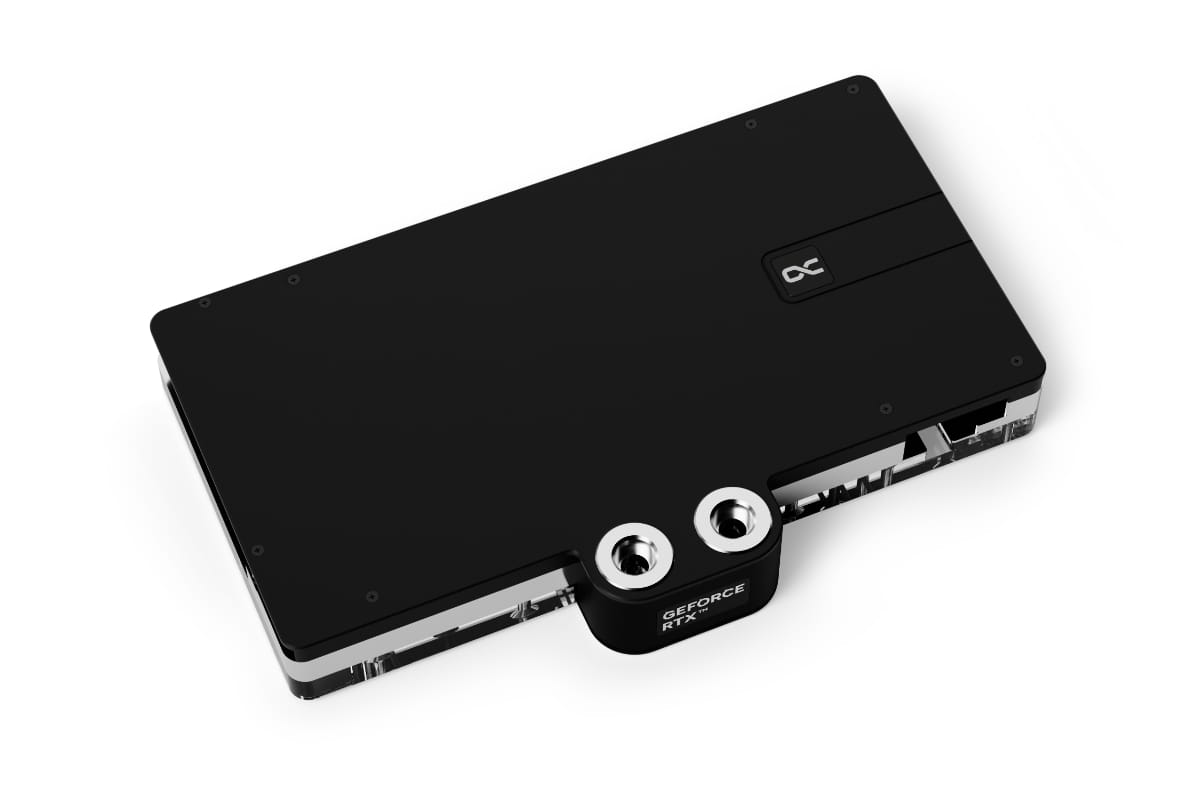

The aluminum backplate adapted to the design, together with the terminal, makes up the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which illuminate the entire cooler evenly and effectively.

The technical advancements can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.



Compatibility:
- Manli GeForce RTX 4090 Gallardo, 24GB GDDR6X (N67540900M35300)
- Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO, 24GB GDDR6X (ZT-D40900B-10P)
- Zotac Gaming GeForce RTX 4090 Trinity OC, 24GB GDDR6X (ZT-D40900J-10P)
- Zotac Gaming GeForce RTX 4090 Trinity, 24GB GDDR6X (ZT-D40900D-10P)



Technical data cooler
Dimensions (L x W x H)235,40 x 145,90 x 32,10mm
Material coolerchrome-plated copper
Material cooler topacrylic
Max working temperature60°C
Pressure tested0,8 bar
Threads4 x G1/4"
Thickness cooler bottom11,3mm
Thickness cooling fins0,4mm
Distance cooling fins0,4mm
Illuminationdigital aRGB LEDs
Power connector digital aRGB LEDs3-Pin JST
Power digital aRGB LEDs5V
Number of digital aRGB LEDs13
Colortransparent

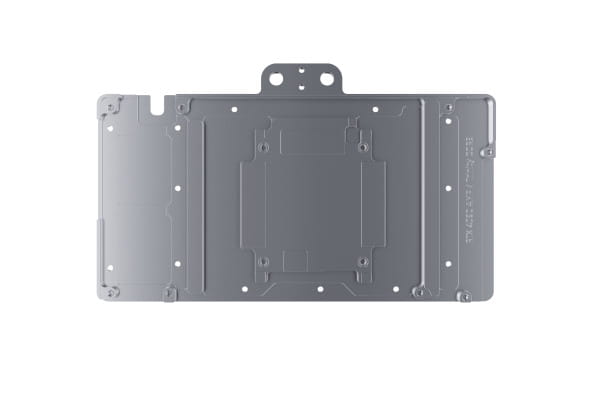

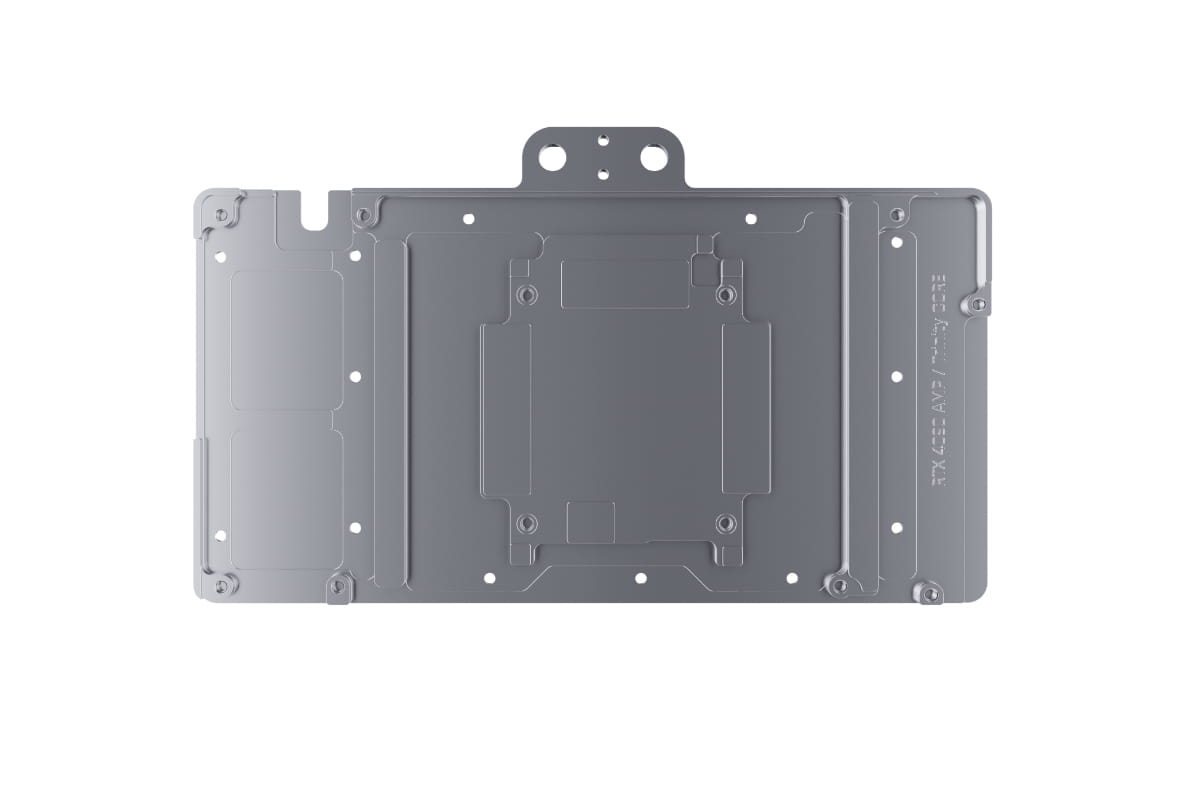

Technical data backplate
Dimensions (L x W x H)235,40 x 122,90 x 5mm
Materialaluminium
Colorblack

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Awards & Videos
Technical details mehr
Technical details
Manufacturer: Alphacool
Cooler type: Complete cooler
Material base plate: Copper
Material Lid: Acrylic
SLI compatible: Yes
Dimensions: 235,40 x 145,90 x 32,10mm
Connection: 4x G1/4"
Hardware manufacturers: NVIDIA
Hardware model: RTX 4090
Notice: Compatible up to 16/13mm straight, Compatible up to 19/13mm angled
