Alphacool VPP655 - G1/4 IG incl. ice cover D5 - Acrylic V.3

PUM Alphacool VPP655 - G1/4 IG inkl. Eisdecke D5 - Acryl V.3

Article no.: 13192
EAN: 4250197131926
Weight: 0,674 kg
Available: Currently there are 3 available - More is on the way
Images may differ slightly from the original

€99.98 * €142.78 * (29.98% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool's attachment for the Laing D5 is now a member of the Eisdecken series and receives an... more

Close menu

Product information

Alphacool's attachment for the Laing D5 is now a member of the Eisdecken series and receives an update.

This attachment has been a benchmark for years. Small improvements have been made time and again. The second major update differs in a few details, both visually and technically.

The principle: There is space for the Laing D5 or VPP655 on the bottom and inlet and outlet at the front or on the top.

For even more flexibility, the ice cover has three inlets and two outlets. Another feature is the new bracket to give the whole unit a stable stand and round off the overall visual appearance. Installation in a 3.5" slot is also possible as an option.

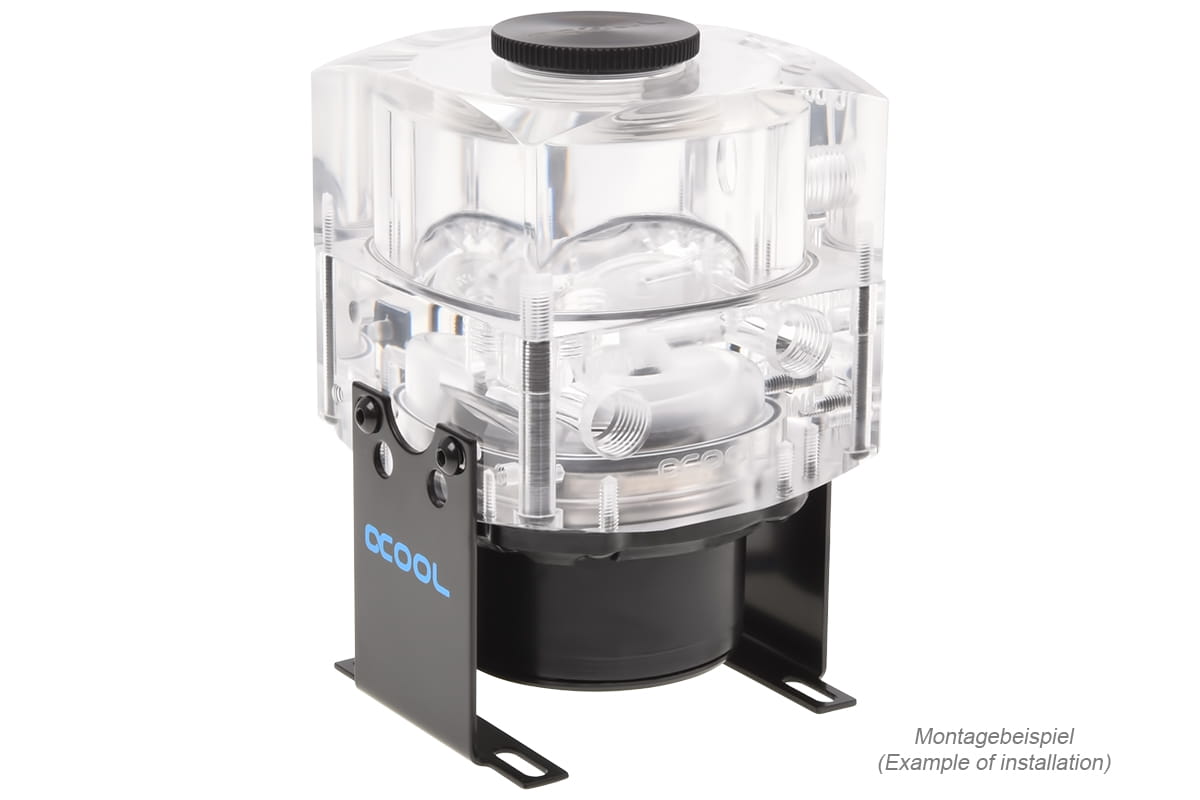

The attachment can be converted into a complete expansion tank using the expansion tank attachment available as an accessory, which has also been redesigned.

For all case modders, the acrylic glass attachment has four holes for 5mm LEDs!

Technical data

Dimensions: 80 x 80 x 40mm
Dimensions with feet: 83 x 80 x 87mm
Material: Acrylic
Connections: 5x 1/4" thread

Alphacool VPP 655
Alphacool's new power pump series, unique performance at an unbeatable price. The 12V pumps can simply be connected to the power supply and the pump starts up together with the computer! This ensures maximum comfort and the greatest possible safety.

This pump is ideal for water cooling PCs and other electronic components. The DC motor pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor, which in this case rests on a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers a number of advantages: For example, an increase in bearing play is not possible due to the design, and the pump will always run consistently quietly and smoothly. Separate magnetic shielding is also not necessary with this pump. The spherical motor principle allows efficient operation with excellent performance. All parts of the pump are completely corrosion-resistant. The pump is simply operated on a 12V Molex connection of the PC power supply.

The special feature of this model is that only the pump core is supplied. Why not? If you want to connect the pump to an alternative cover or expansion tank anyway, why should you pay more for everything else? Another feature is located on the back; with a small turning movement, the pump can be regulated to 5 different pumping levels.

Technical details

Dimensions (WxHxD): 65x65x57mm (without connections)
Motor: Electronically commutated spherical motor
Standard voltage: 12V DC
Power consumption: 23W
Allowed voltage: 8-24V DC
Pressure at 12V: 3.7m water column
Maximum flow: 350l/h
Pump medium: water, water/glycol mixture
Maximum system temperature: 60°C
Related materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminum oxide, hard carbon
Special features: Adjustable in five levels
Level 1: 1800 rpm
Level 2: 2550 rpm
Level 3: 3300 rpm
Level 4: 4050 rpm
Level 5: 4800 rpm
Power connector: 4 pin Molex

Scope of delivery

Alphacool VPP655 - G1/4 IG incl. ice cover D5 - Acrylic V.3

Notice
Not suitable for continuous use with liquids containing titanium dioxide or glycerine. Many pastel colors typically use these additives.

Assembly instructions

Download 3D file (.stp)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
Dimensions:	95 x 45 x 80mm
Maximum discharge head:	Good (2 to 4m)
Maximum system temperature:	60°C
Maximum flow:	1500 l/h
Possible control range:	8-24V DC
Color:	Transparent
Tension:	12V DC
Power connection:	4Pin
Water outlet:	G1/4" internal thread
Water inlet:	G1/4" internal thread
Approved liquids:	Water/glycol mixture
Power consumption:	23W
Material:	Acrylic, Ceramics, Plastic
