Alphacool VPP655 - OT12 (G1/2" external thread)

PUM Alphacool VPP655 - OT12 (G1/2" Außengewinde)

Article no.: 13120
EAN: 4250197131209
Weight: 0,47 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€99.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's new power pump series, unique performance at an unbeatable price. The 12V pumps can... more

Close menu

Product information

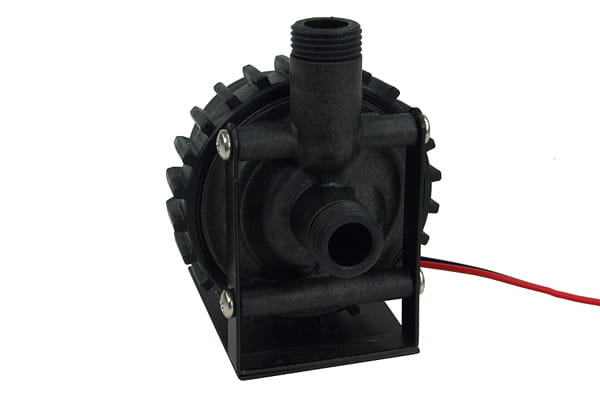

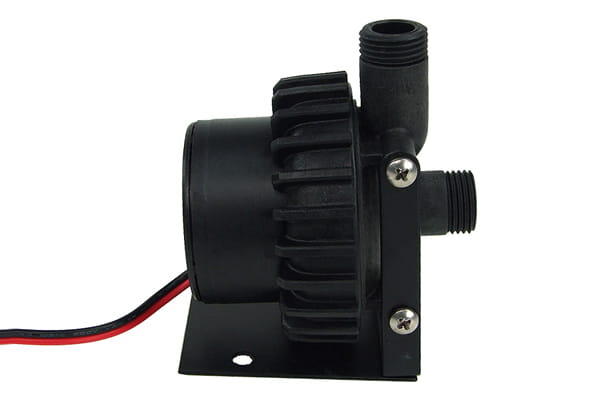

Alphacool's new power pump series, unique performance at an unbeatable price. The 12V pumps can simply be connected to the power supply and the pump starts up together with the computer! This ensures maximum comfort and the greatest possible safety.

This pump is ideal for water cooling PCs and other electronic components. The DC motor pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor, which in this case rests on a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers a number of advantages: For example, an increase in bearing play is not possible due to the design, and the pump will always run consistently quietly and smoothly. Separate magnetic shielding is also not necessary with this pump. The spherical motor principle allows efficient operation with excellent performance. All parts of the pump are completely corrosion-resistant. The pump is simply operated on a 12V Molex connection of the PC power supply.

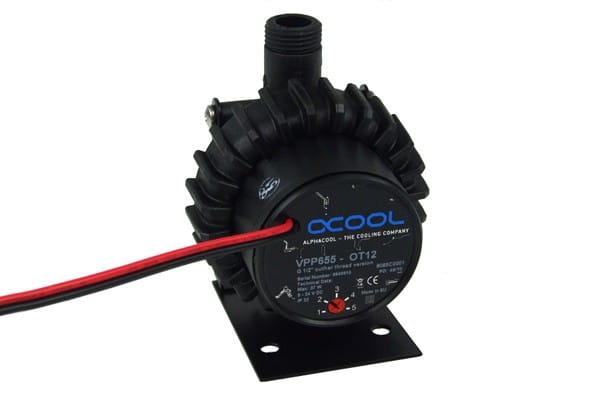

The special feature of this model is that it can be adapted to all common hose types using a sleeve. Another feature is located on the back; with a small turning movement, the pump can be regulated to 5 different speed levels.

Technical details

Dimensions (WxHxD): 90 x 90 x 90mm (without connections)
Motor: Electronically commutated spherical motor
Standard voltage: 12V DC
Power consumption: 23W
Allowed voltage: 8-24V DC
Pressure at 12V: 3.7m water column
Maximum flow: 1500l/h
Pump medium: water, water/glycol mixture
Maximum system temperature: 60°C
Related materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminum oxide, hard carbon
Connections: 2x 1/2“ external thread
Special features: Adjustable in five levels
Level 1: 1800 rpm
Level 2: 2550 rpm
Level 3: 3300 rpm
Level 4: 4050 rpm
Level 5: 4800 rpm

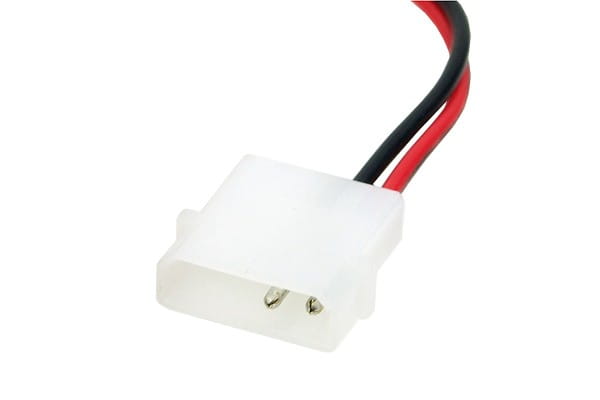

Power connector: 4 pin Molex

Scope of delivery

1x Alphacool VPP655 -OT12 (G1/2" external thread)

Notice
Not suitable for continuous use with liquids containing titanium dioxide or glycerine. Many pastel colors typically use these additives.

Data sheet D5 pump

Danger
Pump control possible through Heatmaster!

Notice
To adapt to 1/4 inch thread we recommend item number: 64044 or 64125.

Notice
The Alphacool pump adapter cable (item 52171) is required for pump control by the Heatmaster

The assembly instructions can be downloaded here

This product has been tested for you
Hardwareluxx (User review)
xtremesystems (user review)
Hardwarelabs

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Stromanschluss:	4Pin
Farbe:	schwarz
Spannung:	12V DC
Maximale Förderhöhe:	Gut (2 bis 4m)
Maximale Systemtemperatur:	60°C
Leistungsaufnahme:	23W
Maximaler Durchfluss:	1500 l/h
Möglicher Regelbereich:	8-24V DC
Zugelassene Flüssigkeiten:	Wasser/Glykol-Gemisch
Abmessungen:	90 x 90 x 90mm
Wassereinlass:	G1/2" Außengewinde
Wasserauslass:	G1/2" Außengewinde
Material:	Keramik, Kunststoff
