GPU water cooler for RTX 3090TI Founders Edition

WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3090TI Founders Edition mit Backplate PHT EOL

Article no.: 13056
EAN: 4250197130561
Weight: 1,365 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€76.98 * €159.98 * (51.88% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

and Conditions Alphacool Core 100 Aurora Reservoir D5/VPP Acetal/Acrylic

€45.98*

The Alphacool Eisblock Aurora Acryl GPX graphics card water cooler with backplate combines style... more

Close menu

Product information

The Alphacool Eisblock Aurora Acryl GPX graphics card water cooler with backplate combines style with performance. Extreme cooling performance and extensive digital RGB lighting are what set it apart. Experience and technical know-how from more than a decade have gone into the development, without making any technical compromises. The Eisblock Aurora Acryl GPX is a major development of the previous Alphacool graphics card water cooler, which has been improved in every area.

More performance!
When developing the Eisblock Aurora Acryl GPX graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thickness of the thermal pads. In the second step, the nickel-plated copper block was also made thinner. Step 3 involves the constant optimization of the water flow within the cooler. Result: All important components such as voltage converters and RAM are cooled much better and more effectively by the water and the cooling performance increases significantly.

Brilliant design!

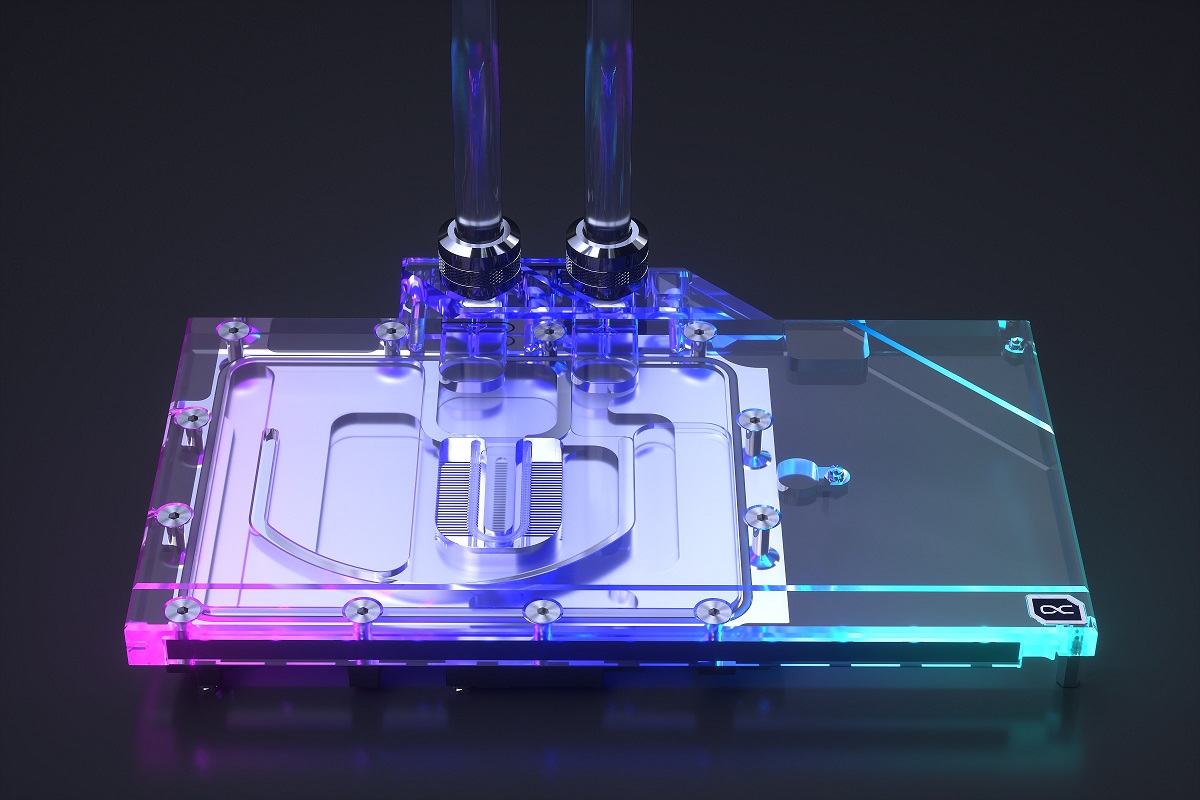

The addressable digital aRGB LEDs are embedded directly in the cooling block and run along the sides of the entire cooling block. The effect is lighting that encloses the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light scattering in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX cooler a very unique visual touch.

Copper or aluminum?
Alphacool only uses copper in its water coolers. The Eisblock Aurora Acryl GPX has nickel-plated copper. Compared to previous models, Alphacool has improved the type of nickel plating, which has significantly increased acid resistance. This should prevent the nickel plating from flaking off. Why does Alphacool use copper instead of aluminum? Copper has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.

Other special features
The Eisblock Aurora Acrylic GPX GPU cooler has patented locking screws that sit flush with the surface of the terminal. The Alphacool logo is in the corner on the top and is also fully illuminated. The corresponding designations of the compatible graphics card manufacturers can be seen on the front of the terminal. Of course, these are also fully illuminated by the addressable digital LEDs. IN and OUT are marked by small, discreet triangles. They are easy to recognize and fit perfectly into the overall visual line of the graphics card water cooler.

Compatibility:
- NVIDIA GeForce RTX 3090 Ti Founders Edition

Technical data cooler
L x W x H	220.5 x 146.40 x 23.35mm
Radiator base material	nickel-plated copper
Material radiator top	Acrylic
Connections	4xG1/4
Thick cooling fins	0.6mm
lighting	digital aRGB LEDs
Power connection digital aRGB LEDs	3-Pin JST
Voltage digital aRGB LEDs	5V
Number of digital aRGB LEDs	11
Maximum working temperature	60°C
Pressure tested	0.8 bars

Technical data backplate
L x W x H	220x121.4x6mm
material	aluminum
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Hardware Hersteller:	NVIDIA
SLI kompatibel:	Ja
Kühlertyp:	Komplettkühler
Anschluss:	4x G1/4"
Material Deckel:	Acryl
Material Bodenplatte:	Kupfer
Abmessungen:	220,5 x 146,40 x 23,35mm
Hinweis:	Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell:	RTX 3090
