RTX 3080/3090 GameRock water cooler

WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock mit Backplate PHT EOL

Article no.: 11964
EAN: 4250197119641
Weight: 1,5 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€62.97 * €159.97 * (60.64% Saved)

Prices incl. VAT plus shipping costs

in stock

and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm

€95.98*

Alphacool Eiszapfen L-connector rotatable G1/4 AG to G1/4 IG - White

€5.99*

Alphacool Eisbaer TPV Extension Set (hose and connections)

€15.39*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

Alphacool NexXxoS ST30 Full Copper 360mm Radiator

€59.98*

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock with backplate combines style... more

Close menu

Product information

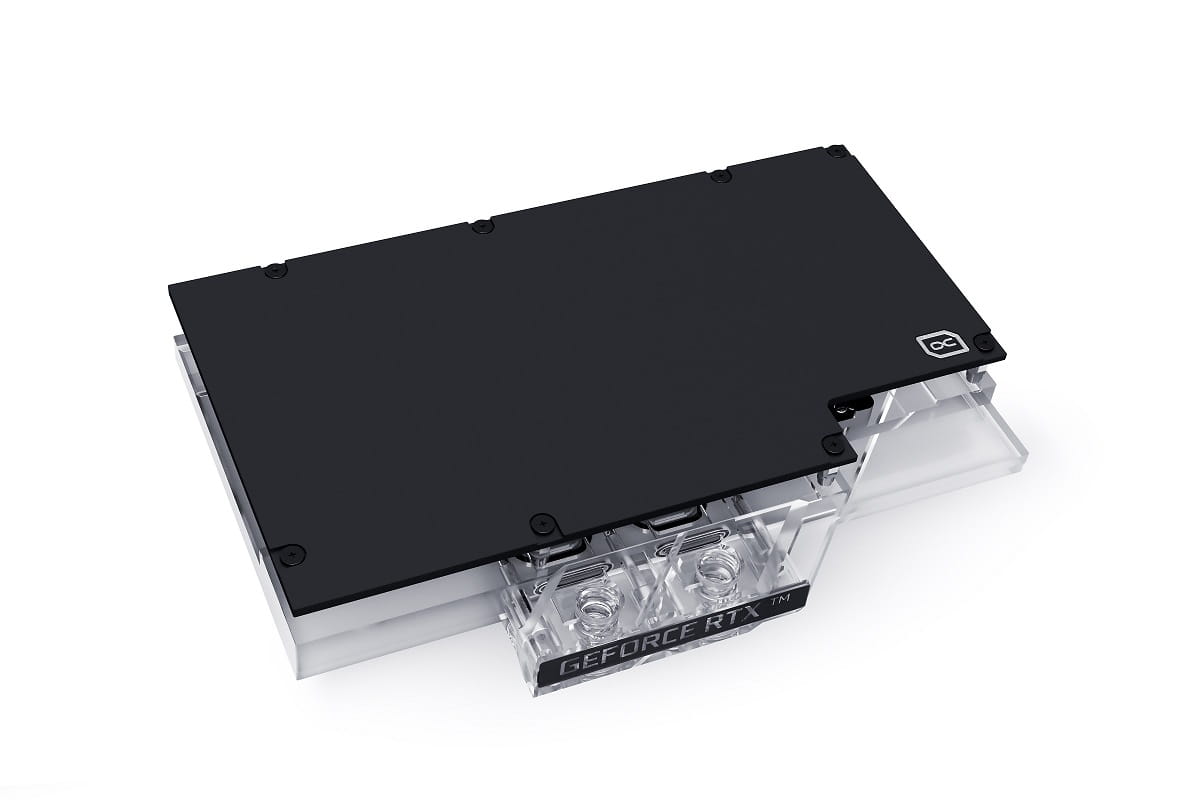

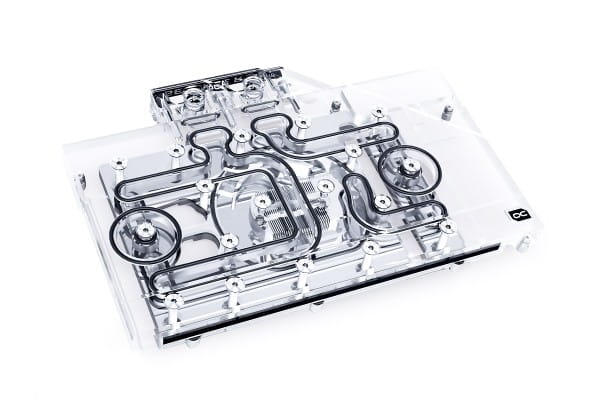

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock with backplate combines style with performance and extensive digital RGB lighting. Over 17 years of experience have been incorporated into this graphics card water cooler and represent the current pinnacle of Alphacool product development.

More performance!
When developing the Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. In the second step, the nickel-plated copper block was also made thinner. Instead of the previous 7 mm, it is now only 5.5 mm thick. The water flow within the cooler has also been optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by the water. All of this ensures a significant increase in cooling performance.

New design!

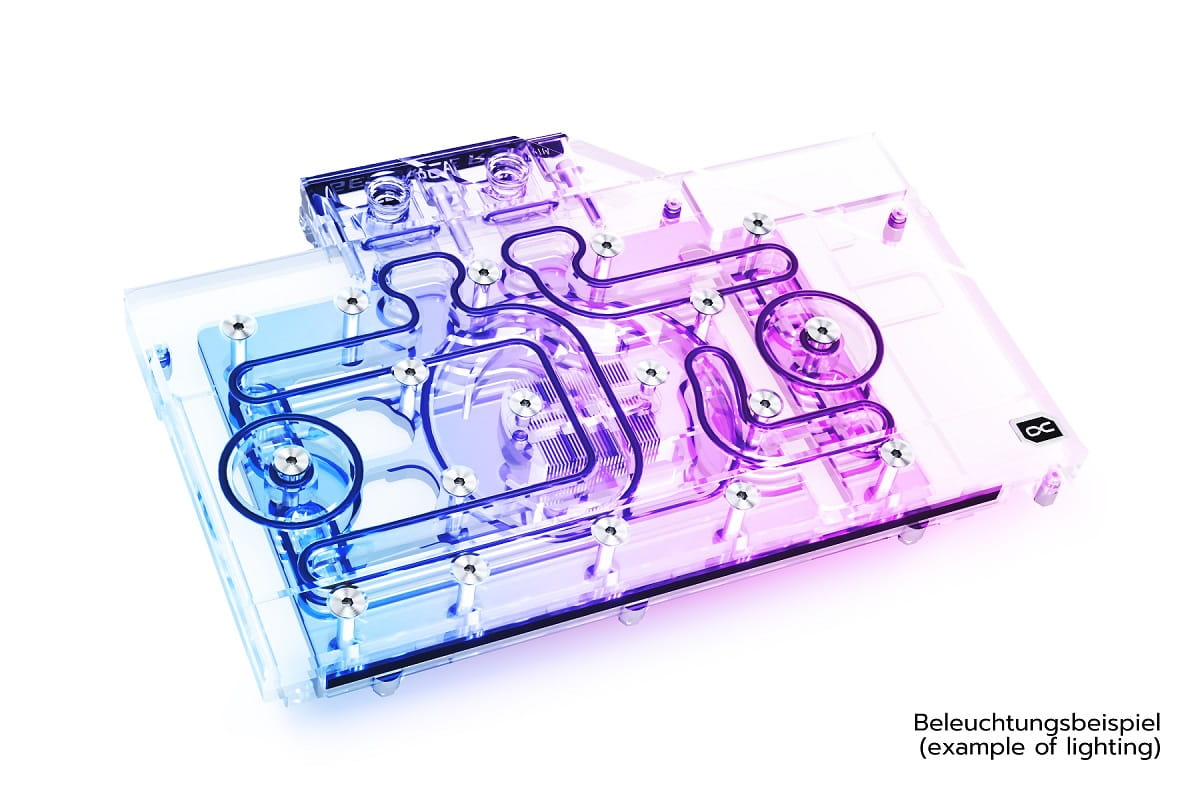

The Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock cooler was fundamentally designed in such a way that the lighting is more in the foreground than in previous models. The addressable digital RGB LEDs are embedded directly in the cooling block and they run along the sides of the entire cooling block. The effect is lighting that encloses the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light scattering in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock cooler a very unique visual touch.

Copper or aluminum?
Alphacool, of course, only uses copper in its water coolers. The Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock has nickel-plated copper. Compared to previous models, Alphacool has further improved the type of nickel plating, which has significantly increased acid resistance. This should prevent the nickel plating from flaking off. And why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.

Are these all the new things?
The Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock graphics card water cooler also uses the new patented locking screws, which are flush with the surface of the terminal. The Alphacool logo is now in the corner on the top and is also fully illuminated. The corresponding designations of the compatible graphics card types can be seen on the front of the terminal. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small, discreet triangles. They are easily recognizable and fit perfectly into the overall visual line of the graphics card water cooler.

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock is in every respect a complete development of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how was incorporated into the development and implementation.

Technical data cooler
L x W x H	215.6 x 144.5 x 25mm
Radiator base material	Nickel-plated copper
Material radiator top	POM clear
Connections	4xG1/4“
Thick cooling fins	0.6mm
lighting	Digital RGB LEDs
Power connection Digital RGB LEDs	3-Pin JST
Voltage Digital RGB LEDs	5V

Graphics card configurator: Click here!
Compatibility list: Nvidia cards

Compatibility:
- Palit GeForce RTX 3080 Ti GameRock, 12GB GDDR6X, HDMI, 3x DP (NED308T019KB-1020G)
- Palit GeForce RTX 3080 Ti GameRock OC, 12GB GDDR6X, HDMI, 3x DP (NED308TT19KB-1020G)
- Palit GeForce RTX 3080 GameRock, 10GB GDDR6X, HDMI, 3x DP (NED3080U19IA-1020G)
- Palit GeForce RTX 3080 GameRock OC, 10GB GDDR6X, HDMI, 3x DP (NED3080H19IA-1020G)
- Palit GeForce RTX 3090 GameRock OC, 24GB GDDR6X, HDMI, 3x DP (NED3090H19SB-1021G)
- Palit GeForce RTX 3090 GameRock, 24GB GDDR6X, HDMI, 3x DP (NED3090T19SB-1021G)

- Gainward GeForce RTX 3080 Phantom, 10GB GDDR6X, HDMI, 3x DP (2119)
- Gainward GeForce RTX 3080 Phantom GS, 10GB GDDR6X, HDMI, 3x DP (2140)
- Gainward GeForce RTX 3080 Ti Phantom, 12GB GDDR6X, HDMI, 3x DP (2393)
- Gainward GeForce RTX 3080 Ti Phantom GS, 12GB GDDR6X, HDMI, 3x DP (2416)
- Gainward GeForce RTX 3090 Phantom, 24GB GDDR6X, HDMI, 3x DP (2058)
- Gainward GeForce RTX 3090 Phantom GS, 24GB GDDR6X, HDMI, 3x DP (2072)

Download data sheet PDF: Alphacool_Eisblock_Aurora_Acryl_GPX-N_RTX_3080-3090_GameRock_mit_Backplate
Download manual PDF: Alphacool_Eisblock_Aurora_Acryl_GPX-N_RTX_3080-3090_GameRock_Backplate

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
Cooler type:	Complete cooler
Material base plate:	Copper
Material Lid:	Acrylic
SLI compatible:	Yes
Dimensions:	144,5 x 215,6 x 25mm
Connection:	4x G1/4"
Hardware manufacturers:	NVIDIA
Hardware model:	RTX 3080, RTX 3090
Notice:	Compatible up to 16/13mm straight, Compatible up to 19/13mm angled
