Active backplate for graphics card water cooling

WAK Alphacool Eisblock Aurora GPX-N Acryl Active Backplate 3090/3080 Ventus EOL

Article no.: WAK
EAN: 4250197130486
Weight: 0,99 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€44.98 * €86.98 * (48.29% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Leak Testing Tool incl. Pump

€34.98*

Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Ventus with backplate

€68.98*

Alphacool Aurora Vertical GPU Mount with Riser Cable

€74.98*

Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Ventus with backplate

€159.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool MCX 2x distributor with 1m 5/3mm hose

€15.98*

The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics... more

Close menu

Product information

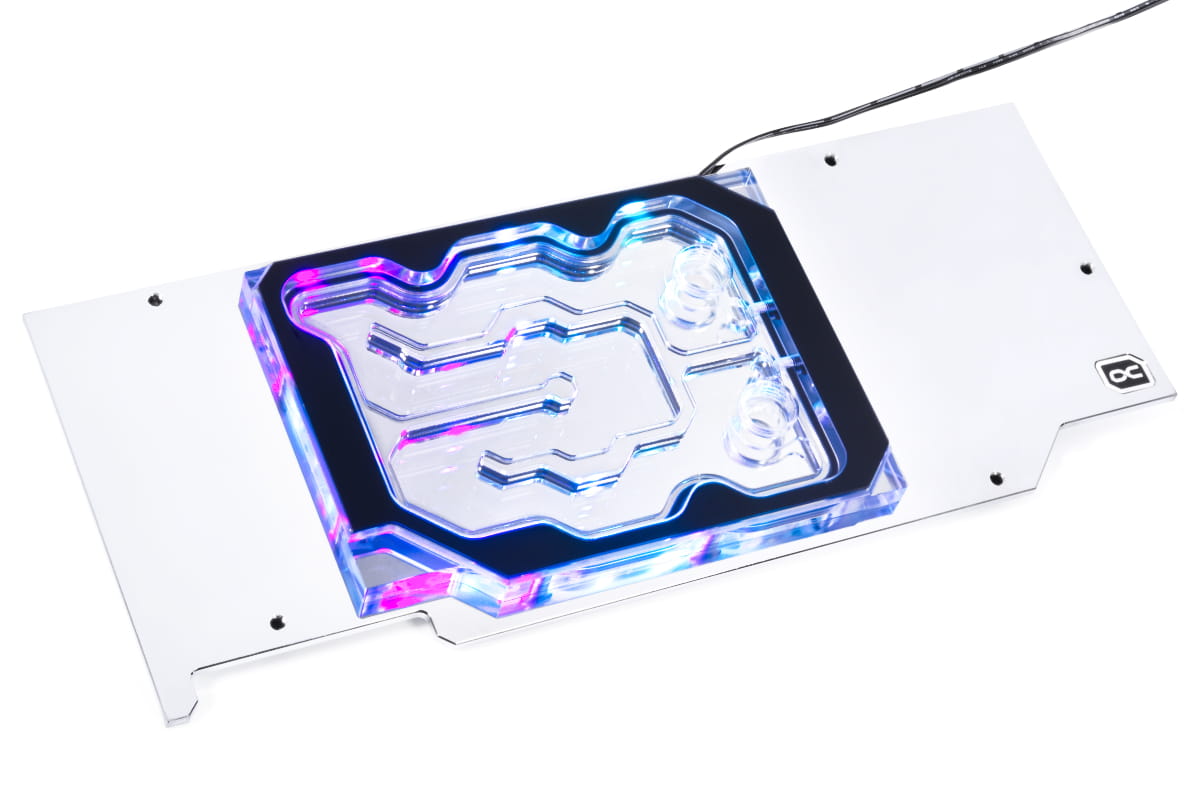

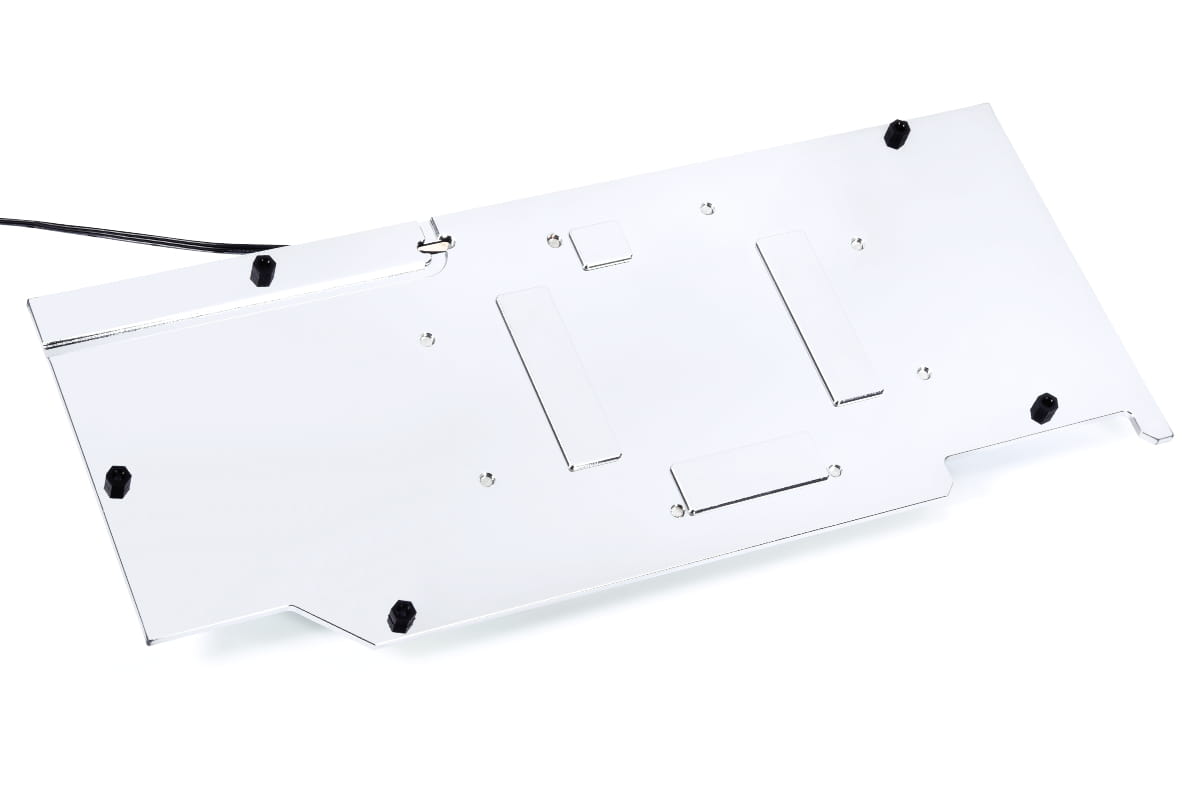

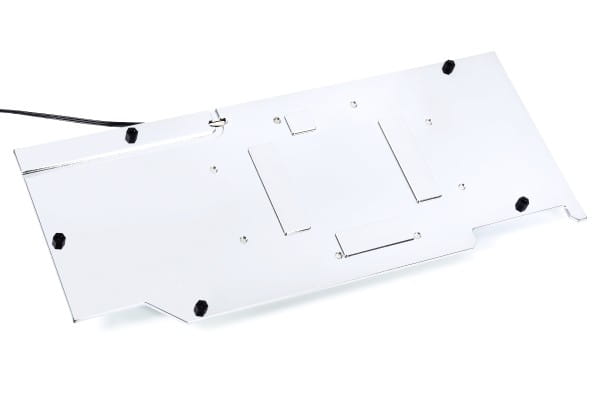

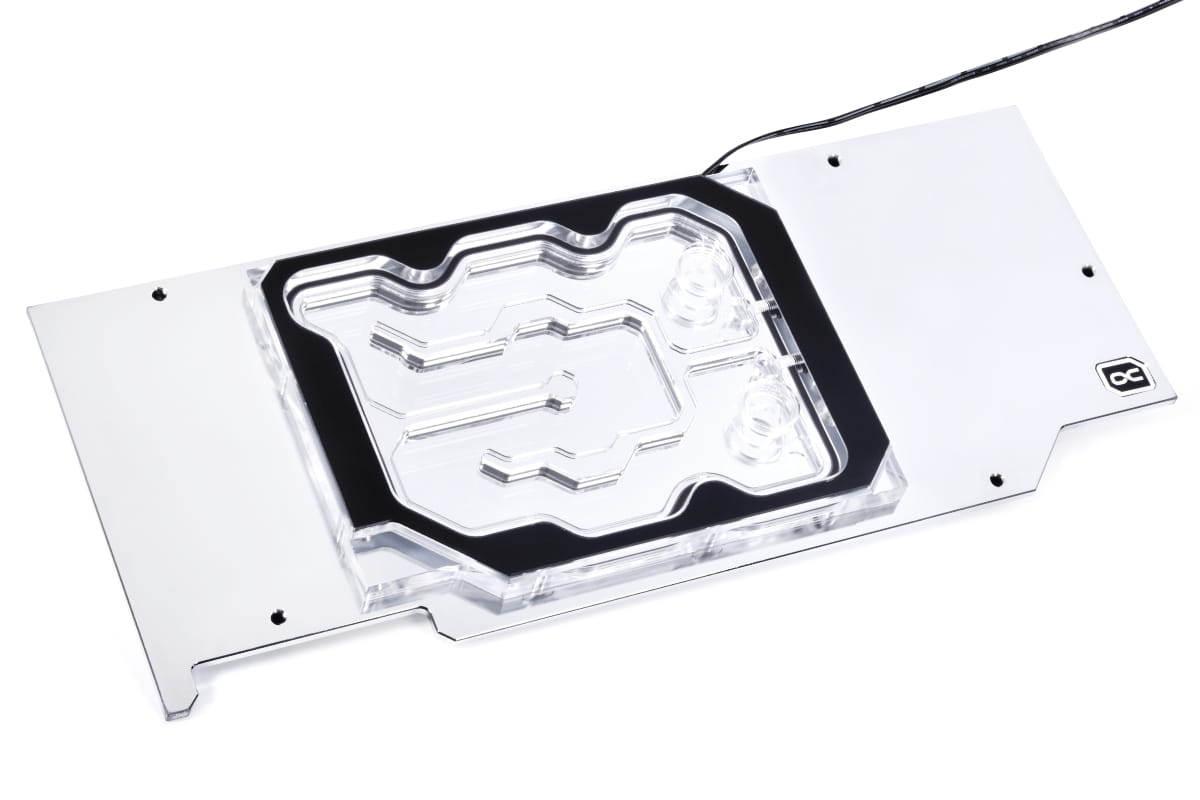

The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility information). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.

Connection options
There are 2 different ways to integrate the active backplate into the water circuit:

Variant 1
The cooler has an inlet and outlet with G1/4" internal thread on the top. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit.

Variant 2
The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x distributor with 5/3mm hose (Art. 1022250), the active backplate can be integrated into the water circuit easily and in a space-saving manner. This variant is a sensible choice if there is little space in the PC case and optimal hose paths are difficult to achieve. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in conjunction with Alphacool Eiswolf 2 AIOs!)

The connection options are very flexible for both variants, as the inlet and outlet design can be freely selected.

Brilliant lighting

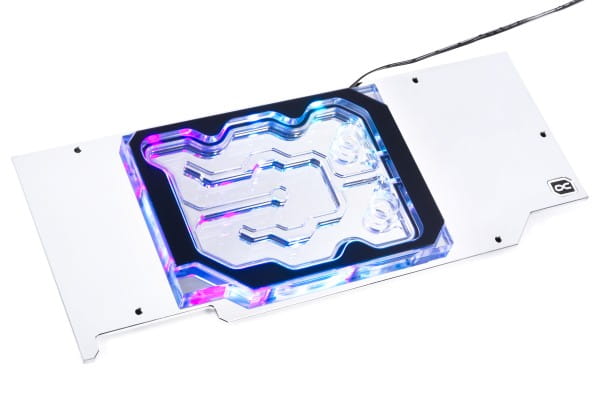

Six addressable digital RGB LEDs are directly embedded and run completely along the sides of the cooling block. The effect is lighting that encloses the entire cooling block and creates unique lighting effects. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (eg Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Compatibility:
- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Ventus with backplate (article number: 14420)
- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Ventus with backplate (article number: 11937)

Technical data
L x W x H	260x107.25x13.3mm
Material Backplate	Copper, nickel-plated
Material cooler	Acrylic
Water cooling connections	2x G1/4" \| 2x 5/3mm hose connection
lighting	6x digitally addressable RGB LEDs
Power connection digital aRGB LEDs	3-Pin JST (male & female switch)
Voltage digital aRGB LEDs	5V
Maximum operating temperature	60°C
Pressure tested	0.8 bars
Weight	718g

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
