CPU Kühler für Threadripper, Ryzen & Intel LGA 3647

WAC Alphacool Eisbaer Pro ES (Solo) Full Black

Article no.: 13094
EAN: 4250197130943
Weight: 1,04 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€72.99 *

Prices incl. VAT plus shipping costs

Liefertermin: in 2 - 3 Wochen

Alphacool HF 13/10 screw-on nozzle G1/4 - Deep Black Sixpack

€15.98*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool NexXxoS ST30 Full Copper 360mm Radiator

€59.98*

Alphacool hose AlphaTube HF 13/10 (3/8"ID) - Clear sold by the meter

€6.98*

The Alphacool Eisbaer Pro ES (Solo) offers a much larger cooling surface than the normal... more

Close menu

Product information

The Alphacool Eisbaer Pro ES (Solo) offers a much larger cooling surface than the normal Eisbaer. It was specially developed for extremely large CPU DIEs and fully covers processors such as the AMD Threadripper but also the AMD Ryzen CPUs. The Eisbaer Pro has also been designed for the Intel Socket 3647 to ensure the best possible cooling performance of the entire CPU. The Eisbaer Pro is a true multi-talent. Expandable, fully compatible with DIY water cooling components and it is the optimal solution for the most powerful processors on the market.

Large cooling surface

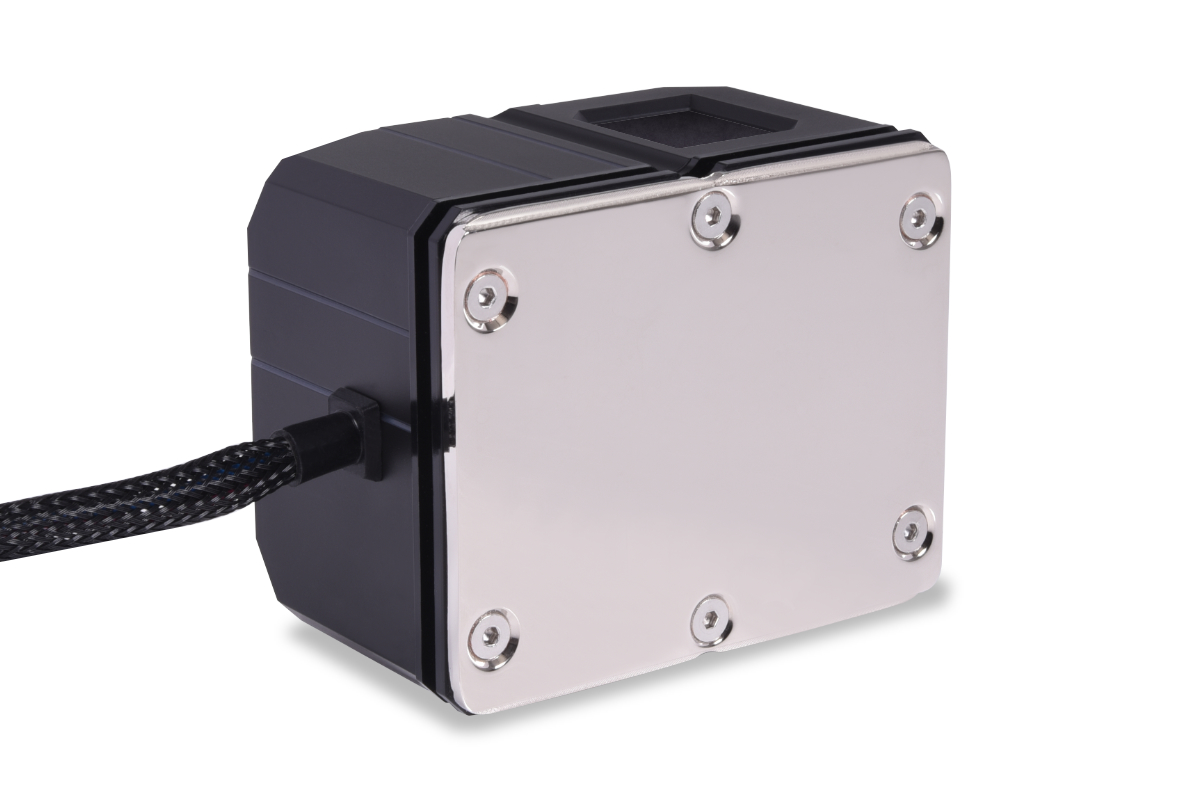

The cold plate bottom covers the entire surface of the respective processors. The area of the cooling fins exceeds all known processor cores with an area of around 55 x 42mm. This ensures that all hotspots of a CPU are directly covered and thus optimally cooled. With the included AM4 bracket, cooling an AMD Ryzen processor is also child's play. The cooling fins are 0.4mm thick and also have an optimal distance of 0.4mm between them. In total there are 58 cooling fins on the bottom of the cooler. The bottom of the cooler is only 3mm thick, which allows the heat to reach the water and be dissipated as quickly as possible.

Pump
The Eisbaer Pro ES (Solo) cooler uses the very compact and small DC-LT 2 pump. It offers enough power to integrate other components such as a GPU water cooler or radiator into the water circuit.

Usable fittings
Connections that are too large mean that the fill port can no longer be used. We recommend the following:
- up to and including 13/10 without restriction
- 16/10 only in angled version
- Connections larger than 16/10 should not be used

With the Alphacool LGA 4677 Mounting Bracket (article no.: 13764), this cooler is also compatible with the Intel socket LGA 4677.

Compatibility:
AMD: AM4 / AM5 / SP3 / SP6 / sTR5 / sWRX8 / TR4
Intel: LGA 1700 / LGA 1851 / LGA 2011 / LGA 2011-3 / LGA 3647 / LGA 4189 / LGA 4677 (optional)

Technical data cooler with pump
L x W x H	64 x 79 x 54,3mm
Material cooler bottom	nickel plated copper
Material cooler top	acrylic
Threads	2x G1/4“ (+ 1x Fillport G1/4“)
Pump type	DC-LT2
Pump speed	2600 rpm (+/- 10%)
Head of delivery	1 m
Maximum flow	72 L/h
Voltage	6-13,5V DC
Power consumption	3,2W
Pressure tested	0,8 Bar
Maximum working temperature	60°C

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Base:	AMD AM4, AMD AM5, AMD SP3, AMD SP6, AMD sWRX8, AMD TR4, AMD TR5, Intel 2011(-3), Intel LGA 1700, Intel LGA 1851, Intel LGA 3647, Intel LGA 4189
Dimensions (L x W x H:	64 x 79 x 54,3mm
Connection:	2x G1/4“ (+ 1x Fillport G1/4”)
Material base plate:	Copper
Material Lid:	Acrylic
