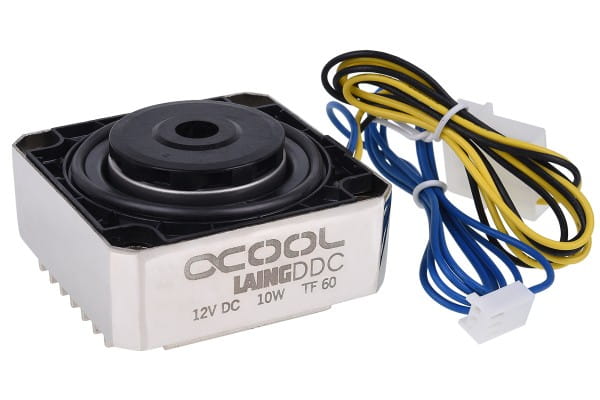

Alphacool Laing DDC310 - Single Edition - silver

  • PUM
  • 4250197131780
  • 0,345 kg
  • Images may differ slightly from the original
€55.98 * €65.98 * (15.16% Saved)

Prices incl. VAT plus shipping costs

Liefertermin: in 13 - 14 Tagen

Recommended accessories
Extra Price
13185 Alphacool Eisdecke Laing DDC Acetal top V.2
1x
Alphacool Eisdecke Laing DDC Acetal top V.2
€29.98*
13186 Alphacool Eisdecke Laing DDC Acryl top V.2
1x
Alphacool Eisdecke Laing DDC Acryl top V.2
€29.98*
13187 Alphacool Eisdecke DDC/D5 single reservoir for Alphacool Eisdecke top
1x
Alphacool Eisdecke DDC/D5 single reservoir for Alphacool Eisdecke top
€29.98*
Alphacool's new Low Noise Edition of the Laing DDC for absolute silence! The Laing DDC pump... more
Product information

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!

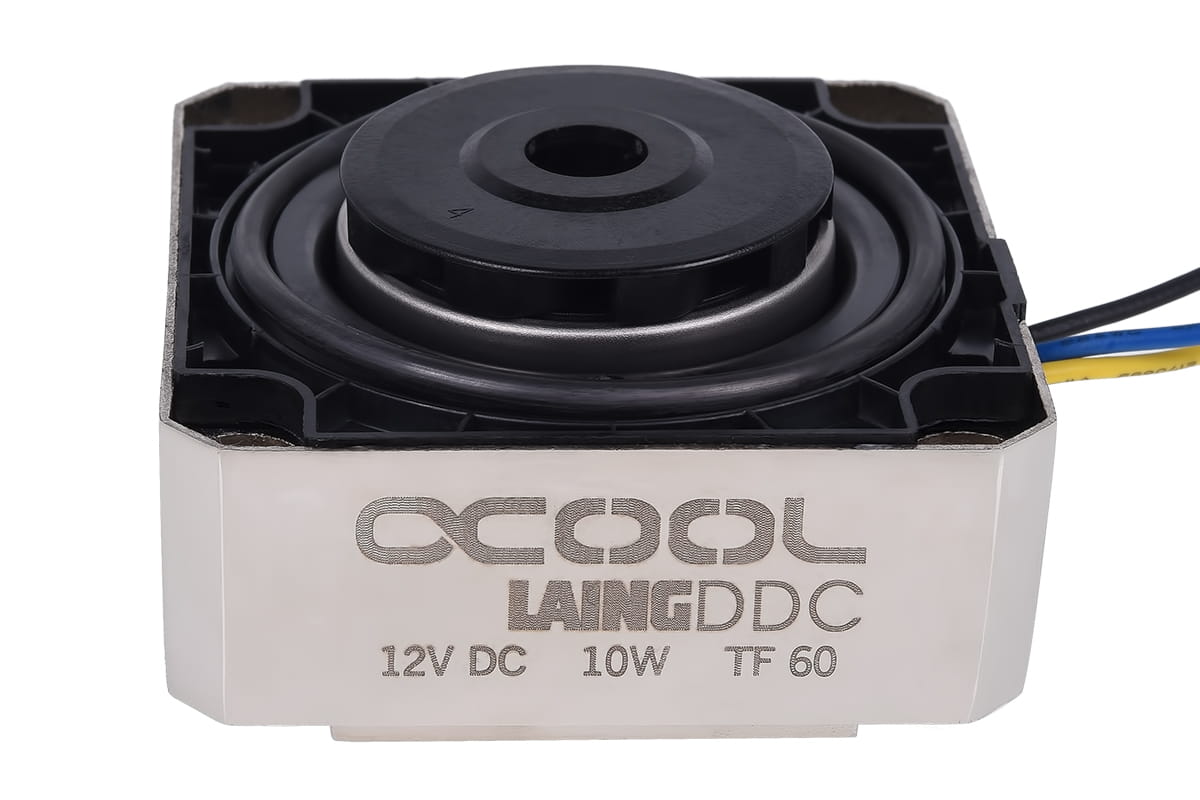

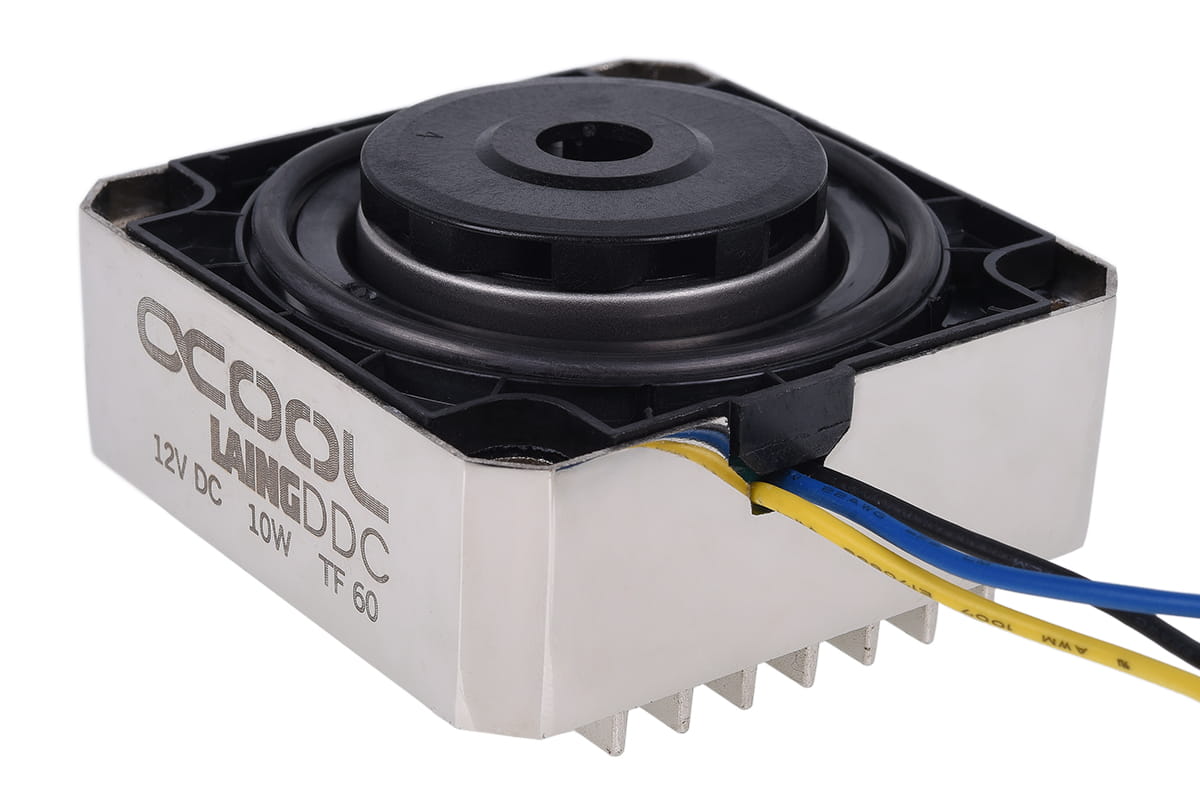

The Laing DDC pump is one of the best known pumps in the watercooling industry. Recently we have been working with Laing to take the DDC to the next level. The new Laing DDC310 was designed with a perfect balance of power and silence in mind. Unlike other versions with the plastic base we have revised the design with new superbly tuned brass housing which aids the pumps cooling and guarantees longer life especially when placed in areas with limited airflow.

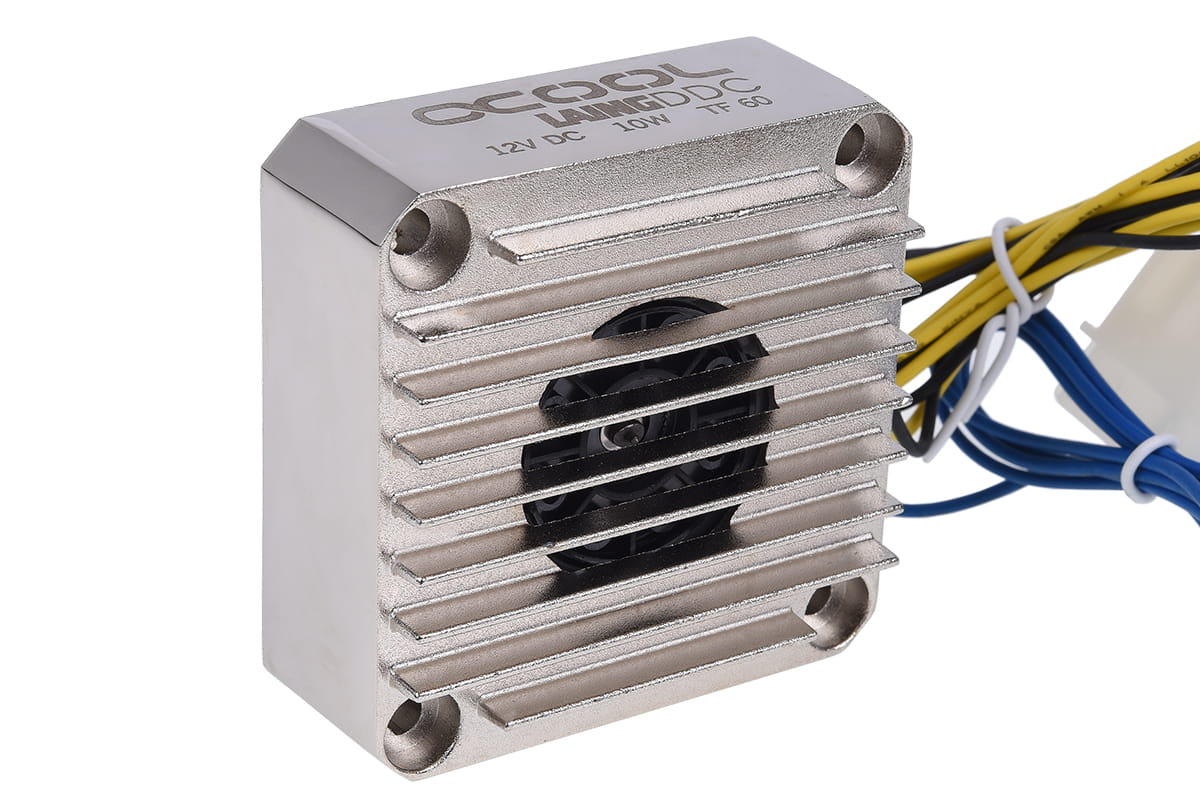

This new housing promises a longer life of the pump. Through the cooling fins and air flow as well as an internal thermal pad attached directly to the pump board maximum cooling is achieved.

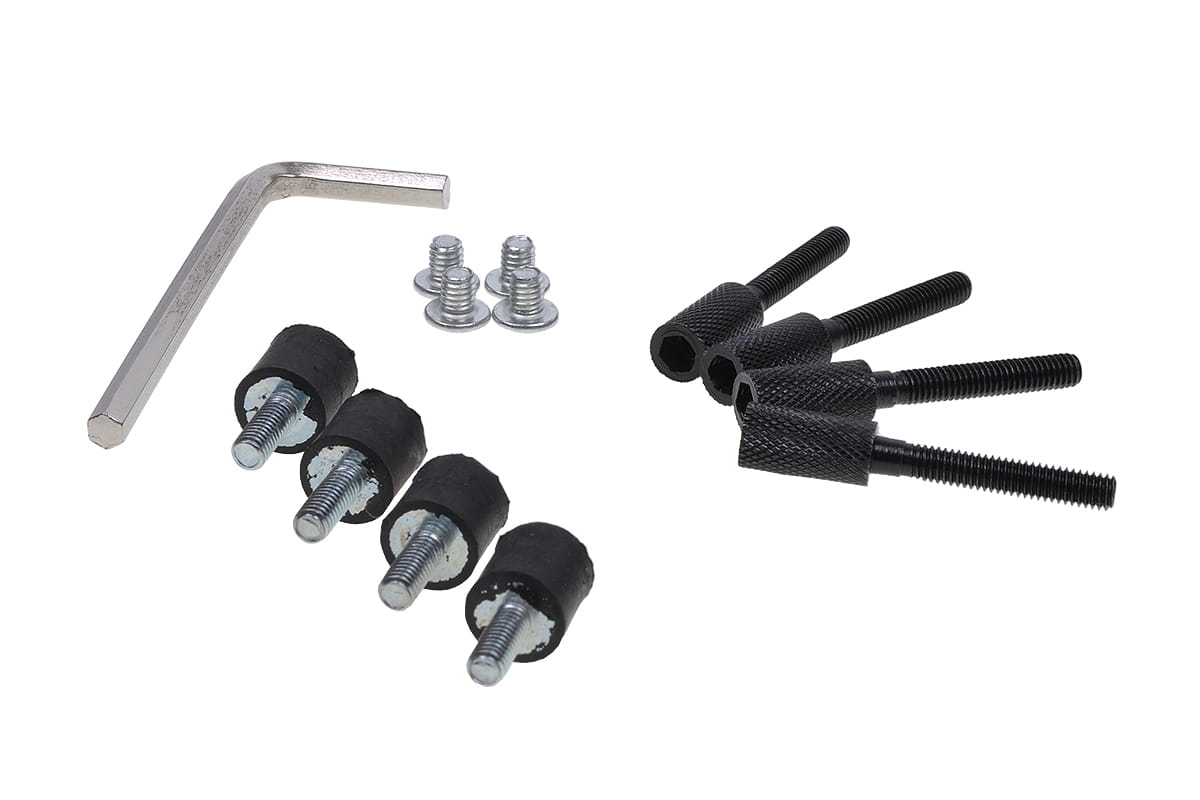

Another feature is the included decoupling option. If a pump top with a M4 threaded mounting hole, such as the Alphacool Laing DDC Acetal top is present. The special M4 screws can be screwed directly into the decoupling set and then into the case.

The pump also comes as standard with an anti-vibration mounting system . Available in black nickel and silver nickel.

This pump should be the first choice for your watercooling system.



Technical data
Dimensions (L x W x H)62 x 62 x 30mm
MaterialStainless steel, Carbon (FH821Z2), Ceramic (Al2O3 99,5%), Luranyl KR 2403 GW T4 (PPE+PS) , Fortron 1140L4 (PPS)
Weight170g
Speed3250 rpm
Max power consumption8W
Voltage12V DC

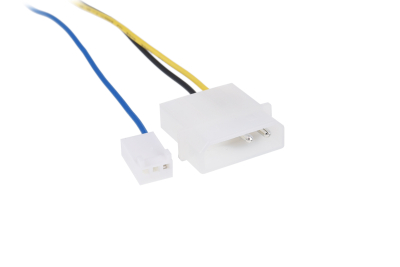

Power connector4-Pin Molex
Tacho-Signalyes (3-Pin Molex)
Max. working temperature ambiente10°C - 50°C
Max. working temperature water10°C - 60°C
Max. head of pump2,28m
Max. flow200 L/h
Max. pressure [bar]0,2
Colorsilver
RevisionDDC4.CF-XTXXWX-01 BP54

Warranty: 5 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Stromanschluss: 4Pin
Farbe: schwarz
Spannung: 12V DC
Leistungsaufnahme: 8W
Maximale Förderhöhe: Gut (2 bis 4m), Standard (kleiner 2m)
Maximaler Durchfluss: 200 l/h, 480 l/h
Abmessungen: 62 x 62 x 30mm
Maximale Systemtemperatur: 60°C
Wassereinlass: nicht vorhanden
Wasserauslass: nicht vorhanden
Gewicht: 170g
Zugelassene Flüssigkeiten: Wasser/Glykol-Gemisch
Material: Aluminiumoxid, Hartkohle, Messing
