Alphacool HF 10mm (3/8") hose connection 90 degrees rotatable G1/4 with O-ring - Chrome

ANT Alphacool HF 10mm (3/8") Schlauchanschluss 90° drehbar G1/4 mit O-Ring - Chrome

Article no.: 17135
EAN: 4250197171359
Weight: 0,044 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€3.97 *

Prices incl. VAT plus shipping costs

in stock

Alphacool connections break new ground in terms of shape, processing, color and variety. The... more

Close menu

Product information

Alphacool connections break new ground in terms of shape, processing, color and variety. The absolute innovation is an outstanding inner diameter that really deserves the term high flow!

The first 3 colors, Chrome, Deep Black and Shiny Copper, offer a wide variety to suit a wide range of tastes. The completely coordinated product series lets each system shine in its own way and there are no limits to individuality when combined with Alphacool hoses!

A new chromating process firmly bonds the coloring to the brass base, ensuring the longevity of the intense color and preventing the chrome layer from flaking. Blue Alphacool lettering on some of the connectors further highlights the special nature of these items.

The function of this connector is:

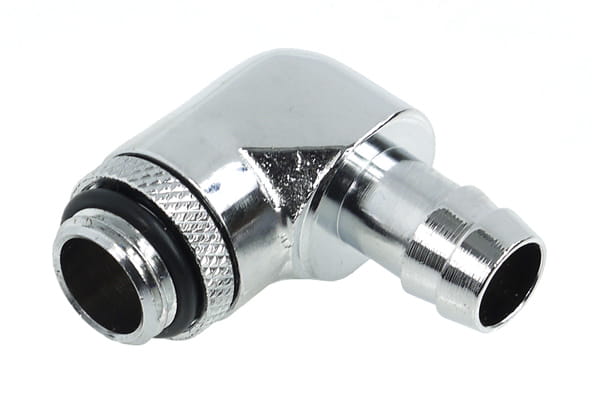

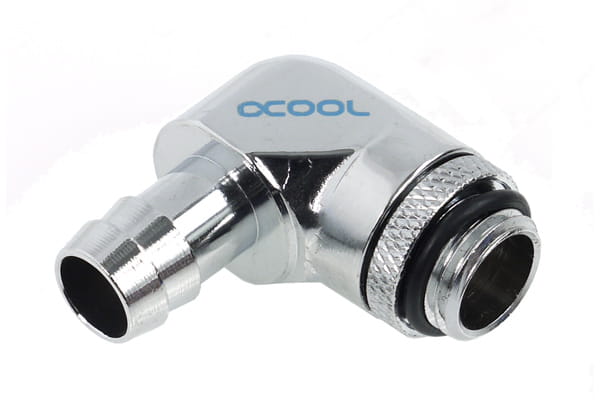

In addition to the classy connectors, hose nozzles are a slightly different way of connecting the connectors to the hose. This means that less space is lost on the connector itself and more hose is shown. Particularly popular with case modding systems! This hose connector has a 90-degree bend and can be rotated, which is interesting for easy hose connection in the system.

Extremely high flow:
Unlike normal connectors, these hose nozzles have an even larger inner diameter! Achieving an 8mm inner connection diameter with a connector size of 10mm outer diameter is a unique feat in the water cooling scene!

Technical details:
Material: brass, chromated
Color: Chrome

Dimension:
Height: 29mm
Width: 35mm
Depth: 17mm
Hose size: 10mm inner diameter
Connection inner diameter: 8mm

Scope of delivery:

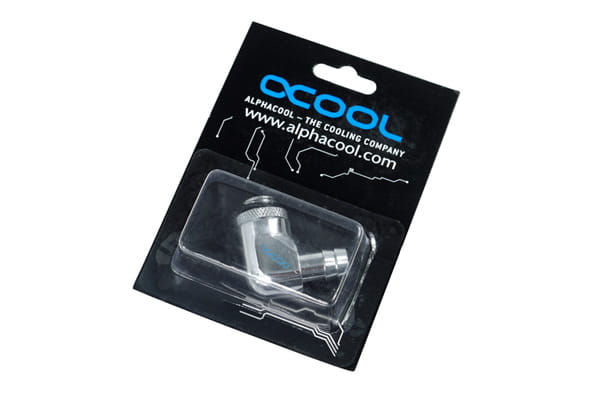

1 x Alphacool HF hose nozzle 90° G1/4 external thread to 10mm with O-ring rotatable - Chrome

This product has been tested for you:
Moddingbase
Xtremesystems (English) (userreview)
PT reviews (Pt)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Gewindelänge:	5mm
Hersteller:	Alphacool
2. Seite:	G1/4" Außengewinde
Kompatibilität:	harte Schläuche (PUR), weiche Schläuche (PVC, Silikon, Neoprene)
Spezifikation:	Form: 90° gewinkelt
Drehbar:	Ja - 360°
1. Seite:	Schlauchtülle 10mm (3/8")
Material:	Messing
Farbe:	chrom
