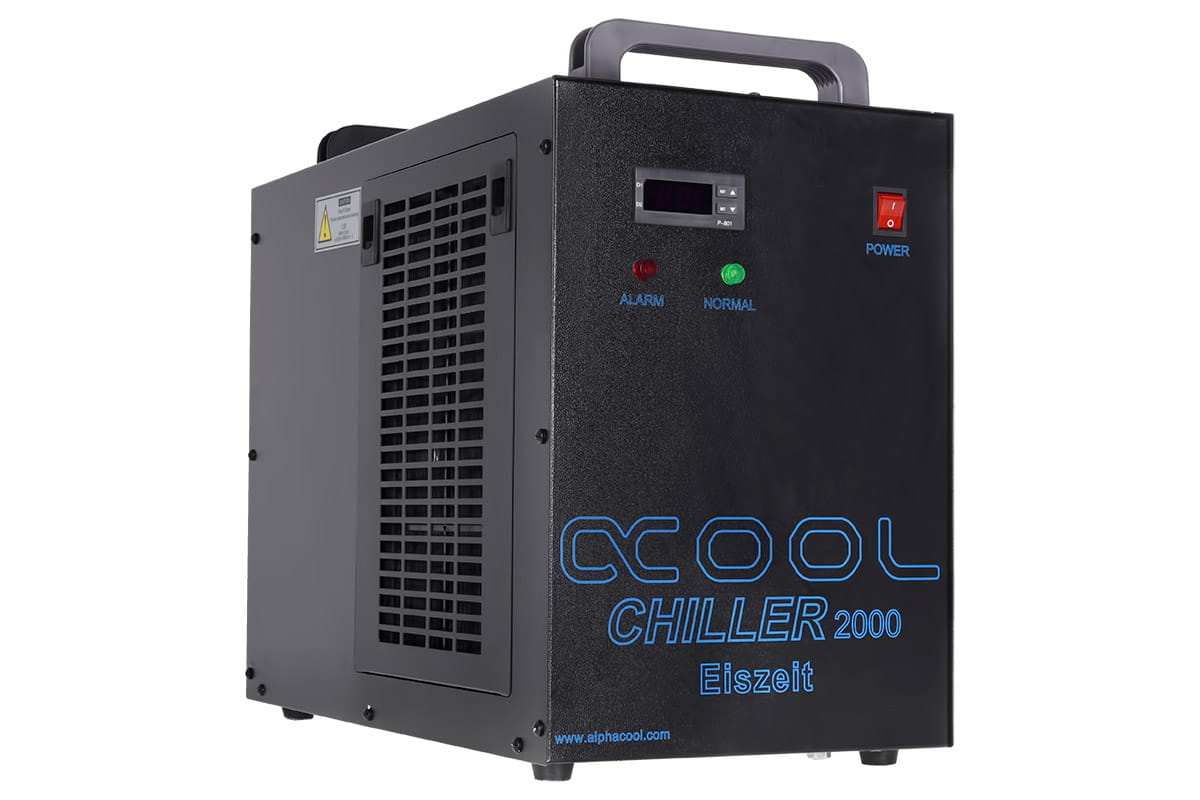

Alphacool Eiszeit 2000 Chiller

Article no.: 11371
EAN: 4250197113717
Weight: 29,26 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€992.89 *

Prices incl. VAT plus shipping costs

This product cannot be purchased directly, please contact our customer service for more information.

The Alphacool “Eiszeit” is a compressor cooler with a maximum cooling power of 1500W. Unlike... more

Close menu

Product information

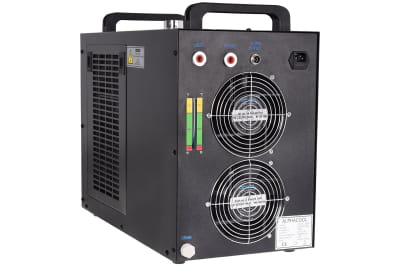

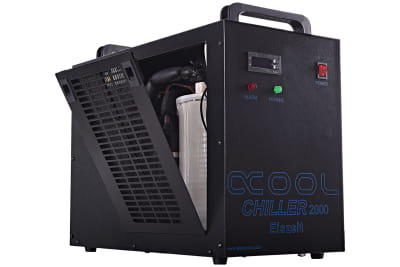

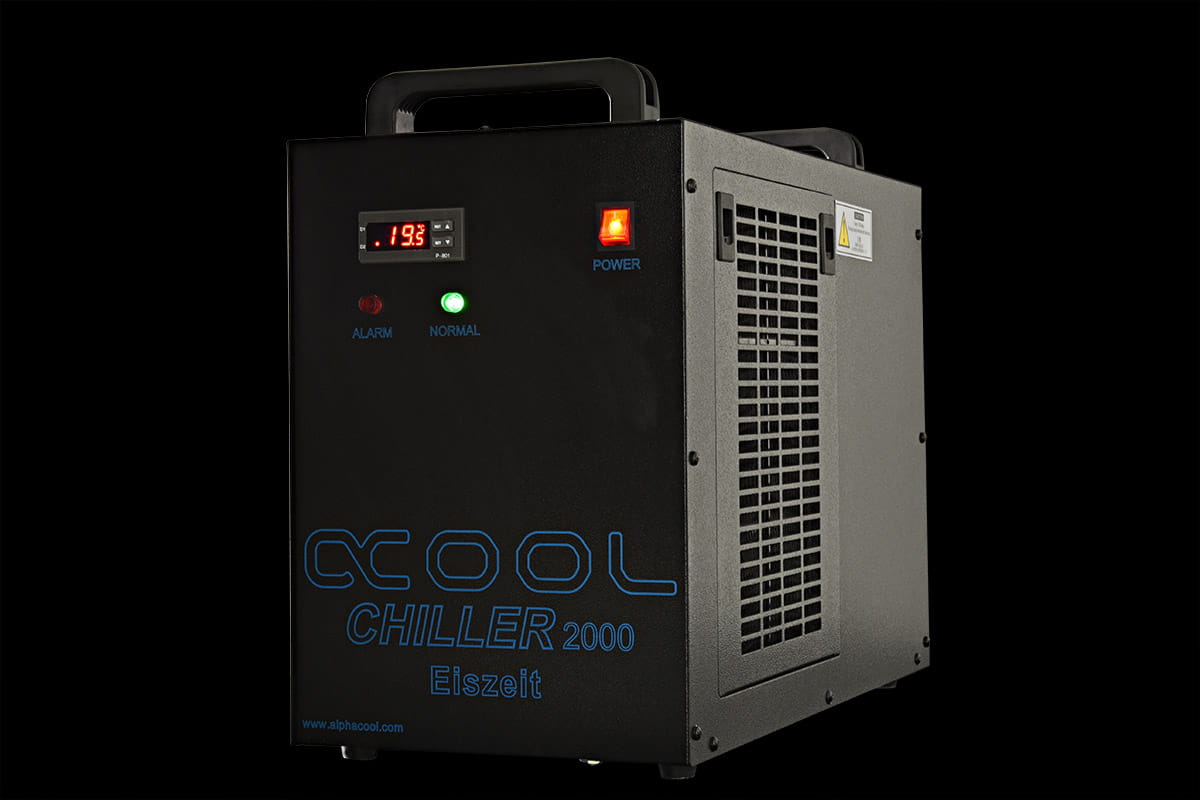

The Alphacool “Eiszeit” is a compressor cooler with a maximum cooling power of 1500W. Unlike most so-called Chillers or
circulating coolers, the Eiszeit has a high-performance integrated pump.

With the “Eiszeit”, you get a compressor cooler designed by Alphacool. With it, you can keep your system – or more than one
system – at a temperature you pre-set, automatically regulated for you. The Eiszeit has a maximum cooling power of 1500W.

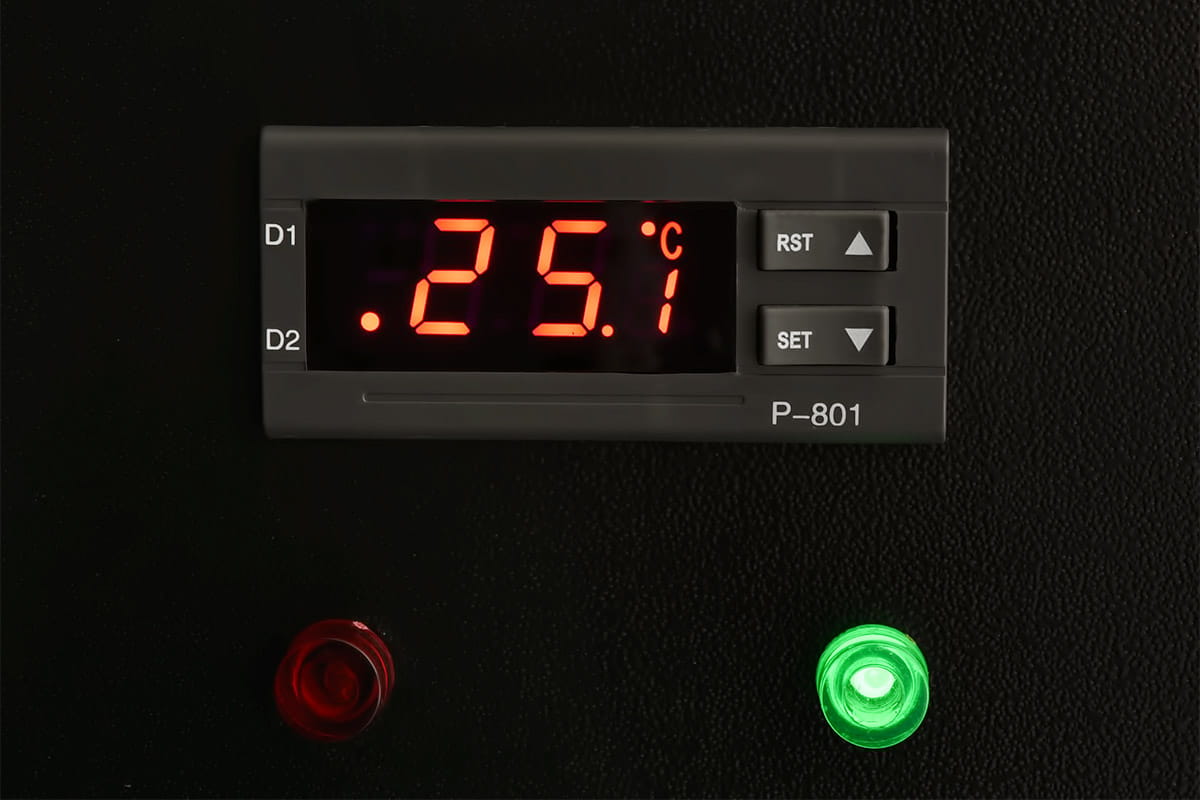

Entering your settings is easily done through the Eiszeit’s display, and you can set the temperature in precise increments of 0.3°
Kelvin. If necessary, you can reach temperatures far below room temperature.

Another highlight is the integrated high-performance pump with a maximum head of 10m. This means a separate pump is no
longer necessary. If the pump performance proves to be too strong, a restrictor can be integrated into the cooling loop via a
ball valve or check valve. The G1/4” connectors can fit nearly all standard water cooling attachments. This gives the Eiszeit out-
standing compatibility compared to other current products like CPU coolers and graphics card coolers.

The Eiszeit also has security functions, such as surge protection for the compressor and an alarm indicating the flow rate is too
low or the temperature is too high.

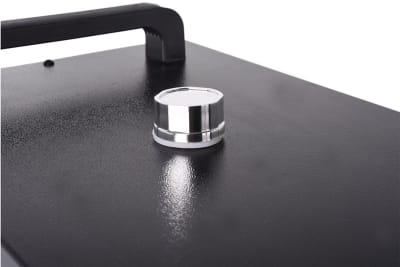

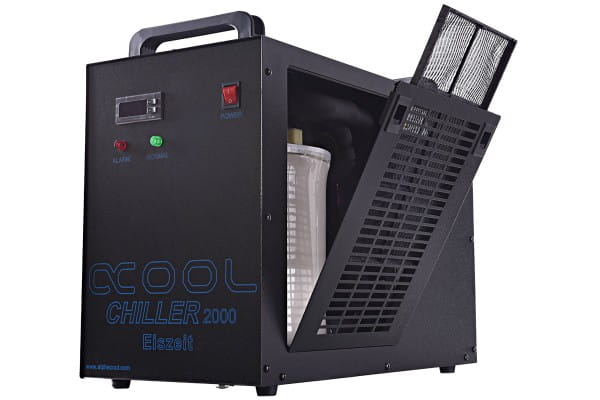

Using the Eiszeit is relatively simple. After connecting it to the cooling loop, the loop needs to be filled via the fill port on top of
the Eiszeit. The integrated reservoir holds 9L; additionally, you will need enough coolant to fill the complete loop.

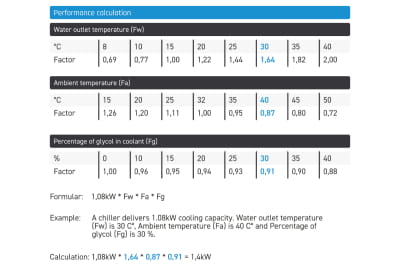

Performance calcuation

Water outlet temperature (Fw)
C°	8	10	15	20	25	30	35	40
factor	0,69	0,77	1	1,22	1,44	1,64	1,82	2

Ambient temperature (Fa)
C°	15	20	25	32	35	40	45	50
factor	1,26	1,2	1,11	1	0,95	0,87	0,8	0,72

Percentage of glycol in coolant (Fg)
%	0	10	15	20	25	30	35	40
factor	1	0,96	0,95	0,94	0,93	0,91	0,9	0,88

Formular: 1,08kW * Fw * Fa * Fg

Example: A chiller delivers 1.08kW cooling capacity. Water outlet temperature (Fw) is 30 C°, Ambient temperature (Fa) is 40 C° and Percentage of glycol (Fg) is 30 %.

Calculation: 1,08kW * 1,64 * 0,87 * 0,91 = 1,4kW

Please note: In the event of a return (RMA), the product must be shipped exclusively via freight carrier. Using a parcel delivery service for the return will result in the loss of warranty claims.

Technical data
Dimensions (L x W x H)	56 x 28 x 47 cm
Voltage	220-240V
Power consumption	660W
Compressor power	0,49/0,57KW (0,66/0,77HP)
Cooling capacity	1,41/1,70kw
Refrigerant	R1234YF
Refrigerant charge	380g
Pump capacity	0,03KW
Pump Max. Delivery head	10 m
Pump max flow rate	600 L/h
Liquid tank filling quantity	9L
Filling opening	1x oben

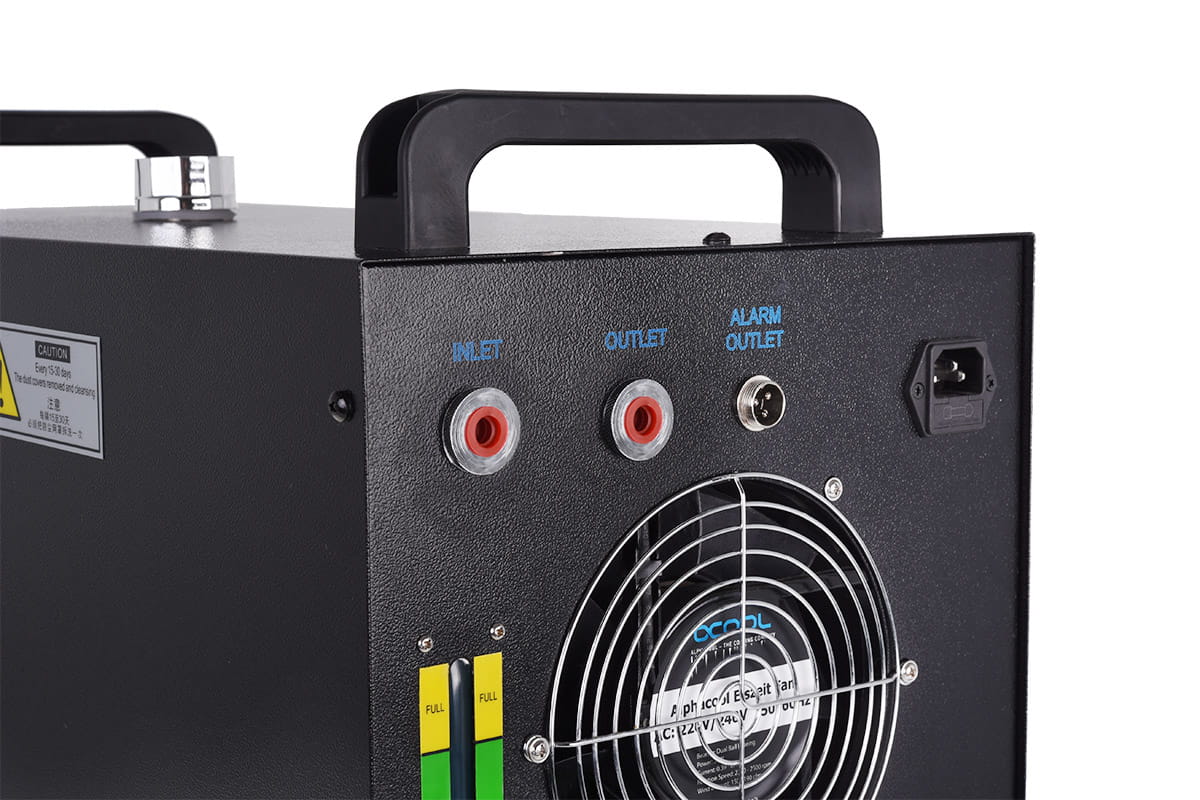

Threads	G 1/4“ (1x IN / 1x OUT) hinten
Noise	65 db(A)
Adjustable minimum temperature	20°C
Temperature accuracy	+/- 0,3°C
Reservoir	Polyprobylene
Internal soft hoses	Silikon
Internal hard hoses	PU

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
