GHZ Alphacool front I/O panel with USB 2.0 and cable set for server case

GHZ Alphacool Front I/O-Panel mit USB 2.0 und Kabelsatz für Servergehäuse

Article no.: 25054
EAN: 4250197135733
Weight: 0,224 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€19.98 * €26.98 * (25.95% Saved)

Prices incl. VAT plus shipping costs

in stock

The Alphacool I/O front panel connection cables are suitable for the Alphacool I/O front panels... more

Close menu

Product information

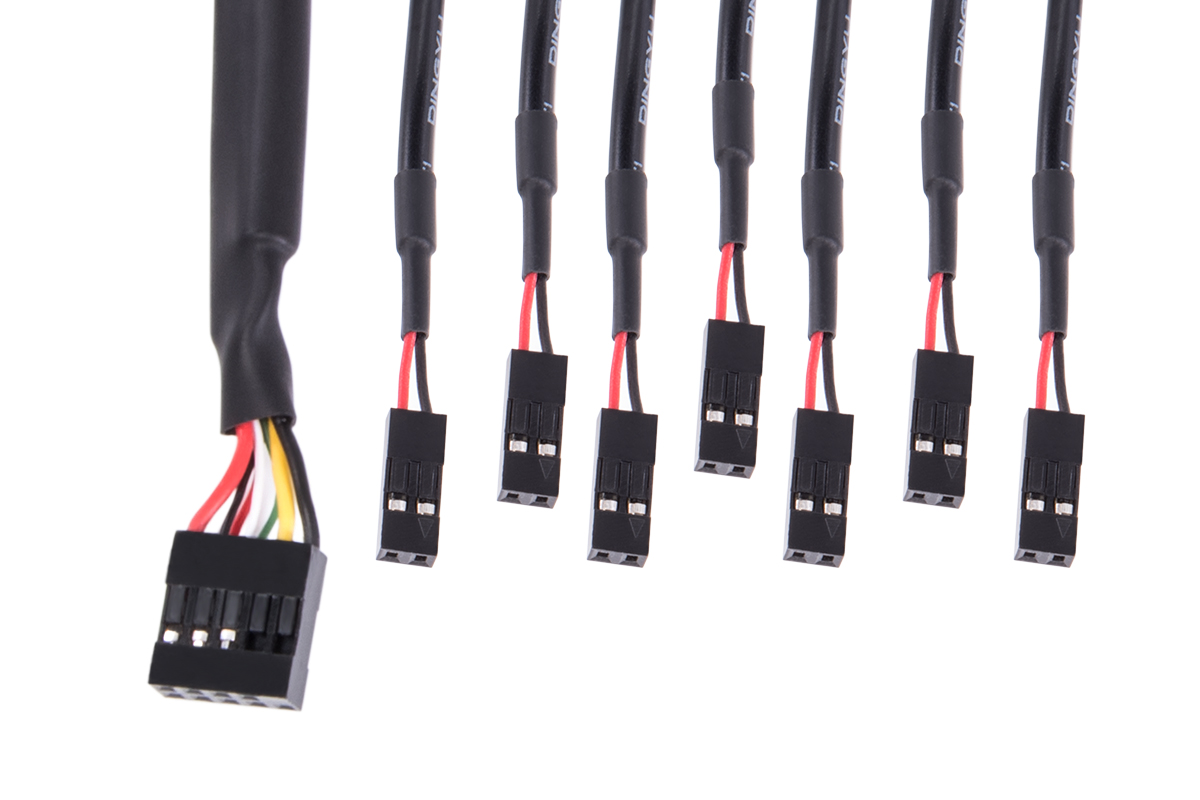

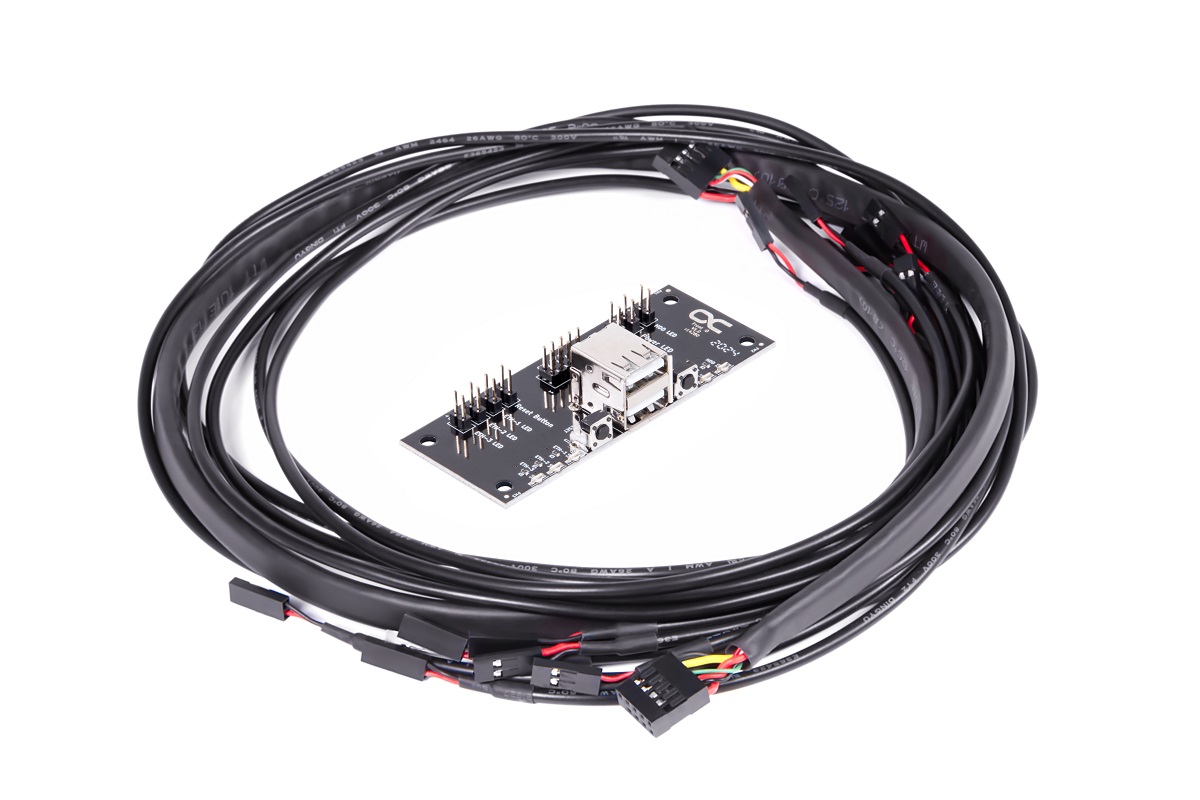

The Alphacool I/O front panel connection cables are suitable for the Alphacool I/O front panels for server racks. The cable set consists of a total of 8 cables with a pure cable length without connections of 80 cm. Seven of the cables are 2-pin cables for network LEDs, power and reset switches and the HDD LED. One cable serves as a USB 2.0 connection cable with the typical 9-pin header.

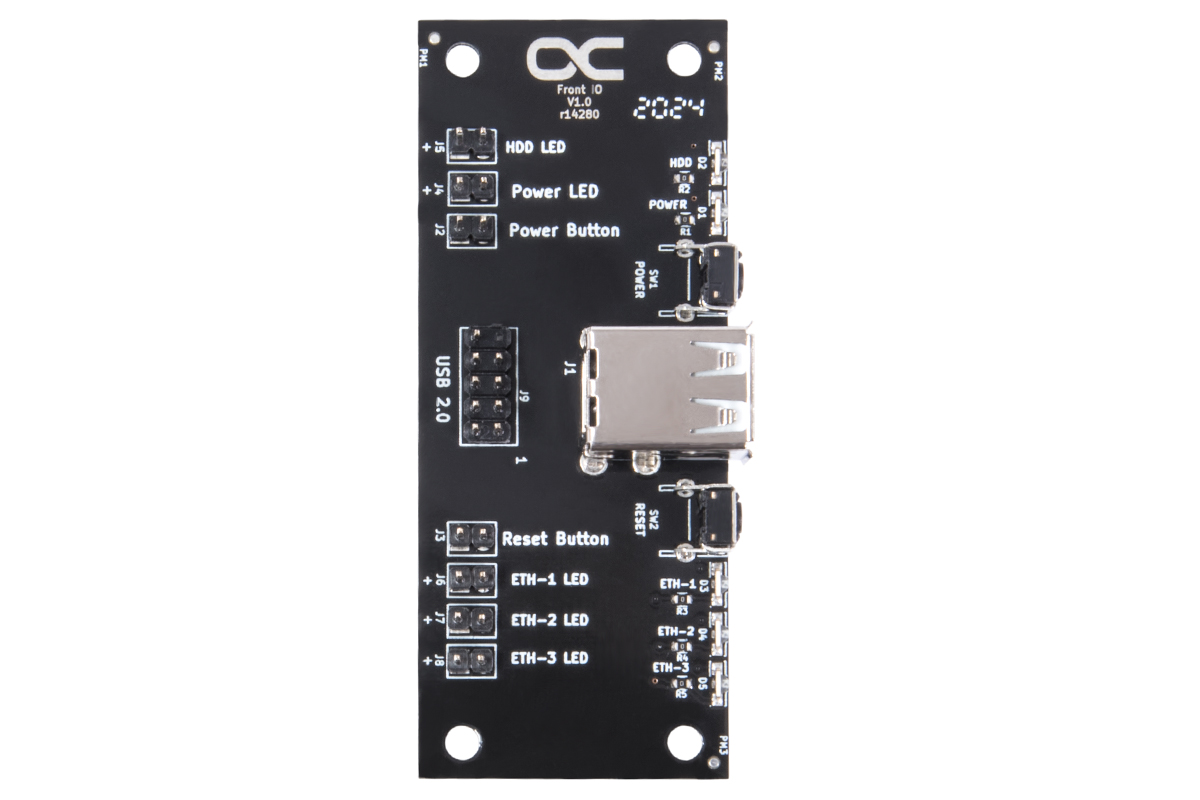

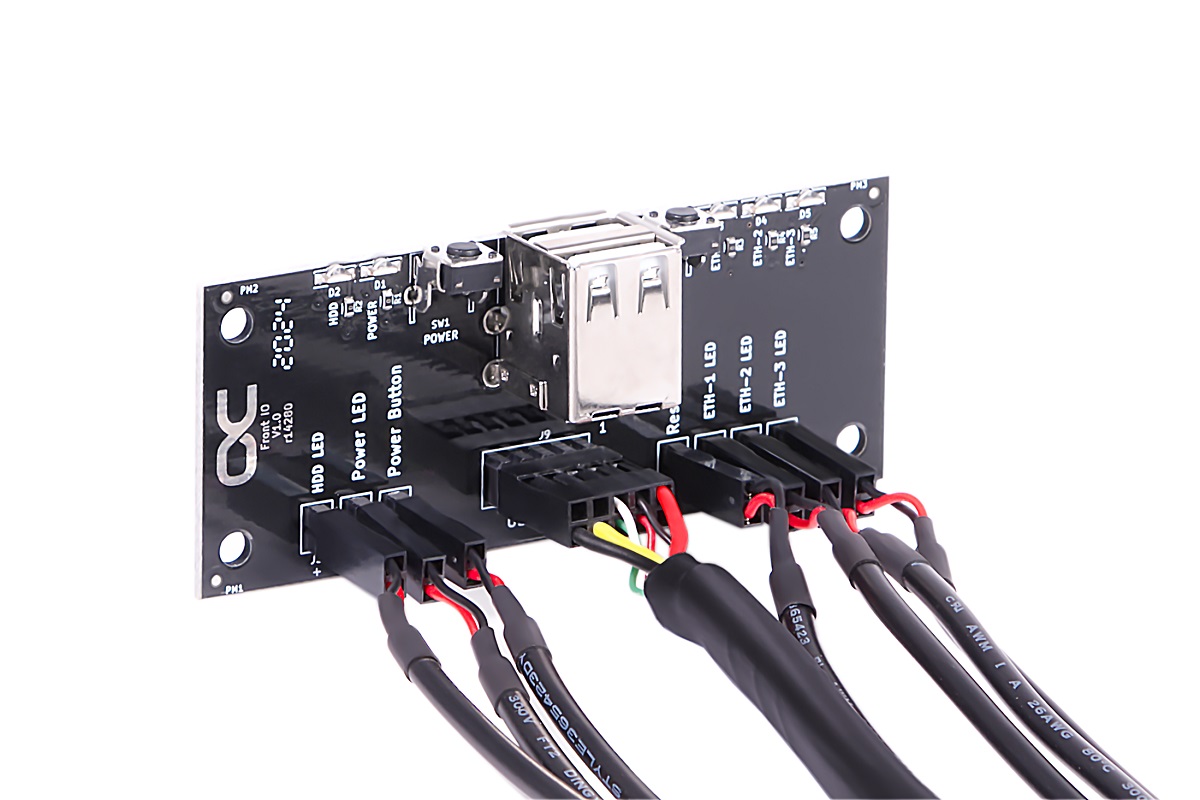

The Alphacool front I/O panel for the Alphacool server cases in 1 to 4U format offers two USB 2.0 ports as well as the power and reset switch. The board also offers various status LEDs to keep an eye on the functions of the server rack. These include a status LED for the hard drive and power and three status LEDs for the network connection. The board has 2-pin connections for all LEDs and the power and reset switch. Three connection options for the network LEDs, one connection each for the power and reset switch and of course one connection each for the HDD and power LEDs. The board is attached with 4 screws. The mounting holes have an inner diameter of 3.5 mm. The distances between the mounting holes, measured from the center, are 74 mm x 24 mm.

Technical data USB female connection cable:
Length: 80cm
Net weight: 57 g

Technical data 2-pin/2-pin female connection cable:
Length: 80cm
Net weight: 11 g

Download data sheet PDF: Alphacool Front I/O Cable Kit USB 2.0 & 2Pin (female/female)

Technical data I/O panel:
L x W x H: 34.5 x 83 x 20 mm
Net weight: 18 g

Connections:
- HDD LED Power LED
- 3 x Ethernet LED
- Power button
- Reset button
- USB2.0

LEDs:
- Power LED
- HDD LED
- 3 x Ethernet LED

USB ports:
- 2xUSB2.0

Download data sheet PDF: Alphacool Front I/O-Panel with USB 2.0 for Servercases 1U, 2U and 4U
