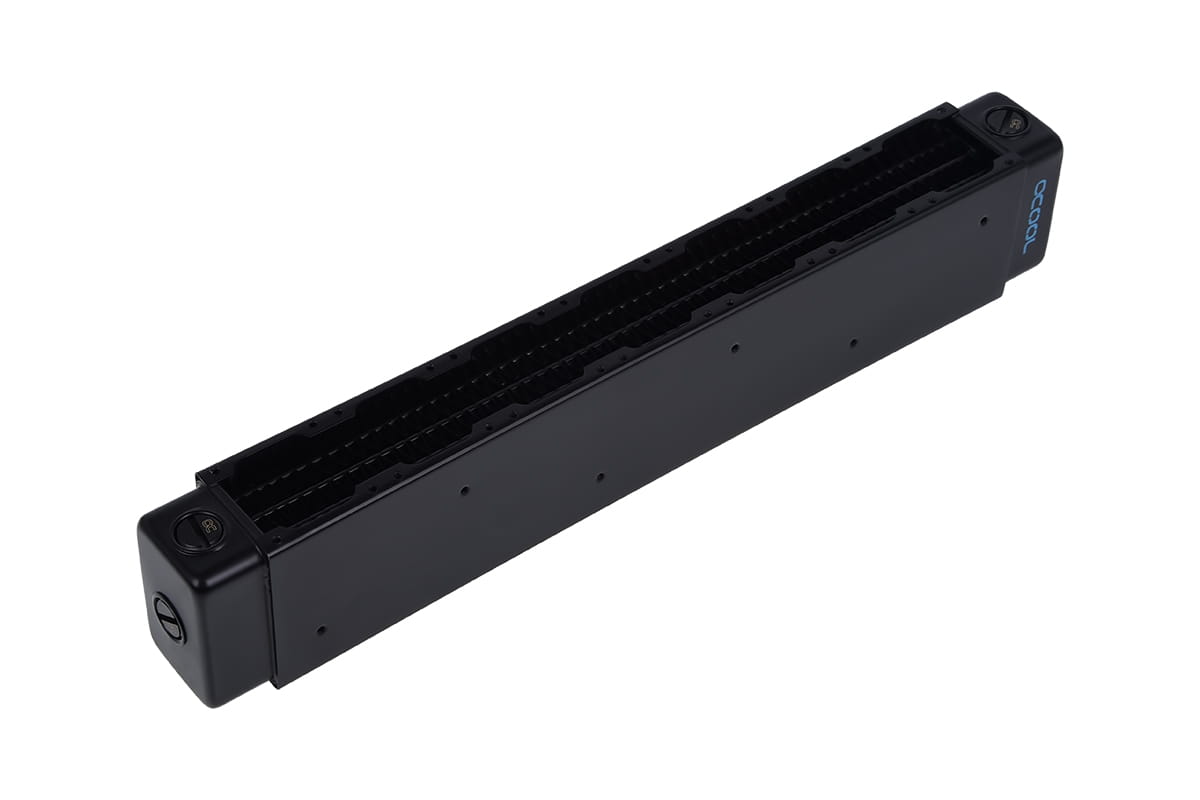

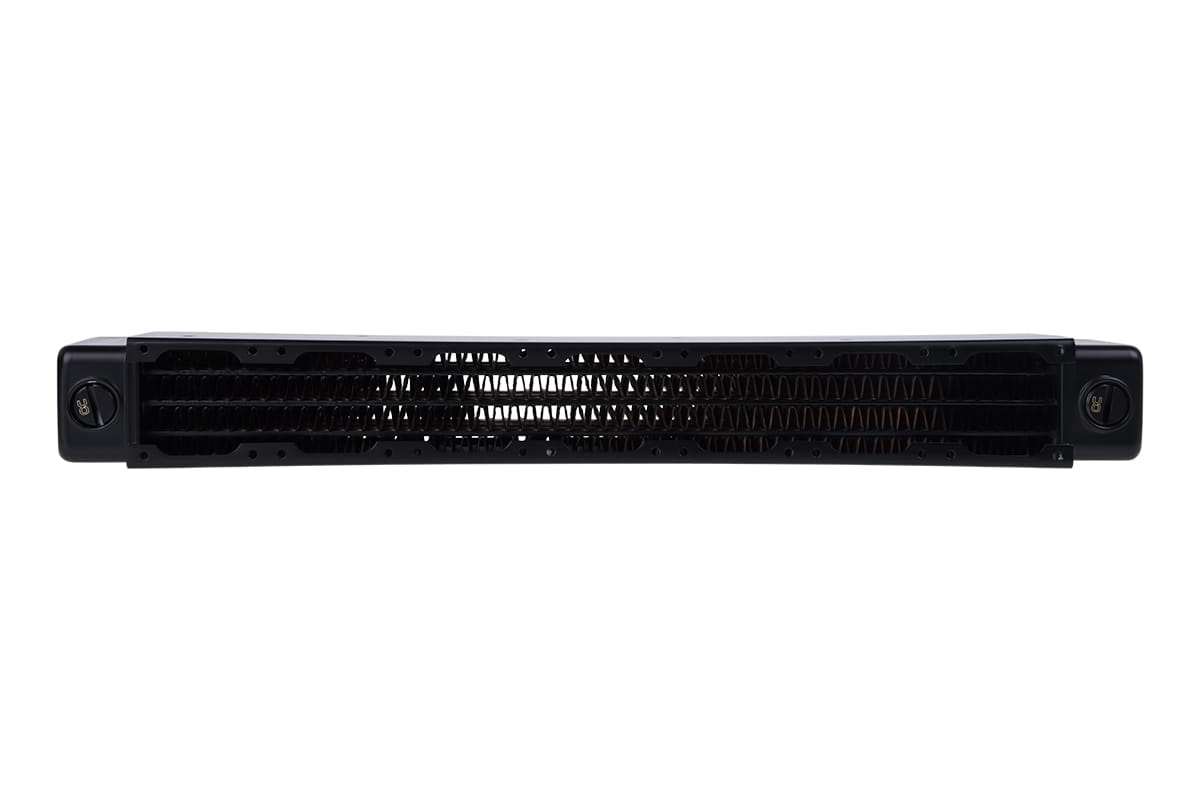

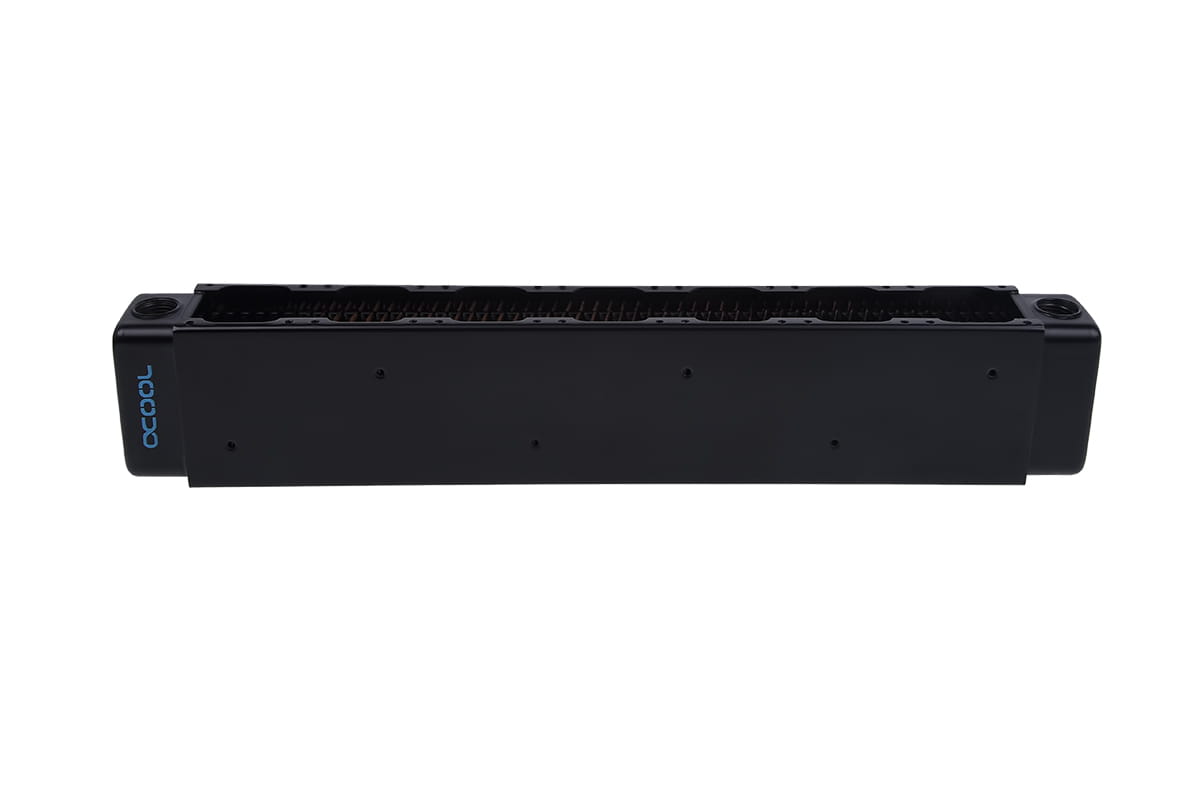

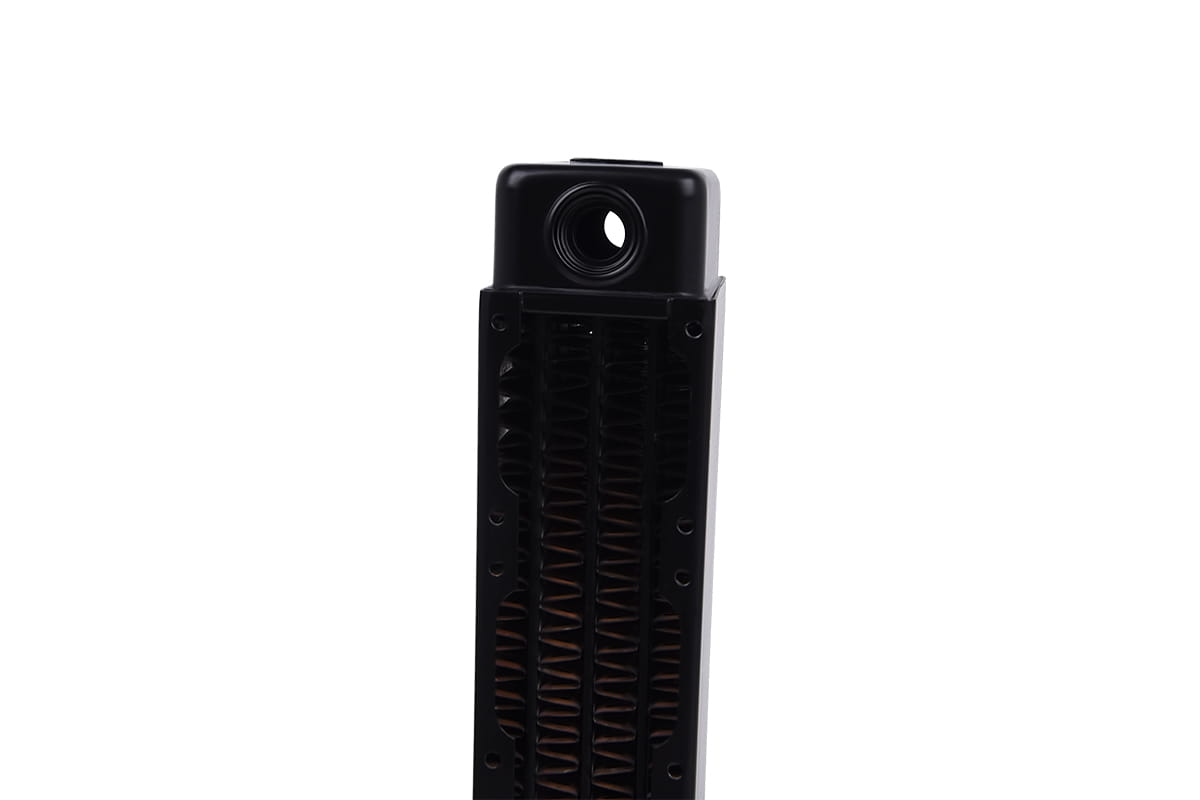

Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hepta Radiator

RAD Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hepta (7x40mm) Radiator

Article no.: 14293
EAN: 4250197142939
Weight: 0,657 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€114.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool DC-LT 2600 Ultra low noise Ceramic - 12V DC

€25.98*

10/8mm (8x1mm) screw-on nozzle G1/4 90° rotatable

€2.98*

Alphacool HF 13/10 screw-on nozzle 45° rotatable G1/4 - Deep Black

€4.97*

It's the best system because it's your system, strive for perfection! The new Alphacool NexXxoS... more

Close menu

Product information

It's the best system because it's your system, strive for perfection! The new Alphacool NexXxoS UT60 X-Flow Server Radiators help you to get one step closer!

Increase the performance of your system with the new Alphacool NexXxoS UT60 X-Flow Server Radiators.

This Radiator can discharge up to 490 W at an ambient temperature of 30°C and fans with 12.000 rpm.

X-Flow – Find the easy route
For the best possible cooling of your system, Alphacool relies on the X-Flow for the new NexXxoS server radiators. The flow runs from one side of the radiator to the other and directly uses all fins. Your Alphacool NexXxoS UT60 X-Flow immediately achieves the best possible cooling with optimized water circulation.

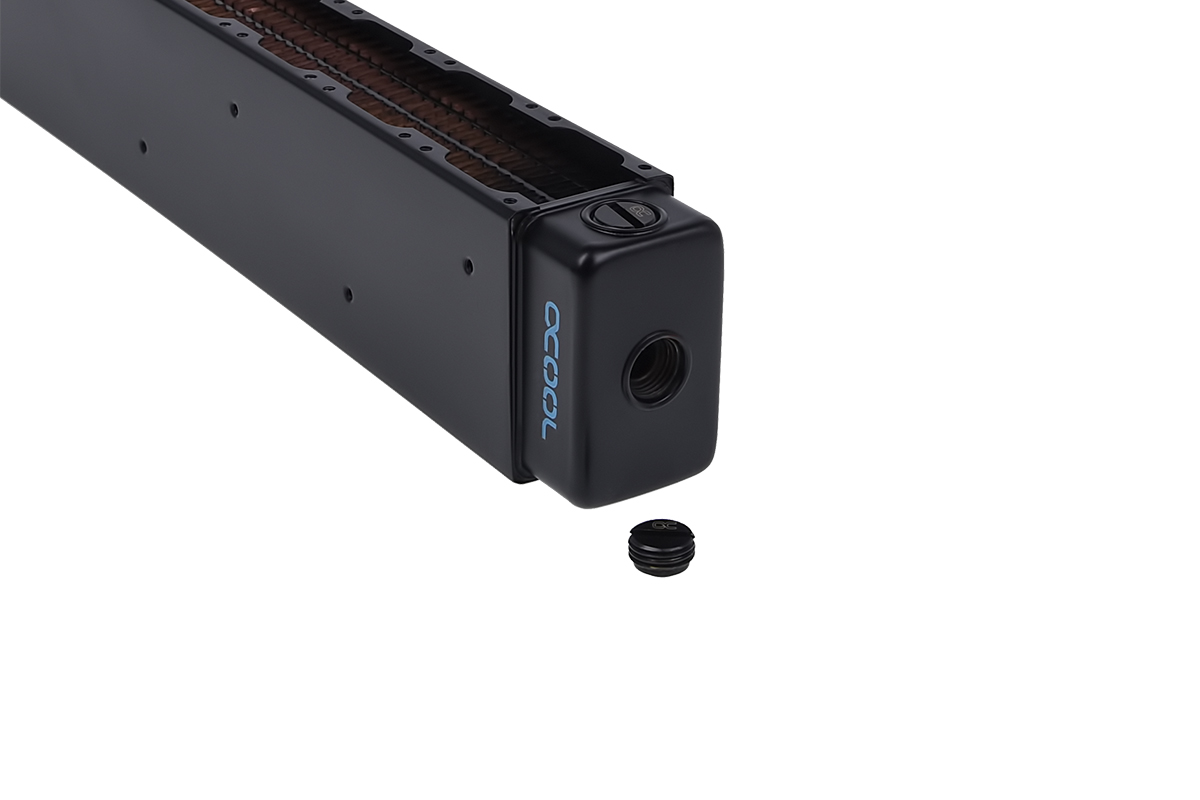

Countersunk screw plugs - anything but ordinary
For the first time Alphacool has countersunk the screw plugs. This unique design allows you to stay flexible with the positioning of your Alphacool NexXxoS UT60 X-Flow Radiator. Mount your radiator the way you need it. Thanks to the multiple inlets and outlets, you have more options to create something unique and more importantly efficient.

Solid copper - the best performance at the highest level
The radiator of the new Alphacool NexXxoS series is also made of solid copper ensuring the radiators offer you the highest thermal conductivity for the best performance. Rely on the No. 1 in materials.

Different sizes - same quality
The new Alphacool NexXxoS UT60 X-Flow is available in different sizes and thicknesses. All radiators of this series are compatible with 2U server racks. Thanks to the special shape, installation is child's play, even with the larger radiators. Decide for yourself which size is perfect for your system and always choose the best quality.

Technical Data
L x W x H	326,5 x 60 x 40,5 mm
Quantity of cooling channels	9
Net weight	657 g
Max. working temperature	60 °C
Material cooling fins	Copper
Material cooling channels	Copper
Prechamber material	Copper
Material outer housing	Steel
Fins per Inch	12
Threads	6x G1/4“
Mounting options	12 x M3 threads
Fan size	40 mm
Fan slots	7 one-sided / 14 double-sided
Fan threads	M3
Pressure tested	0,8 bar

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Dicke:	49 - 69mm
Anschluss:	6x G1/4"
Fins per inch:	10
Abmessungen (L x B x H):	326,5 x 40,5 x 60mm
Anzahl Lüfter:	7
Lüftergröße:	40mm
