Alphacool Core Flat Reservoir 360 Right D5/VPP

Article no.: 15486
EAN: 4250197154864
Weight: 1,98 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€189.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Ice Tube 16/13mm PETG HardTube 60cm - Set of 4 (240cm)

€18.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack

€36.99*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

Alphacool VPP Apex Pump

€65.99*

The Alphacool Core Flat Reservoir not only looks sleek with its aRGB lighting, but also offers... more

Close menu

Product information

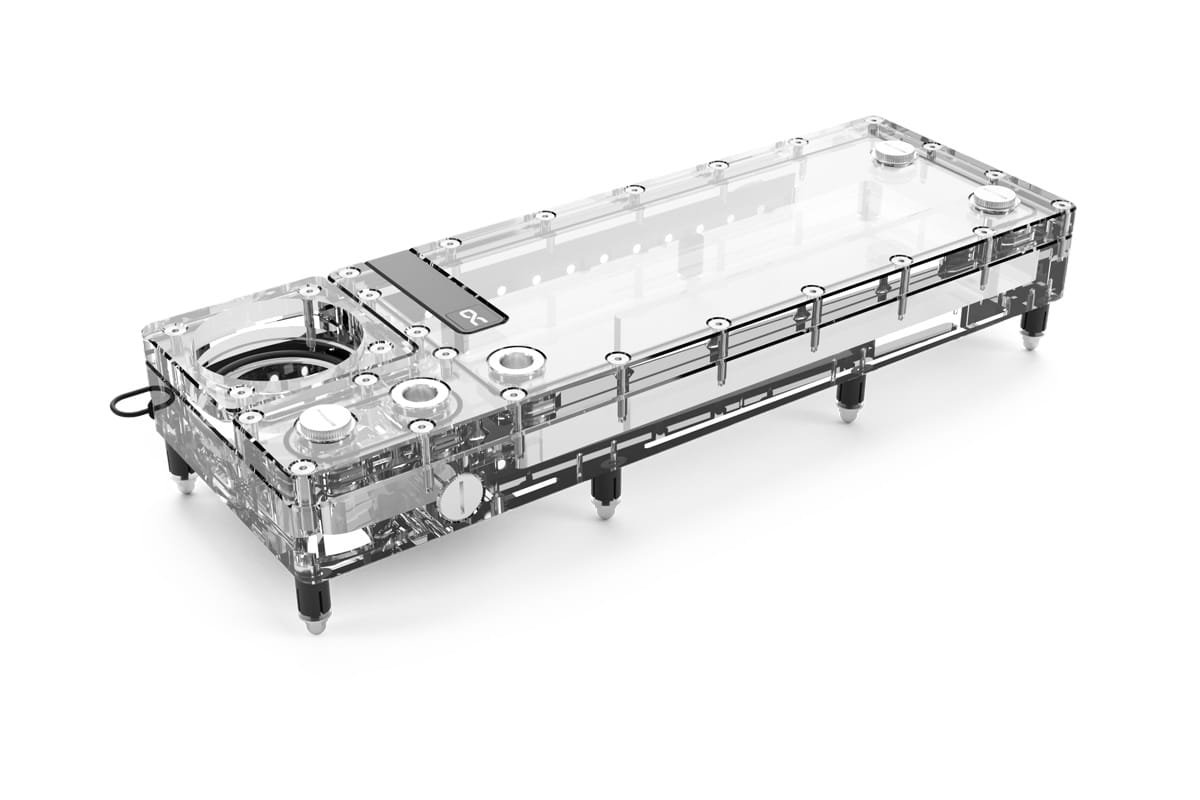

The Alphacool Core Flat Reservoir not only looks sleek with its aRGB lighting, but also offers flexibility with a total of 5 connections. The reservoir is made entirely of acrylic. The installation of a D5 or VPP pump is required for operation. Due to its flat design, the Core Flat Reservoir also fits in small cases.

Core Design
A key element of Alphacool's Core Design series are the chrome-plated G1/4" connections made of brass. In the Core Flat Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.

Easy installation

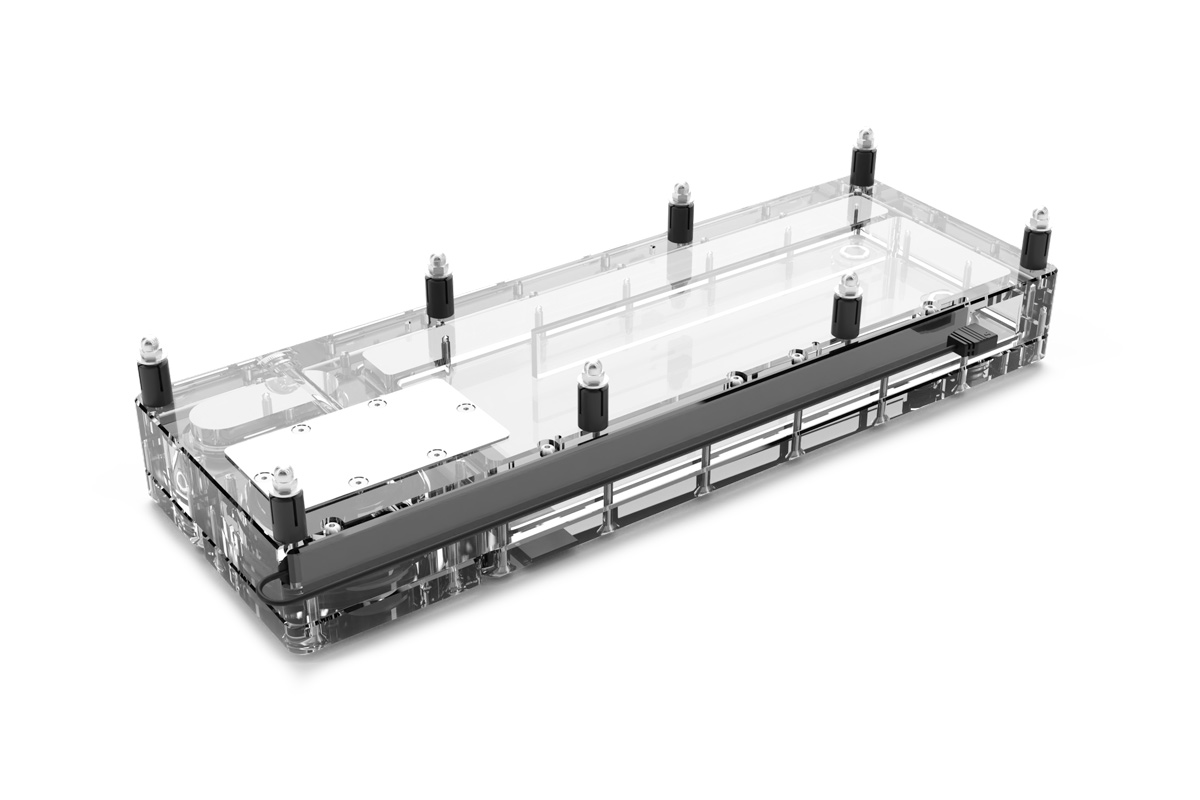

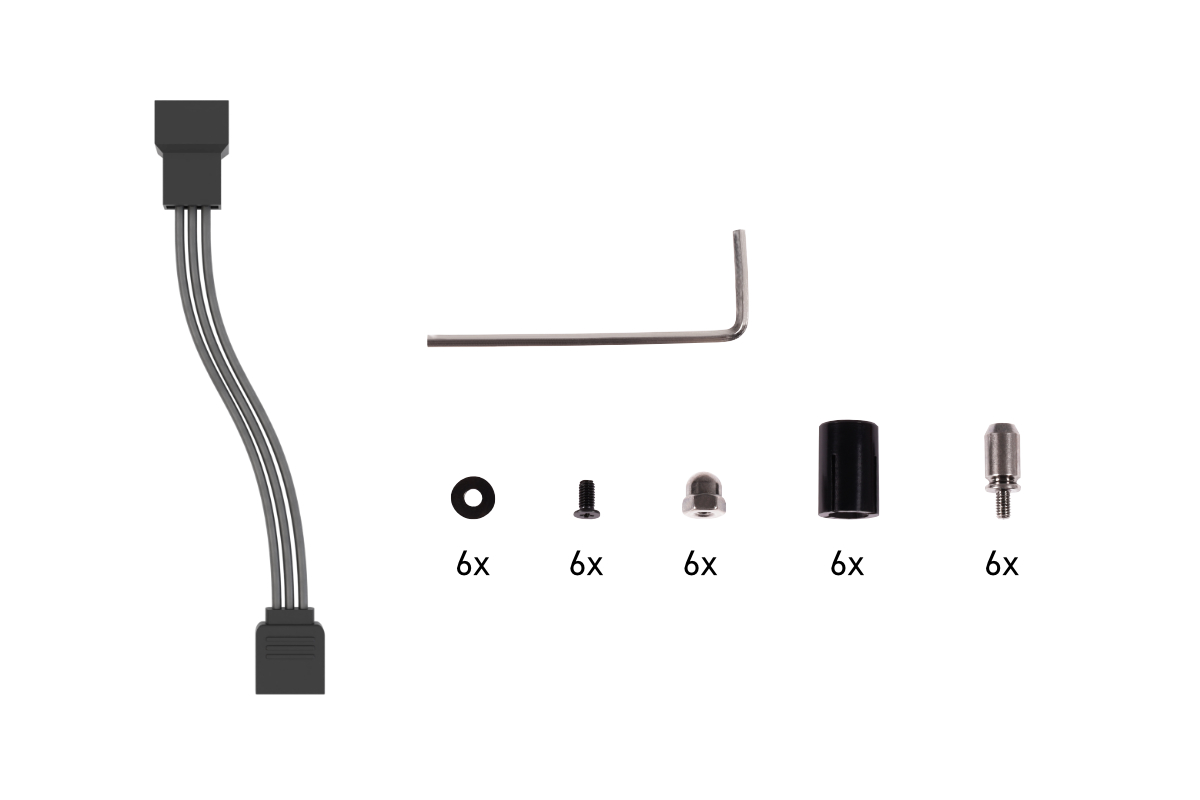

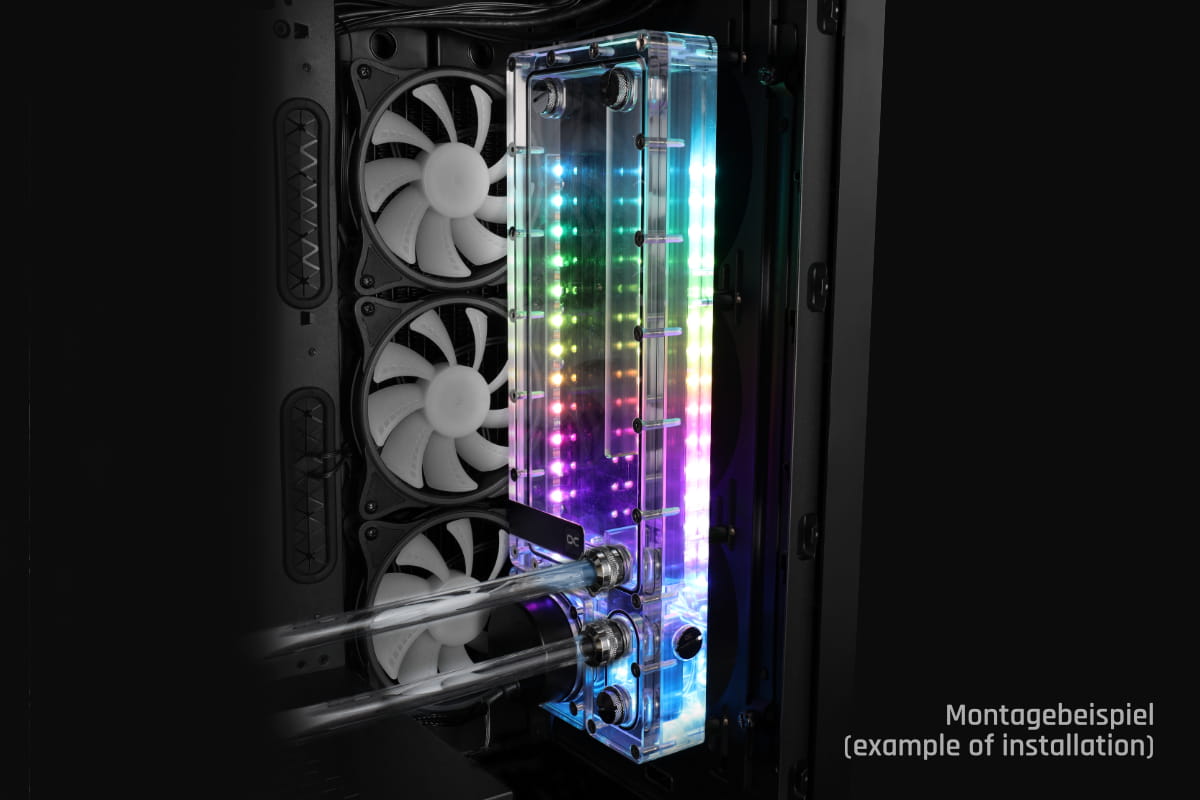

With the included Core Push Mounting kit, the Core Flat Reservoir can be mounted on the case panel or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Flat Reservoir (see manual). In the next installation step, the Flat Reservoir is simply and tool-free pushed onto the pins. Alphacool's Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.

Gamechanger
The Core Flat Reservoir is offered as a 240mm or 360mm version, with right positioning of the pump top. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Flat Reservoir.

High-quality material selection & brilliant lighting

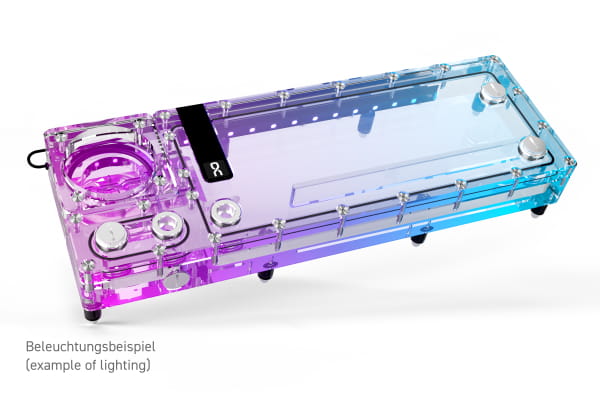

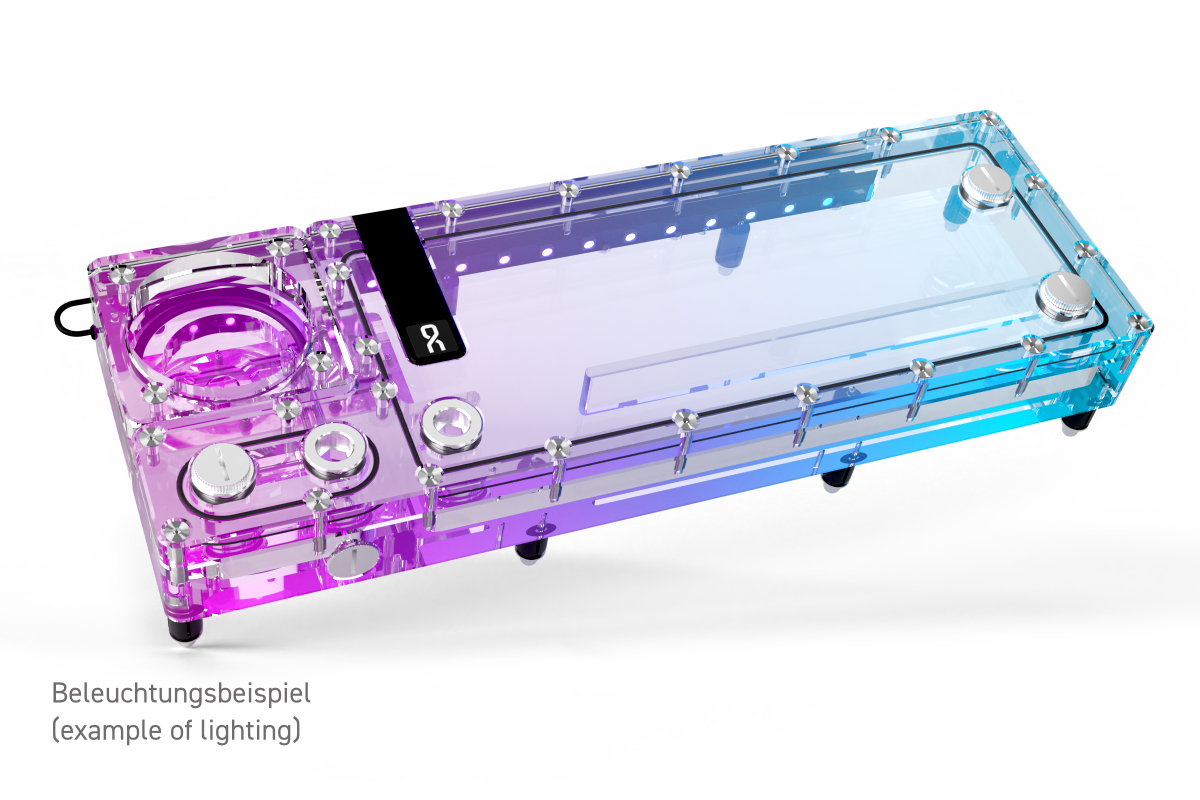

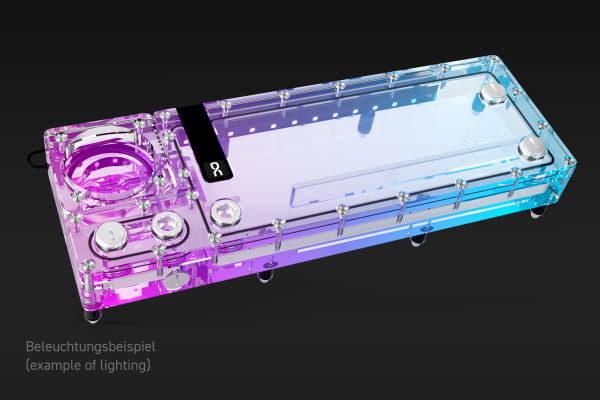

Alphacool's Core Flat Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (item number: 15360).

Compatibility:
- Can be mounted on the radiator or panel

Technical data
Dimensions (L x W x H)	360,00 x 125,00 x 45,14mm
Volume (reservoir)	500ml
Material	Acryl
Pump compatibility	D5/VPP
Threads	5x G1/4" inner thread / 1x drain port
Maximum working temperature	60 °C
Pressure tested	0,8 Bar
Quantity digital aRGB LEDs	17
Voltage digital aRGB LEDs	5V
Power connection digital aRGB LEDs	3-Pin JST + 3-Pin 5V
Color	transparent

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material:	Acryl
Anschluss:	G1/4" Innengewinde
Behältertyp:	Sonstige Behälter
Volumen:	500ml
LED Bohrungen:	aRGB/RGB
Abmessungen:	360,00 x 125,00 x 45,14mm
