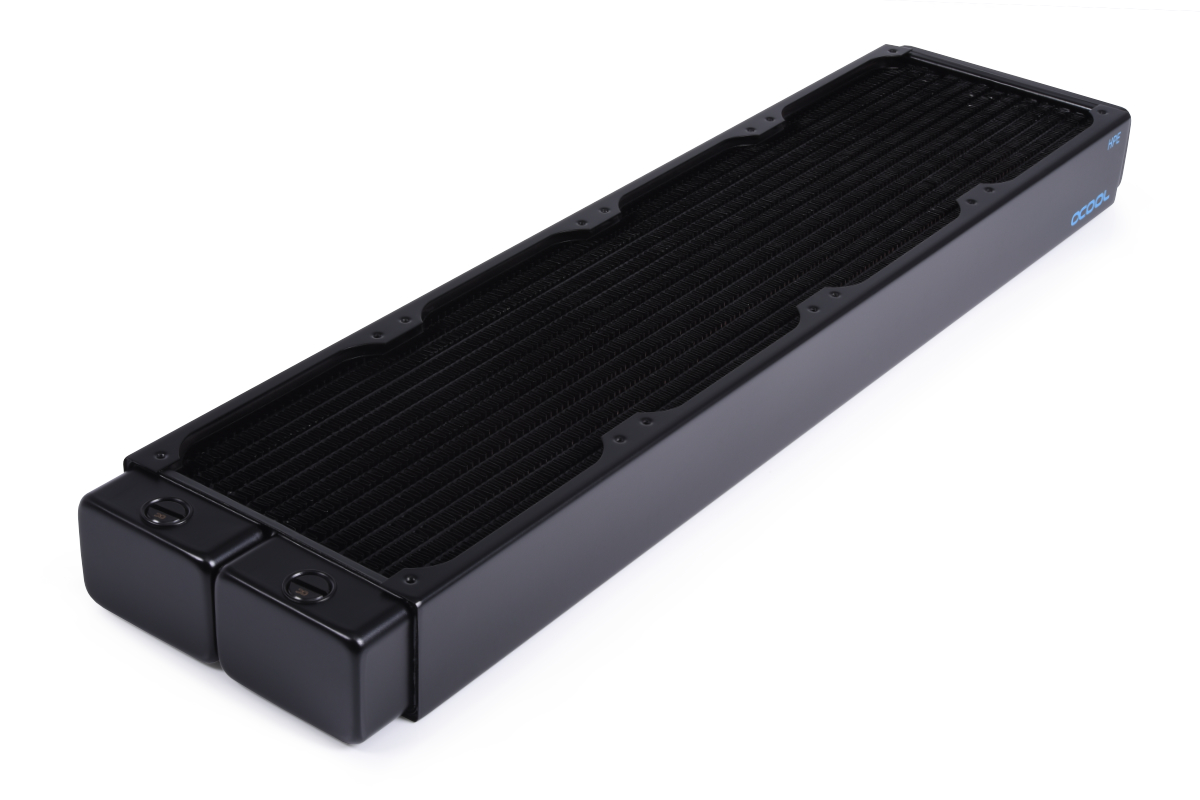

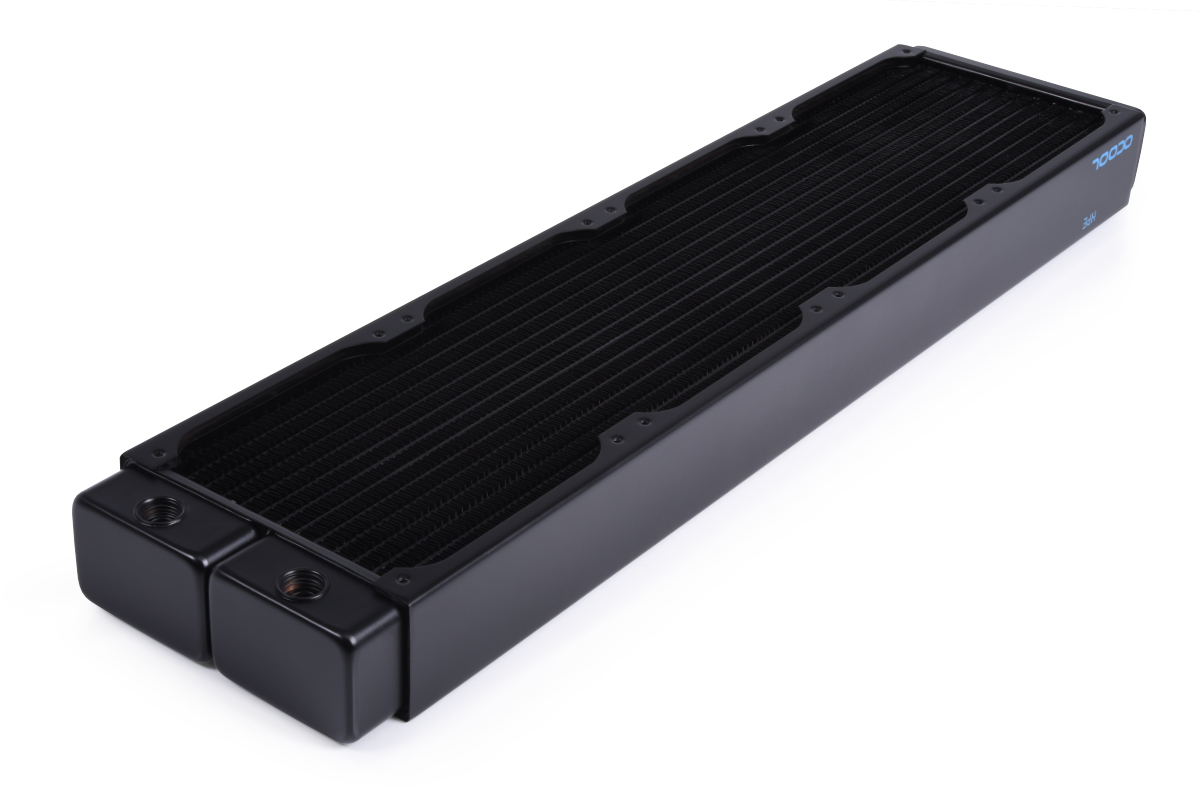

Alphacool NexXxoS HPE-45 Full Copper 480mm Radiator

  • 14473
  • 4250197144735
  • 1,846 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€141.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
PUM Alphacool VPP Apex pump - G1/4 IG incl. ice cover D5 - Acetal V.3
1x
Alphacool VPP Apex pump - G1/4 IG incl. ice cover D5 - Acetal V.3
€79.98*
S13 Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
1x
Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
€18.98*
ANS Alphacool HF screw-on nozzle TPV metal - 12.7/7.6mm straight - black - kit of 6
1x
Alphacool HF screw-on nozzle TPV metal - 12.7/7.6mm straight - black - kit of 6
€27.98*
ANS Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black
1x
Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black
€8.98*
12955 Alphacool Eisblock Aurora XP³ Light - Acryl
1x
Alphacool Eisblock Aurora XP³ Light - Acryl
€34.97*
L12 Alphacool Rise Aurora 120 mm fan (120x120x25mm) PHT EOL
1x
Alphacool Rise Aurora 120 mm fan (120x120x25mm)
€11.98*
WAK Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate 3080/3090 Gaming/Eagle EOL
1x
Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate 3080/3090 Gaming/Eagle
€49.98*
For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests* with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

(* Test setup: NexXxos ST30 360mm radiator vs. NexXxos HPE-30 360mm radiator with Eisbaer cooler and 3x 120mm Rise Aurora fans and on Asus Prime x299 motherboard with Intel i9 10900x CPU with 350W waste heat)

Connection options & mounting

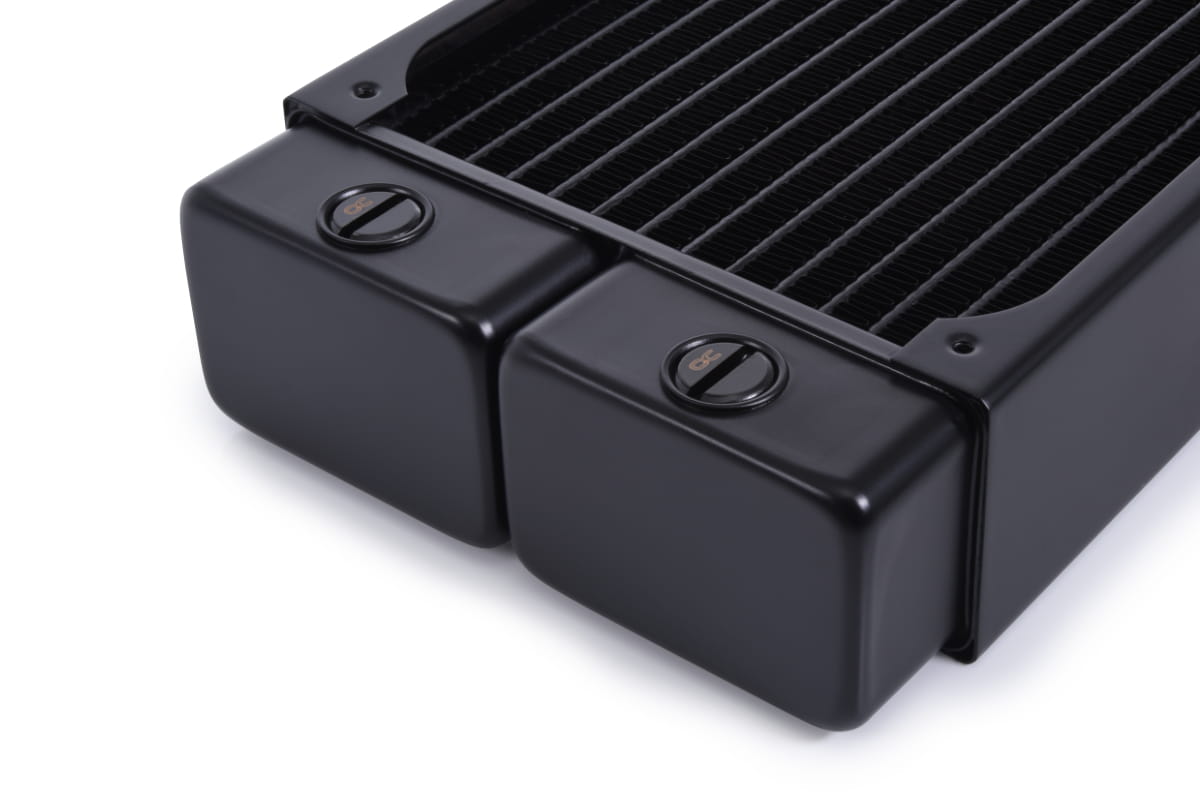

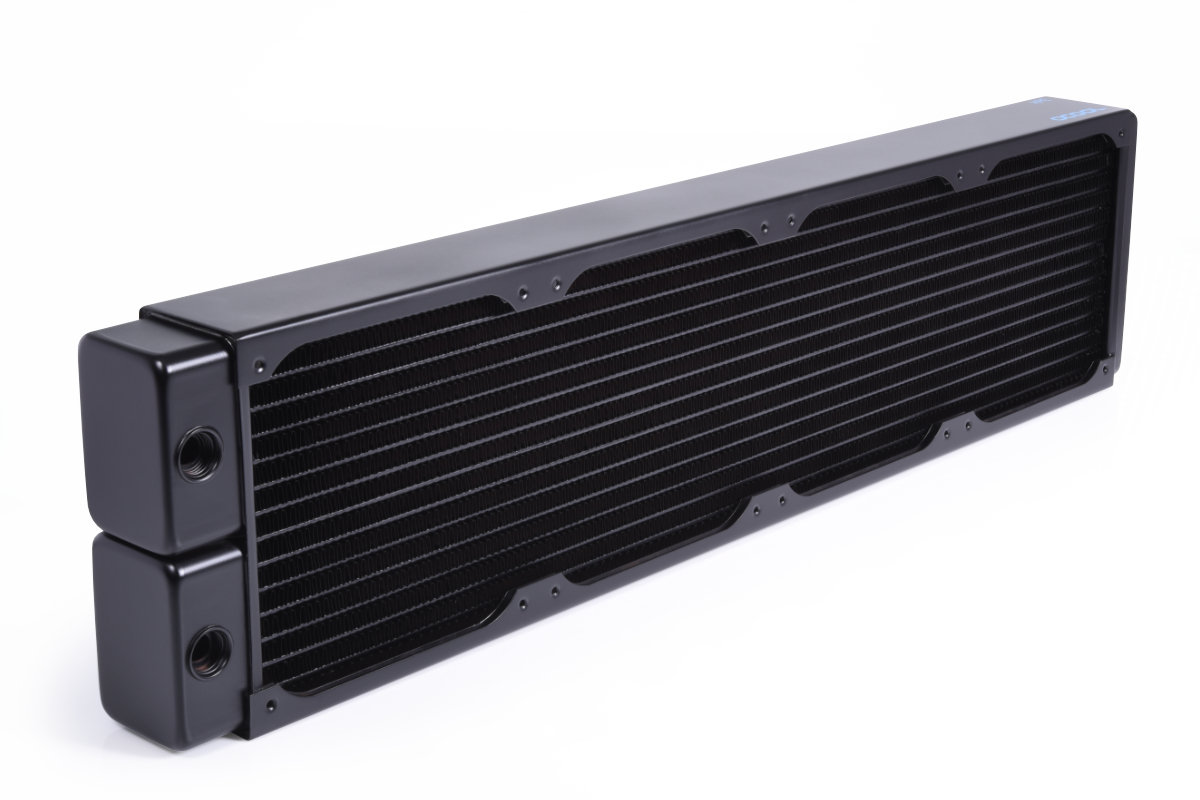

The NexXxoS HPE radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or drain port, which can be used for filling and draining the water circuit. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.

Safety first

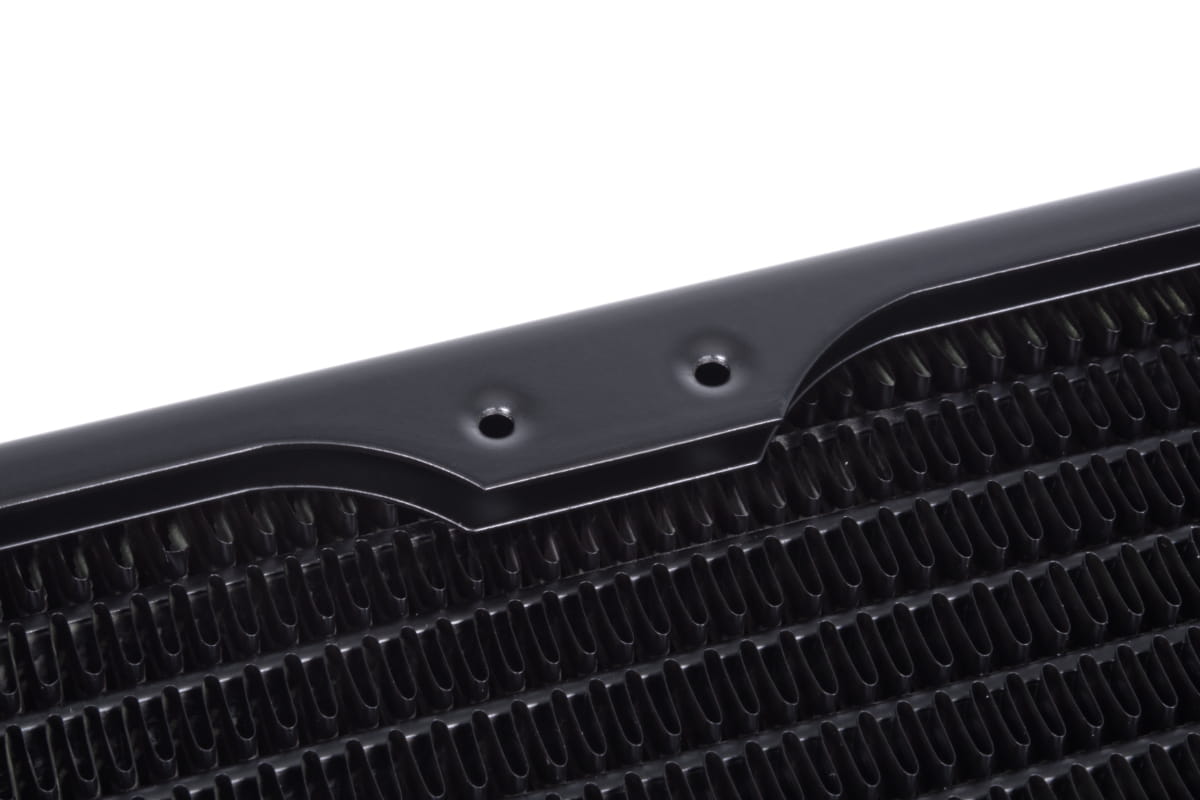

The NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.

Patented screw plugs

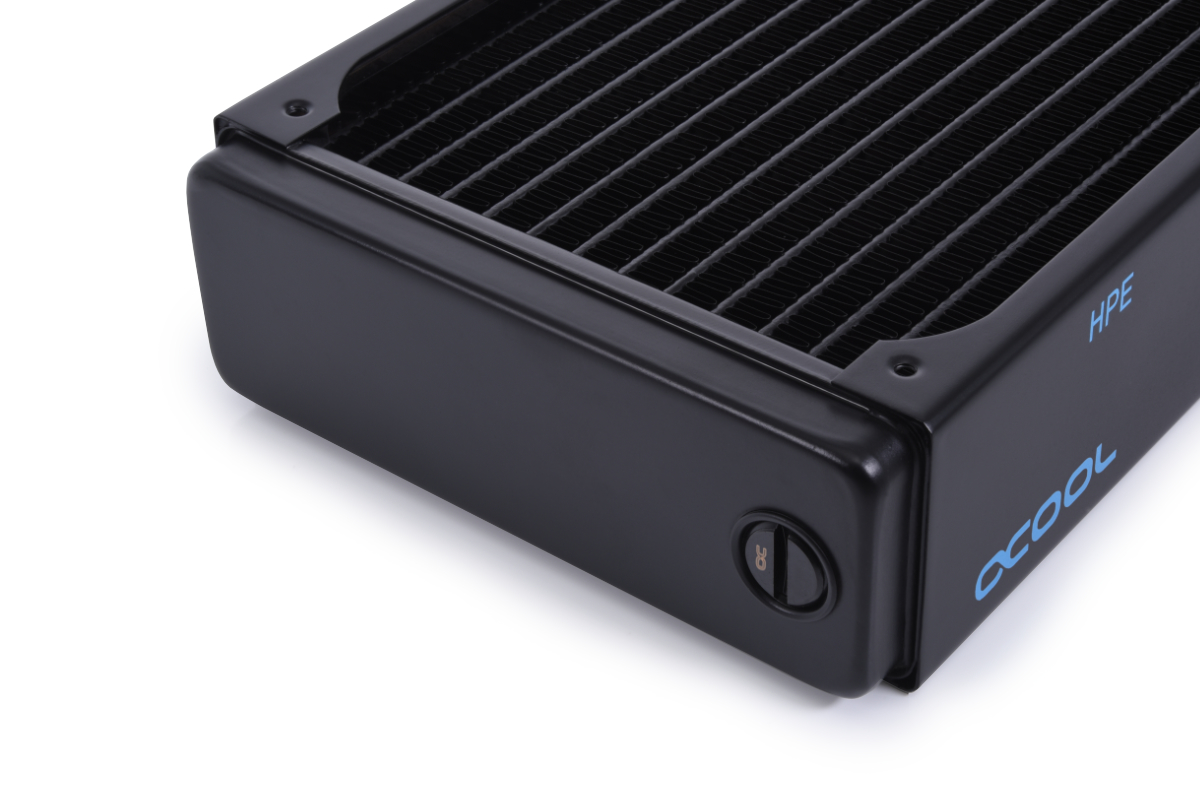

All NexXxoS HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often mean that the radiator cannot be laid flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface and allow easy installation in the case.



Technical data radiator
L x W x H511,5 x 124 x 45mm (+/- 3%)
Quantity of cooling channels24
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)
Possible fan size120mm
Possible fan assembly4x one-sided / 8x both-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density16 FPI
Weight1535g
Colorblack

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 39 - 49mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 0,8 bar
Fins per inch: 16
Anschluss: 5x G1/4"
Anzahl Lüfter: 4
Abmessungen (L x B x H): 511,5 x 124 x 45mm
Lüftergröße: 120mm
