Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 phase sine wave PCB)

PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB) PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB) PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB) PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)
PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)
PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)
PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)
PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)

  • Article no.: 13332
  • EAN: 4250197133326
  • Weight: 0,058 kg
  • Images may differ slightly from the original
€29.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
15369 Alphacool Eisstation 40 DC-LT - reservoir
1x
Alphacool Eisstation 40 DC-LT - reservoir
€33.98*
15371 Alphacool Eisstation 80 DC-LT - reservoir
1x
Alphacool Eisstation 80 DC-LT - reservoir
€43.98*
15372 Alphacool Eisstation DC-LT - Solo Top
1x
Alphacool Eisstation DC-LT - Solo Top
€23.28*
13136 Alphacool DC-LT Acryl top
1x
Alphacool DC-LT Acryl top
€22.98*
13140 Alphacool reservoir individual for DC-LT pumps
1x
Alphacool reservoir individual for DC-LT pumps
€21.98*
Description Technical details
Description
In the world of water cooling, it is not always just about getting the maximum performance out... more
Close menu
Product information

In the world of water cooling, it is not always just about getting the maximum performance out of your own hardware. Sometimes, noise levels are far more important and with watercooling you can make a PC almost inaudible.

What is that?

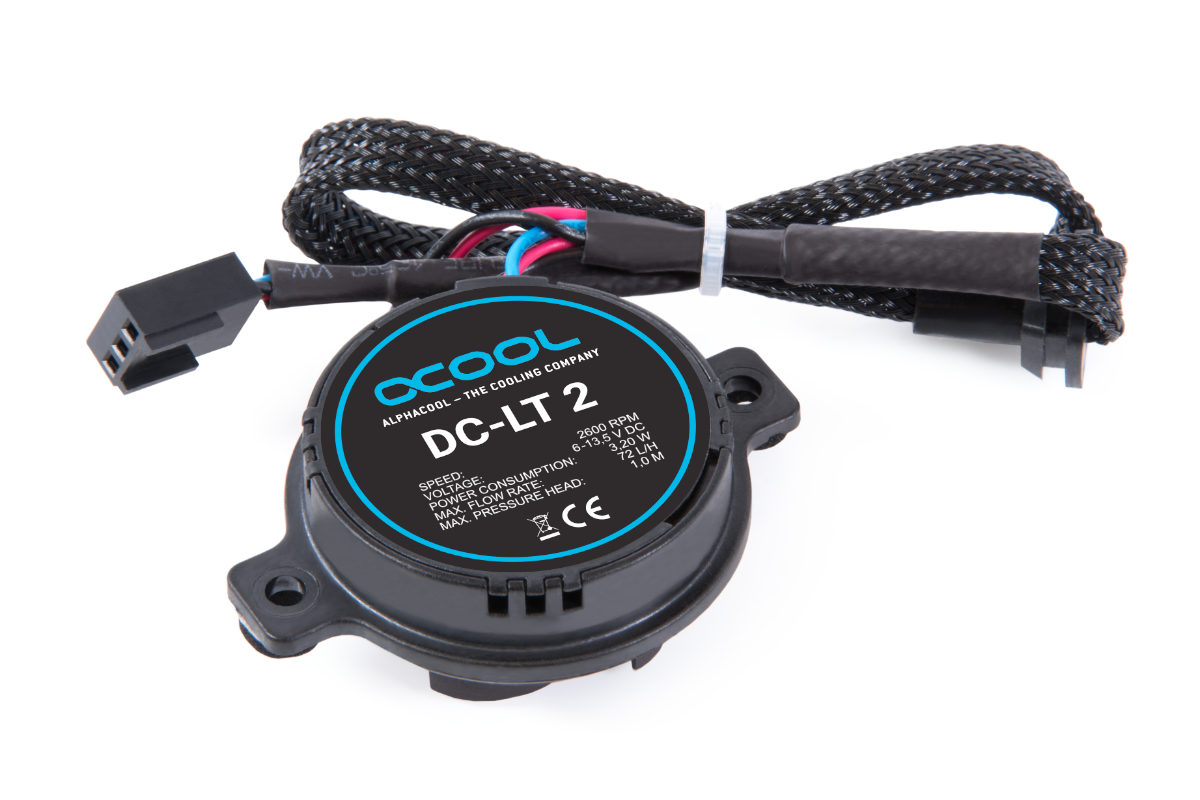

The Alphacool DC-LT 2 2600rpm Ceramic is a pump which is designed for use in computer water cooling systems. Even the previous model was considered a quiet little wonder. Now Alphacool has improved this product considerably thanks to the experience gained. With this pump, small to medium-sized water loops can be operated almost silently. Alphacool already uses this pump successfully in the GPU-AiO Eiswolf 2 which, in various independent tests, was classified as inaudible.

How is the quiet running of this pump achieved?
There are several points to mention: The true 3-phase sinusoidal control of the pump contributes to the extremely quiet running of this pump. The impeller is suspended on a ceramic axle with two magnets. The ceramic axle is manufactured with high precision and the impeller is cleanly balanced. All these details contribute to the Alphacool DC-LT 2 2600rpm Ceramic pump is virtually silent.

What else is special about this pump?
The control of the pump, the mechanics and thus the pump itself is highly efficient. Compared to other models, the power consumption is significantly lower with the same or even higher power output. It has a wide control range and starts reliably from 6V power supply.



Technical data
Speed2600 RPM
Dimensions (WxHxD)52 x 41 x 18mm (without cable)
Cable length30 cm
Weight39g
Voltage6-13,5V DC
Power consumption3,2 W
Maximum flow rate72 L/h
Maximum head1 m
Power connection3-pin fan connector
MTBF50.000h

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details
Technical details mehr
Technical details
Technical details
Spannung: 12V DC
Maximaler Durchfluss: 72 l/h, 480 l/h
Zugelassene Flüssigkeiten: Wasser, Wasser/Glykol-Gemisch
Wassereinlass: nicht vorhanden
Wasserauslass: nicht vorhanden
Farbe: schwarz
Hersteller: Alphacool
Material: Keramik;Kunststoff;
Leistungsaufnahme: 3,2W
Maximale Förderhöhe: Standard (kleiner 2m)
Abmessungen: 51 x 48 x 9mm
Maximale Systemtemperatur: 65°C
Stromanschluss: 3Pin
Möglicher Regelbereich: 7-13,5V DC
