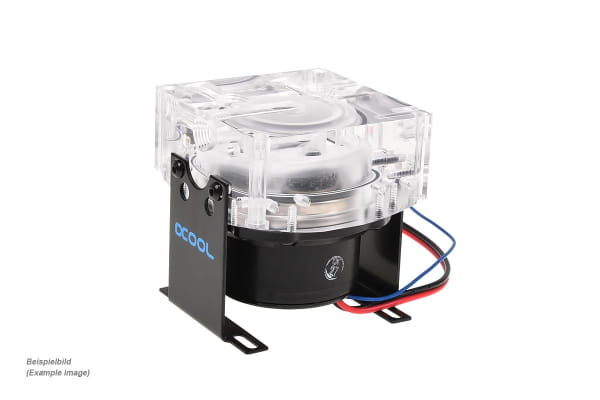

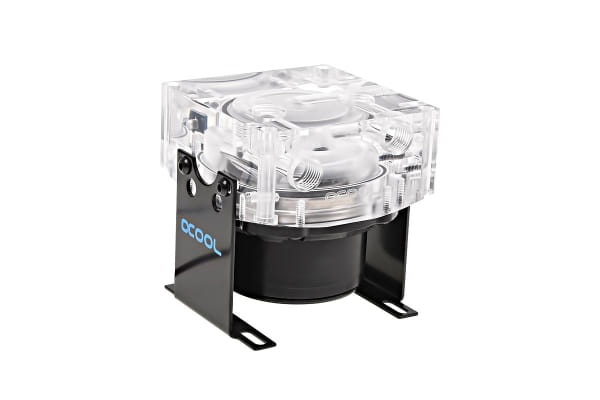

Alphacool VPP655 PWM - G1/4 inner thread including Eisdecke D5 - Acryl V.3

Alphacools top for Laing D5 is now a member of the Eisdecke series and receives an update.

For years now this top is already a measure. Again and again, small improvements have been made. The second major update differs both, visually and technically in a few details.

The principle: On the bottom there is space for the Laing D5 or VPP655 pump and in the front or on top the inlet and outlet.

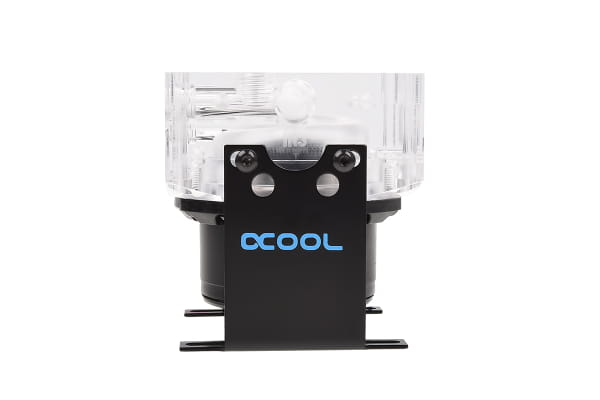

For even more flexibility, the Eisdecke gets three inlets and two outlets. Another feature is the new holder to give the entire unit a stable footing and complete the overall visual image. Optional installation in 3.5 "drive bay is possible.

The top can be converted by using the suplementary element, whitch is given as an accessory, to an complete reservoir which has also been revised.

For all the Casemodder: In this top there are four holes for 5mm LED’s.

Technical Details

• Dimensions (LxWxH): 80 x 80 x 40mm
• Dimensions with stands: 83 x 80 x 87mm
• Material: Plexi
• Threads: 5x ¼“

Alphacool VPP655

Alphacool's new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.

This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.

The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.

The special feature of this model is the fact that only the pump core itself is shipped. Why pay more for all the things you won't need when using this pump with a third-party pump top?

Please note: Pump control possible with Heatmaster!

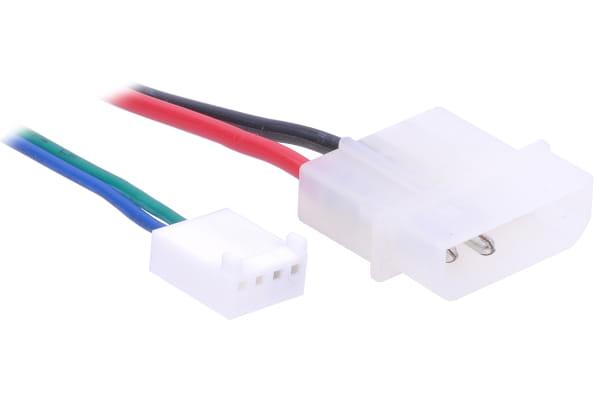

Note: For pump control via the Heatmaster the Alphacool pump adaptor cable (Item No. 25066) is required!

Datasheet D5 Pump VPP655

Technical specifications

• Dimensions (WxHxD): 65 x 65 x 57mm (without connectors)
• Motor: Electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 23W
• Permitted voltage range: 8-24V DC
• Pressure head at 12V: 3,7m
• Maximum flow: 350l/h
• Pumped media: Water, water/glycol mixtures
• Maximum system temperature: 60°C
• Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector:  4 Pin Molex

Scope of delivery

• Alphacool VPP655 PWM - G1/4 inner thread including Eisdecke D5 - Plexi V.3

Mounting manual

Download 3D-file (.stp)

Notice
Not intended for continuous operation with fluids containing titanium dioxide or glycerin. Many pastel colours typically use these additives.

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
