Article no.: 11770
EAN: 4250197117708
Weight: 0,051 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€19.98 *

Prices incl. VAT plus shipping costs

in stock

1x

Alphacool Ice Layer Thermal Pad - 11W/mK 120x20x0.5mm - 2 pieces

€14.98*

1x

Alphacool Ice Layer Thermal Pad - 11W/mK 120x20x1mm - 2 pieces

€21.98*

1x

Alphacool HDX - M.2 SSD M01 - 80mm - Black

€6.99*

1x

Alphacool Eisschicht Light thermal pad - 7W/mK 120x20x0,5mm

€5.99*

1x

Alphacool Eisschicht Light thermal pad - 7W/mK 120x20x1mm

€6.99*

SSDs in M.2 format are becoming increasingly popular. The high transfer rates and extremely low... more

Product information

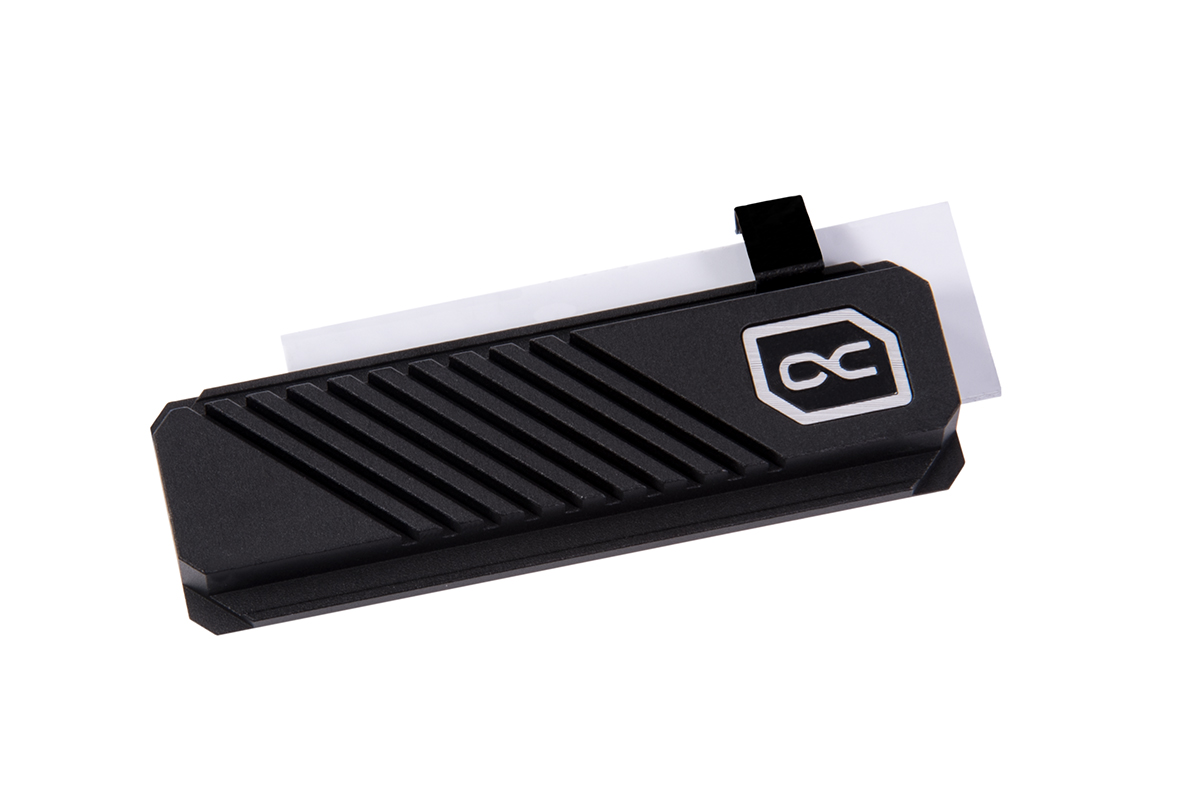

SSDs in M.2 format are becoming increasingly popular. The high transfer rates and extremely low access times allow you to work or play on your PC faster and more effectively. To ensure that you can use the full performance of the M.2 SSD permanently, Alphacool offers the HDX PRO Air M.2 SSD cooler.

Why an M.2 cooler?
Due to their design, M.2 SSDs are only able to reach their maximum performance for a short period of time. The controller chip heats up extremely quickly and begins to throttle the performance of the M.2 SSD early on to prevent overheating. Independent tests have shown that the transfer rates of uncooled M.2 SSDs can drop after just 30 seconds during write operations. During read operations, throttling usually occurs a few seconds later. With the Alphacool HDX Pro Air M.2 SSD cooler, you can use the maximum performance of the SSD over a much longer period of time. This is clearly noticeable during longer read and write operations.

How do I install the cooler?

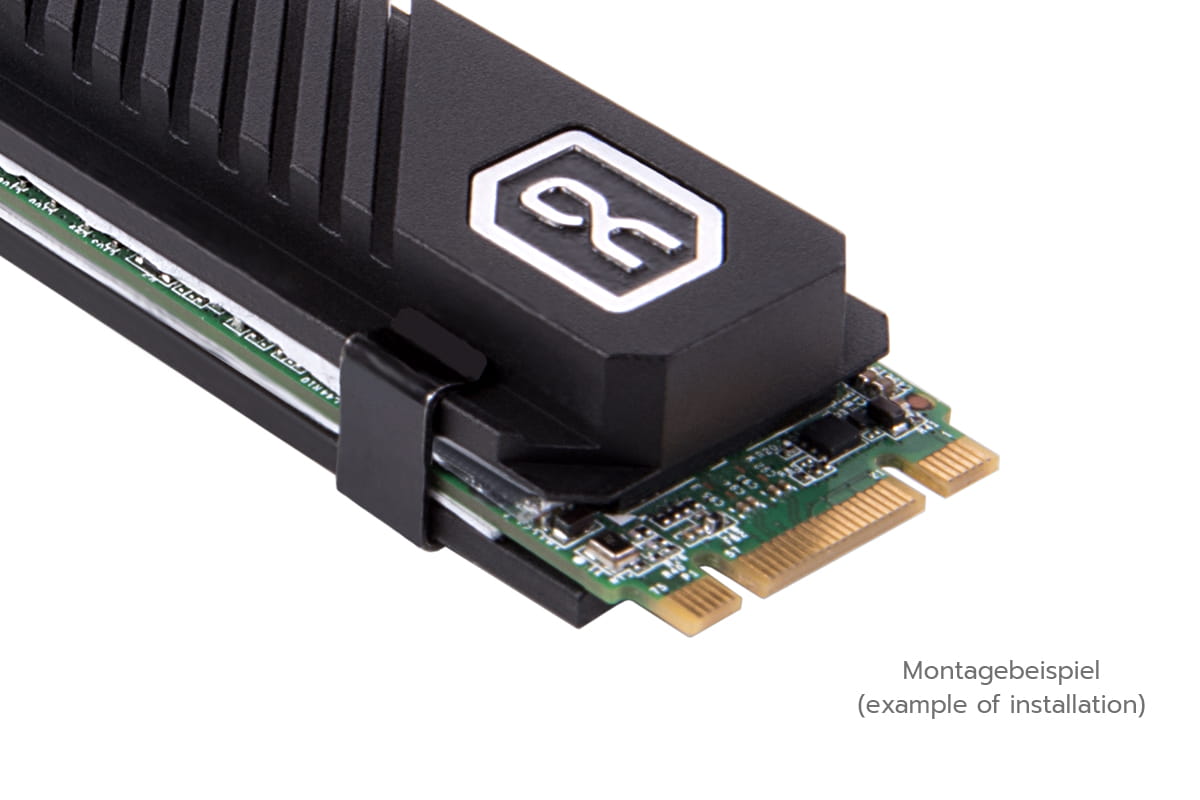

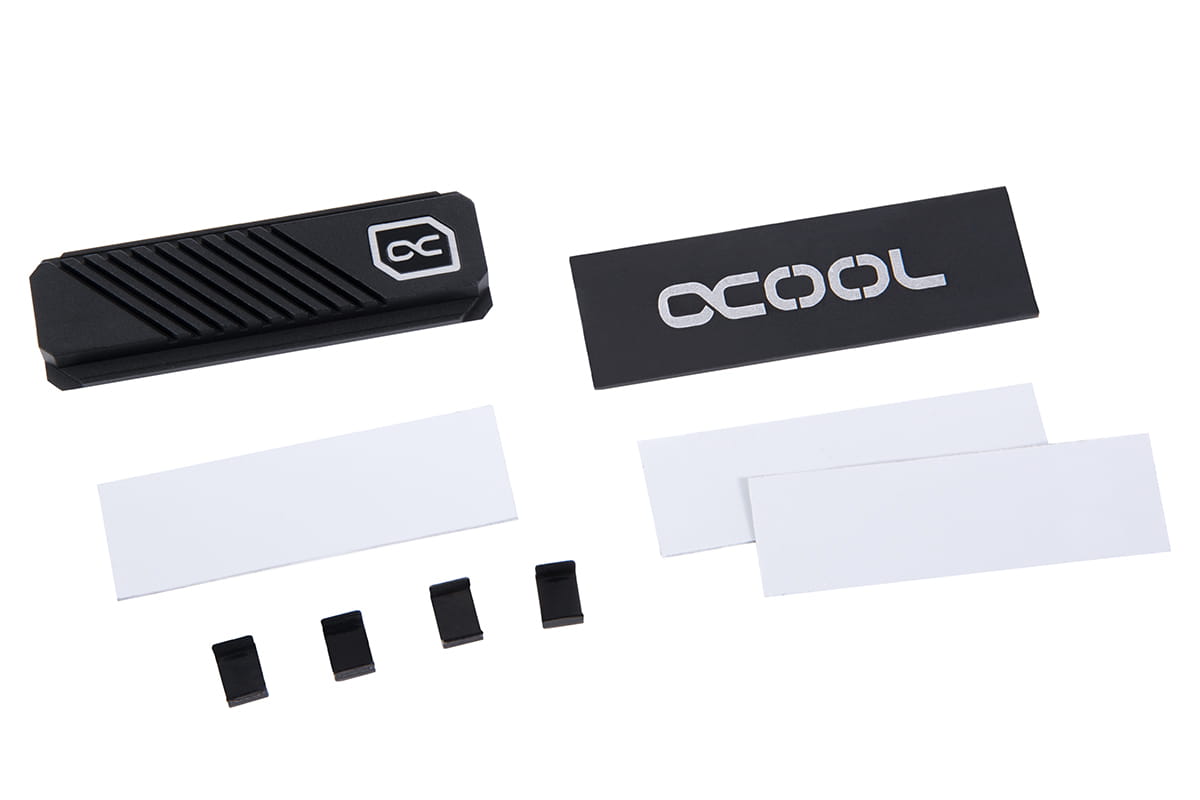

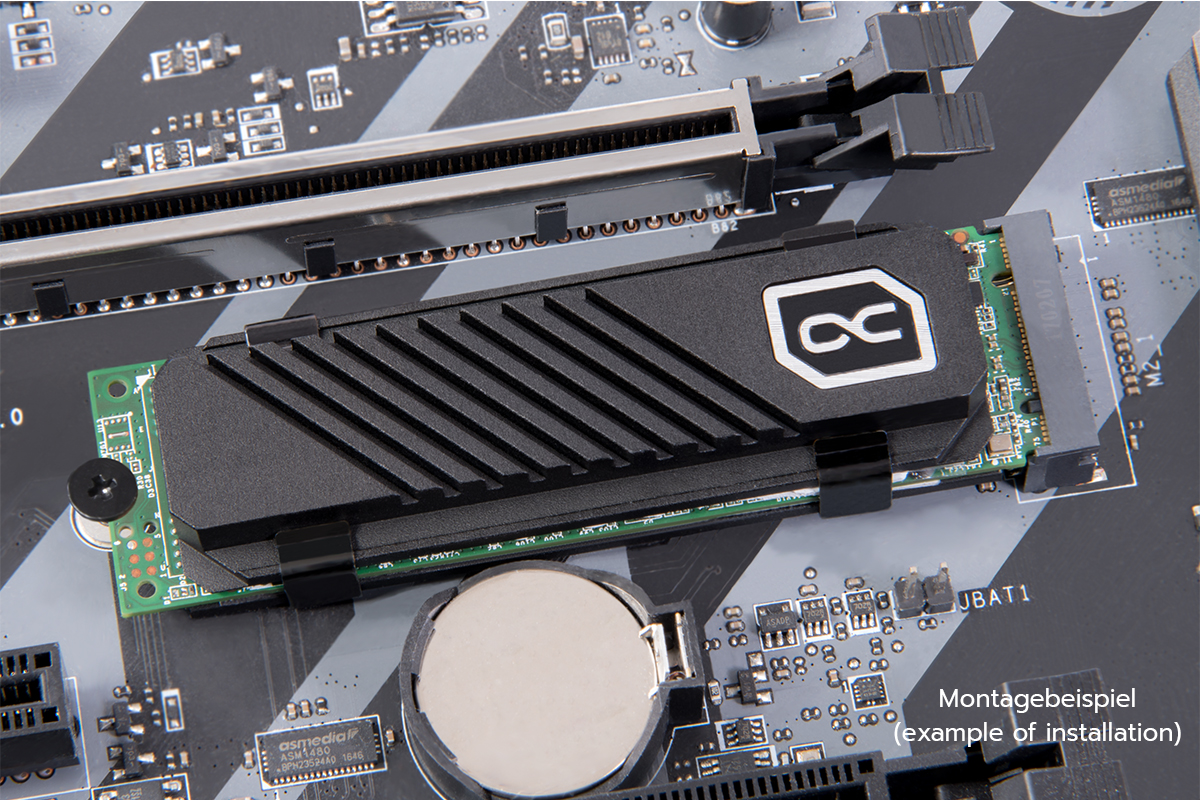

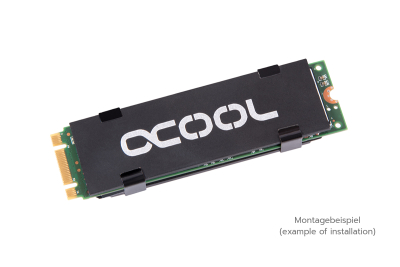

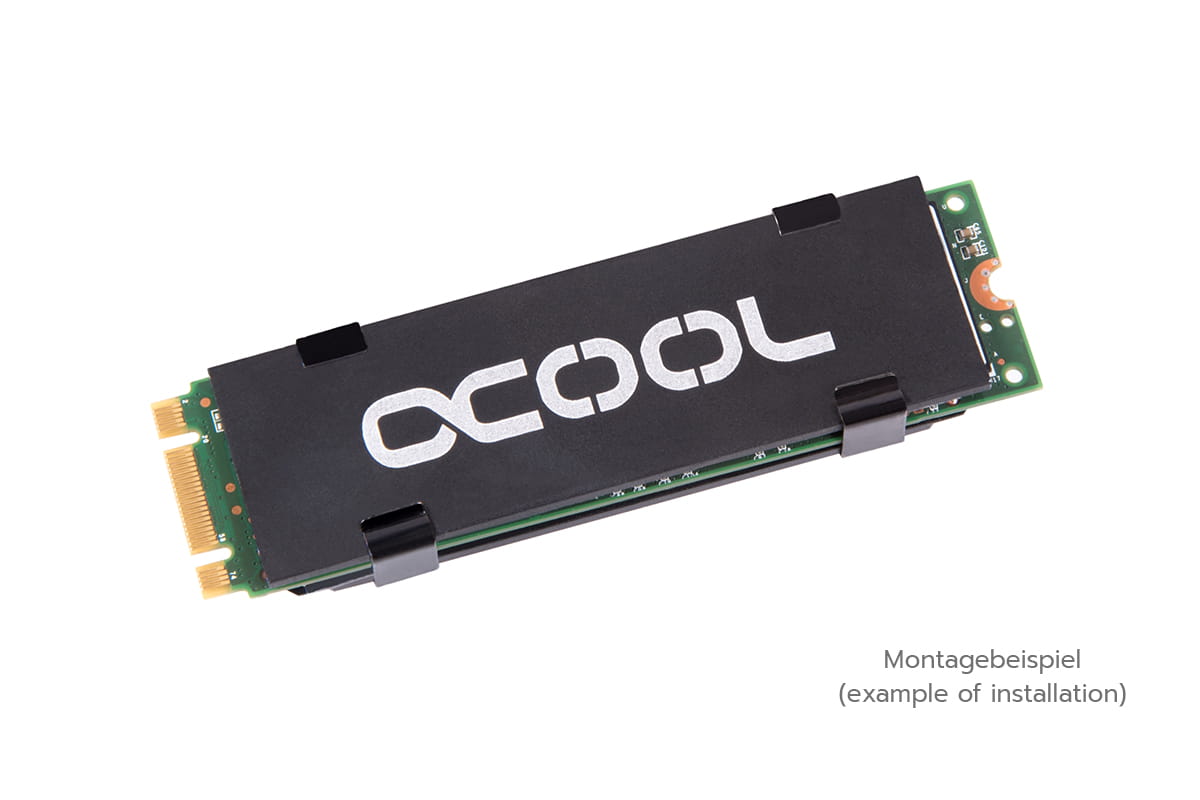

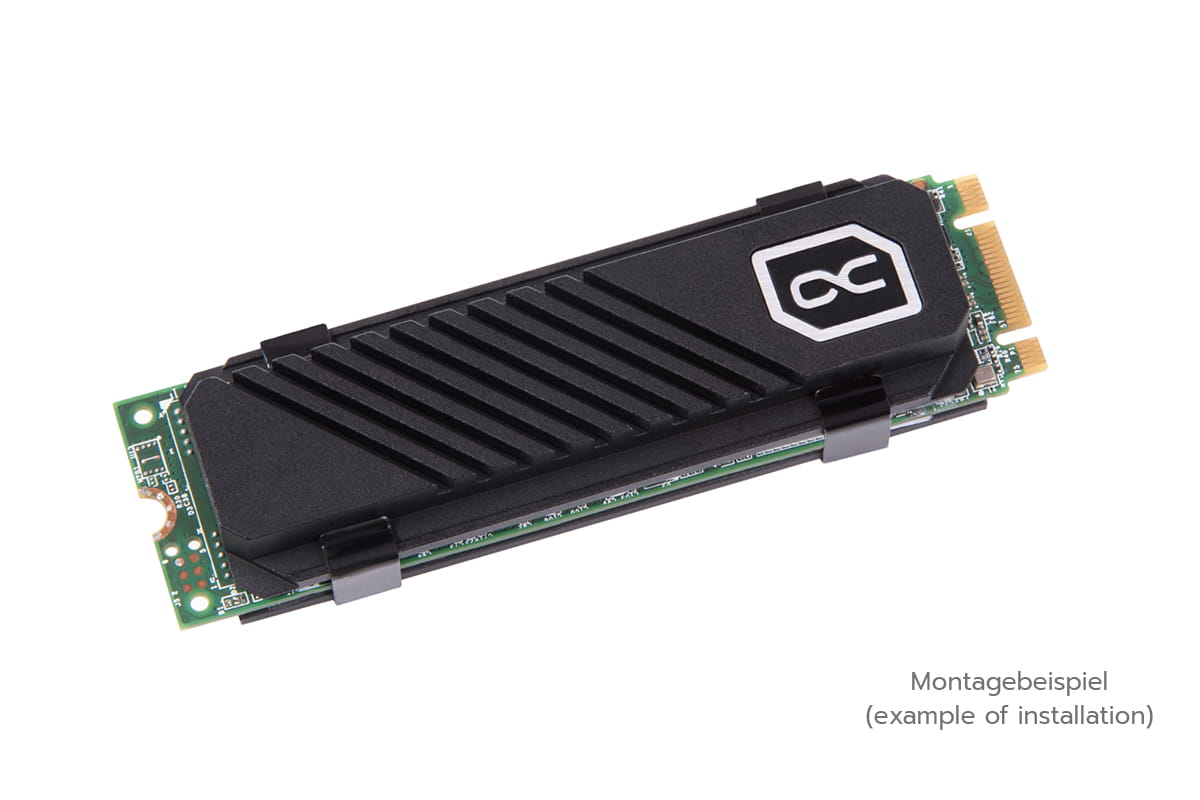

The HDX Pro Air M.2 cooler is compatible with M.2 SSDs that are equipped on one or both sides. All you have to do is place the corresponding thermal pad on the lower cooling plate, then place the M.2 SSD on top. Another thermal pad is then placed on the top of the M.2 SSD, on which the cooler is placed. To hold the whole thing together, 4 clips are attached on each side to hold everything together. Installation on the mainboard is then carried out as usual.

Technical data
Cooler dimensions: 68 x 22 x 6.4 mm
Backplate dimensions: 68.8 x 22 x 2 mm
Material: aluminum
Compatible with: M.2 2280 SSDs

Download data sheet PDF: Alphacool HDX Air Pro M.2 2280 SSD
Download manual: Alphacool HDX Air Pro M.2 2280 SSD

Technical details mehr

Technical details

Technical details

Hersteller:	Alphacool
Anschluss:	2x G1/4"
Material Boden:	Aluminium
Material Deckel:	Aluminium
