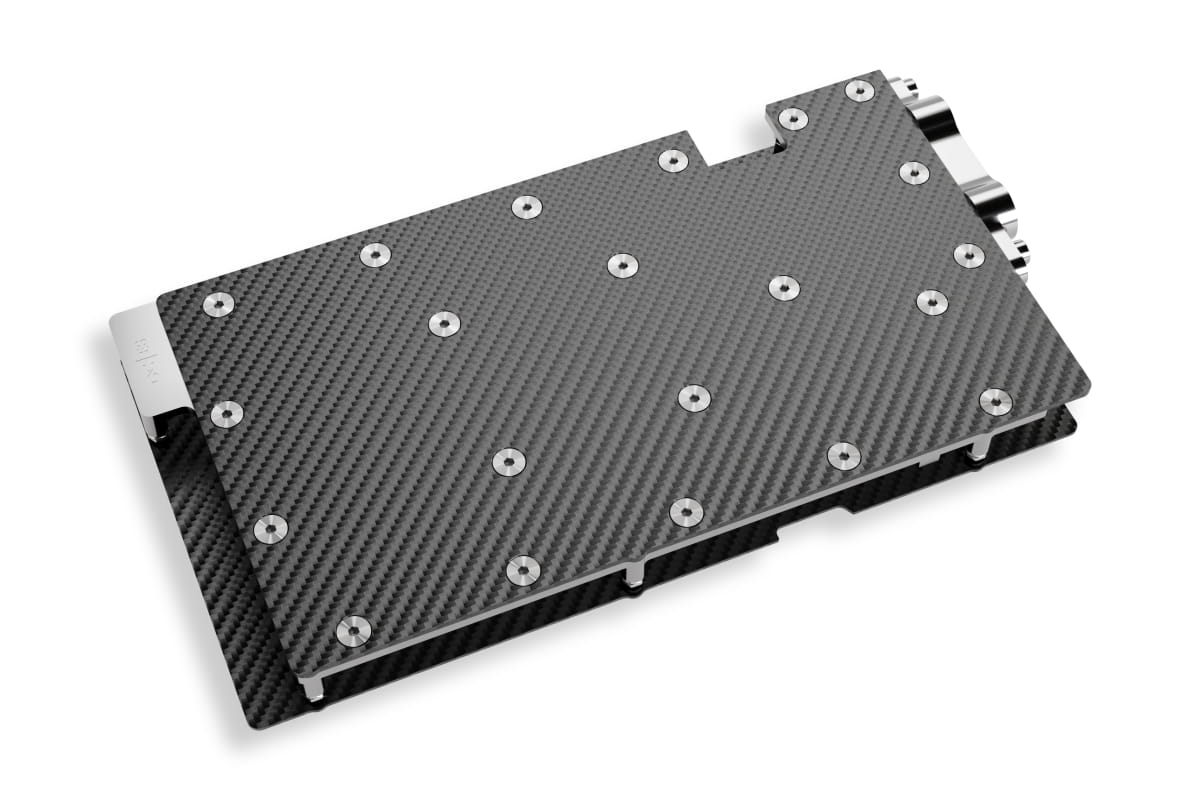

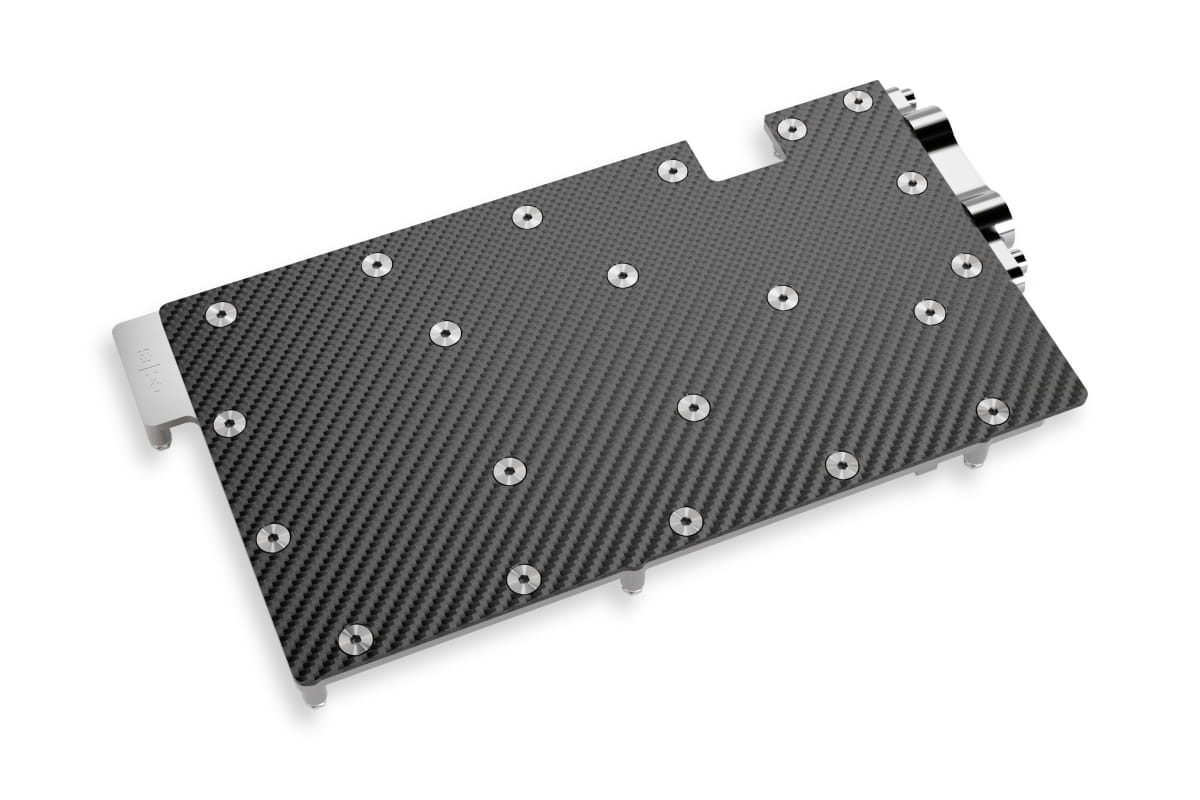

Alphacool ES RTX 5090 Reference 1-Slot-Design REV1 with Backplate

  • 10291
  • 4250197102919
  • 1,2 kg
  • Akutell nicht Verfügbar - Mehr ist unterwegs
  • Images may differ slightly from the original
€299.98 *

Prices incl. VAT plus shipping costs

Delivery date exceeded

Recommended accessories
Extra Price
test
S13 Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
1x
Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm
€19.98*
test
ANS Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack
1x
Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack
€35.98*
test
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
test
17608 Alphacool Eiszapfen 13mm HardTube compression fitting 90° rotatable G1/4 for Acryl/Brass tubes - 4pcs Set Chrome
1x
Alphacool Eiszapfen 13mm HardTube compression fitting 90° rotatable G1/4 for Acryl/Brass tubes - 4pcs Set Chrome
€33.98*
test
13447 Alphacool Core 1 Aurora Silver
1x
Alphacool Core 1 Aurora Silver
€119.98*
Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current... more
Product information

Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.

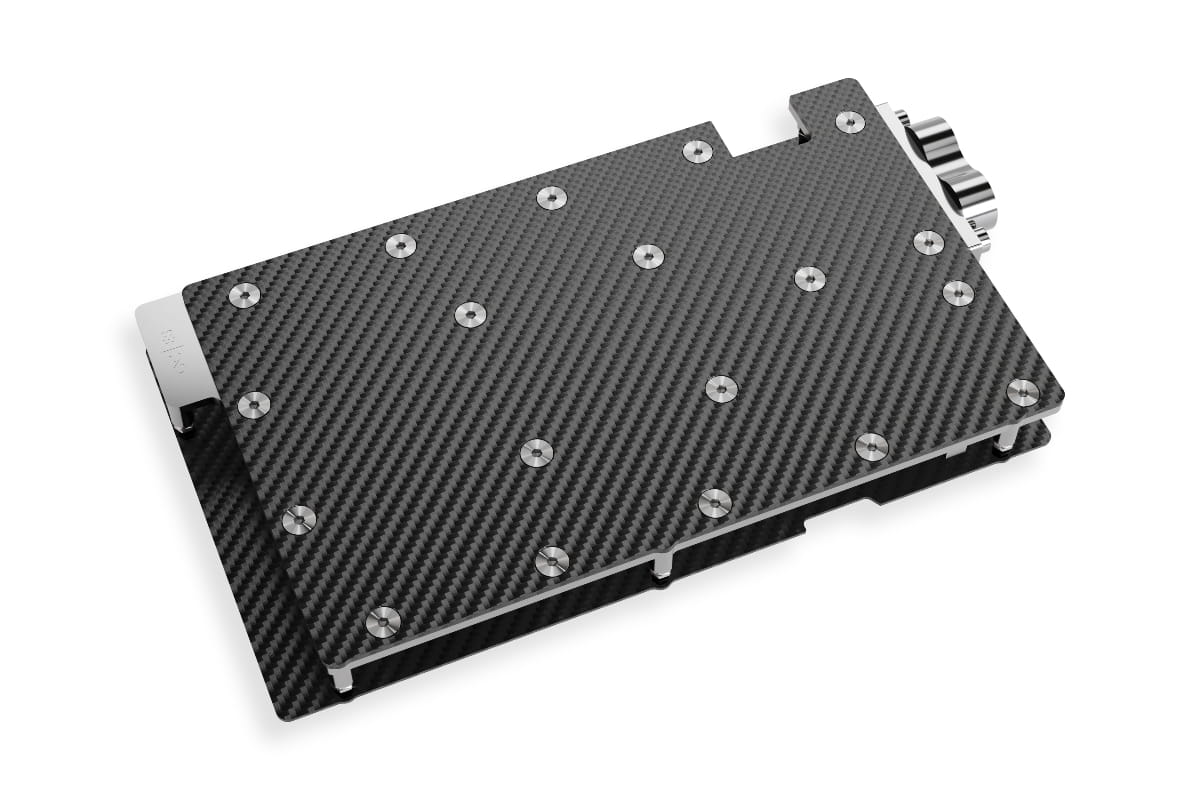

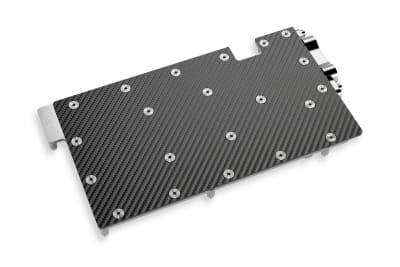

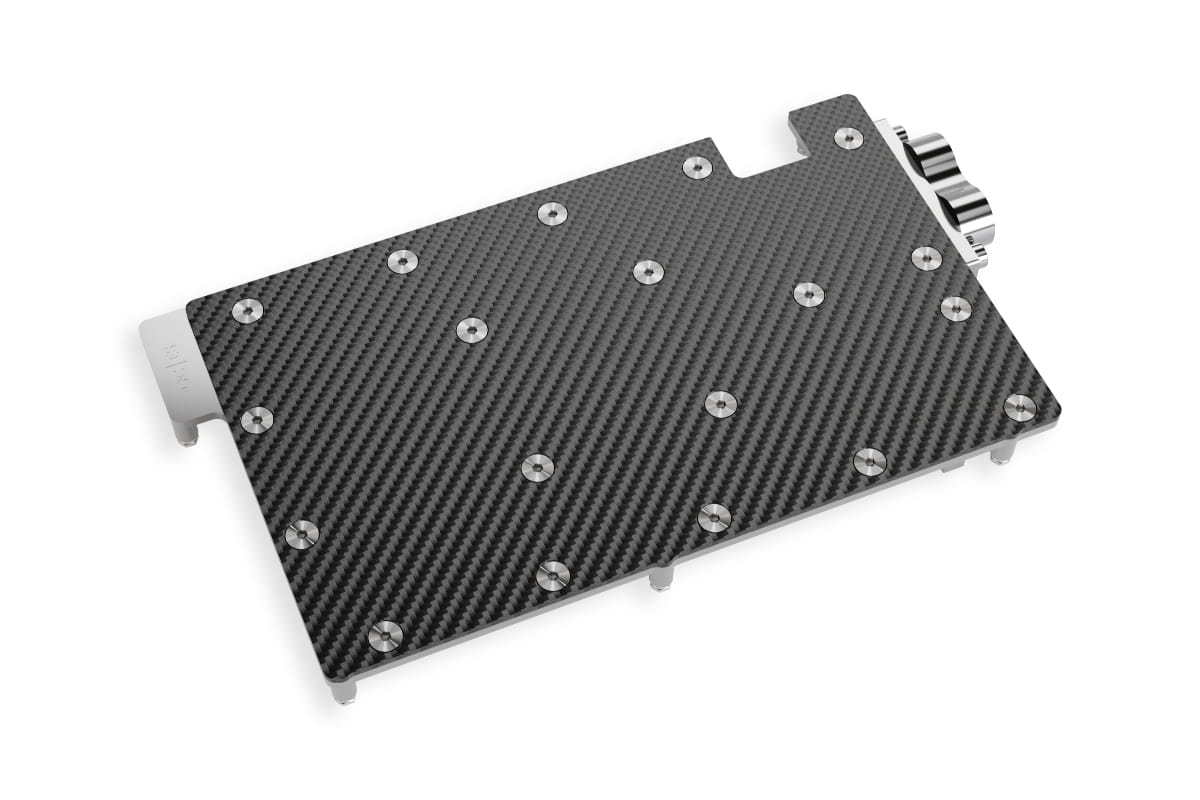

By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.

All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.

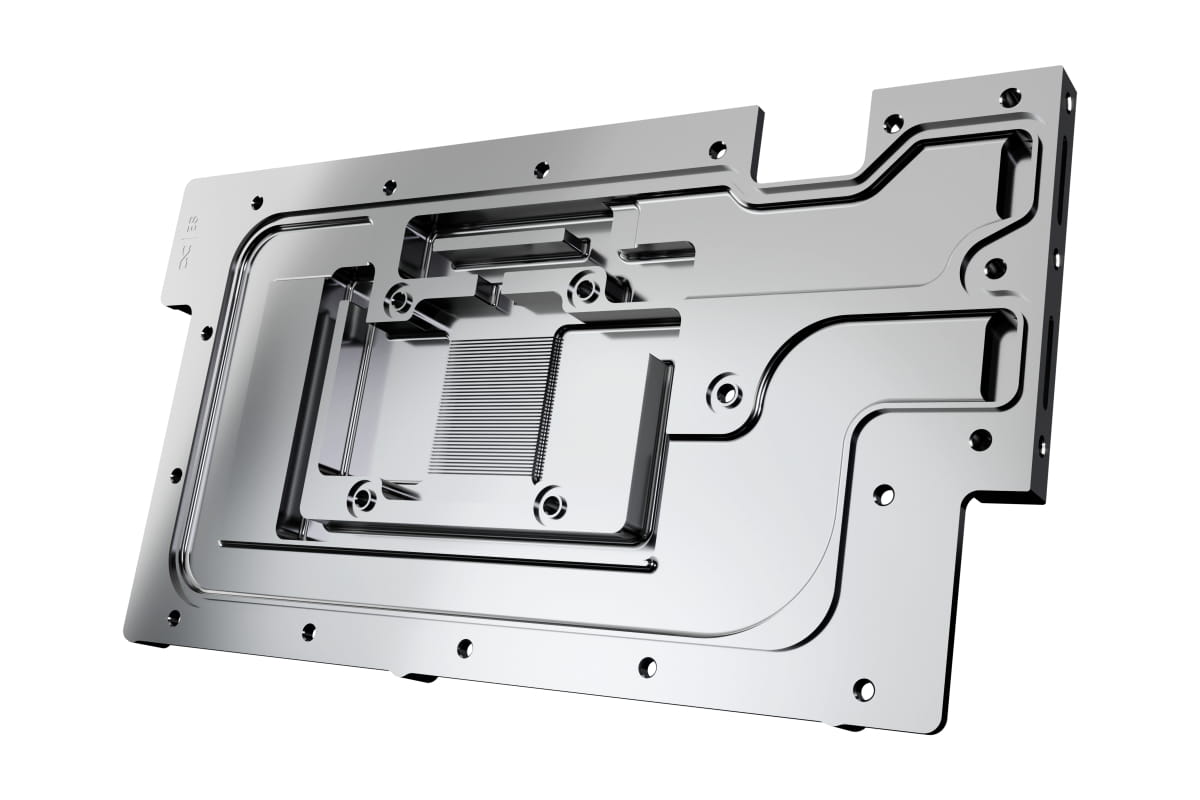

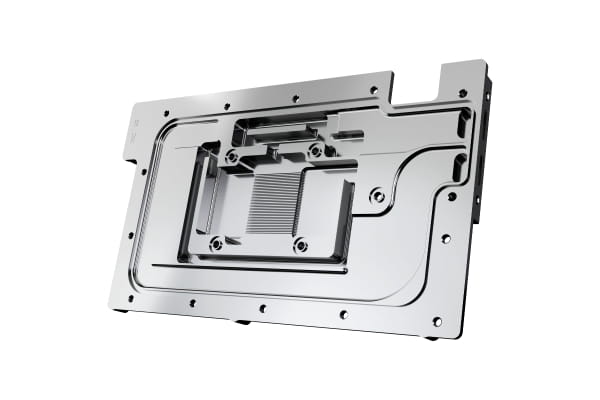

The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Note: The ES RTX 5090 Reference 1-slot design REV1 with backplate has been redesigned to offer greater compatibility with other graphics cards.



Compatibility:
- Inno3D GeForce RTX™ 5090 iChill Frostbite (C50903-32D7X-1759FB)
- Inno3D GeForce RTX™ 5090 iCHILL X3 (C50903-32D7X-175967H)
- Inno3D GeForce RTX™ 5090 X3 (N50903-32D7-17593928)
- Inno3D GeForce RTX™ 5090 X3 OC (N50903-32D7X-17593928)
- MSI GeForce RTX™ 5090 32G VENTUS 3X OC (MS-V530 VER:1.1)
- PNY GeForce RTX™ 5090 ARGB EPIC-X RGB™ Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5090 ARGB EPIC-X RGB™ Triple Fan GPU
- PNY GeForce RTX™ 5090 Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5090 Triple Fan GPU



Technical data cooler
Dimensions total (L x W x H)235,29 x 119,32 x 21,13mm
Material coolerchrome-plated copper
Material cooler topCarbon
Material terminalBrass
Material Connection threadBrass
Max working temperature60°C
Pressure tested2,0 bar
Threads2 x G1/4"
Thickness cooler bottom3,25mm
Thickness cooling fins0,4mm
Distance cooling fins0,4mm

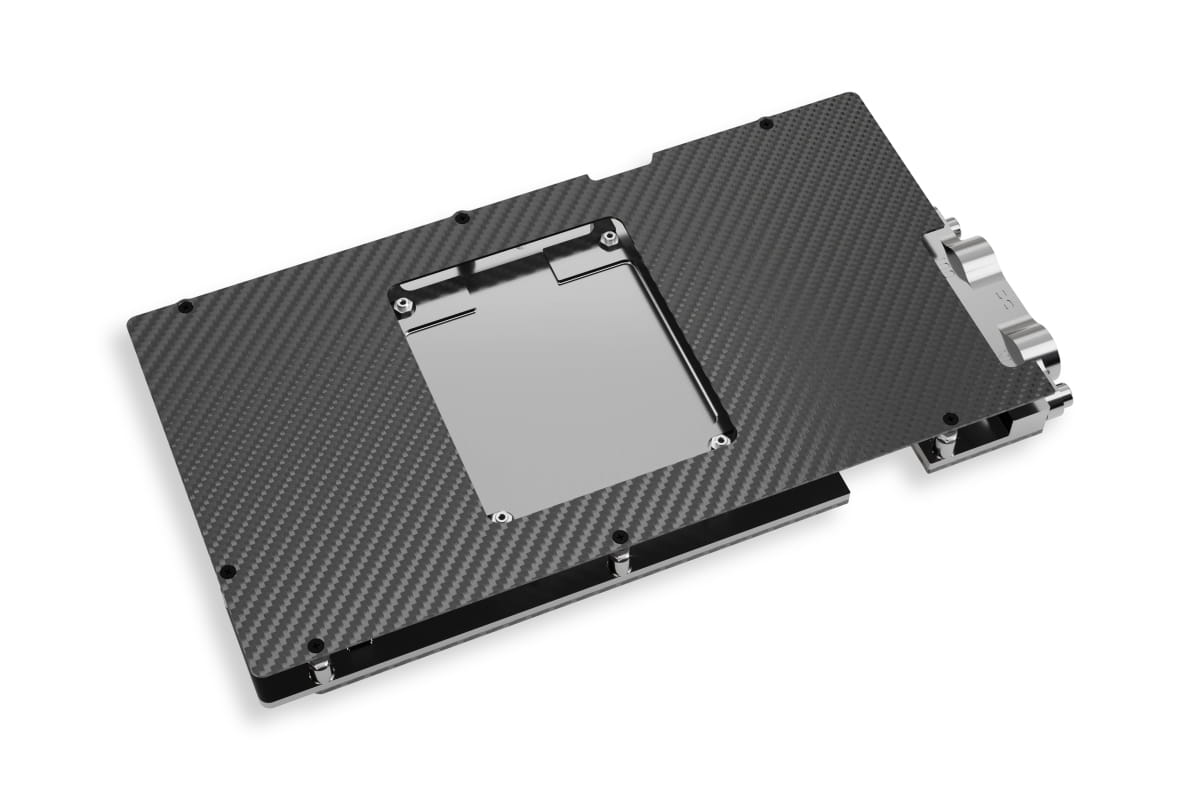

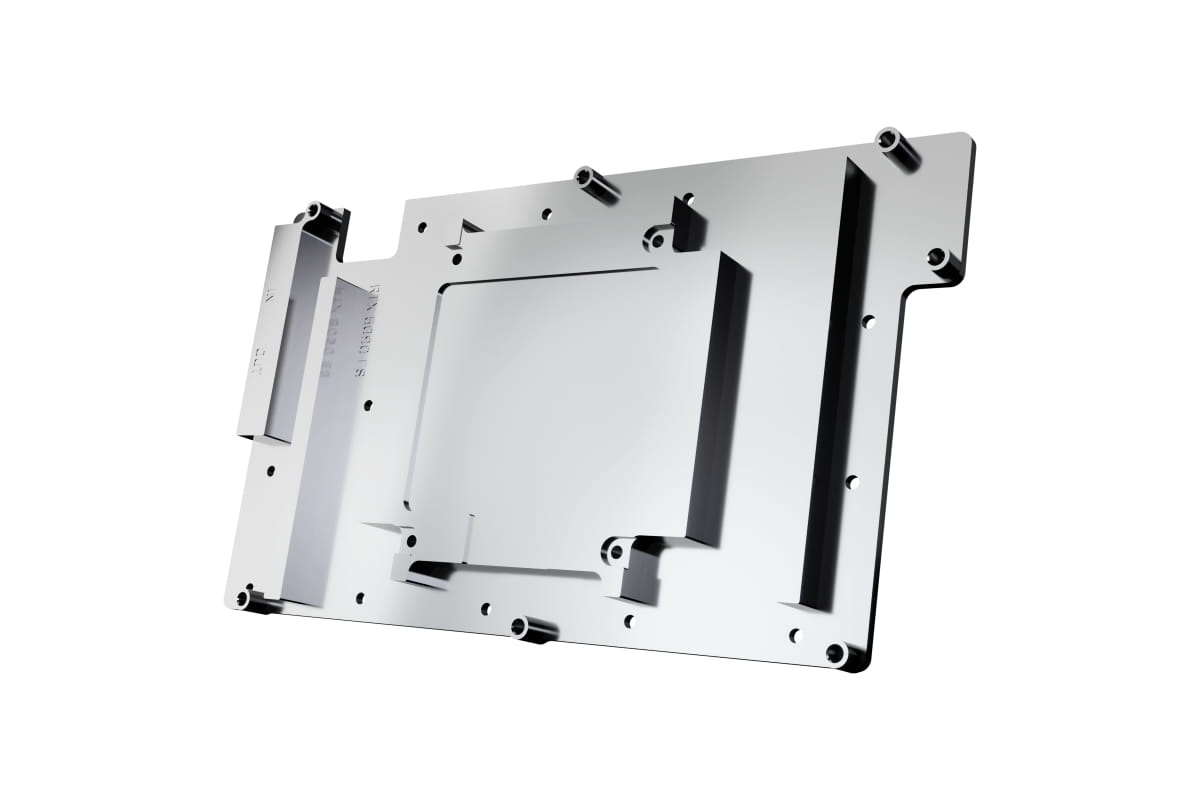

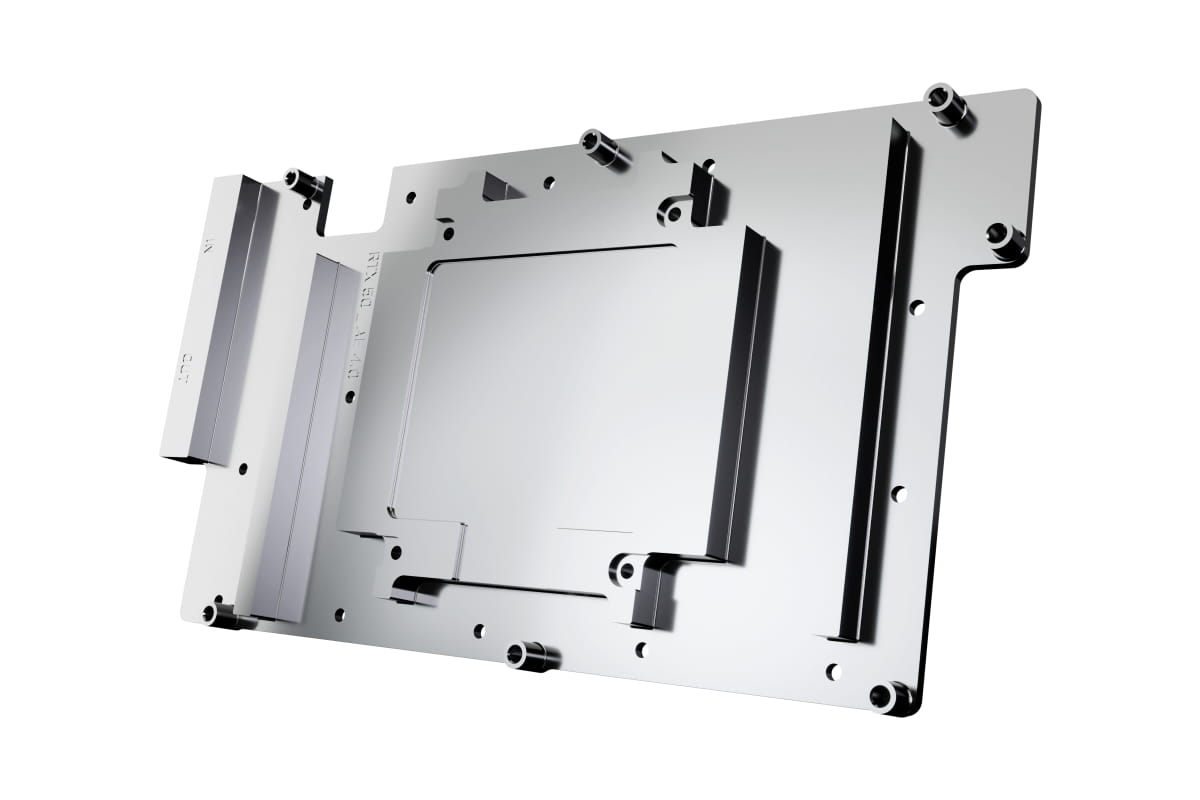

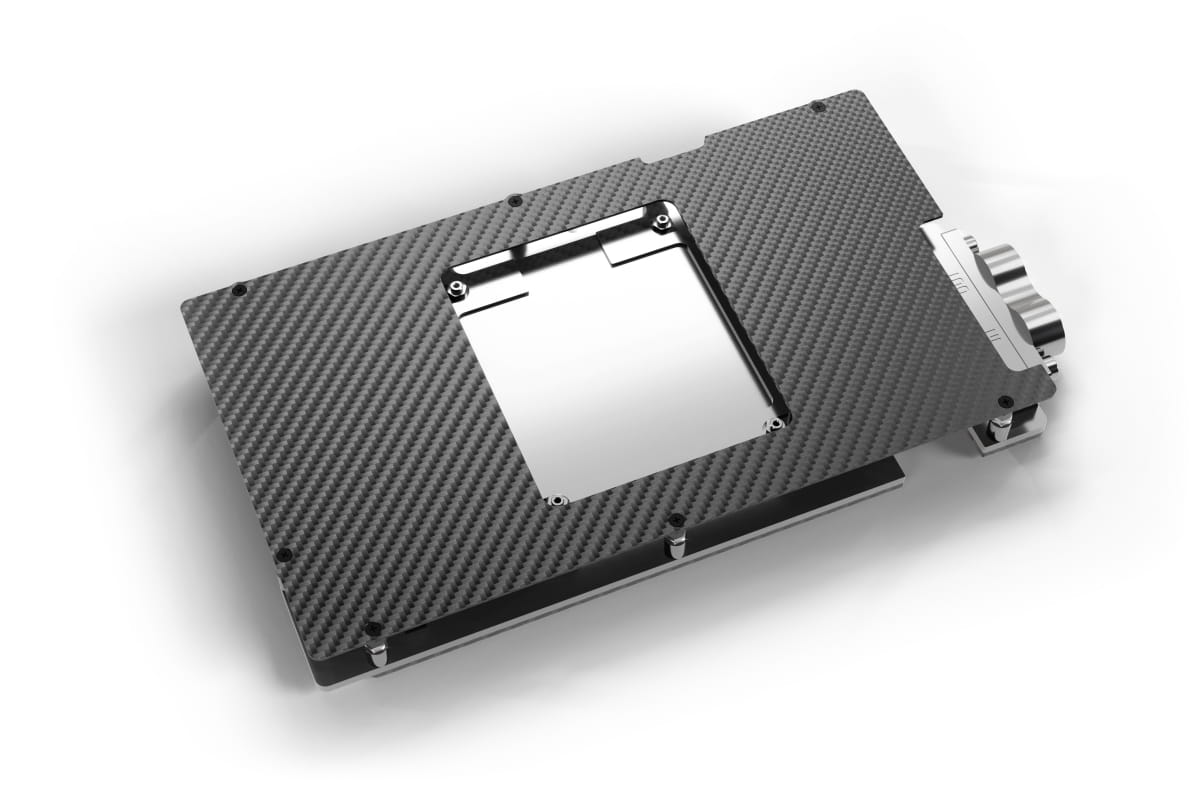

Technical data backplate
Dimensions (L x W x H)224,79 x 119,32 x 3mm
Thick backplate without spacers1mm
MaterialCarbon

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Dimensions: 235,29 x 119,32 x 21,13mm
Connection: 2x G1/4"
Hardware manufacturers: NVIDIA
Hardware model: RTX 5090;
