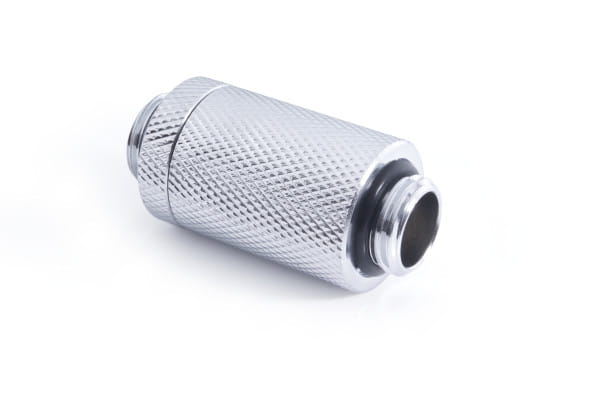

Water cooling D-Plug with G1/4 external thread

ANF Alphacool ES D-Plug 31,5mm G1/4 AG auf G1/4 AG - Chrome

Article no.: 17587
EAN: 4250197175876
Weight: 0,06 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€4.97 * €8.18 * (39.24% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool HF extension G1/4 to G1/4 20mm - Chrome

€2.78*

Alphacool Eiszapfen angle adapter double 45° rotatable G1/4 AG to G1/4 IG - Chrome

€9.98*

Alphacool Eiszapfen quick release coupling set with double bulkhead screw connection G1/4 IG - chrome

€29.98*

Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Triple Radiator

€116.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" external threads offers the... more

Close menu

Product information

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" external threads offers the possibility of connecting components such as GPU and CPU coolers or radiators within a water circuit.

What's new?
In comparison to double nipples or comparable adapters, the ES D-Plug is plugged in and not screwed. The necessary stability is ensured by two closely spaced O-rings on the male component of the connection. Of course, the connection was extensively tested in the Alphacool laboratory with the result that the D-Plug is absolutely tight up to a maximum pressure of 1.5 bar and does not come loose.

Possible uses
Alphacool's ES D-Plug enables the easy connection of water cooling components such as graphics card and CPU coolers or radiators to each other. Since the connection is only plugged in and not screwed, it is easy to install or quickly replace. The ES D-Plug has a variable length. By pulling the connection apart, you can extend it by up to 15 mm. This flexibility allows you to compensate for inaccuracies in the system structure and prevents hoses from twisting during assembly. Using the D-Plug, you can connect water cooling elements even in the tightest of spaces.

The right size for every application
The ES D-Plug is available in lengths of 20 mm, 25.5 mm and 31.5 mm, in either brilliant chrome or matt black. Replacement O-rings in three different colors are included in delivery.

Instructions for use
To ensure the required stability and tightness of the connection, both O-rings of the male component must be completely submerged in the female component.

Technical data
material	Brass
Color	Chrome
length	31.5mm
diameter	20mm
thread	G1/4“ AG
Thread length (incl. O-ring)	5mm
Weight	55g
Pressure tested	1.5 bars

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" external thread
Dimensions (L x W x H):	31,5 x 20 x 20mm
Rotatable:	Yes - 360°
Color:	Chrome
Thread length:	5mm
Material:	Brass
Specification:	Shape: straight
1st page:	G1/4" external thread
