VAT and shipping costs are displayed in the shopping cart
in stock

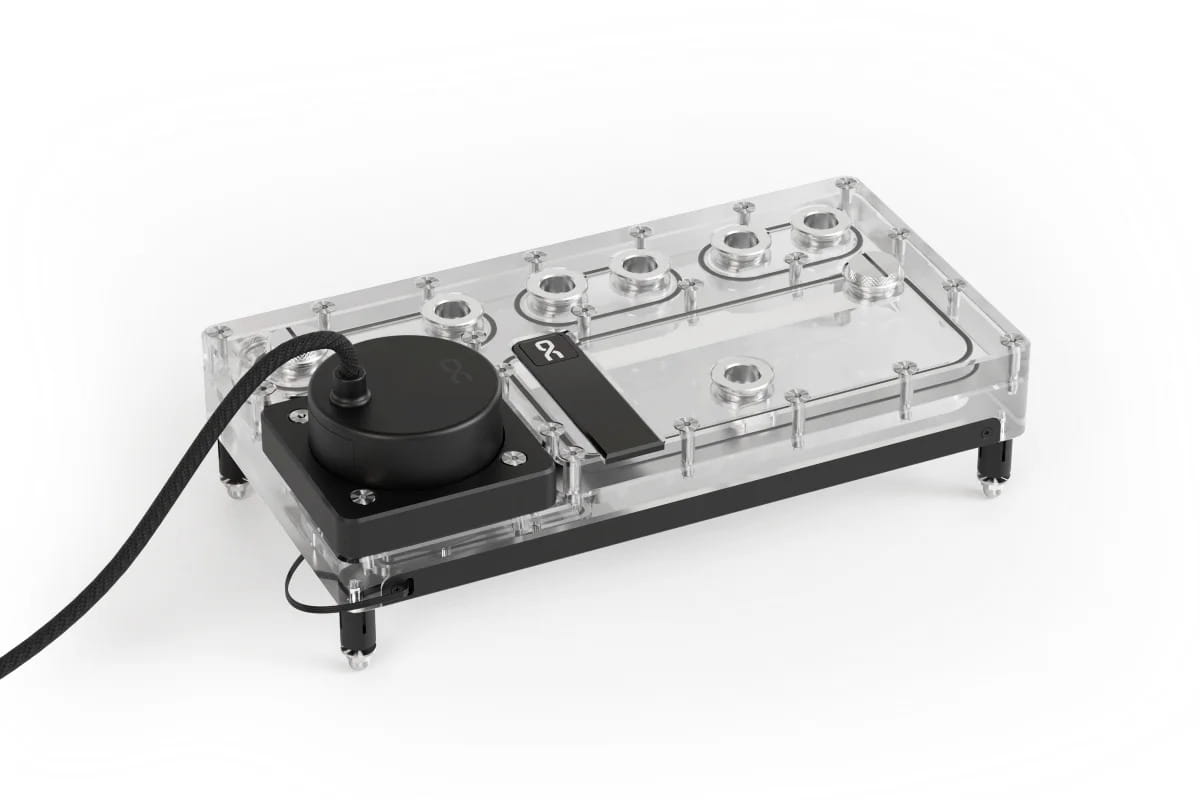

The Core Distro Plate V.2 from Alphacool with VPP Apex pump is the ideal solution for custom water-cooling systems. The revised design offers significantly greater flexibility during installation and simplifies the planning, assembly, and maintenance of even complex cooling loops.
The core element of the Core Design series is the chrome-plated G1/4" brass fittings. On the Core Distro Plate V.2, these fittings are integrated directly into the acrylic, effectively preventing the risk of leaks caused by cracking. The two-part fittings, equipped with O-rings, secure themselves within the acrylic and ensure maximum tightness while maintaining a clean, high-quality appearance.
Thanks to its reduced depth and optimized arrangement of the G1/4" ports, the distro plate allows for especially short and tidy tubing runs. A side-mounted drain port also enables easy and controlled draining of the loop. This makes the Core Distro Plate V.2 ideal for custom water-cooling loops designed to cool the CPU and one or more graphics cards simultaneously.

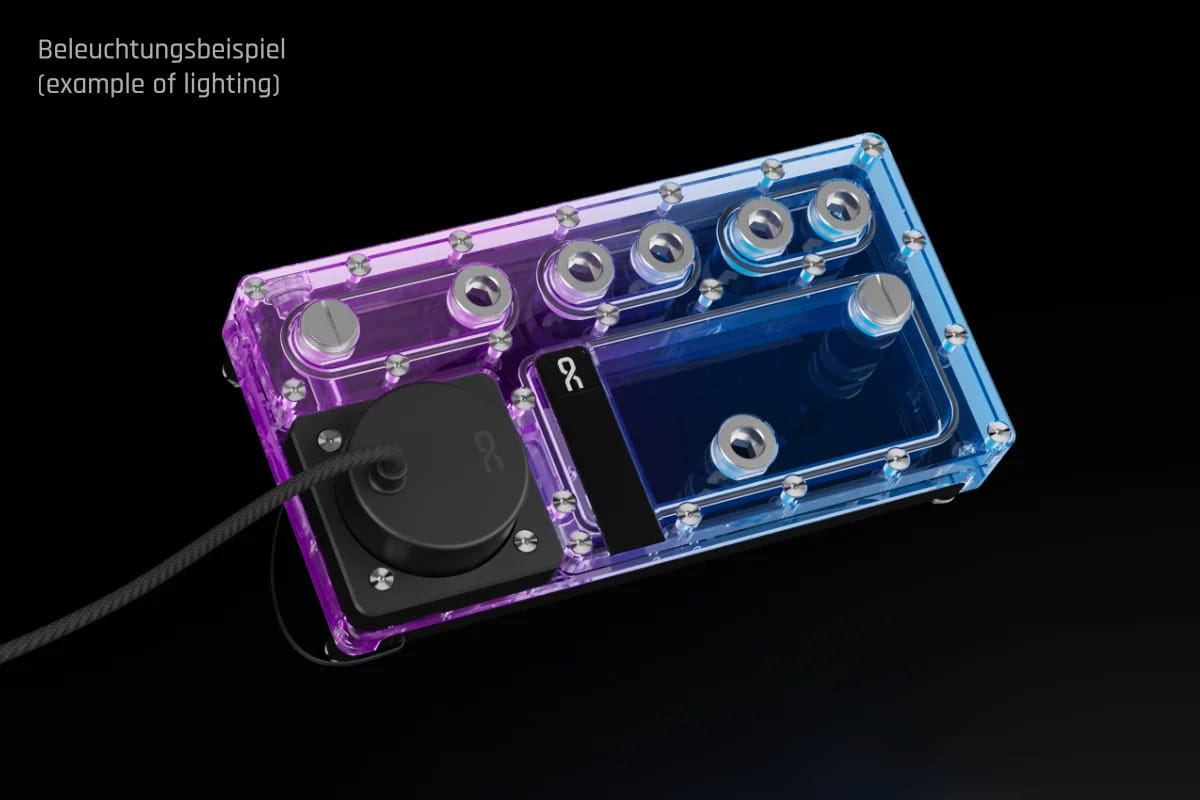

Manufactured from high-quality acrylic glass, the distro plate provides a clear view of the coolant. The integrated digital aRGB lighting delivers brilliant color effects and can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB Controller (item no. 15360).
Thanks to a revised pump mounting system, either VPP/D5 or DDC pumps can be installed. The included Alphacool VPP Apex features a ceramic shaft and an optimized motor design, making it particularly quiet, low in vibration, and efficient. Speed control is handled via a 4-pin PWM connector, which can be connected to the motherboard or an external controller. Power is supplied to the pump via a SATA connector from the power supply.

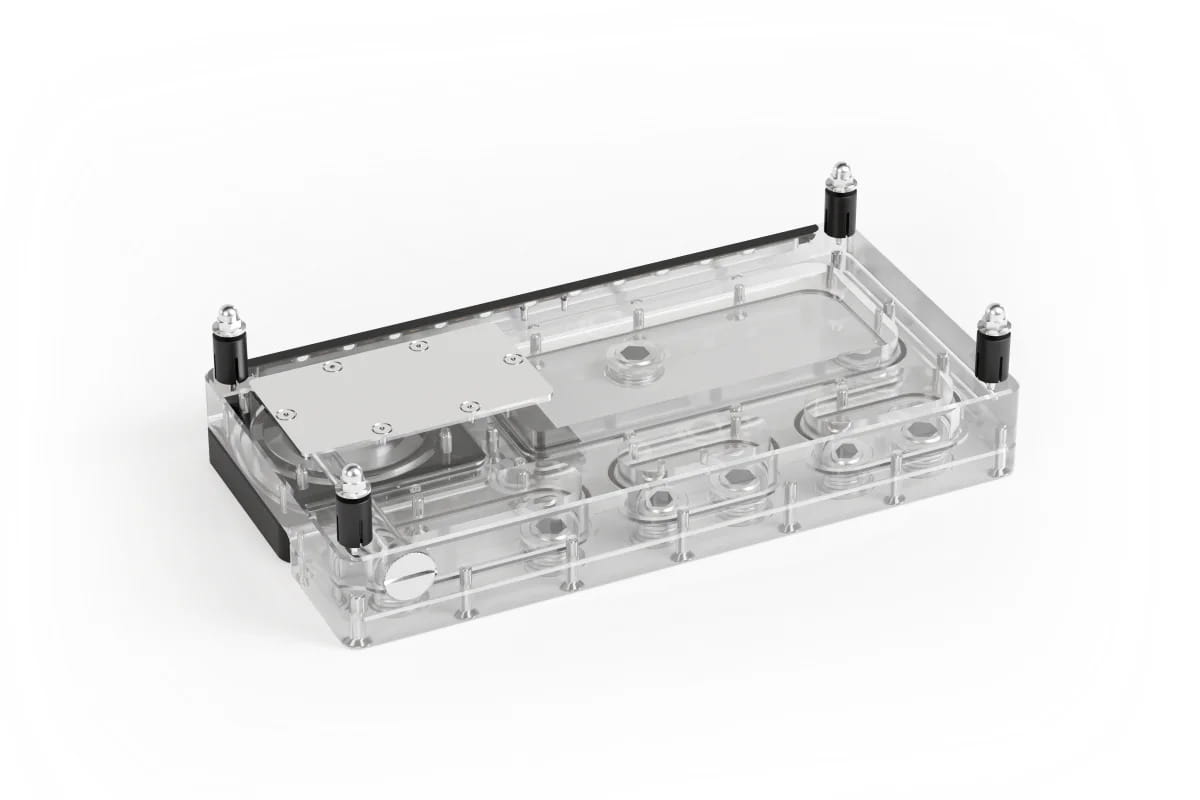

The package also includes the Alphacool Core Push Mounting Kit. This allows for greatly simplified installation, a secure fit of the distro plate on the case panel or radiator, and easy removal for maintenance or future upgrades.
The Core Distro Plate V.2 is available in 240 mm or 360 mm versions, each with either left or right positioning of the pump top.
Compatibility:
| Technical data Distro Plate | |
| Dimensions (L x W x H) | 240,00 x 125,00 x 34,50 mm |
| Dimensions (L x W x H) with pump | 240,00 x 125,00 x 62,20 mm |
| Dimensions (L x W x H) with push mounting | 240,00 x 125,00 x 62,30 mm |
| Dimensions (L x W x H) with pump + push mounting | 240,00 x 125,00 x 88,80 mm |
| Material | Acrylic |
| Volume | 105ml |
| Pump compatibility | VPP/D5 |
| Threads | 8x G1/4" inner thread / 1x drain port |
| Maximum working temperature | 60 °C |
| Pressure tested | 0,8 Bar |
| Quantity digital aRGB LEDs | 11 |
| Power digital aRGB LEDs | 5V |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Weight | 1260g |
| Weight with pump | 1536g |
| Color | transparent |
| Technical data pump | |
| Dimensions (Distro Plate with pump) (L x W x H) | 240,00 x 125,00 x 62,20 mm |
| Material pump | synthetic material |
| Material pump cover | aluminium |
| Material axle | ceramics |
| Connections | 4-Pin PWM | SATA |
| Rotational speed | 2500 - 4500 RPM |
| Cable lengths | 4-Pin PWM - 48cm | SATA - 48cm |
| Operating voltage | 8-13V DC / 14W IP32 |
| Starting voltage | 12V DC |
| Maximum pumping head | 4,25m |
| Maximum flow rate | 340L/h |
| Maximum working temperature | 60°C |
| Weight | 276g |
| Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
