Distro Plate mit Reservoir für VPP/D5 Pumpen

AGB Alphacool Core Distro Plate 420 Left VPP/D5

Article no.: 13890
EAN: 4250197138901
Weight: 2,62 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€249.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 16/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

Alphacool Ice Tube 16/13mm PETG HardTube 60cm - Set of 4 (240cm)

€18.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack

€36.99*

Alphacool hose AlphaTube HF 16/10 (3/8"ID) - Ultra Clear 3m (9.8ft) retail box 300cm

€16.98*

Alphacool VPP655 - Single Edition

€69.98*

Alphacool VPP655 - PWM - Single Edition

€74.98*

The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems!... more

Close menu

Product information

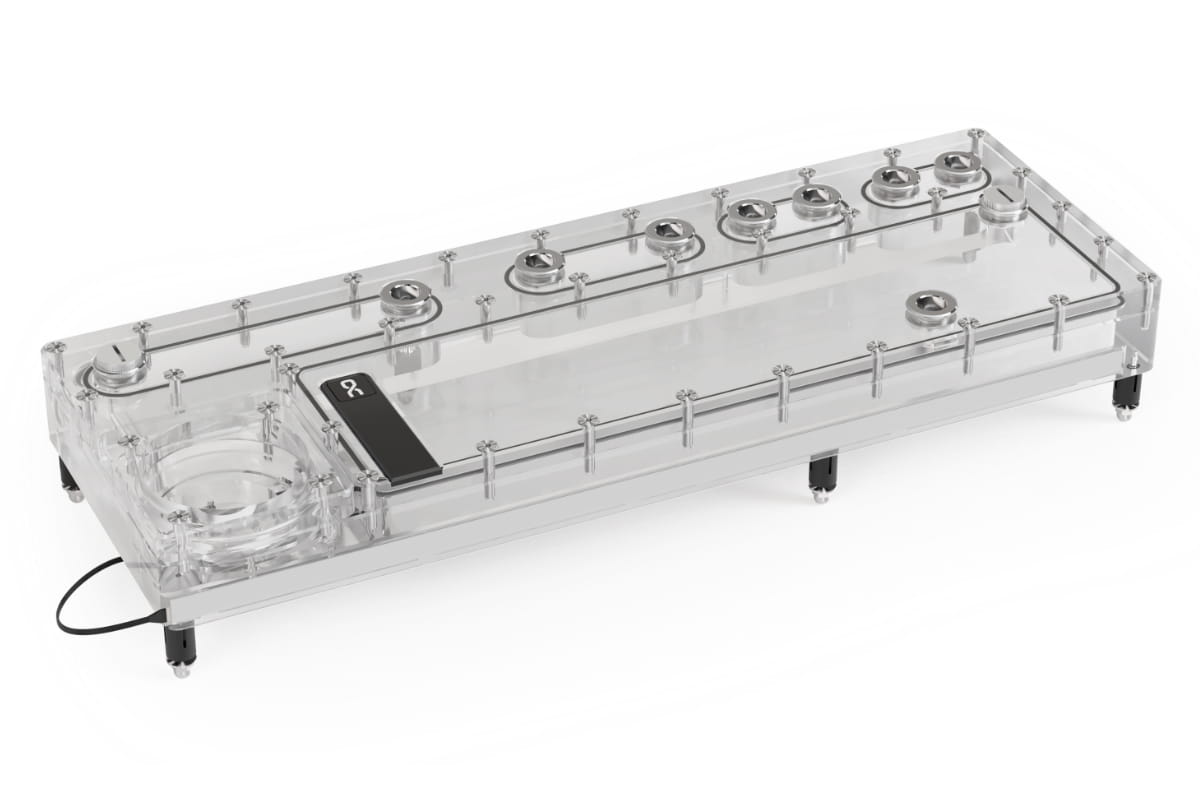

The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that simplifies the construction and planning of complex water loops and offers uncomplicated installation.

The Distro Plate is made of high-quality acrylic and fitted with chrome-plated G1/4’ brass connections. These have been recessed and deliberately not screwed in to minimise the risk of cracks and leaks while increasing stability. The connections are made of two parts, have an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

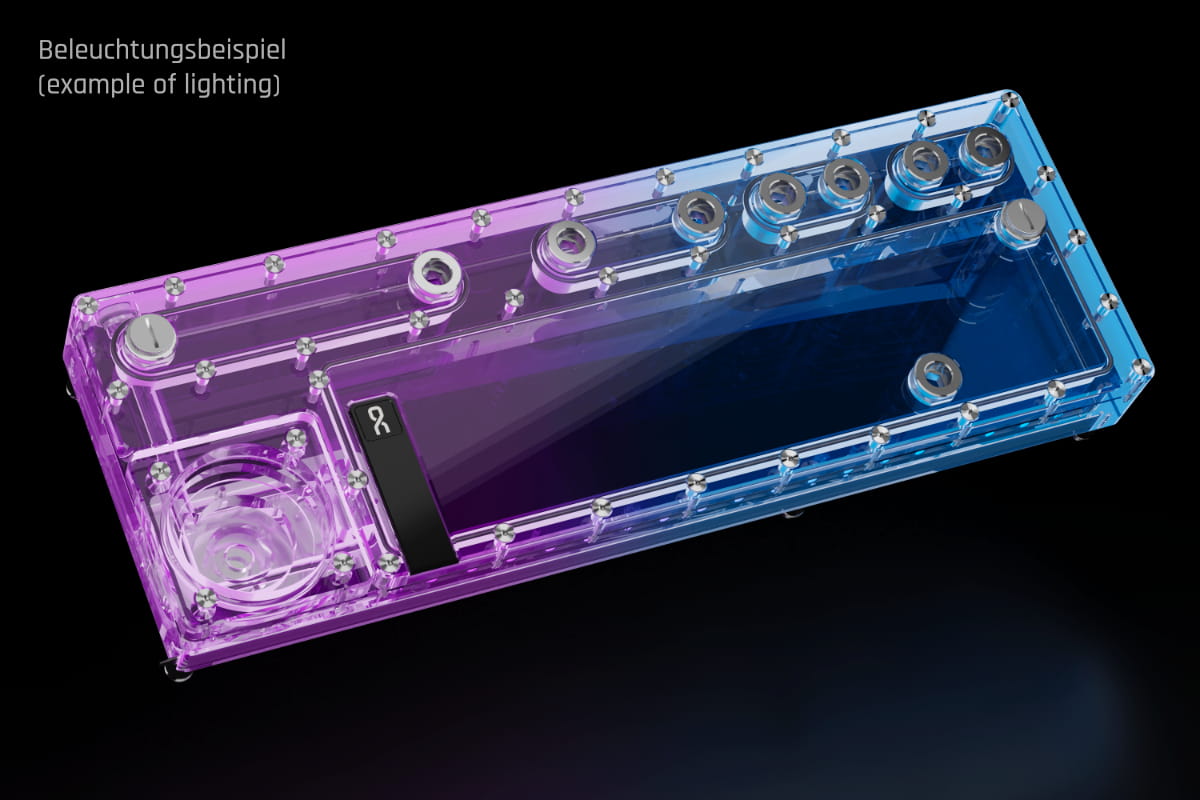

The arrangement of the connections is designed not only to optimise tube routing, but also to provide an attractive appearance. This is complemented by its integrated aRGB lighting, which provides impressive visual effects. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (article no.: 15360).

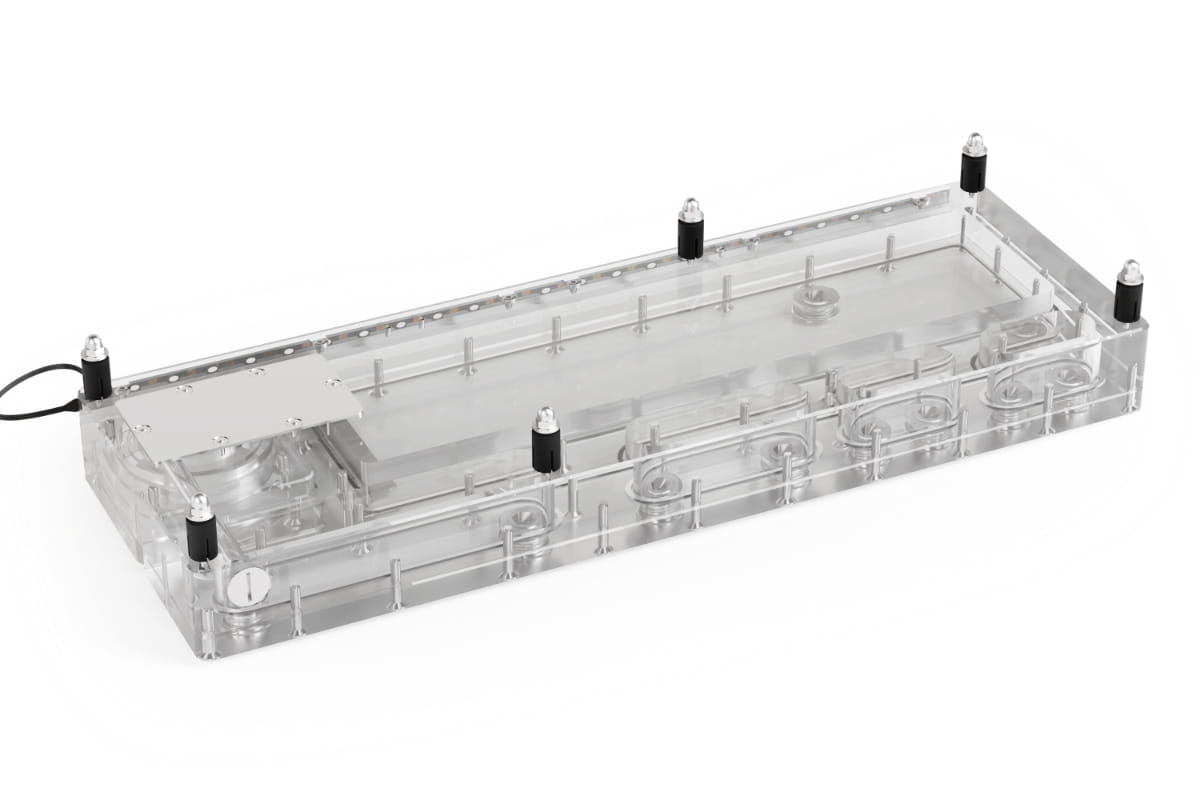

The Alphacool Core Push Mounting Kit is included in the scope of delivery, which significantly simplifies the installation of the Distro Plate. The metal pins are attached to a radiator or the panel of the PC case and the matching female sleeves are attached to the distro plate so that you only have to push them onto the pins. This system ensures a secure fit of the distro plate and enables easy disassembly for maintenance or extensions. A detailed description can be found in the enclosed instructions.

Technical data
Dimensions (L x W x H)	420,00 x 145,00 x 42,00 mm
Dimensions (L x W x H) with pump	420,00 x 145,00 x 61,00 mm
Dimensions (L x W x H) with push mounting	420,00 x 145,00 x 72,80 mm
Dimensions (L x W x H) with pump + push mounting	420,00 x 145,00 x 88,80 mm
Material	acrylic
Volume	620ml
Pump compatibility	D5/VPP
Threads	10x G1/4“ inner thread / 1x drain port
Maximum working temperature	60 °C
Pressure tested	0,8 Bar
Quantity of digital aRGB LEDs	17
Power digital aRGB LEDs	5V
Power connector digital aRGB LEDs	3-Pin JST + 3-Pin 5V
Weight with pump	2580g
Weight without pump	2304g
Color	transparent

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material:	Acryl
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Pumpenkompatibilität:	für 1x D5
Anzahl Anschlüsse:	10
Behältertyp:	Distro Plate
Farbe:	transparent
Volumen:	620 ml
Abmessungen:	420.00 x 145.00 x 42.00 mm
