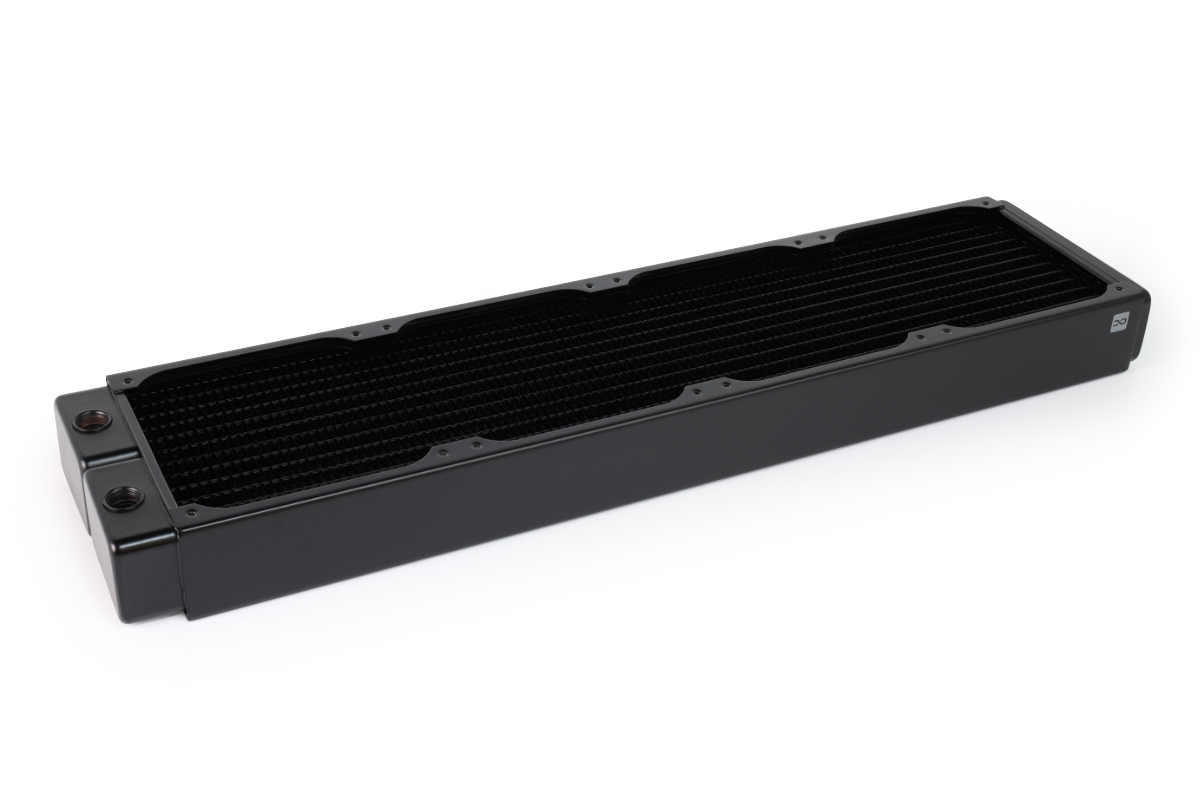

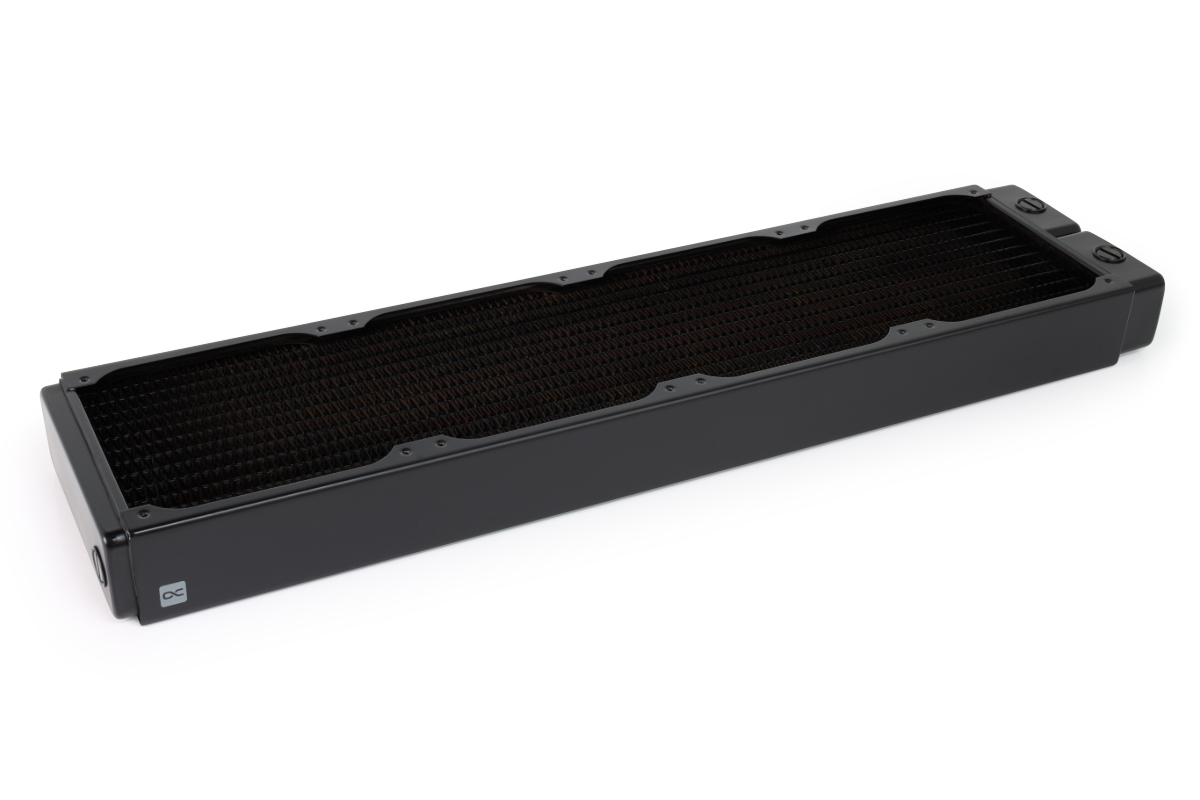

Alphacool NexXxoS XT45 Full Copper 480mm Radiator V.2

Article no.: 14284
EAN: 4250197142847
Weight: 1,731 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€109.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Chrome Sixpack

€31.98*

Alphacool HF 13/10 screw-on nozzle 45° rotatable G1/4 - Deep Black

€4.97*

Alphacool HF 13/10 screw-on nozzle G1/4 - Deep Black

€3.47*

Alphacool HF 13/10 screw-on nozzle 90° rotatable G1/4 - Chrome

€4.97*

It’s the best system because it’s your system! Only be satisfied with perfection! The new... more

Close menu

Product information

It’s the best system because it’s your system! Only be satisfied with perfection! The new Alphacool NexXxos V.2 radiators will take you to the next level!

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

New and yet proven
Alphacool also has been able to combine the best quality with the most beautiful design for the NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In addition, the NexXxos ST30 V.2 radiators now also have a G1/4“; connection at the opposite end chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator in any position, the possibilities are unlimited.

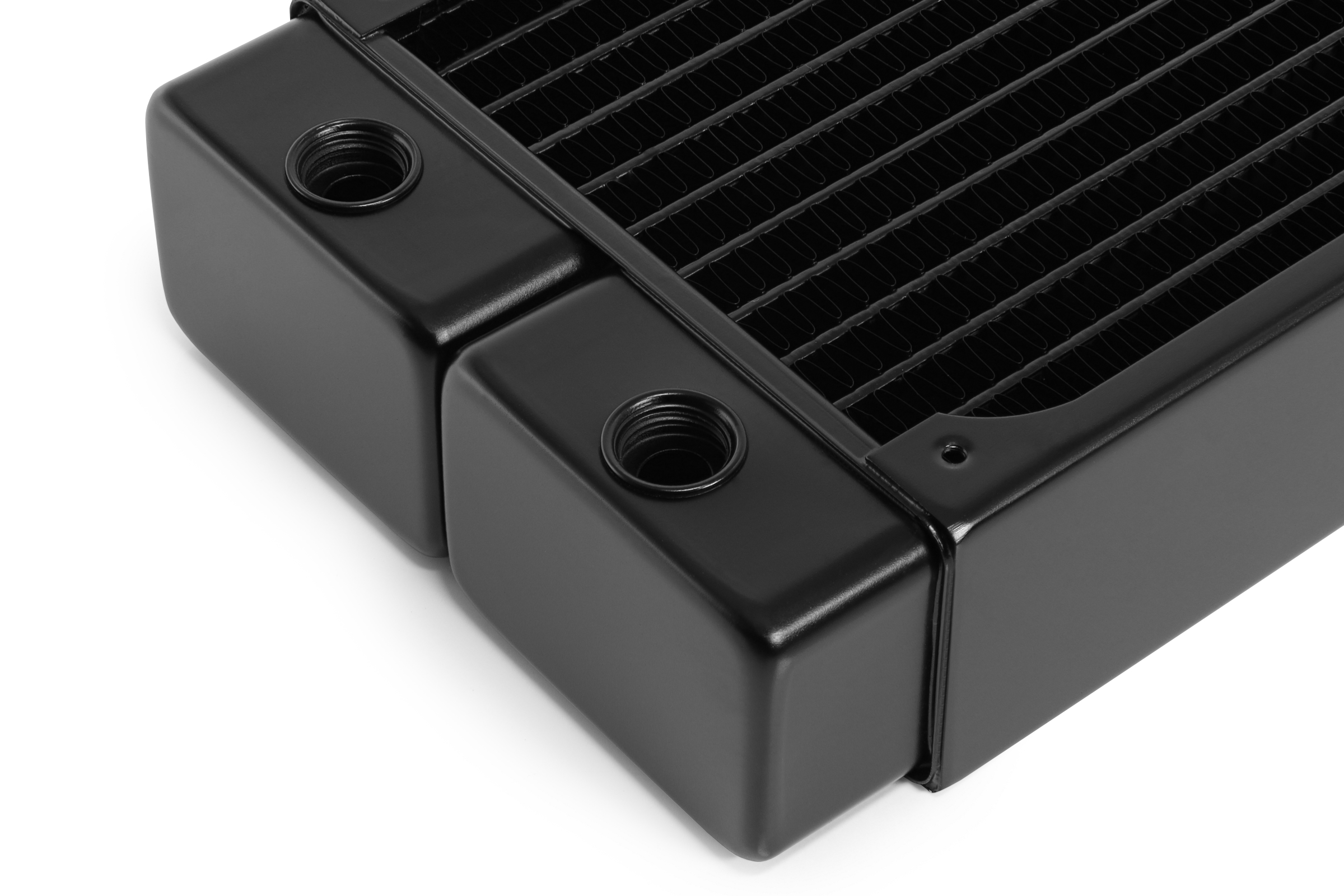

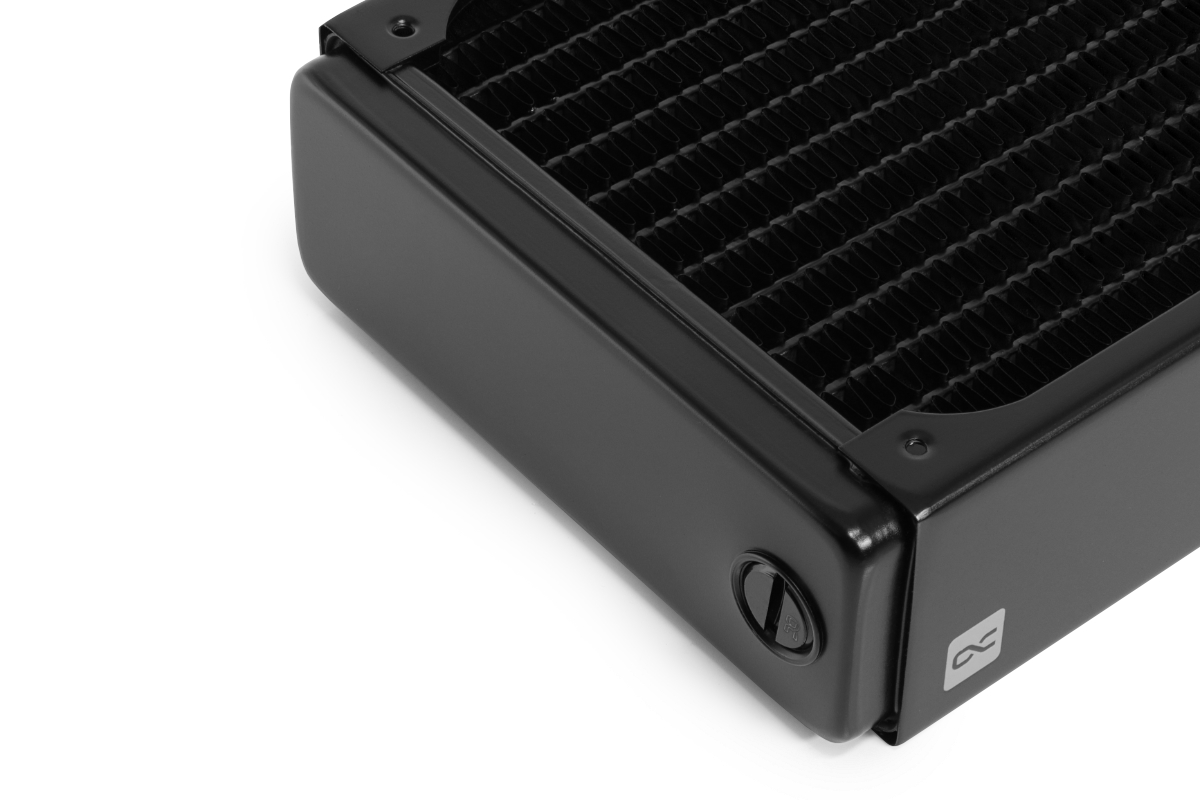

Countersunk screw plugs - anything but ordinary
For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator. Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you remain individual and unique.

Solid copper - the best performance at the highest level
As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance. Rely on the No. 1 in materials.

Different sizes - same quality
The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its special shape, installation is child's play, even with the larger radiators. Decide for yourself which size is perfect for your system and always choose the best quality.

Technical data
L x W x H	514 x 124 x 45,5 mm
Quantity of cooling channels	12
Net weight	1409 g
Max working temperature	180 °C
Material cooling fins	copper
Material cooling chambers	copper
Prechamber material	copper
Material outer housing	steel
Fins per Inch	15
Threads	5x G1/4“
Thread size fan mounting	M3
Fan size	120 mm
Fan slots	4 one-sided / 8 double-sided
Pressure tested	0,8 bar

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Dicke:	39 - 49mm
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Fins per inch:	12
Anschluss:	5x G1/4"
Anzahl Lüfter:	4
Lüftergröße:	120mm
Abmessungen (L x B x H):	514 x 124 x 45,5mm
