Alphacool HF 14 Smart Motion Universal Copper Edition

This product is currently not available.

Article no.: WAN
EAN: 4250197113786
Weight: 0,16 kg
Available:
Images may differ slightly from the original

€38.98 *

Prices incl. VAT plus shipping costs

Liefertermin: in 2 - 3 Tagen

The new SmartMotion universal cooler is a multi-talent - suitable for all common mainboard... more

Close menu

Product information

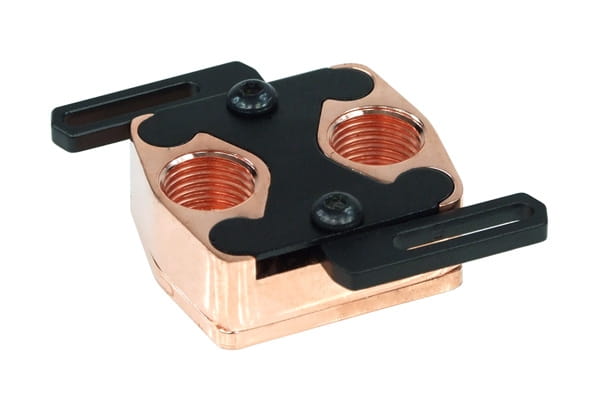

The new SmartMotion universal cooler is a multi-talent - suitable for all common mainboard northbridge and southbridge chips as well as NVIDIA® and ATI® GPU chips*. The cooler can also be used on the video chip of NVIDIA graphics cards or for other special solutions.

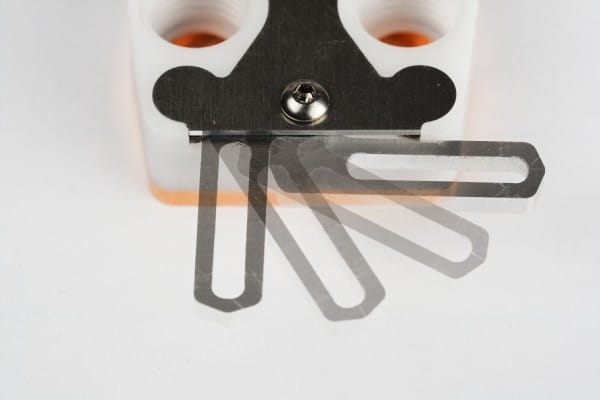

This is made possible by the extremely flexible and movable mounting system, in which the mounting brackets are pivotably mounted. If that is not enough, an additional mounting bracket is included in the delivery so that you can cover all conceivable mounting distances.

*The possible hole spacing and swivel radii of the different supports can be
from the PDF document.

The best thing about it: to change the supports, the cooler does not have to be dismantled, only the decorative panel has to be removed. A separate decorative panel is supplied for continuous supports. If you need more supports in the future, you can simply buy them later and therefore do not need a new cooler.

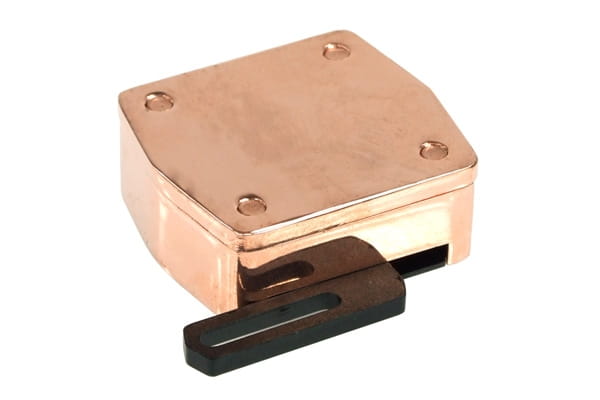

The performance is also remarkable: milled cooling bars in the base plate made of pure copper enable high cooling performance with a considerable flow rate of 5 liters per minute - sufficient for all high-flow systems.

The G ¼" connection distance is 24mm from hole center to hole center, enough for connections with a large outer diameter.

A notice:
The Alphacool HF 14 Smart Motion is also compatible as a chipset cooler for AMD X570 motherboards. However, please note that the connectors on the cooler may collide with the graphics card in the first or second PCIe slot.

Features at a glance:

Universal chipset and GPU cooler
Lid made of durable POM
E-CU copper base plate with milled cooling fins
Mounting bracket made of 3mm thick aluminum with aluminum trim

Technical data:
(WxLxH): 35 x 40 x 15mm (with screw head 16.65mm)
Compatible with 45 to 75mm hole spacing
Flow rate: 5 liters per minute
Connection thread: G ¼"
Weight: 46g

Scope of delivery:

Smart Motion Universal
Screw set
Aperture
1 mounting bracket

You can download the assembly instructions here.

Motherboard compatibility list

Download 3D file (.stp) V1

Download 3D file (.stp) V2

This product was tested for you:
Radeon3d

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
