GPU cooler for RTX 4070Ti Reference

WAK Alphacool Eisblock Aurora Acryl RTX 4070TI Reference mit Backplate PHT EOL

Article no.: 13550
EAN: 4250197135504
Weight: 1,135 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€119.98 * €159.98 * (25% Saved)

Prices incl. VAT plus shipping costs

in stock

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 4XXX graphics... more

Close menu

Product information

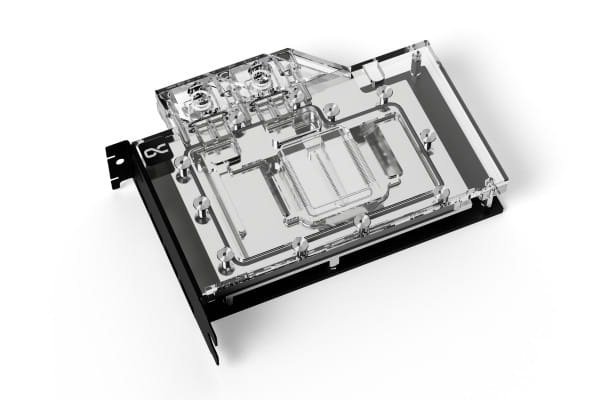

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 4XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights

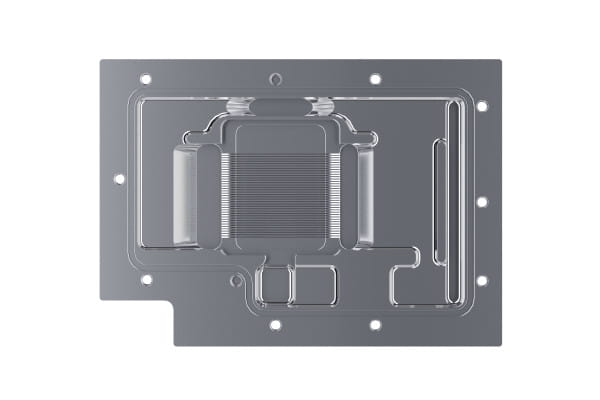

The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design

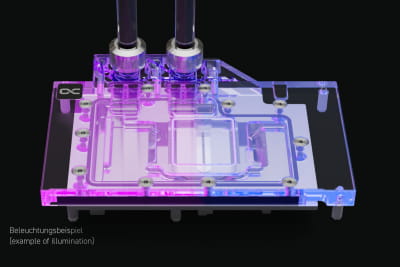

The Aurora design of the Geforce RTX 4XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.

Compatibility:
- Nvidia GeForce RTX 4070 Super Founders Edition, 12 GB GDDR6X
- Inno3D GeForce RTX 4070 Ti iCHILL X3, 12GB GDDR6X (C407T3-126XX-186148H)
- Inno3D GeForce RTX 4070 Ti X3 OC, 12GB GDDR6X (N407T3-126XX-186148N)
- Inno3D GeForce RTX 4070 Ti X3, 12GB GDDR6X (N407T3-126X-186148N)
- Inno3D GeForce RTX 4070 Ti SUPER Twin X2 OC White, 16GB GDDR6X (N407TS2-166XX-186156W)
- Inno3D GeForce RTX 4070 Ti SUPER Twin X2 OC, 16GB GDDR6X (N407TS2-166XX-186156N)
- Inno3D GeForce RTX 4070 Ti SUPER Twin X2, 16GB GDDR6X (N407TS2-166X-186156N)

Technical data cooler
L x W x H	182,13 x 120,8 x 42,93mm
Material cooler	chrome-plated copper
Material cooler top	acrylic
Max working temperature	60°C
Pressure tested	0,8 bar
Threads	4 x G1/4"
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	8

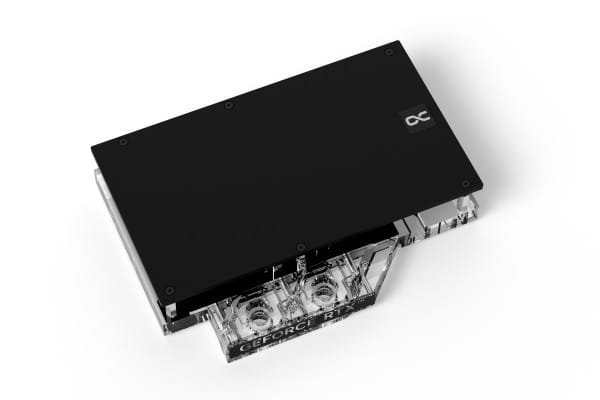

Technical data backplate
L x W x H	182,13 x 96,4 x 5mm
Material	aluminium
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Hardware Hersteller:	NVIDIA
SLI kompatibel:	Ja
Kühlertyp:	Komplettkühler
Anschluss:	4x G1/4"
Material Deckel:	Acryl
Abmessungen:	182,13 x 120,8 x 42,93mm
Material Bodenplatte:	Kupfer
Hinweis:	Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell:	RTX 4070 Ti
