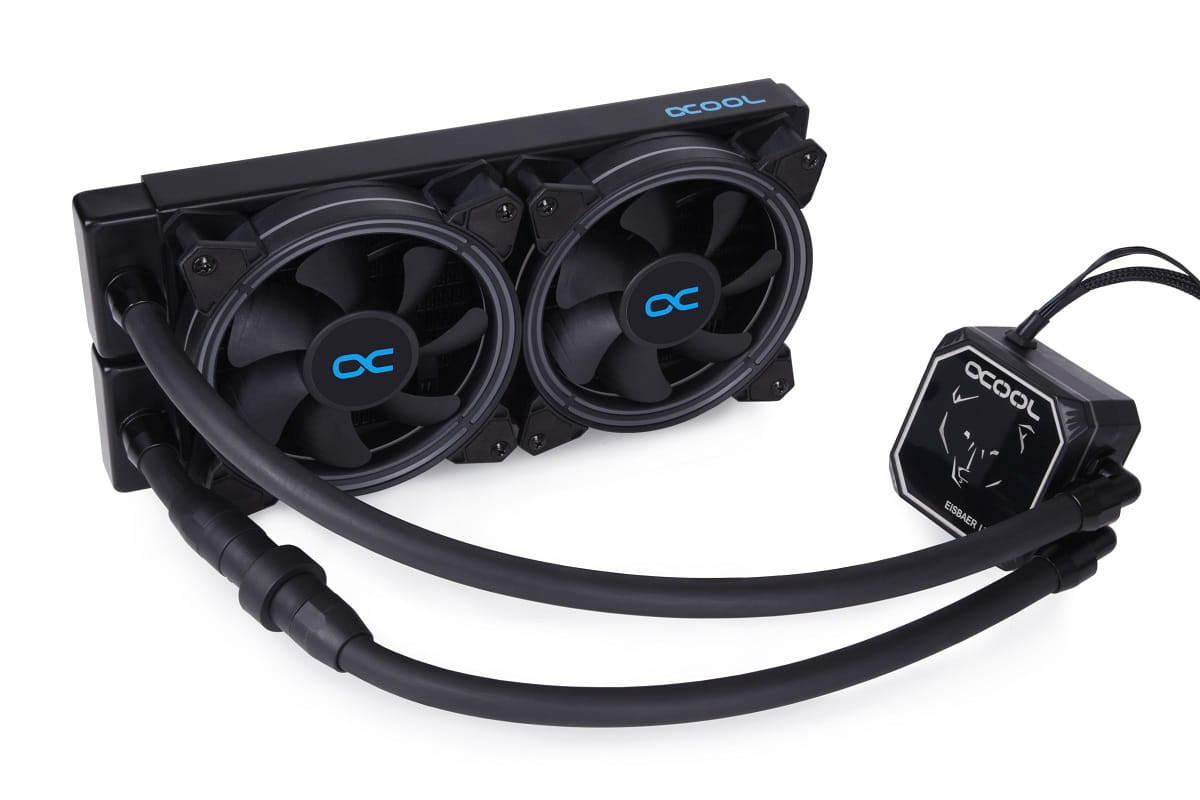

Alphacool Eisbaer Aurora LT240 CPU AIO Digital RGB
- Article no.: 11678
- EAN: 4250197116787
- Weight: 2,6 kg
- Available: There are more than 25 units available
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
in stock

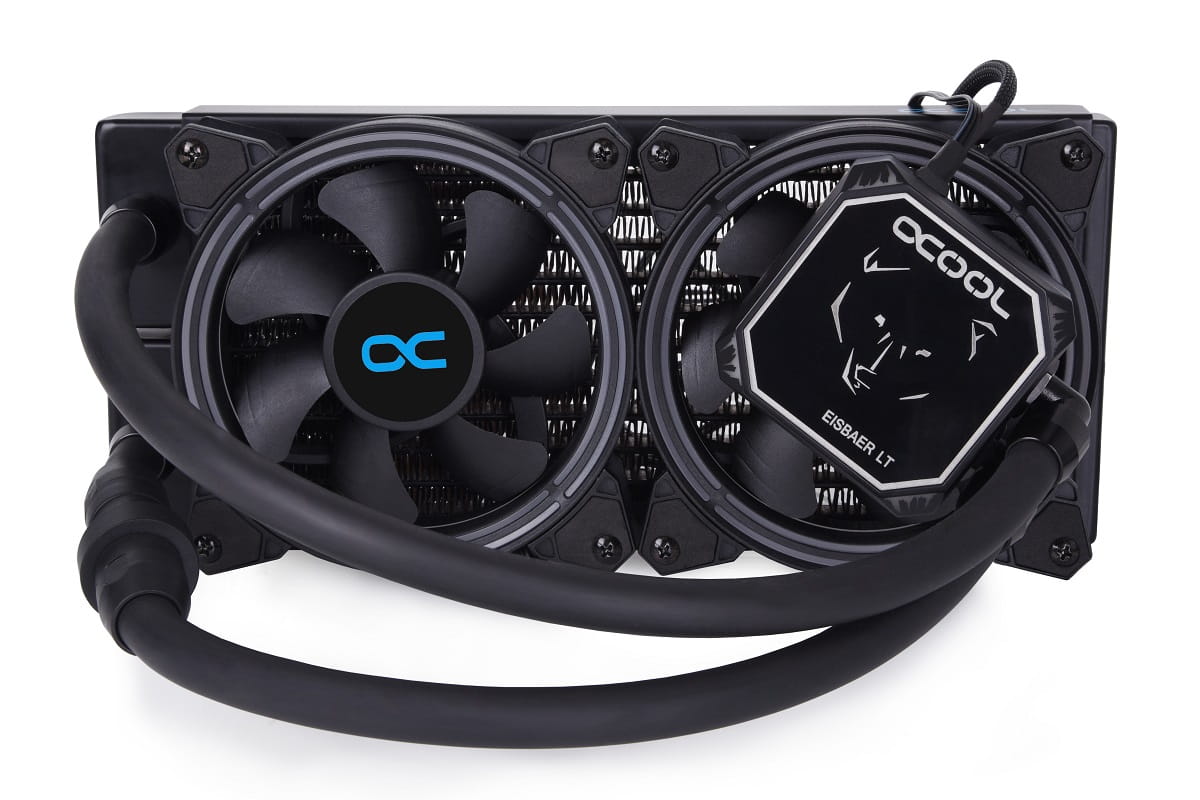

The Eisbaer LT Aurora CPU AIO water cooler offers extremely good cooling performance due to the high-end components, which includes a full copper radiator. The components used are all from Alphacool’s classic custom water cooling sector and can also be found in its enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener.

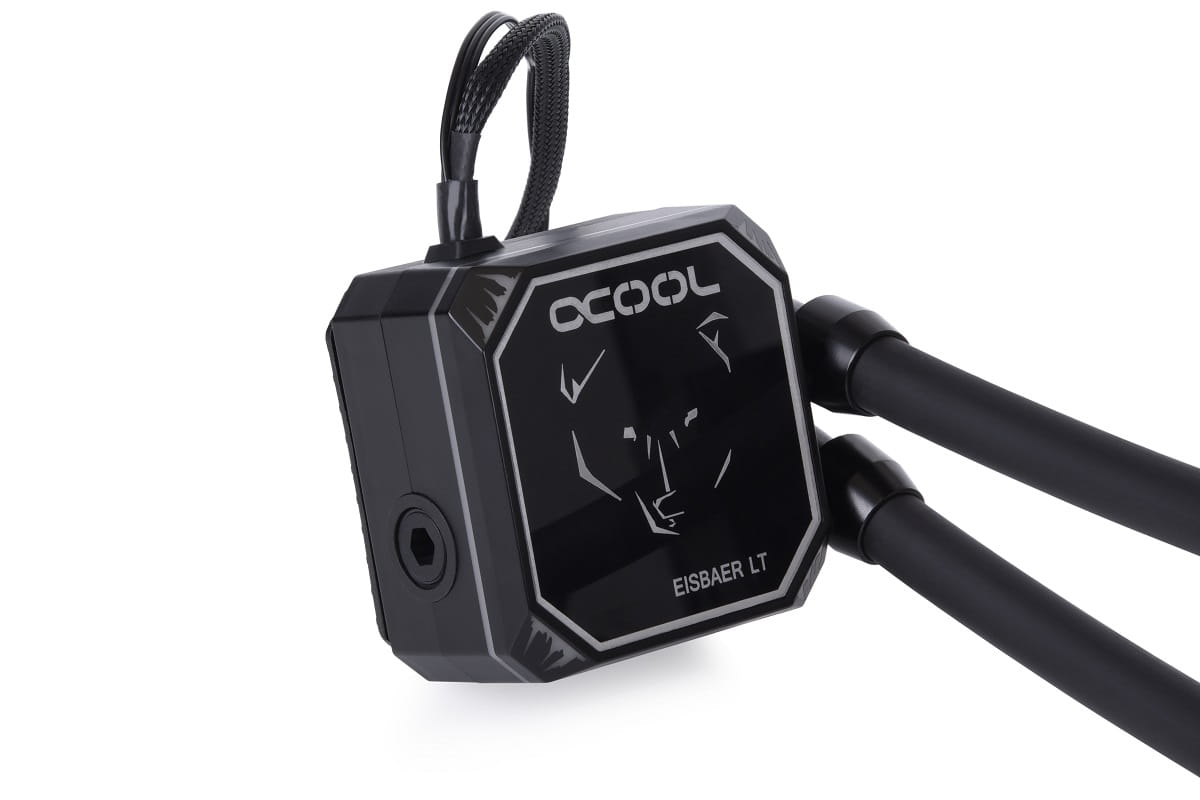

At its heart, the DC-LT 2 pump
The exceedingly small and compact DC-LT 2 pump has been further optimized compared to its predecessor. The impeller sits suspended on a ceramic axle and is supported by two magnets. A 3-phase sinusoidal drive ensures a much smoother running of the pump, which significantly contributes to minimizing noise. The pump offers enough power to add another component, such as a GPU water cooler or another radiator, to the loop. Ideally, it is coupled with an Eiswolf 2 GPU AIO water cooler. This also uses a DC-LT 2 pump.
DIY fittings and ES tubing

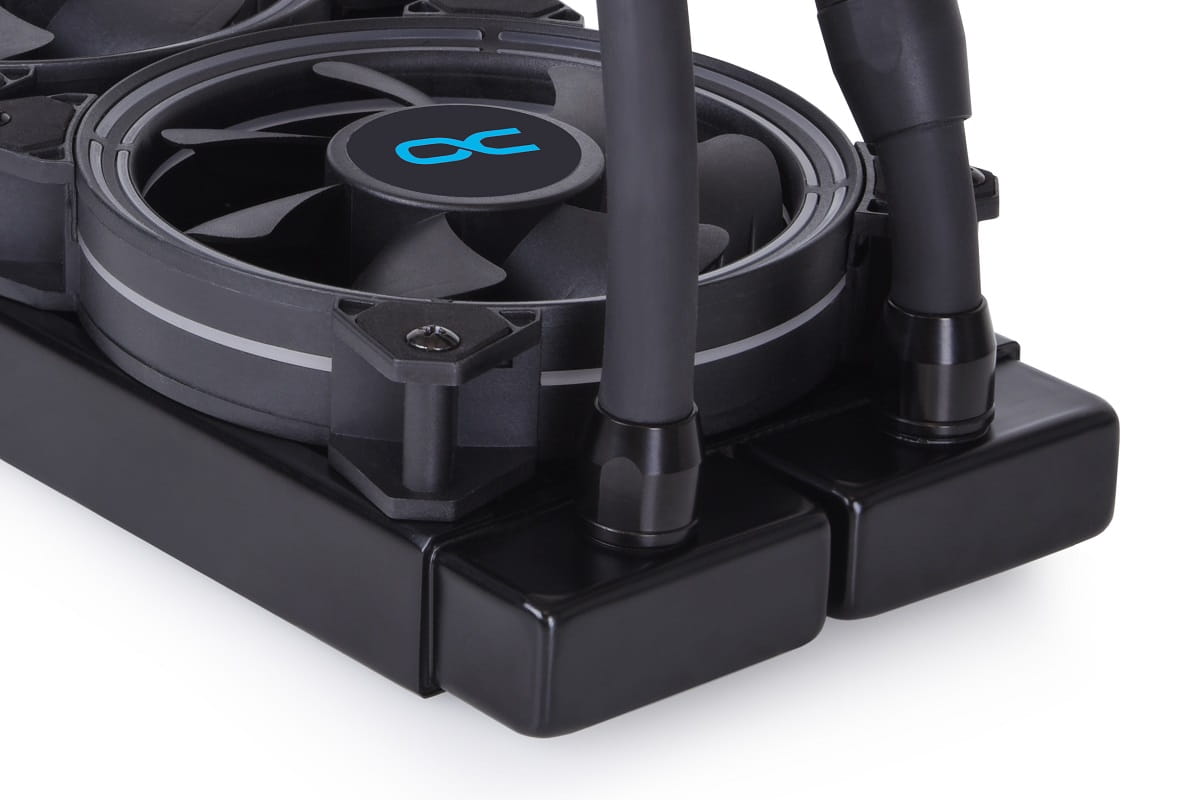

The tubing and fittings come from the standard custom cooling segment and all use a standard G1/4" thread. Therefore, it is extremely easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and, robust nylon. The quick connector is compatible with many other models from the Alphacool product line.

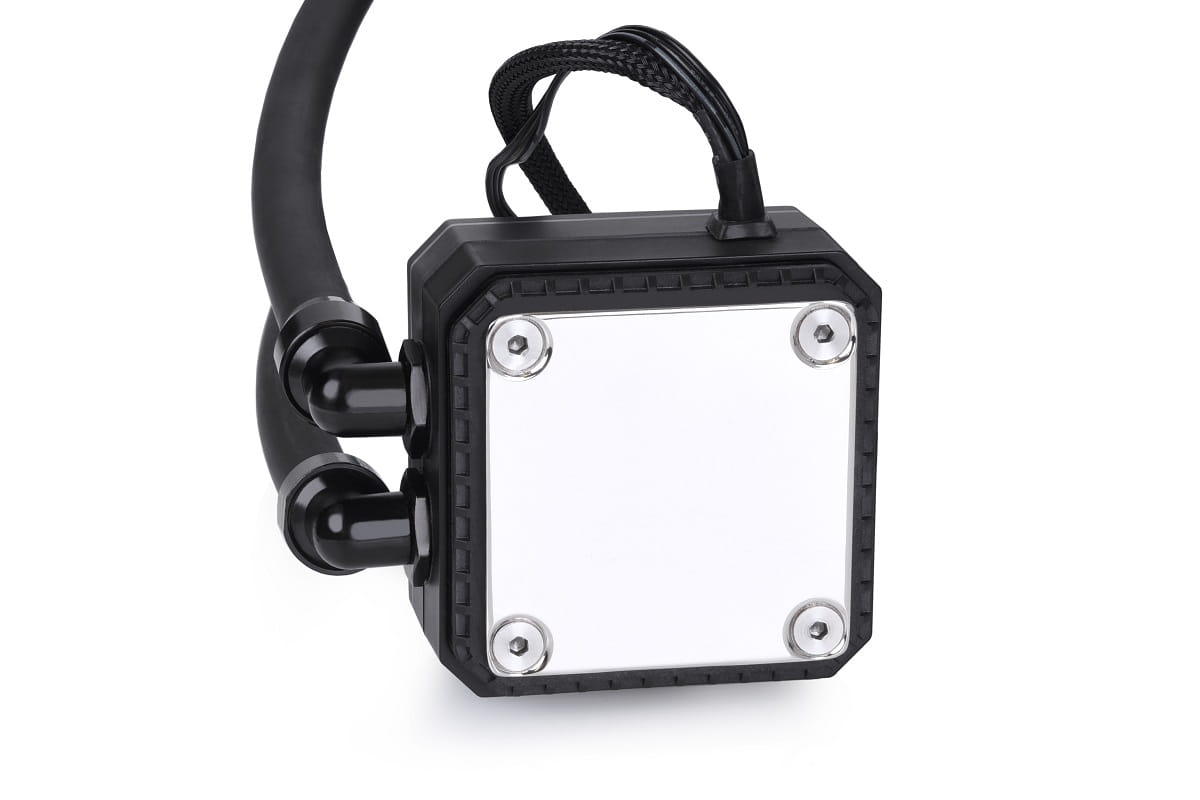

Cooler

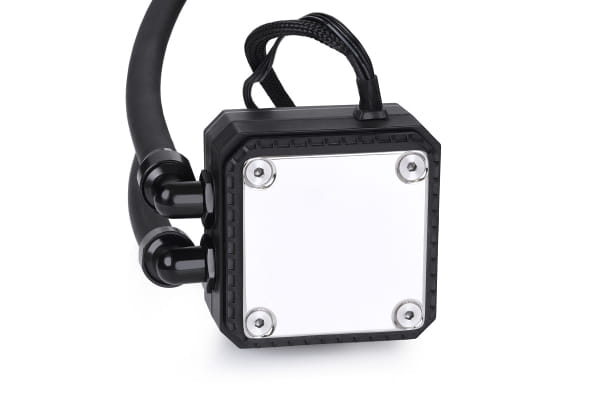

As with all Alphacool products, the cooler base is made of nickel-plated copper and is equipped with exceptionally fine cooling fins that are distributed over almost the entire base. A flow plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly.

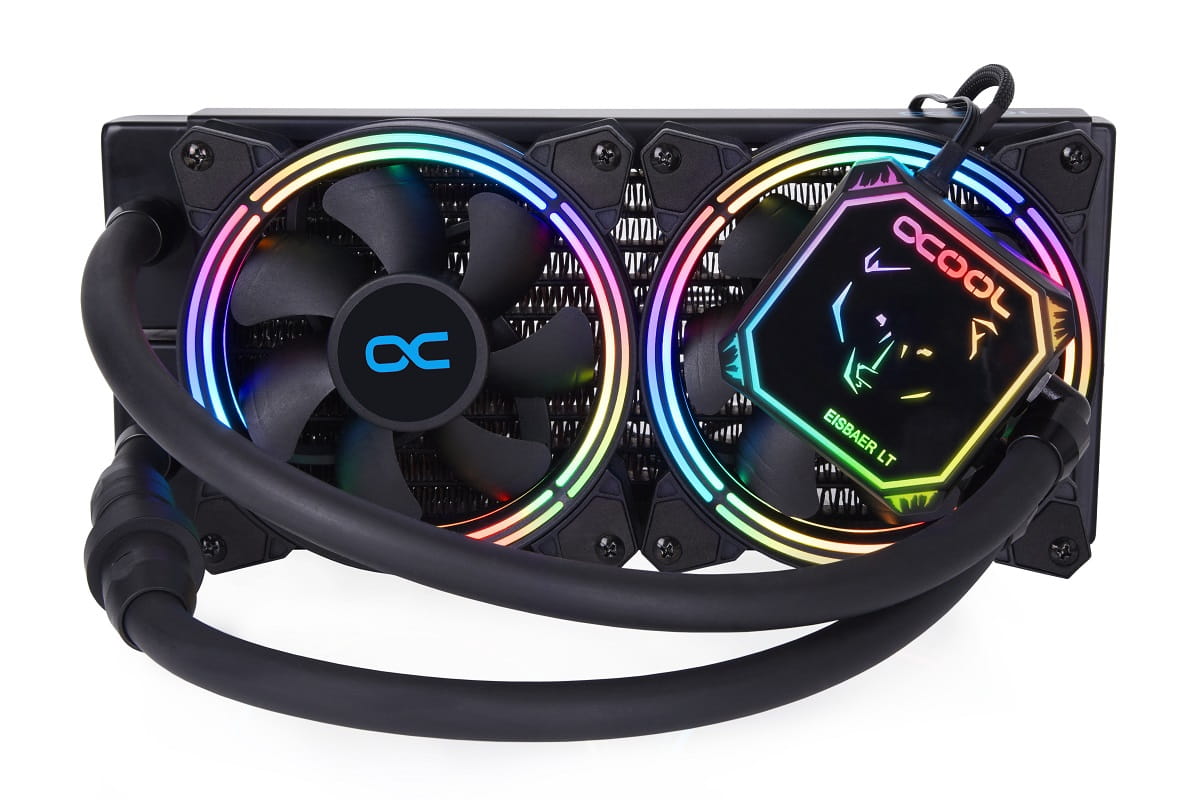

Full Digital RGB Mounting

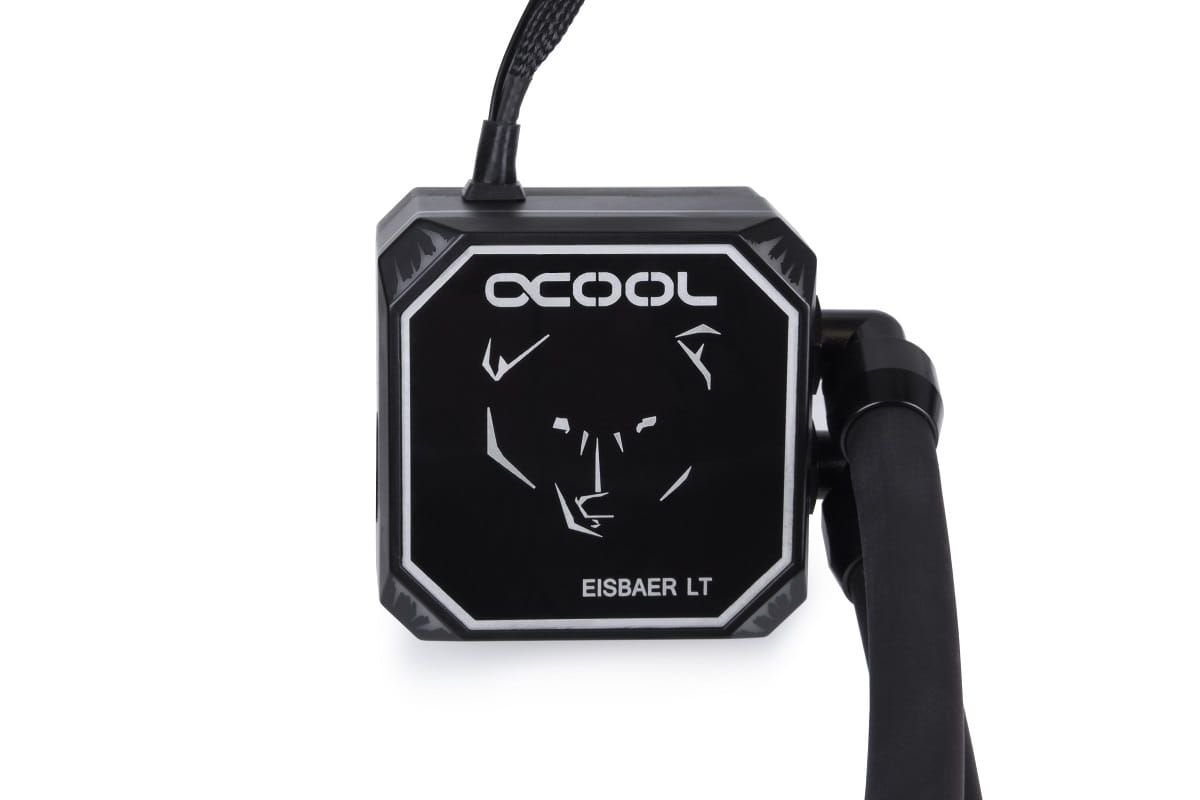

The pump unit and fans are fully equipped with Digital RGB LEDs, also known as Addressable RGB or aRGB. Extensive effects can be set with the included controller or with the Digital RGB controller on the motherboard. For a nice visual effect, there is an illuminated polar bear (Eisbaer). For easier control via a controller, the fans and also the pumps can be connected in series via daisy-chain. This ensures a clean wiring of the individual LED components.

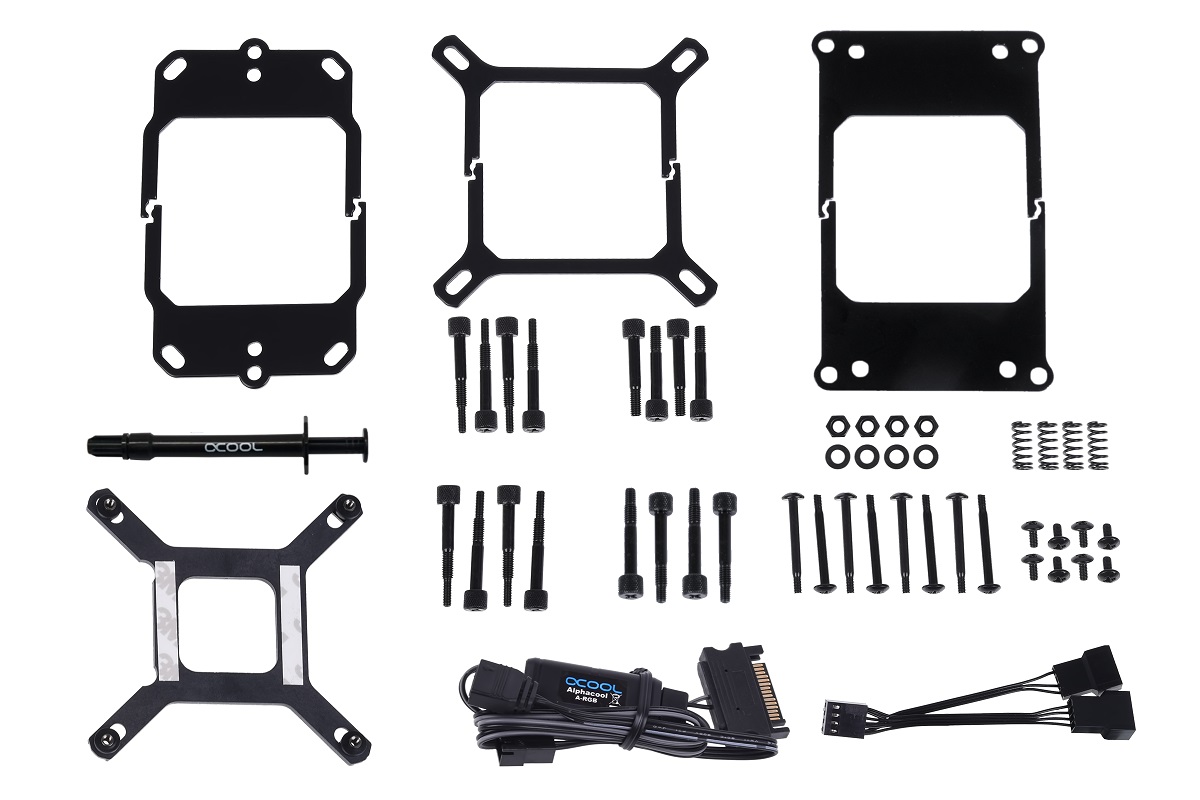

Compatibility:
AMD: AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 / FM1 / FM2 / FM2+ / SP3 / SP6 / sTRX4 / sWRX8
Intel: LGA 1150 / LGA 1151 / LGA 1155 / LGA 1156 / LGA 1200 / LGA 1700 / LGA 1851 / LGA 2011 / LGA 2011-3 / LGA 2066 / LGA 755
Technical Data Radiator | |
L x W x H | 274 x 120 x 25 mm (+/- 3%) |
Material cooling fins, pre-chambers & channels | copper |
Material threads | brass |
Material outer housing | stainless steel |
Threads | 2x G1/4" |
Possible fan size | 120mm |
Possible fan assembly | 2x one-sided / 4x both-sided |
Technical Data cooler with pump | |
L x W x H | 69 x 69 x 45 mm |
Material cooler bottom | nickel plated copper |
Material cooler top | PMMA |
Threads | 2x G1/4“ (+ 1x Fillport G1/4“) |
Pump type | DC-LT2 |
Pump speed | 2600 rpm (+/- 10%) |
Head of delivery | 1 m |
Maximum flow rate | 72L/h |
Voltage | 6 - 13.5V DC |
Power consumption | 3,2W |
MTBF | 50.000 h |
Technical data liquid | |
Color | clear |
Ingredient 1 | destilled water (CAS-Nummer 7732-18-5) |
Ingredient 2 | Glysantin (CAS-Nummer 1017-21-1) |
Working temperatures | 15C°/+90°C |
Technical data quick-release coupling | |
Dimensions | 95 x 27 mm |
Material | Nylon |
Tube size | 12,7/7,6 mm |
Color | black |
Technical data connectors | |
Dimensions (connection straight) | 24 x 18 mm |
Quantity (connection straight) | 2x |
Dimensions (connection 90°) | 35 x 27 x 17 mm |
Quantity (connection 90°) | 2x |
Tube size | 12,7/7,6 mm |
Material | brass |
Technical data tube | |
Length | 40 cm |
Material | TPV (EPDM/PP) |
Color | black |
Tube size | 12,7/7,6 mm |
Hardness grade | 35 Shore-A to 50 Shore-D |
Maximum working temperature | -50 bis +155°C |
Technical data fans | |
Speed | 800 - 2000 RPM |
Static pressure | 2,0 mm/H₂O |
Air flow rate | 104,49 m³/h |
Bearing | Hydraulic |

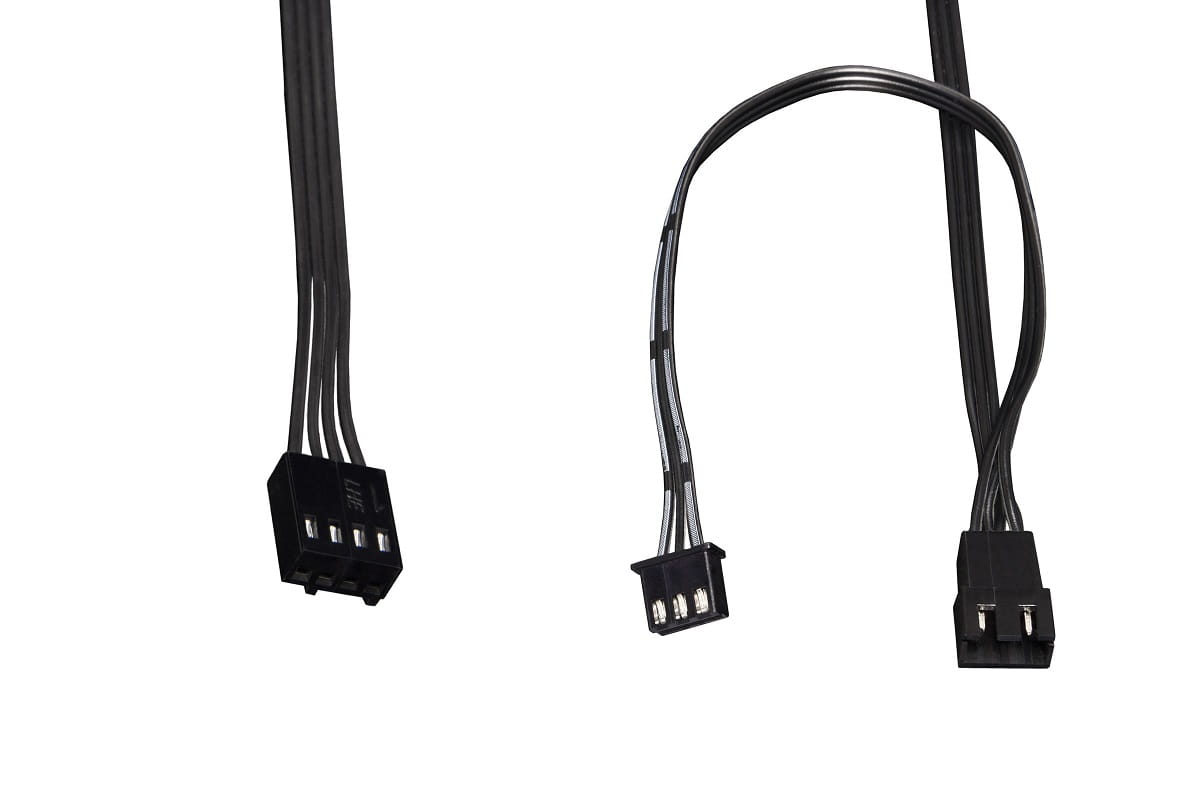

Connection | 4-Pin PWM |
Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
L x W x H | 120 x 120 x 25 mm |
Cable length | 187 g |
Voltage | 60 °C |
Warranty: 3 years
🔗 Warranty Terms
Hersteller: | Alphacool |
Radiatorgröße: | 240mm |
Vorbefüllt: | Ja |
Radiatordicke: | 0 - 29mm |
Radiatorabmessung: | 274x 120 x 25mm |
Sockel: | AMD AM3(+), AMD AM4, AMD AM5, AMD SP3, AMD SP6, AMD sTRX4, AMD sWRX8, Intel 115x, Intel 2011(-3), Intel 2066, Intel LGA 1200, Intel LGA 1700, Intel LGA 1851 |
