*1High-quality, elegant, and timeless design combined with technical innovation – these are the defining features of the Alphacool Apex Stealth Metal Fan. With its patent-pending decoupling technology, robust metal frame, and specially designed rotor, this fan is built to impress. The Apex Stealth is not only one of the most powerful fans on the market but also remains exceptionally quiet at any speed.
Whisper-quiet
The fan blades, motor, and its suspension are completely decoupled from the metal frame. A special damping system has been integrated between the metal frame and the fan, absorbing all vibrations. This type of decoupling is an entirely new system, introduced to the market for the first time by Alphacool with the Apex fan. Additionally, the impeller is equipped with a closed frame that prevents tip fluttering at high speeds, further enhancing the fan’s performance characteristics.
Powerful all-rounder
The Alphacool Apex Stealth Metal Fan is a true multi-talent. It sets new standards in terms of airflow and static pressure. Therefore, this fan is not only perfect for radiator mounting but also ensures excellent airflow as a case fan. The Apex Stealth Power can be controlled via the 4-pin PWM connector between 380 and 2600 revolutions per minute. The startup speed is around 380 RPM. Furthermore, the Stealth offers zero-RPM control, allowing the fan to come to a complete stop.
Apex Design
The Apex product line from Alphacool represents ultimate perfection. Premium materials and innovative technologies guarantee a unique high-end product. The combination of the curved frame and brilliant aRGB lighting creates impressive light effects and a distinctive design that fits seamlessly into any PC build.
Additional features

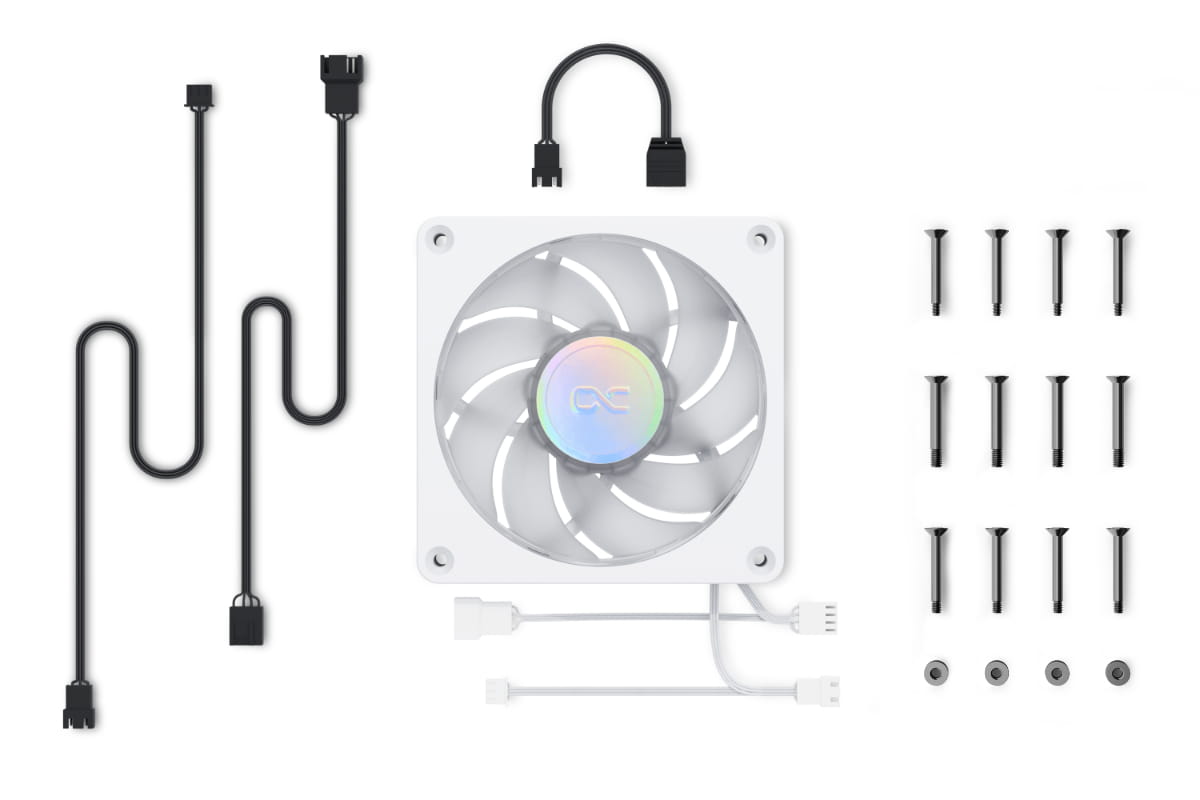

As is typical for Alphacool, multiple fans can easily be connected in series using the daisy-chain system. The cables can be hidden in the corners of the fan, keeping them out of sight. A 50 cm PWM extension cable is also included. The 6-pole motor, in combination with the Sleeve Bearing, ensures extremely smooth operation and long lifespan.
| Technical data | |
| Dimensions (L x W x H) | 120 x 120 x 25,5mm |
| Material (Frame) | Die-cast zinc |
| Material (Impeller) | Plastic |
| Weight | 312g |
| Speed | 380~2600±10% rpm |
| Bearing | Sleeve Bearing |
| Connection | 4-Pin PWM |
| Cable length PWM / aRGB | 40±8 mm (+ 50cm extension cable) |
| Cable length (daisy chain) | 110±10 mm |
| Start-up Voltage | 6 V DC |
| Rated Volt | 12 V DC |
| Rated Power Consumption | 3.72 W (Max) |
| Air Flow | 59.79 CFM |
| Static Air Pressure | 3.35 mmH2O |
| Noise Level | 36.4 dBA |
| MTBF | 100,000h |
| PWM control | Yes |
| Zero RPM control | Yes |
| Tacho Signal | Yes |
| Auto-restart | Yes |
| aRGB | Yes |
| Color | white |
| Hersteller: | Alphacool |
| Nominal voltage: | 12V DC |
| LED: | RGB; |
| Color Frame: | weiß; |
| Rated speed range: | 380~2600±10% U/Min |
| Dimensions: | 120 x 120 x 25,5mm |
