Flat expansion tank with pump

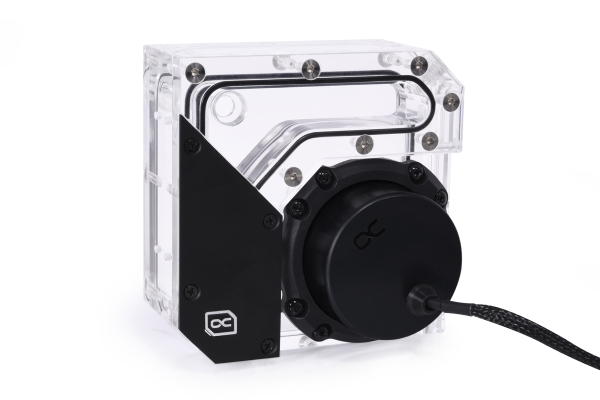

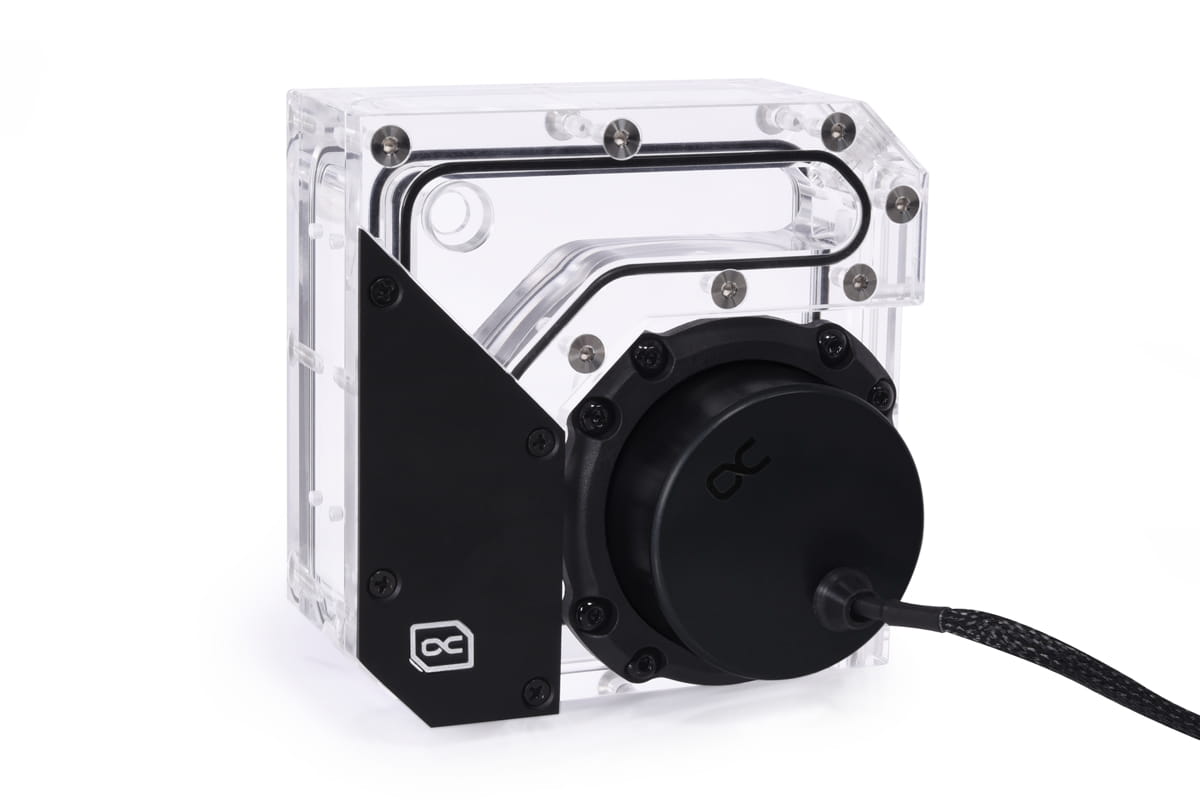

PUM Alphacool Rise Flat Reservoir D5 mit VPP Pumpe

PUM Alphacool Rise Flat Reservoir D5 mit VPP Apex Pumpe

Article no.: 15076
EAN: 4250197150767
Weight: 1,298 kg
Available:
Images may differ slightly from the original

€99.98 * €149.98 * (33.34% Saved)

Prices incl. VAT plus shipping costs

Liefertermin: in 6 - 7 Wochen

Alphacool Ice Tube 13/10mm Acrylic (PMMA) HardTube Satin 80cm - Set of 4 (320cm)

€23.98*

Alphacool Eisblock XPX CPU - deep black

€39.98*

Alphacool Eiskoffer Professional - bending & measuring kit

€249.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - White Sixpack

€34.97*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

Alphacool NexXxoS HPE-20 Full Copper 360mm Radiator

€91.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool VPP Apex Pump

€65.99*

Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6700XT MERC 319 with backplate

€81.98*

The Alphacool Rise Flat reservoir has an integrated pump top for powerful D5 pumps and comes... more

Close menu

Product information

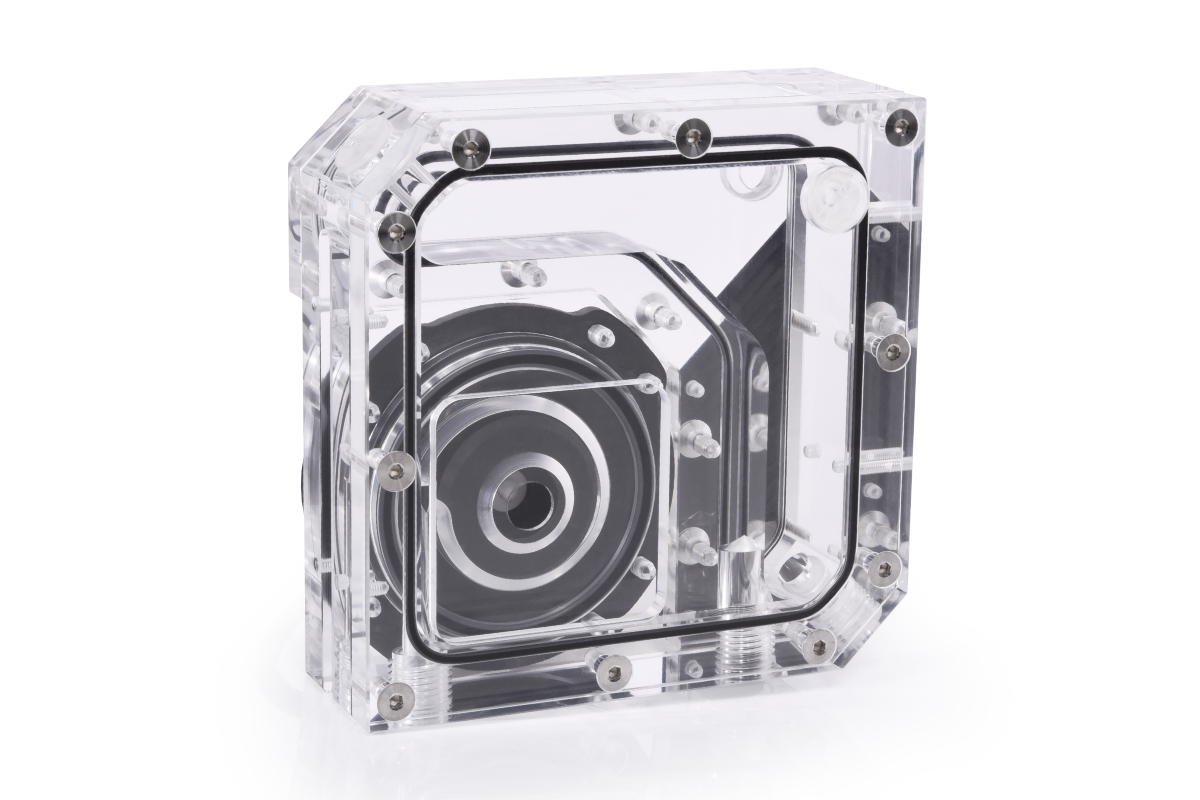

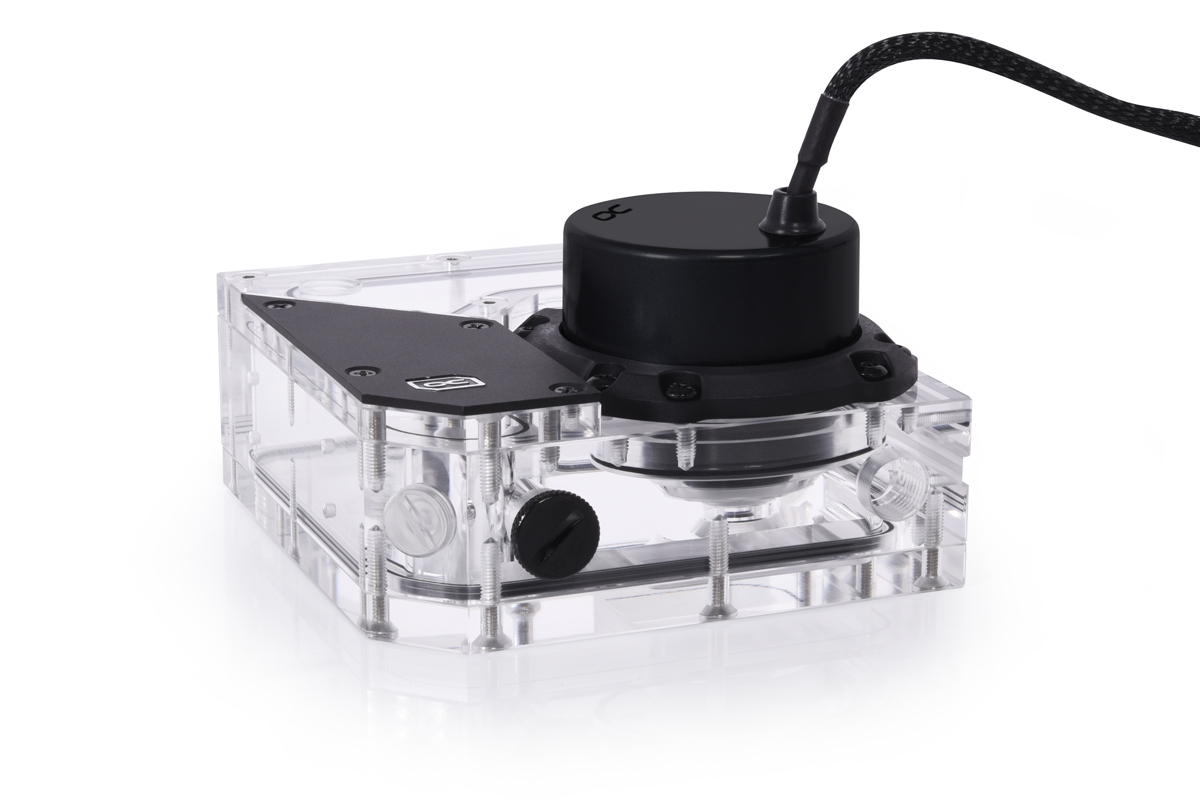

The Alphacool Rise Flat reservoir has an integrated pump top for powerful D5 pumps and comes with a VPP Apex pump. The combination of pump top and expansion tank is made entirely of acrylic. This makes maintenance and control of the water circuit much easier and gives the expansion tank a unique design. In addition, Alphacool's Rise Flat has 5 individually controllable 5V aRGB LEDs that create unique lighting effects. Thanks to the flat design, the reservoir can fit into even the tightest case.

Compact design, flexible use

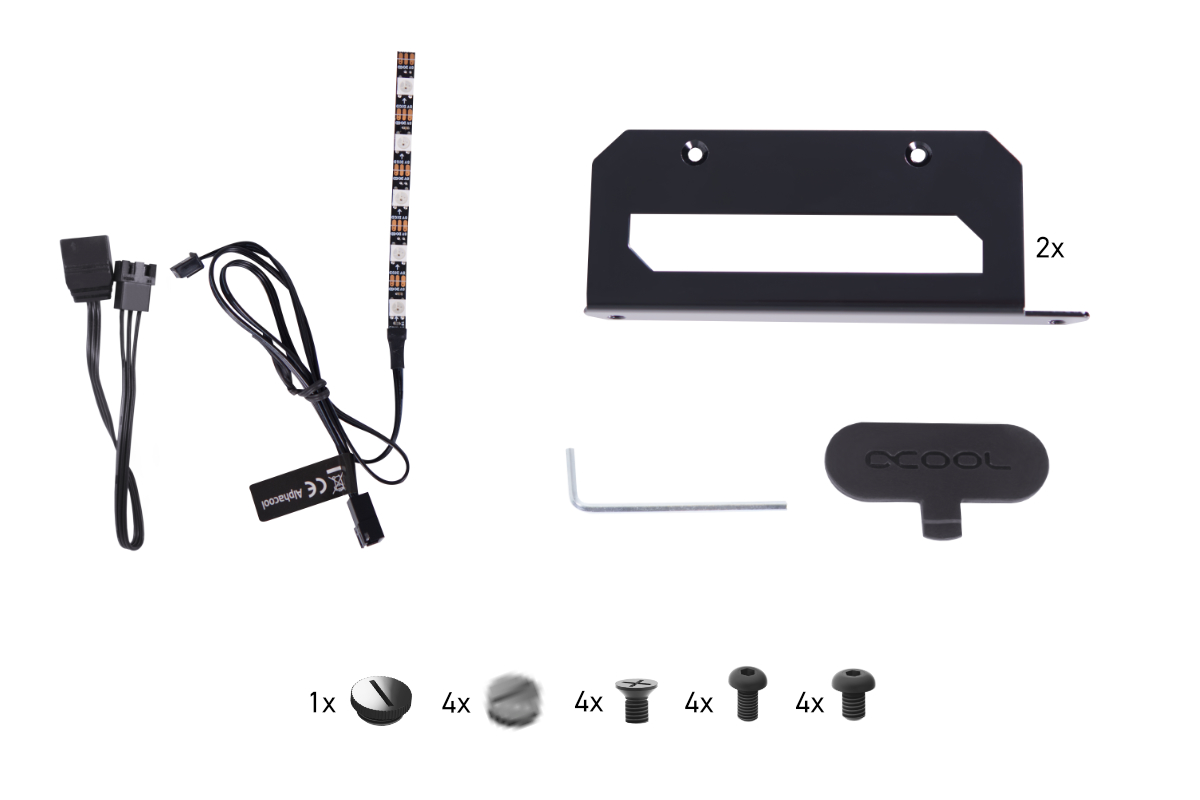

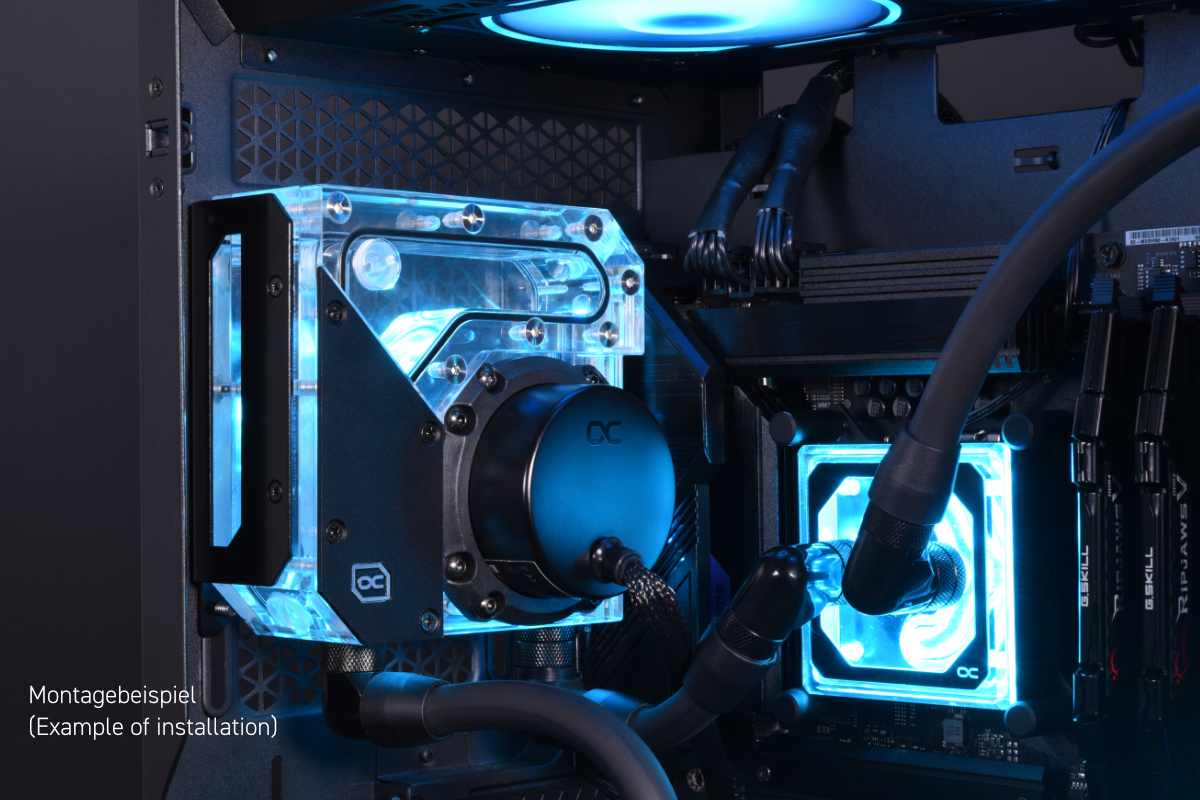

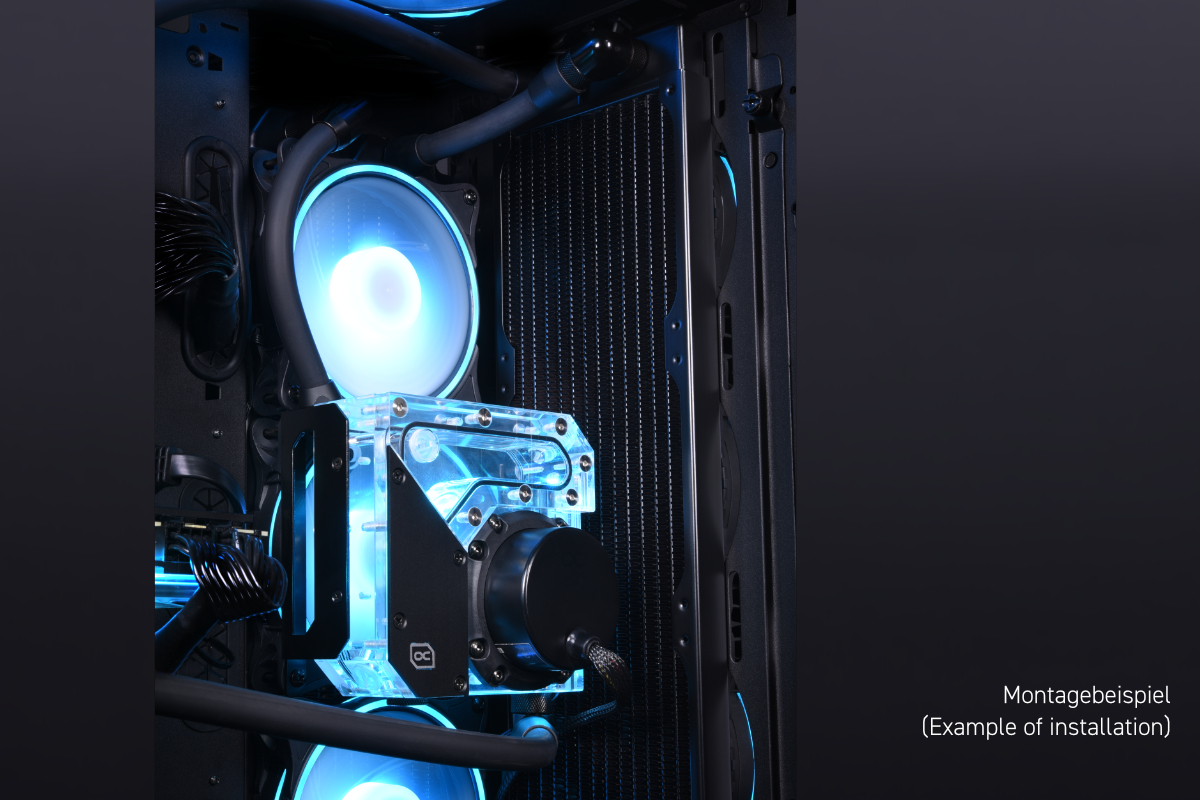

Due to the flat, compact design and the high number of connections, the Rise Flat reservoir can be used flexibly and can also be installed in the tightest of spaces. With the help of the mounting kit included in the scope of delivery, the reservoir can be mounted free-standing in the case, on a radiator or at free fan positions (see mounting example).

Connection options
The Rise Flat expansion tank has a total of 5 inputs and one output. All connections use a G1/4" thread. The 5 inlets are perfectly placed over the entire expansion tank. This allows for easy filling and draining and facilitates maintenance of the entire water circuit.

Brilliant lighting

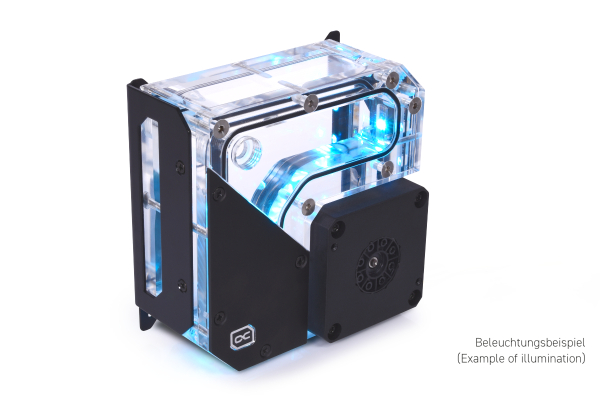

On the side of the expansion tank, 5 digitally addressable 5V RGB LEDs can be installed, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Maintenance
The acrylic reservoir allows visual control of the water cooling level. A total of 5 G1/4" inlets allow easy filling, draining and venting of the water circuit.

Compatibility
The Rise Flat AGB has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps.

Pump

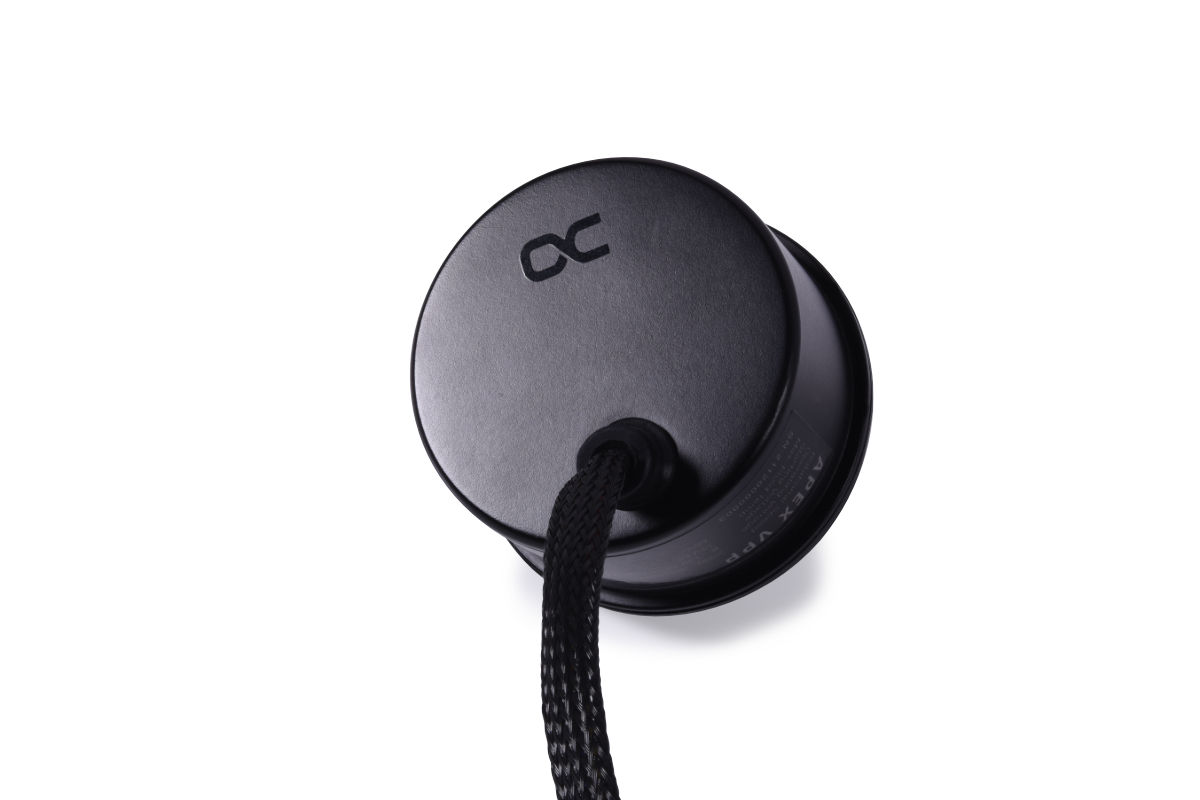

The VPP Apex pump does without a spherical bearing and uses a ceramic shaft for smoother running. With a delivery head of 4.25 m, it offers high performance, but is significantly quieter than classic D5 pumps. The pump has versatile control options. The 4-pin Molex connection is used here only for the power supply via the power supply unit. Via the 4-pin PWM connection, the pump can be controlled via PWM and the speed can be read out.

Technical data reservoir
L x W x H	120 x 120 x 50 mm
Pump compatibility	D5
Capacity	200ml
Material Pump top	acrylic
Material reservoir	acrylic
Connection	6x G1/4“ internal thread
Maximum working temperature	60 °C
Pressure tested	0,8 Bar
Quantity of digital aRGB LEDs	5
Power digital aRGB LEDs	5V
Power connector digital aRGB LEDs	3-pin JST (male & female switch)
Weight	565 g
Color	clear

Technical data pump
L x W x H	65 x 65 x 41mm
Power consumption	14 W
Voltage	12V DC
Control range	8-13V DC
Cable lengths	4-Pin PWM - 48cm \| SATA - 48cm
Head height	4,25 m
Maximum flow rate	340 L/h
Maximum working temperature	60 °C
Weight	276g
Color	black

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
