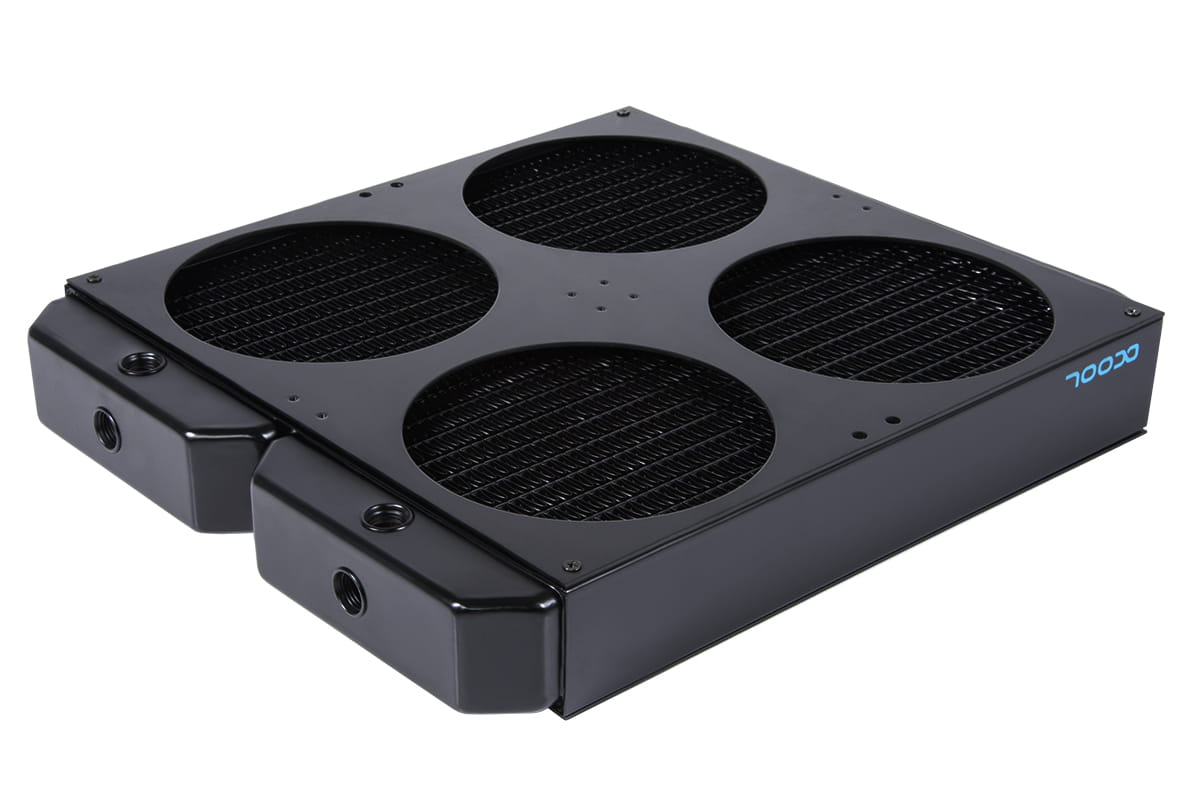

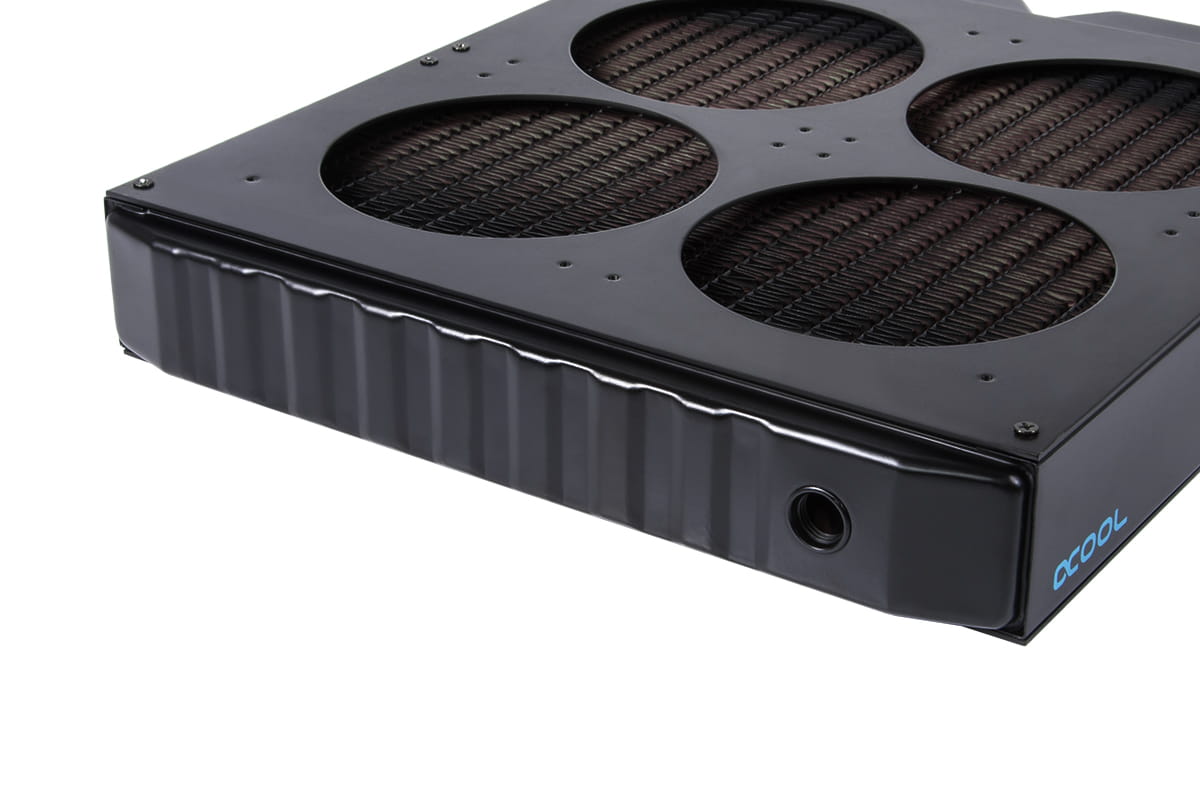

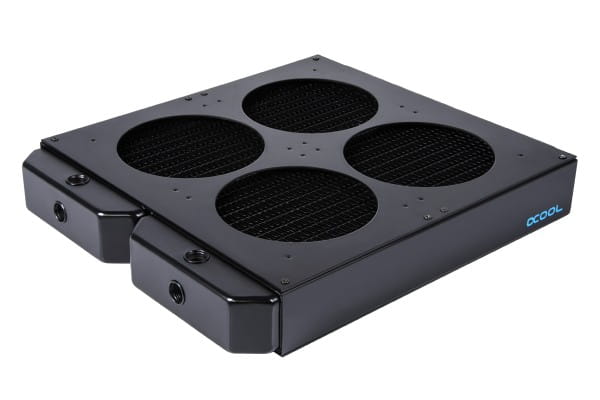

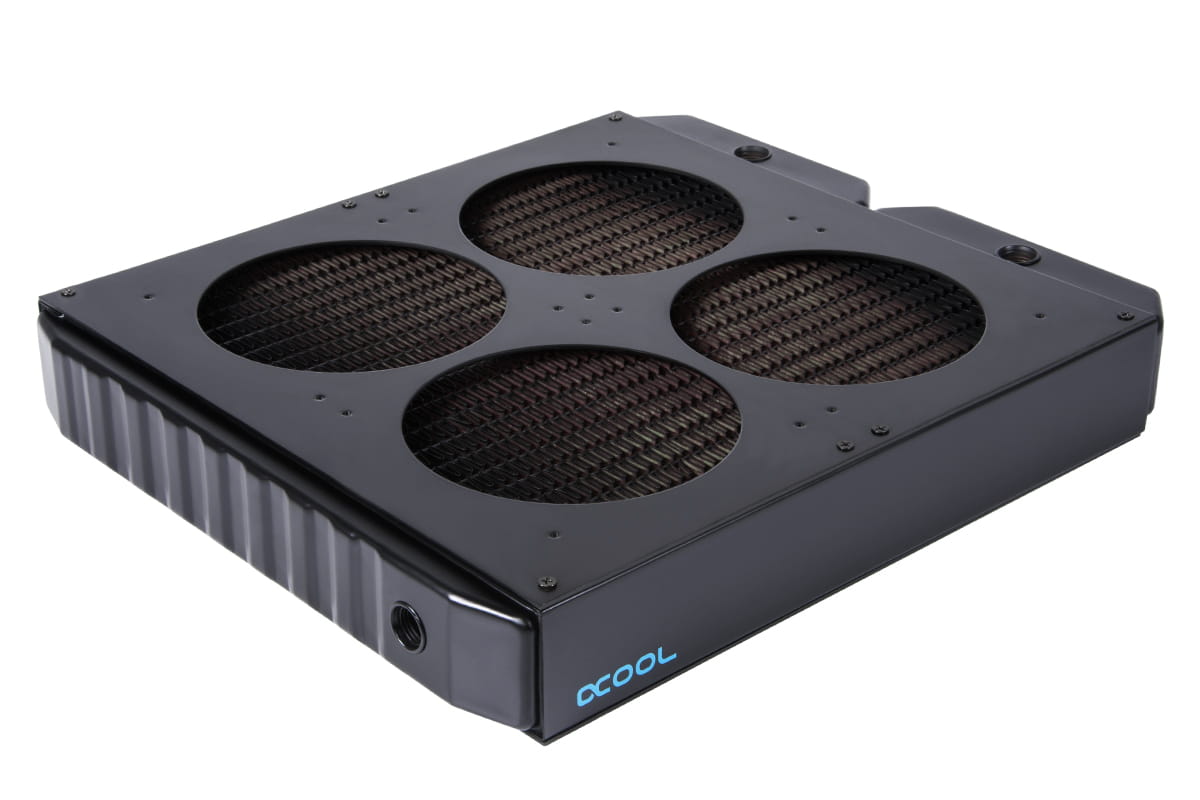

Alphacool NexXxoS XT45 Full Copper Quad 480/560 Radiator

  • 14396
  • 4250197143967
  • 2,82 kg
  • Images may differ slightly from the original
€149.98 *

Prices incl. VAT plus shipping costs

Liefertermin: in 5 - 6 Wochen

Recommended accessories
Extra Price
15314 Alphacool Eisbaer screw kit M3 x 5/M3 x 30mm
1x
Alphacool Eisbaer screw kit M3 x 5/M3 x 30mm
€4.98*
24806 Alphacool Eiszyklon Aurora LUX PRO Digital RGB (120x120x25mm)
1x
Alphacool Eiszyklon Aurora LUX PRO Digital RGB (120x120x25mm)
€9.98*
17454 Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
1x
Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
€27.98*
29943 Alphacool Universal feet for radiators
1x
Alphacool Universal feet for radiators
€24.98*
Would you like a little more? Alphacool NexXxoS XT45 Quad 480 mm / 560 mm! 280 x 280 x 45 mm... more
Product information

Would you like a little more?
Alphacool NexXxoS XT45 Quad 480 mm / 560 mm! 280 x 280 x 45 mm of pure cooling surface for four 120/140mm single sided.

Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS XT45 Quad Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.

Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Which fans?
The XT45 Quad radiator has space for four 120/140 mm fans single sided. If you want to operate the radiator passively, you can remove the mounting plate in order not to obstruct the natural airflow. Of course, the mounting plates for both types of fans can also be interchanged. This gives you more freedom when mounting the fans.

Connection options

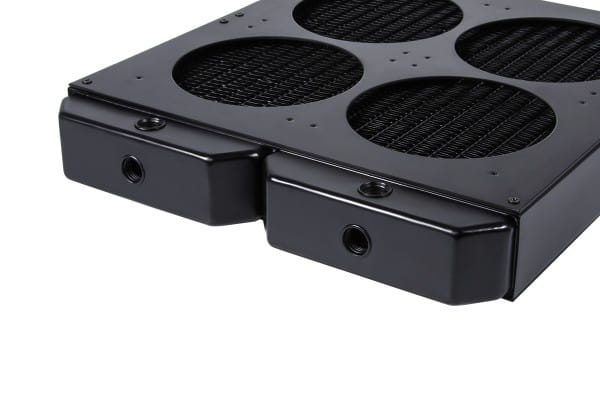

The Alphacool NexXxoS XT45 Quad Radiator offers six G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.



Technical data radiator
L x W x H322 x 280 x 49 mm
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads7x G1/4"
Possible fan size120mm or 140mm
Possible fan assembly4x one-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density12 FPI
Weight2370g
Colorblack

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 39 - 49mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Fins per inch: 12
Druckgetestet: 0,8 bar
Anschluss: 7x G1/4"
Anzahl Lüfter: 4
Lüftergröße: 120mm, 140mm
Abmessungen (L x B x H): 322 x 280 x 49mm
