Fillport black nickel - knurled - Universal

AGB Fillport black nickel - gerändelt - Universal

Article no.: 45247
EAN: 4049469122973
Weight: 0,029 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€2.98 *

Prices incl. VAT plus shipping costs

in stock

Universally applicable fill port for water cooling systems. The fill port can be connected to... more

Close menu

Product information

Universally applicable fill port for water cooling systems. The fill port can be connected to the expansion tank via a hose and thus enables convenient filling and venting without having to take the PC apart, as the fill port can be installed on the top of a case, for example.

cut a hole 1.99cm in the lid or side of your case
Push the fillport into the opening
Secure the fillport with the plastic nut on the bottom
connect the hose to the expansion tank or T-piece
Secure the hose with a hose clamp or cable tie

Technical data:
Material: black nickel-plated brass
Thread: G1/4 inch (please order connection for the hose separately)
Thread diameter: 19.9mm
Total diameter: 24.8mm
Height above the housing: 3mm
Height of nut: 5mm

Attention: Screw plug, hose nozzle and spacer ring are not included in delivery. Please order these separately (see accessories).

Scope of delivery:

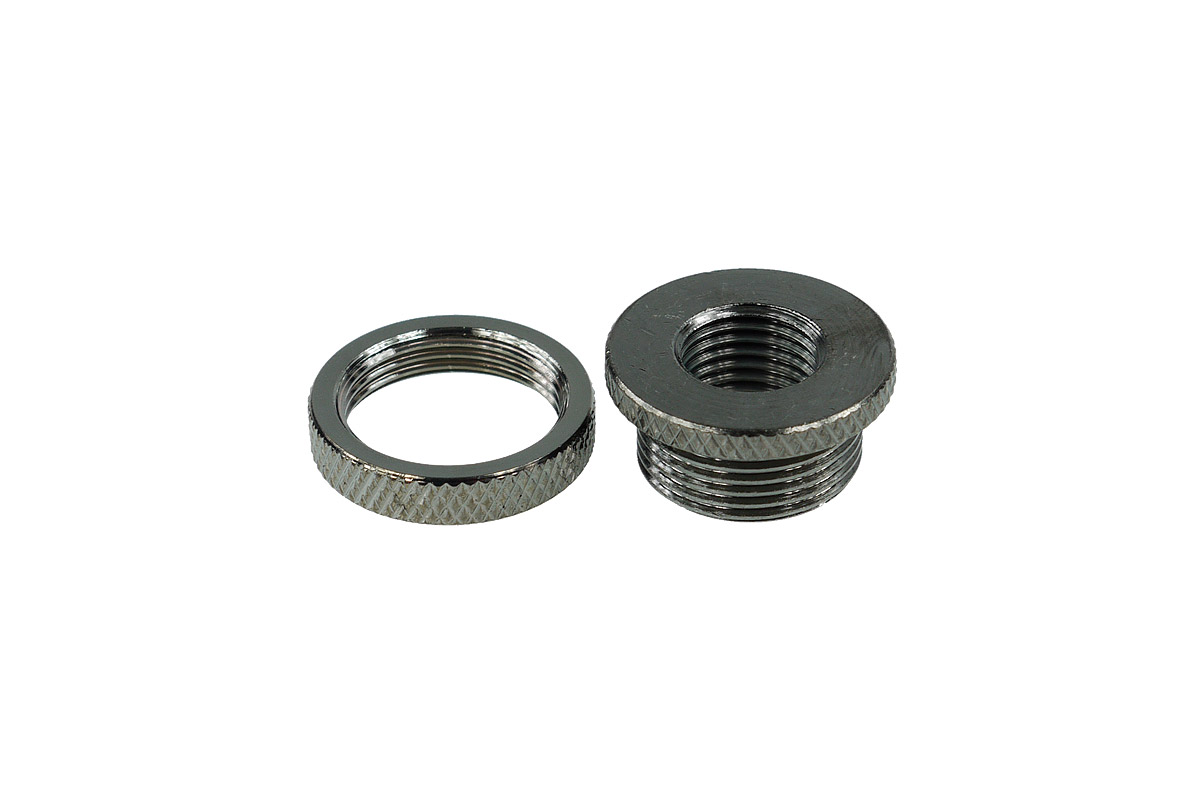

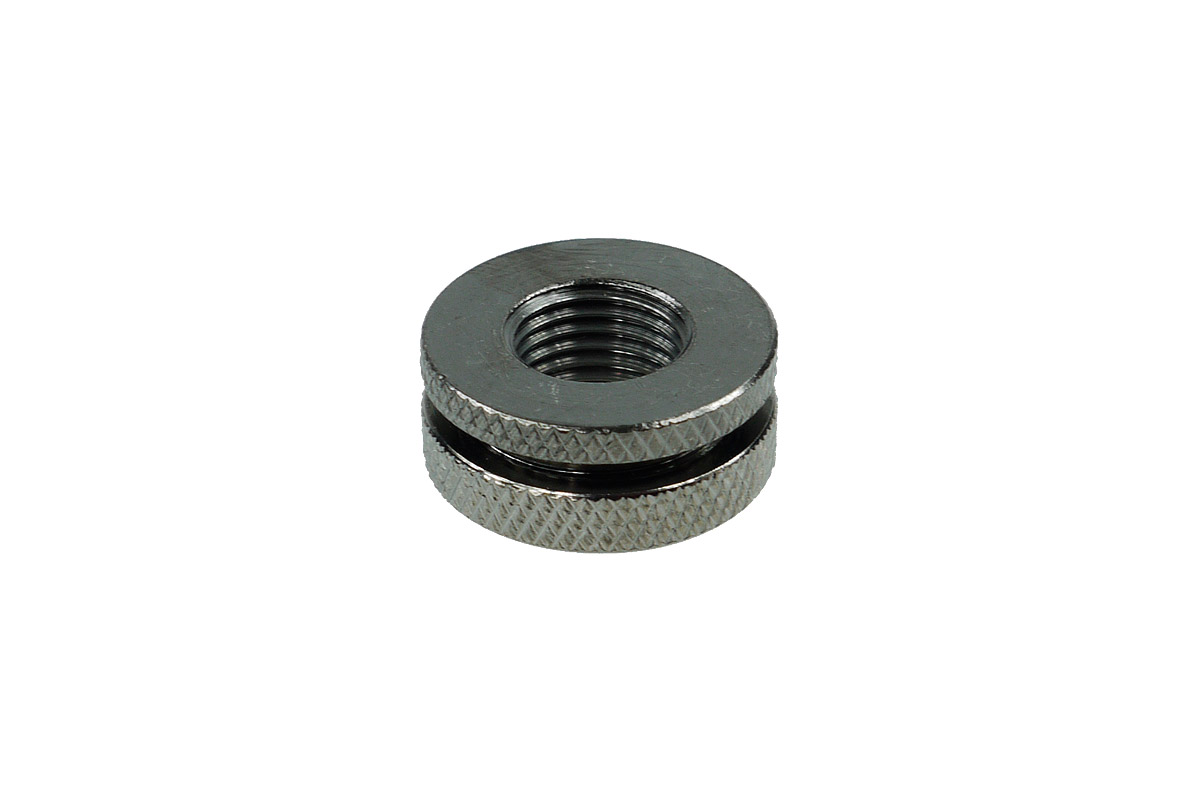

Fillport with O-ring and fastening nut
