Alphacool Eisbaer Aurora LT360 CPU AIO Digital RGB

  • 11679
  • 4250197116794
  • 3,12 kg
  • There are more than 25 units available
  • Images may differ slightly from the original
€159.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price

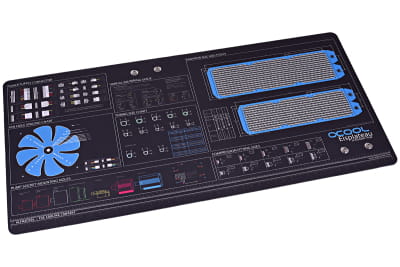

90334 Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
1x
Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
€59.98*
14424 Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800XT/6900XT Nitro+ mit Backplate
1x
Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800XT/6900XT Nitro+ mit Backplate
€179.98*
18640 Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*
18659 Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6700XT TUF/Rog Strix with Backplate
1x
Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6700XT TUF/Rog Strix with Backplate
€78.51*
The Eisbaer LT Aurora CPU AIO water cooler offers extremely good cooling performance due to the... more
Product information

The Eisbaer LT Aurora CPU AIO water cooler offers extremely good cooling performance due to the high-end components, which includes a full copper radiator. The components used are all from Alphacool’s classic custom water cooling sector and can also be found in its enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener.

At its heart, the DC-LT 2 pump
The exceedingly small and compact DC-LT 2 pump has been further optimized compared to its predecessor. The impeller sits suspended on a ceramic axle and is supported by two magnets. A 3-phase sinusoidal drive ensures a much smoother running of the pump, which significantly contributes to minimizing noise. The pump offers enough power to add another component, such as a GPU water cooler or another radiator, to the loop. Ideally, it is coupled with an Eiswolf 2 GPU AIO water cooler. This also uses a DC-LT 2 pump.

DIY fittings and ES tubing
The tubing and fittings come from the standard custom cooling segment and all use a standard G1/4" thread. Therefore, it is extremely easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and, robust nylon. The quick connector is compatible with many other models from the Alphacool product line.

Cooler
As with all Alphacool products, the cooler base is made of nickel-plated copper and is equipped with exceptionally fine cooling fins that are distributed over almost the entire base. A flow plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly.

Full Digital RGB Mounting
The pump unit and fans are fully equipped with Digital RGB LEDs, also known as Addressable RGB or aRGB. Extensive effects can be set with the included controller or with the Digital RGB controller on the motherboard. For a nice visual effect, there is an illuminated polar bear (Eisbaer). For easier control via a controller, the fans and also the pumps can be connected in series via daisy-chain. This ensures a clean wiring of the individual LED components.



Compatibility:
AMD: AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 / FM1 / FM2 / FM2+ / SP3 / SP6 / sTRX4 / sWRX8
Intel: LGA 1150 / LGA 1151 / LGA 1155 / LGA 1156 / LGA 1200 / LGA 1700 / LGA 2011 / LGA 2011-3 / LGA 2066 / LGA 755



Technical Data Radiator
L x W x H390 x 120 x 25 mm (+/- 3%)
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads2x G1/4"
Possible fan size120mm
Possible fan assembly3x one-sided / 6x both-sided

Technical Data cooler with pump
L x W x H69 x 69 x 45 mm
Material cooler bottomnickel plated copper
Material cooler topPMMA
Threads2x G1/4“ (+ 1x Fillport G1/4“)
Pump typeDC-LT2
Pump speed2600 rpm (+/- 10%)
Head of delivery1 m
Maximum flow rate72 L/h
Voltage6 - 13.5V DC
Power consumption3,2W
MTBF50.000 h

Technical data liquid
Colorclear
Ingredient 1destilled water (CAS-Nummer 7732-18-5)
Ingredient 2Glysantin (CAS-Nummer 1017-21-1)
Working temperatures15C°/+90°C

Technical data quick-release coupling
Dimensions95 x 27 mm
MaterialNylon
Tube size12,7/7,6 mm
Colorblack

Technical data connectors
Dimensions (connection straight)24 x 18 mm
Quantity (connection straight)2x
Dimensions (connection 90°)35 x 27 x 17 mm
Quantity (connection 90°)2x
Tube size12,7/7,6 mm
Materialbrass

Technical data tube
Length40 cm
MaterialTPV (EPDM/PP)
Colorblack
Tube size12,7/7,6 mm
Hardness grade35 Shore-A to 50 Shore-D
Maximum working temperature-50 bis +155°C

Technical data fans
Speed800 - 2000 RPM
Static pressure2,0 mm/H₂O
Air flow rate104,49 m³/h
BearingHydraulic
Connection4-Pin PWM
Connection Digital aRGB3-Pin JST + 3-Pin 5V
L x W x H120 x 120 x 25 mm
Cable length187 g
Voltage60 °C

Warranty: 3 years
🔗 Warranty Terms

Awards & Videos
Technical details mehr
Technical details
Hersteller: Alphacool
Vorbefüllt: Ja
Radiatorgröße: 360mm
Radiatordicke: 0 - 29mm
Radiatorabmessung: 390 x 120 x 25mm
Sockel: AMD AM3(+), AMD AM4, AMD AM5, AMD SP3, AMD SP6, AMD sTRX4, AMD sWRX8, Intel 115x, Intel 2011(-3), Intel 2066, Intel LGA 1200, Intel LGA 1700, Intel LGA 1851
ANS Alphacool Eiszapfen 16/10mm Anschraubtülle 90° drehbar G1/4 - 4pcs Set Deep Black
Alphacool Eiszapfen 16/10mm screw-on nozzle 90° rotatable G1/4 - 4pcs Set Deep Black
Content 4 Stück (€10.50 * / 1 Stück)
€41.98 *

in stock

WAZ Alphacool Apex Liquid ECO 1000ml clear
Alphacool Apex Liquid ECO 1000ml clear
Content 1000 Milliliter
€14.98 *

in stock

RAB Alphacool M3 Abstandshalter 34mm
Alphacool M3 Spacer 34mm
Content 4 Stück (€0.87 * / 1 Stück)
€3.48 *

in stock

ROH Alphacool Eisbaer TPV Extension Set (Schlauch und Anschlüsse)
Alphacool Eisbaer TPV Extension kit (tube and fittings)
Content 2 Stück (€7.70 * / 1 Stück)
€15.39 *

Liefertermin: in 3 - 4 Wochen

WAZ Alphacool Eiswasser Crystal Yellow Fertiggemisch 1000ml
Alphacool Eiswasser Crystal Yellow premixed coolant 1000ml
Content 1000 Milliliter
€12.98 *

Liefertermin: in 14 - 15 Tagen

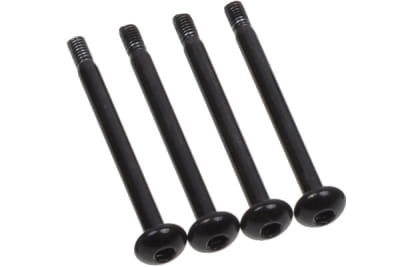

RAB Alphacool NexXxos Lüfterbefestigungsschraube M3 x 35 mm - 4 Stück
