PUZ Alphacool HF D5 TOP - Black Acetal G1/4 - (VPP655/TPP644/MCP655) V.2 EOL | Pump cover | Pump tops | Shop

Article no.: 13168
EAN: 4250197131681
Weight: 0,5 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€14.99 *

Prices incl. VAT plus shipping costs

in stock

THE attachment for your Alphacool power pump, offers even more performance, even more mounting... more

Close menu

Product information

THE attachment for your Alphacool power pump, offers even more performance, even more mounting and connection options for your favorite pump!

The basic performance of the Alphacool TPP & VPP pumps is already top class, what if you could increase it even further? The developers also thought about this and in addition to the increase in performance, many other positive effects were achieved that the basic model of the Alphacool pumps does not offer.

A main element is the 1/4 inch connection thread, which can be used on the side or on the lid. Of course, a combination of both is also possible. Two knurled copper caps are included for the unused connections.

The appearance is a side effect that should not be overlooked! Black elegant acetal with embedded Alphacool logo gives an idea of the potential of German know-how!

The assembly is extremely simple. The motor is separated from the original bracket with a simple twisting movement. Then you look at the 4 basic components supplied. First you pull the O-ring over the shiny silver front part of the pump and then put the largest of the 4 components on the front. The counterpart is now put on the back, where the cable protrudes. Now screw the elements together firmly with the assembly screws included in the delivery, nothing more is necessary!

And what is the last plate for? For mounting the pump in the housing! Simply screw the plate onto the cover and connect the opposite side to the housing base, the decoupling or something similar, and you're done!

And you will see: What the Alphacool employees have come up with here is a real gem!

Technical data:
Material: Acetal
Color: Black
Connection thread size: 4x 1/4 inch
Dimensions assembled (L x W x H): 80 x 45 x 80mm

The assembly instructions for the Alphacool HF D5 TOP can be downloaded here

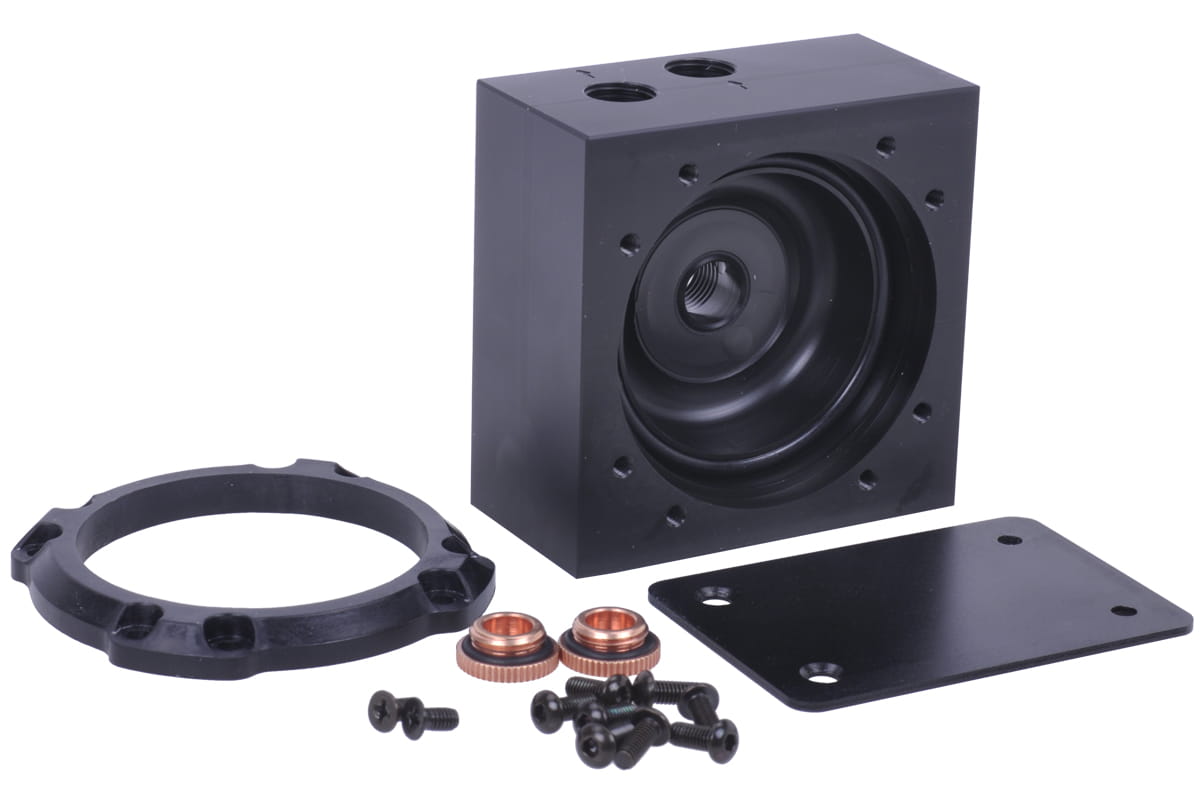

Scope of delivery:
1x Alphacool HF D5 TOP - Black Acetal G1/4 - (VPP655/TPP644/MCP655)
2x copper-coloured screw plugs
black mounting screws

Delivery without pump

Note on assembly: After assembly, a small gap remains between the pump and the cover. The seal is ensured because the O-ring forms a positive connection here. Therefore, do not tighten the screws too tightly, as this can cause damage to the cover.

User reviews:

Xtremesystems.com(Stren)

Reviews:

Overclocking-pc.fr
Itrends.dk
Ocreviews.pt
Octeamdenemark.dk
Freeocen.de
Coolingtechnique.it

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
