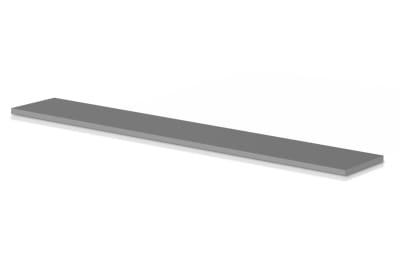

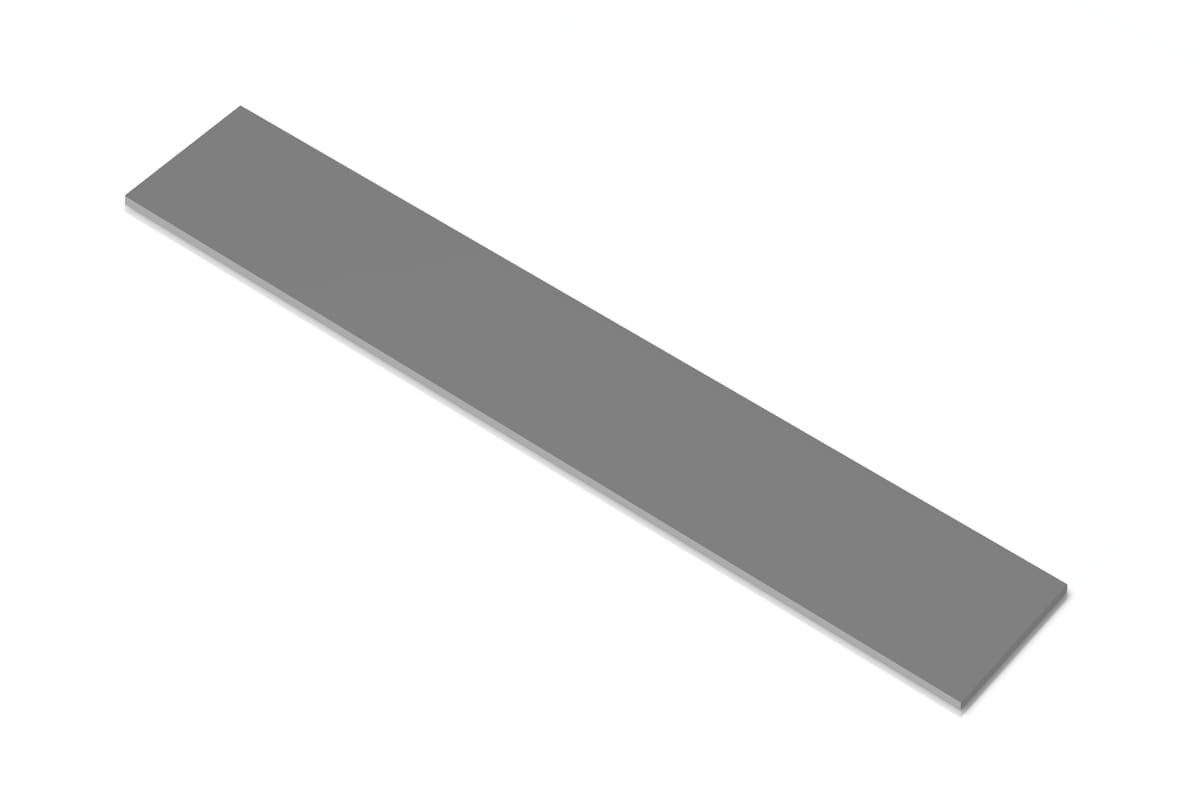

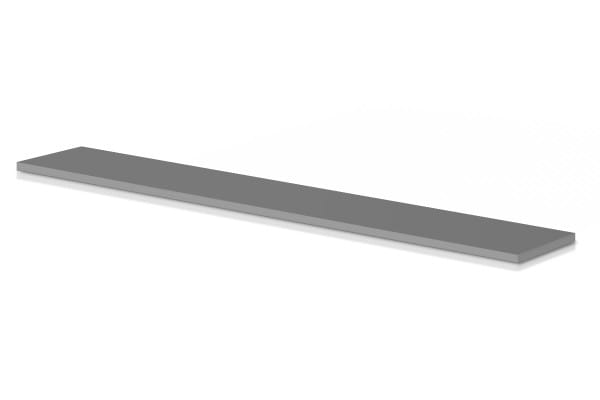

Apex thermal pad soft 16 W/mK 120x20x1.5mm

WÄM Alphacool Apex Wärmeleitpad Soft 16W/mk 120x20x1,5mm

Article no.: 13490
EAN: 4250197134903
Weight: 0,05 kg
Available: Currently there are 3 available - More is on the way
Images may differ slightly from the original

€44.98 *

Content: 24 cm² (€1.87 * / 1 cm²)

Prices incl. VAT plus shipping costs

in stock

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Apex Thermal grease 4g

€4.28*

Alphacool Apex Thermal grease 50g

€69.98*

Alphacool Apex thermal pad Soft 16W/mk 120x20x1mm

€34.97*

Alphacool Apex thermal pad Soft 16W/mk 100x100x1.5mm

€119.98*

Alphacool offers a wide range of thermal pads for effective heat dissipation of electric... more

Close menu

Product information

Alphacool offers a wide range of thermal pads for effective heat dissipation of electric components. Among these, the Apex thermal pad is the most powerful option. It can reliably dissipate heat and is versatile due to its strong compressibility.

Powerful!
Alphacool's Apex thermal pad is a silicone-based ultra-soft thermal pad with optimal compressibility. Due to its low hardness and natural stickiness, it perfectly adapts to surfaces, compensates for irregularities between components, and significantly improves heat transfer.

Increased lifespan!
Thanks to its unique material composition, the Apex thermal pad has a significantly reduced risk of silicone bleeding. It is capable of reliably cooling for a much longer period than conventional thermal pads without significant performance losses.

Versatile!
Due to its excellent electrical insulation, the thermal pad is also suitable for cooling electric components in a variety of devices, including electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunications devices, access points, memory modules, and much more.

Technical data thermal pad
Dimensions (L x W x H)	120 x 20 x 1,5mm
Thermal Conductivity (ASTM D5470)	16.6 W/mK (±10%)
Hardness (ASTM D2240)	65 (Shore 00) (±5)
Working temperature	-50 to ~150°C
Volume Resistance (ASTM D257)	5×10¹² Ohm-m
Dielectric Breakdown Voltage (ASTM D149)	5 KV/mm (±10%)
Density (ASTM D792)	3.6 g/cm³ (±10%)
Elongation (ASTM D412)	20%
Weight Loss (ASTM E595)	less than 1%
Flame Rating (UL 94)	V-0
Color	dark grey
