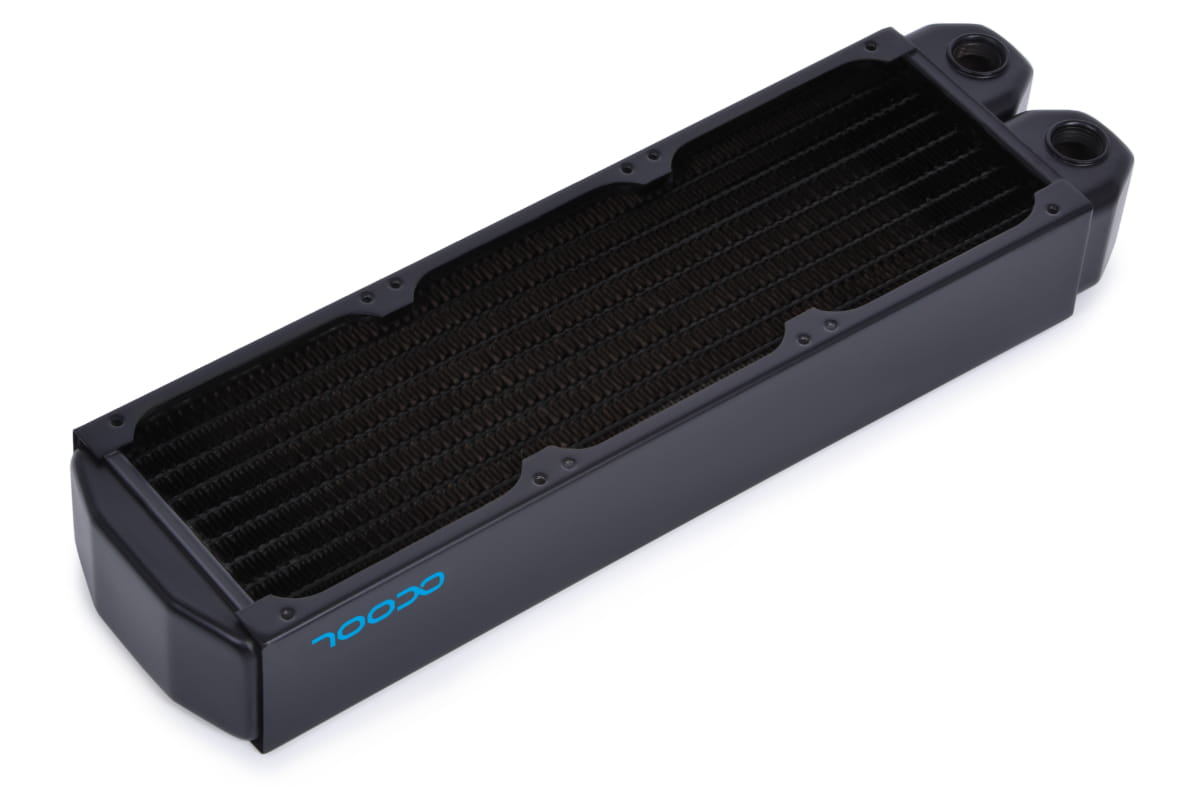

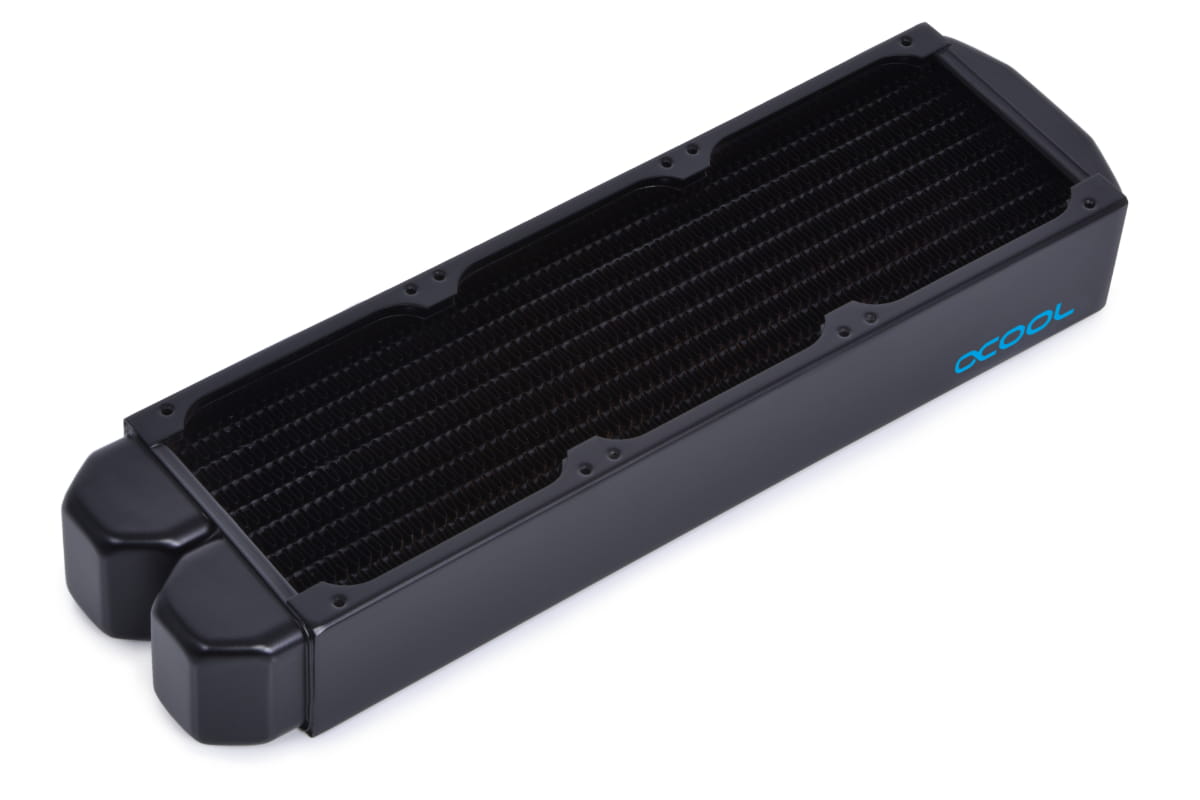

Alphacool NexXxoS HPE-45 Full Copper 80mm Triple Radiator

  • 14438
  • 4250197144384
  • 0,76 kg
  • Es sind noch mehr als 100 Artikel verfügbar
  • Images may differ slightly from the original
€79.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
12961 Alphacool Eisblock XPX 1U - Black Acetal Version
1x
Alphacool Eisblock XPX 1U - Black Acetal Version
€75.98*
18605 Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
1x
Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
€18.98*
17453 Alphacool HF compression Fitting TPV - 12,7/7,6mm Straight - Black - 6pcs Kit
1x
Alphacool HF compression Fitting TPV - 12,7/7,6mm Straight - Black - 6pcs Kit
€16.98*
L80 Alphacool ES 80mm 800-6,000rpm Fan ( 80x80x25mm ) - Two Ball Bearing - PWM (JE8025B12V)
1x
Alphacool ES 80mm 800-6,000rpm Fan ( 80x80x25mm ) - Two Ball Bearing - PWM (JE8025B12V)
€12.98*
18640 Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*
Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world... more
Product information

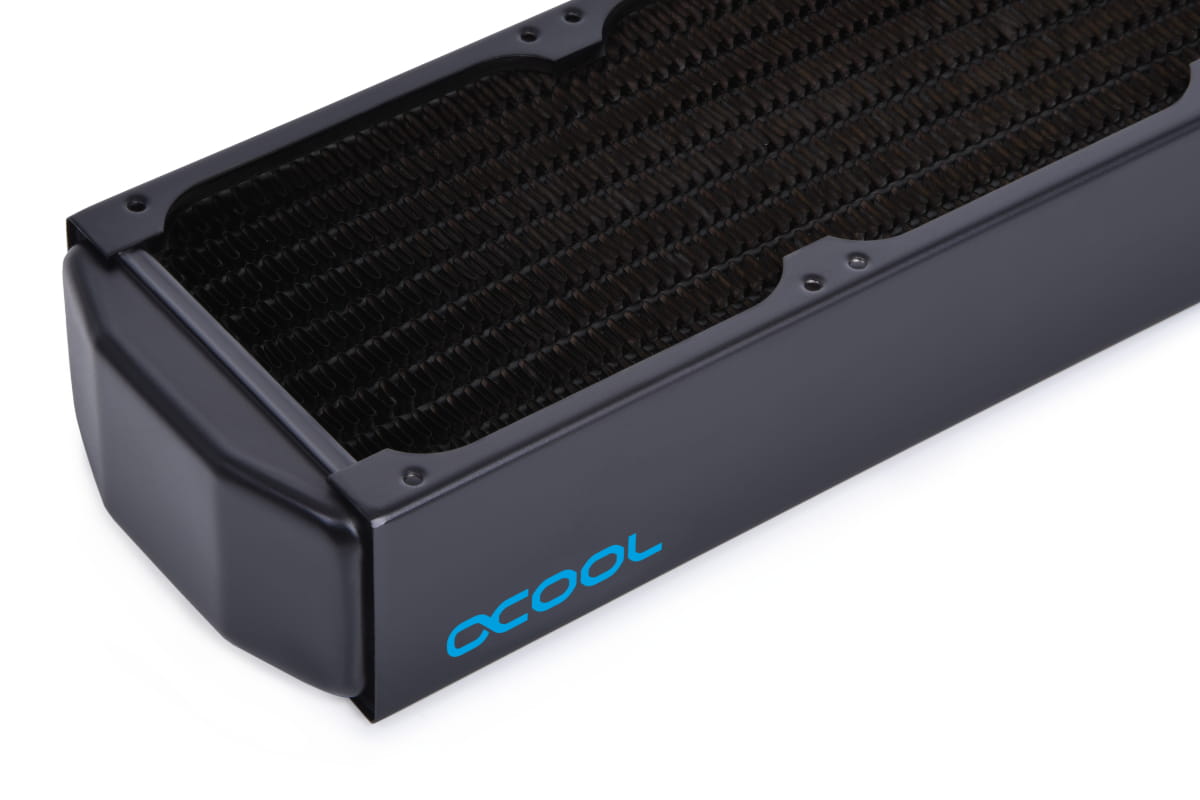

Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are made of pure copper. Only the fitting threads (made of brass) and the outer casing of the radiator (made of sheet steel) are made of other materials.

HPE = High Performance
The HPE radiators are based on the NexXxoS series. But what is new? The HPE variant has additional cooling channels and a very high fin density. Due to the technical design, the cooling capacity increases significantly without restricting the water flow within the radiator. If the radiator is equipped with fans on both sides in push/pull operation, it is possible to achieve a significant temperature reduction compared to standard radiators.

Powerful cooling performance

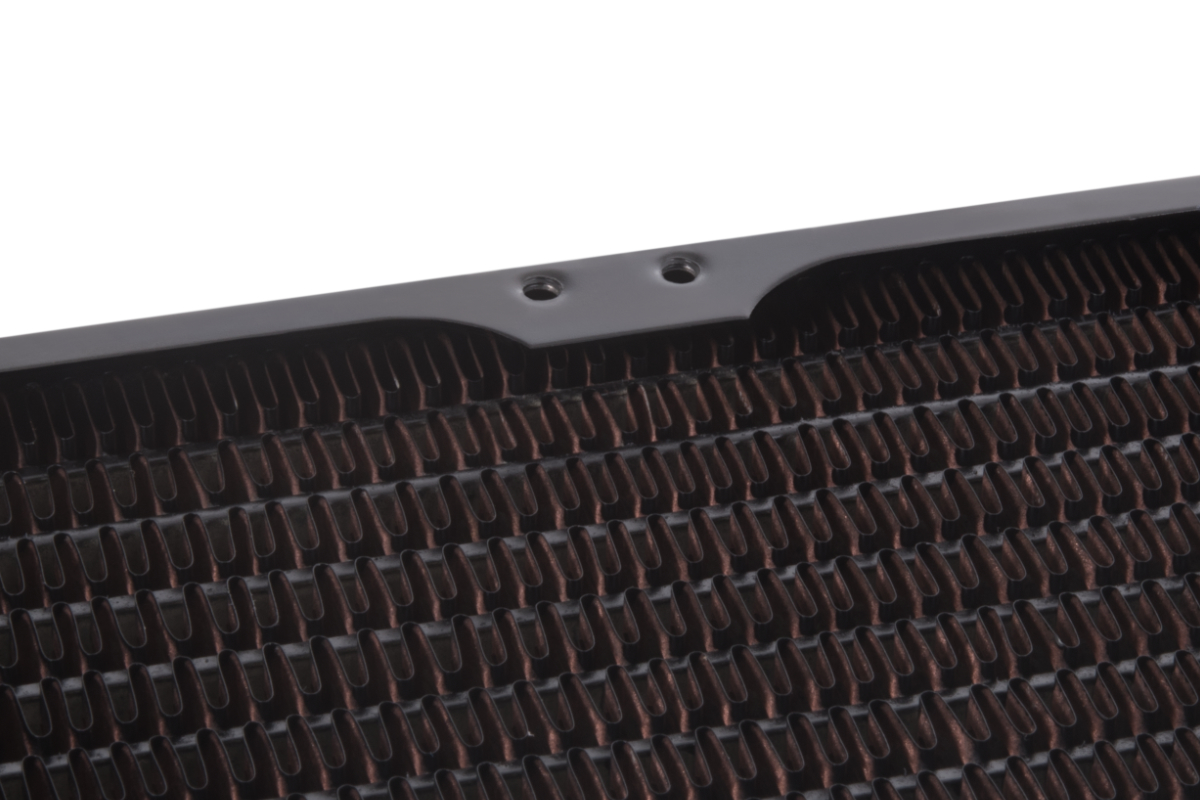

To maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers. Due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The high fin density of the radiator with a fin spacing of 16 FPI enables an optimal flow of air. All cooling fins are additionally equipped with small flaps. These are tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises the possible noise created by airflow.

Connection options & mounting

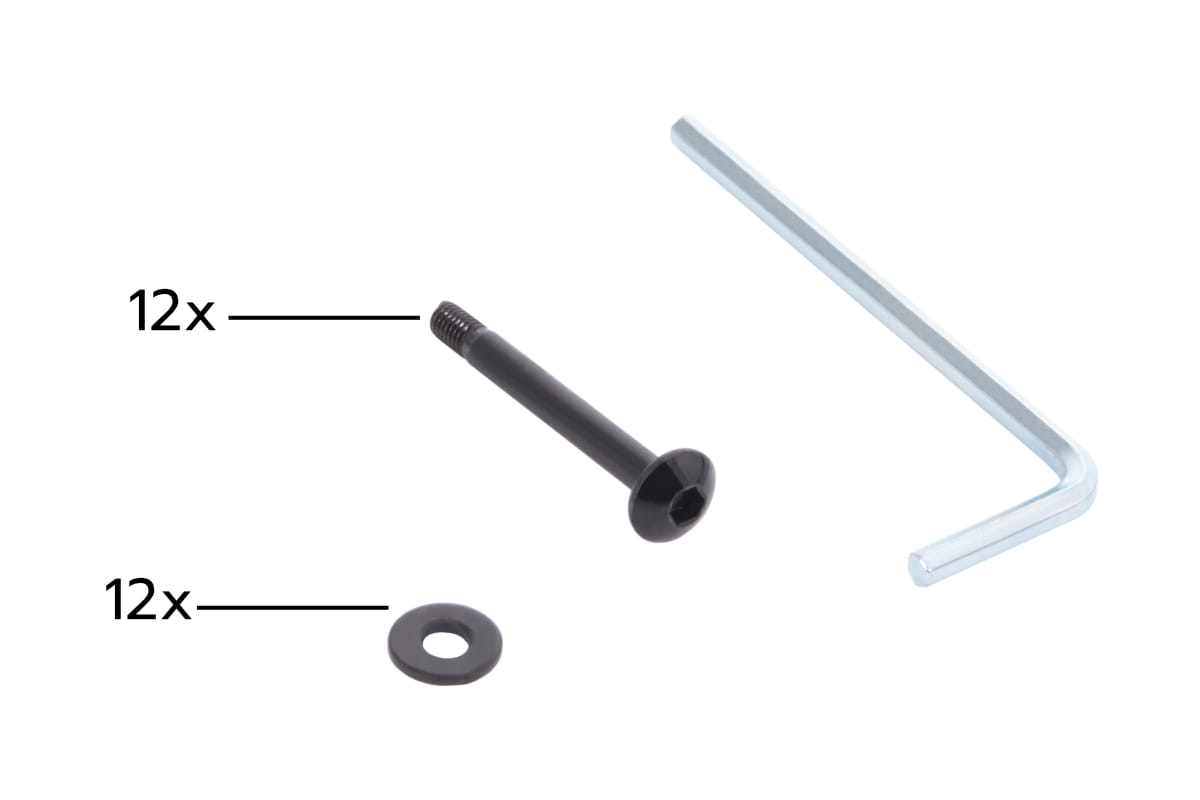

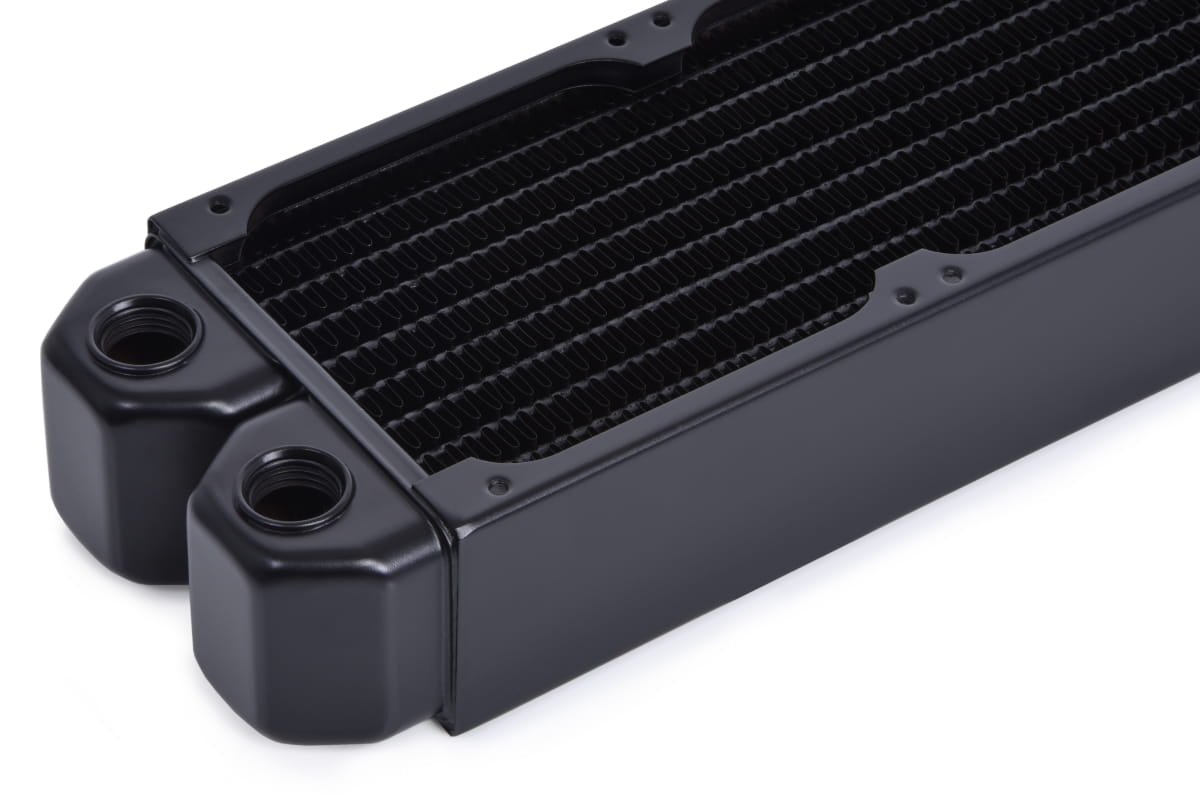

The NexXxoS HPE radiators each have an IN & OUT connection with G1/4" thread. All screws for mounting the fans are included with the radiator. Additional screws are usually not required.

Safety first
The NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.



Technical data radiator
L x W x H286 x 80 x 42 mm (+/- 3% tolerance in the range of the prechamber)
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads2x G1/4" IN/OUT (max. 5mm thread length)
Possible fan size80mm
Possible fan assembly3x one-sided / 6x both-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density16 FPI
Weight630g
Colorblack

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Anschluss: 2x G1/4"
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Dicke: 49 - 69mm
Druckgetestet: 0,8 bar
Fins per inch: 16
Anzahl Lüfter: 3, 6
Abmessungen (L x B x H): 286 x 80 x 42mm
Lüftergröße: 80mm
