Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6800 Nitro+ with backplate

  • 11962
  • 4250197119627
  • 1,486 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€71.98 * €149.98 * (52.01% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price

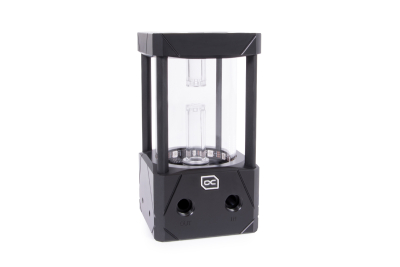

Terms and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm
1x
and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm
€95.98*

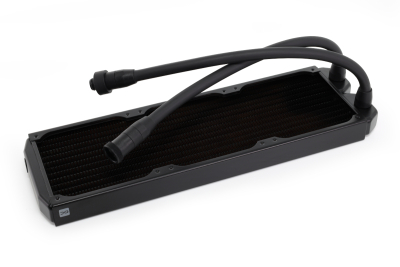

RAD Alphacool NexXxos ST30 Full Copper 360mm prefilled AIO Edition
1x
Alphacool NexXxos ST30 Full Copper 360mm prefilled AIO Edition
€99.98*

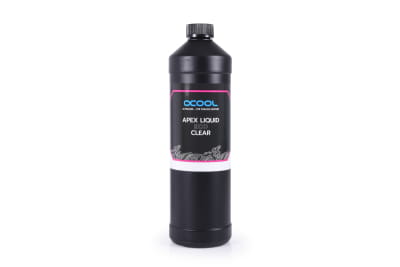

WAZ Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*
The Alphacool Aurora Acryl GPX-A 6800(XT) Eisblock combines style with performance and extensive... more
Product information

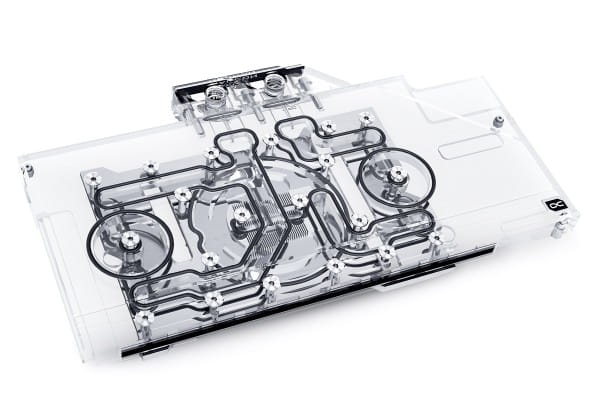

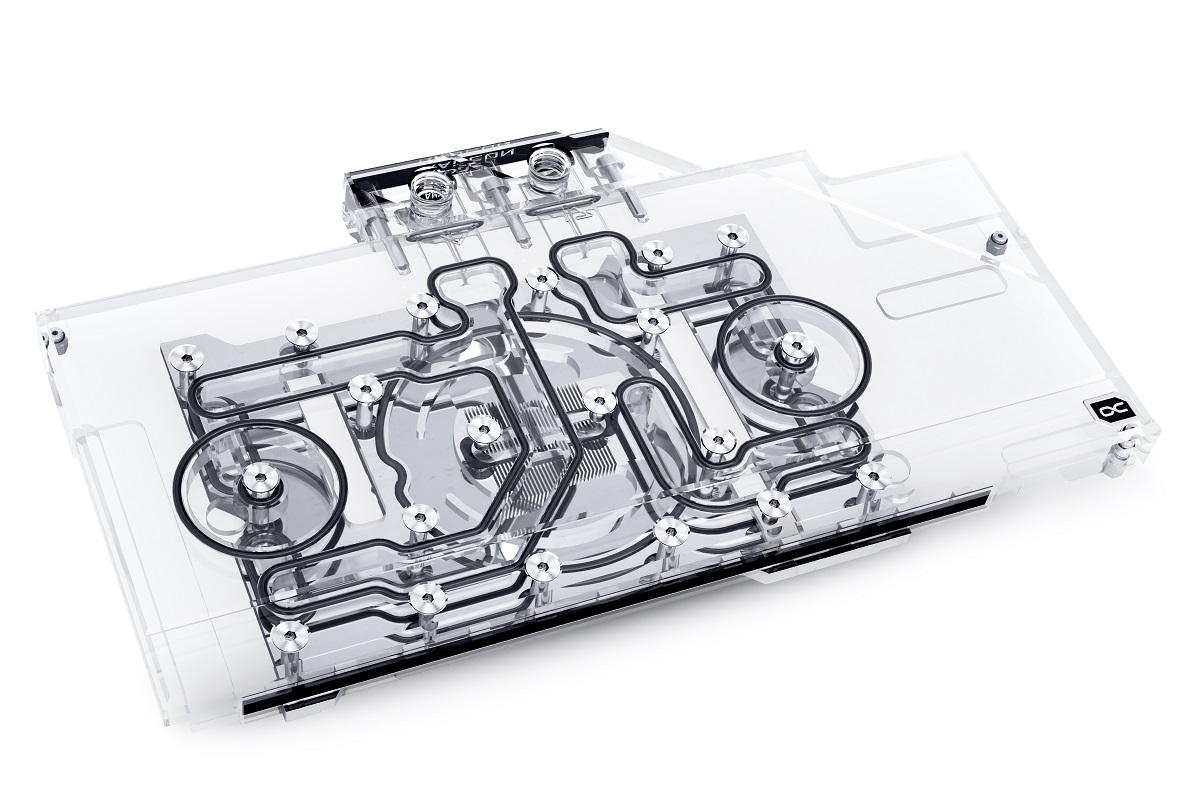

The Alphacool Aurora Acryl GPX-A 6800(XT) Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock

More Performance!
During the development of the EIsblock Aurora GPX-A 6800(XT) graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance.

New Design!

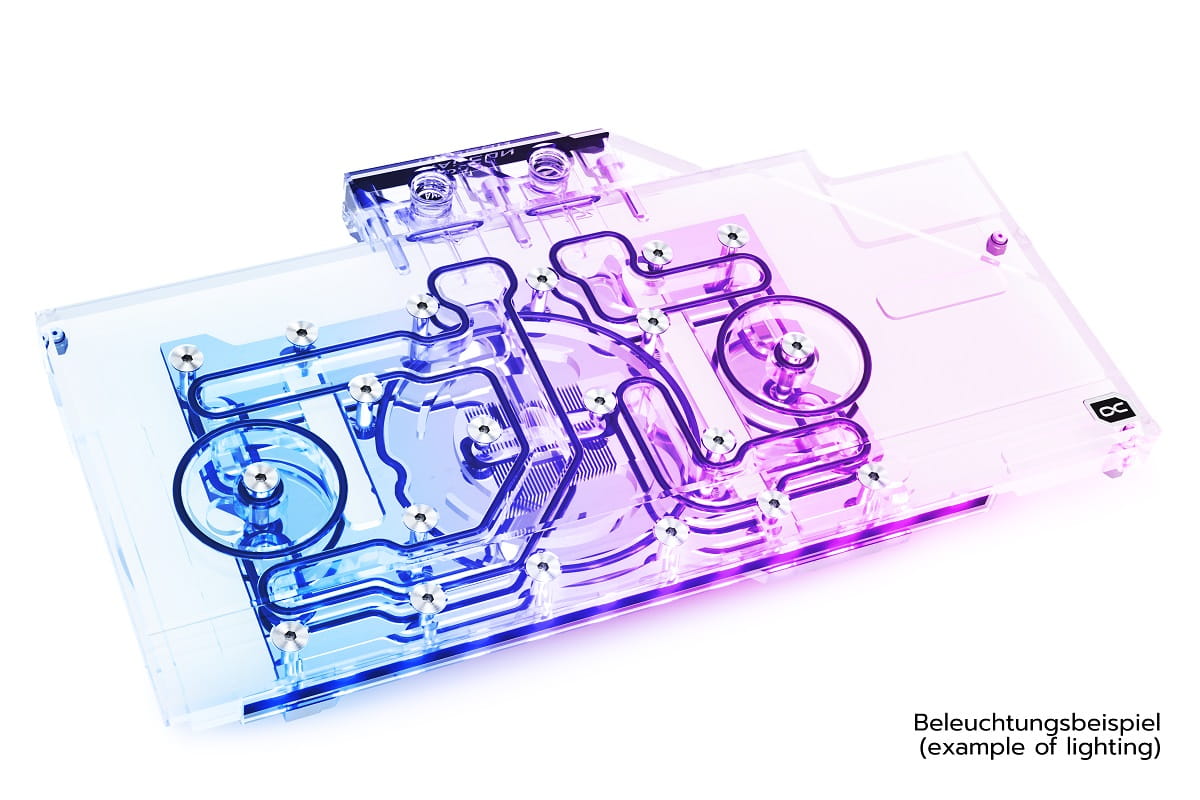

The Eisblock Aurora GPX-A 6800(XT) cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-A 6800(XT) Eisblock cooler its very own unique identity.

Copper or Aluminium?
Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-A 6800(XT) Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling.

Is There Anything Else New?
The Eisblock Aurora GPX-A 6800(XT) also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler.

The Alphacool Aurora GPX-A 6800(XT) Acryl is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation.



Compatibility:
- Sapphire Nitro+ Radeon RX 6800, 16GB GDDR6 (11305-01-20G)



Technical data
Dimensions (L x W x H)130 x 262,5 x 24,5 mm
Material coolerNickle-plated copper
Material cooler topAcryl
Threads4 x G1/4“
Thickness cooling fins0,6 mm
IlluminationDigital RGB LEDs
Power connector Digital RGB LEDs3-Pin JST
Power Digital RGB LEDs5V
Colortransparent

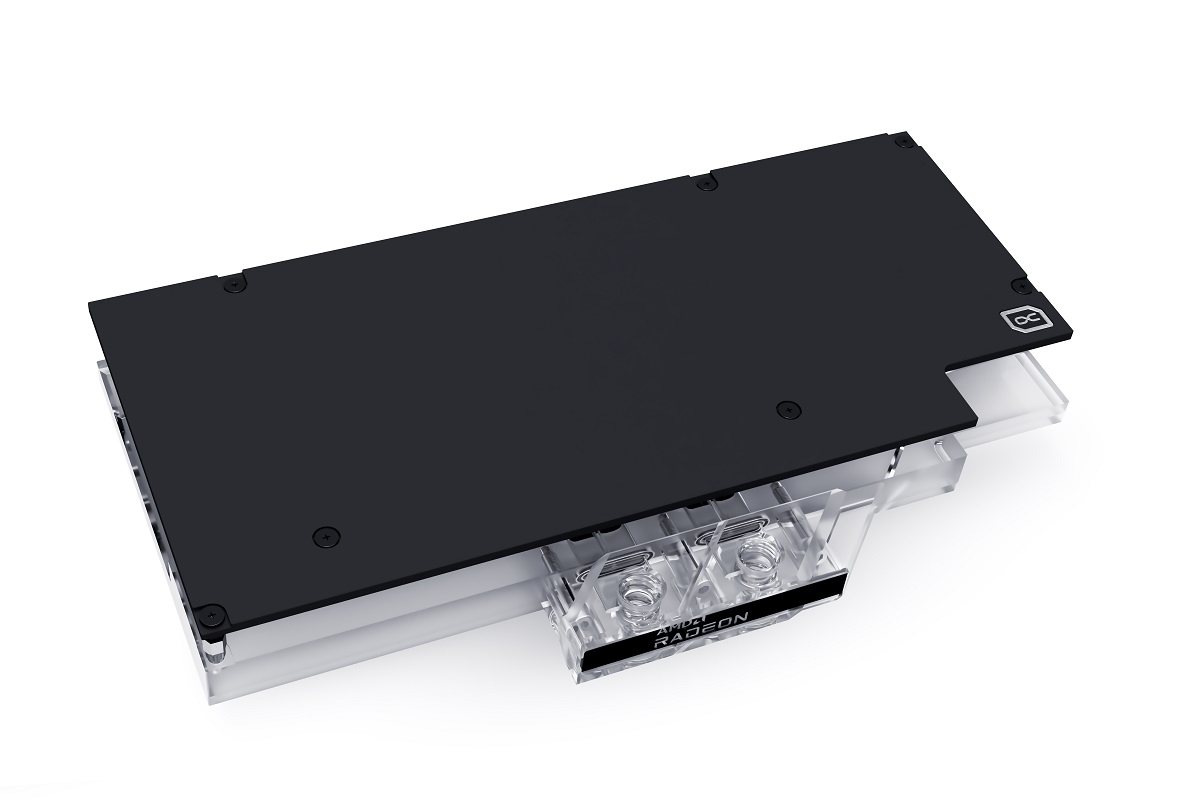

Technical data backplate
Dimensions106 x 262,5 x 6 mm
MaterialAluminium
ColorBlack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
SLI kompatibel: Ja
Kühlertyp: Komplettkühler
Anschluss: 4x G1/4"
Hardware Hersteller: AMD
Material Deckel: Acryl
Abmessungen: 224,9 x 121,4 x 25,5mm
Material Bodenplatte: Kupfer
Hinweis: Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell: Radeon RX 6800, Radeon RX 6800XT
