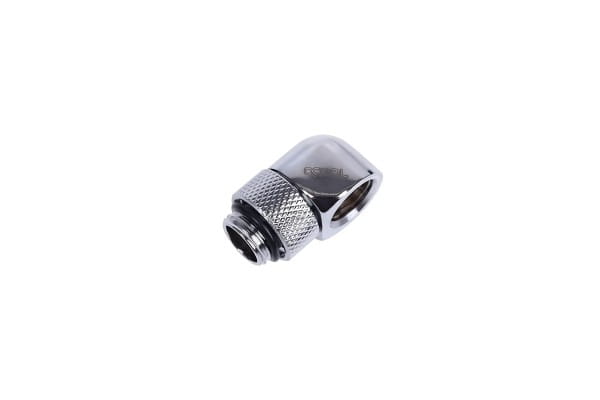

Water cooling 90° L-connector rotatable G1/4

ANF Alphacool HF L-Verbinder G1/4 AG drehbar auf G1/4 IG - Chrome

Article no.: 17216
EAN: 4250197172165
Weight: 0,039 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€4.47 *

Prices incl. VAT plus shipping costs

in stock

Alphacool connections break new ground in terms of shape, processing, color and variety. The... more

Product information

Alphacool connections break new ground in terms of shape, processing, color and variety. The absolute innovation is an outstanding inner diameter that really deserves the term high flow!

The first 3 colors, Chrome, Deep Black and Shiny Copper, offer a wide variety to suit a wide range of tastes. The completely coordinated product series lets each system shine in its own way and there are no limits to individuality when combined with Alphacool hoses!

A new chromating process firmly bonds the coloring to the brass base, ensuring the longevity of the intense color and preventing the chrome layer from flaking. Alphacool lettering on the connections further highlights the special nature of these items.

The function of this connector is:
This angle adapter is used to connect a connection of your choice with a 1/4 inch thread via a 90 degree bend, rotatable.

Technical data:
Material: brass, chromated
Color: Chrome

Dimension:
Length: 32.25mm
Width: 18x18mm
Thread size: 1/4 inch
Thread length: 5mm

Scope of delivery:
1 x Alphacool HF L-connector G1/4 external thread to G1/4" internal thread rotatable - Chrome

Notice
Alphacool recommends distilled water for proper operation of the water cooling system!

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" internal thread
Rotatable:	Yes - 360°
Color:	Chrome
Thread length:	5mm
Compatibility:	Soft hoses (PVC, silicone, neoprene)
Material:	Brass
Specification:	Shape: 90° angled
1st page:	G1/4" external thread
