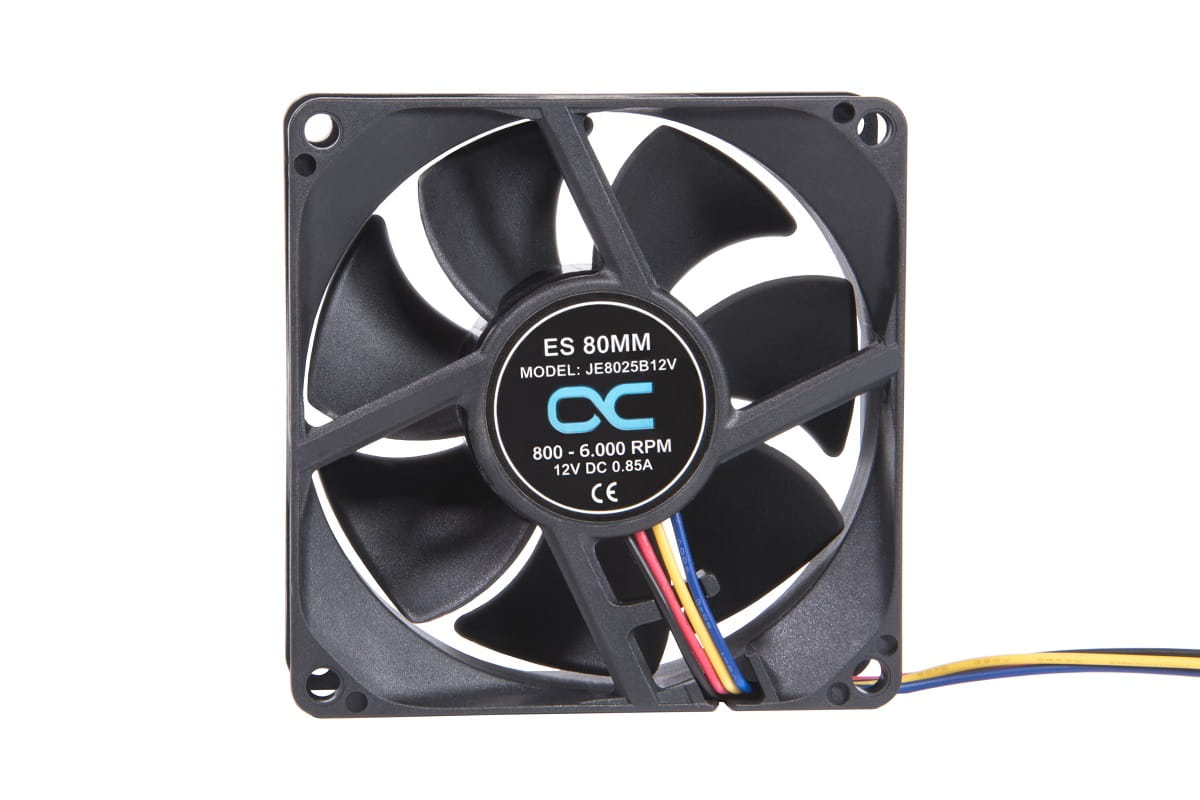

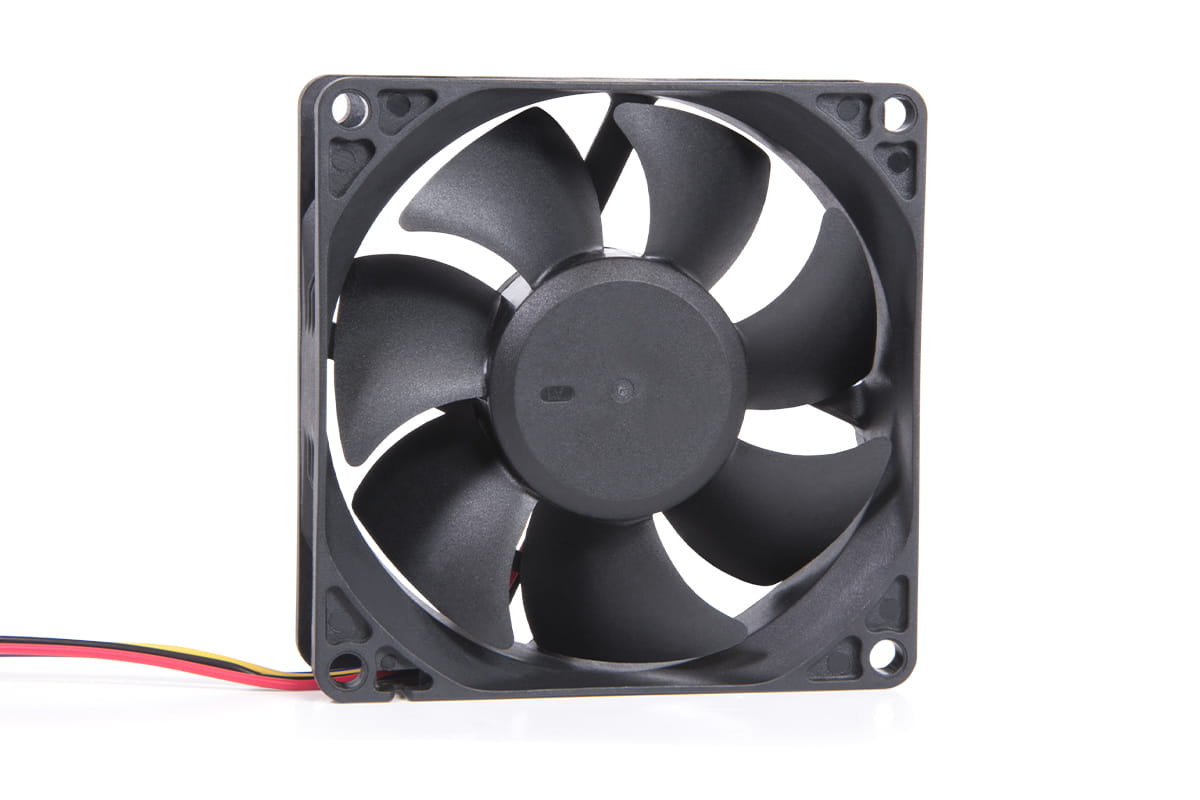

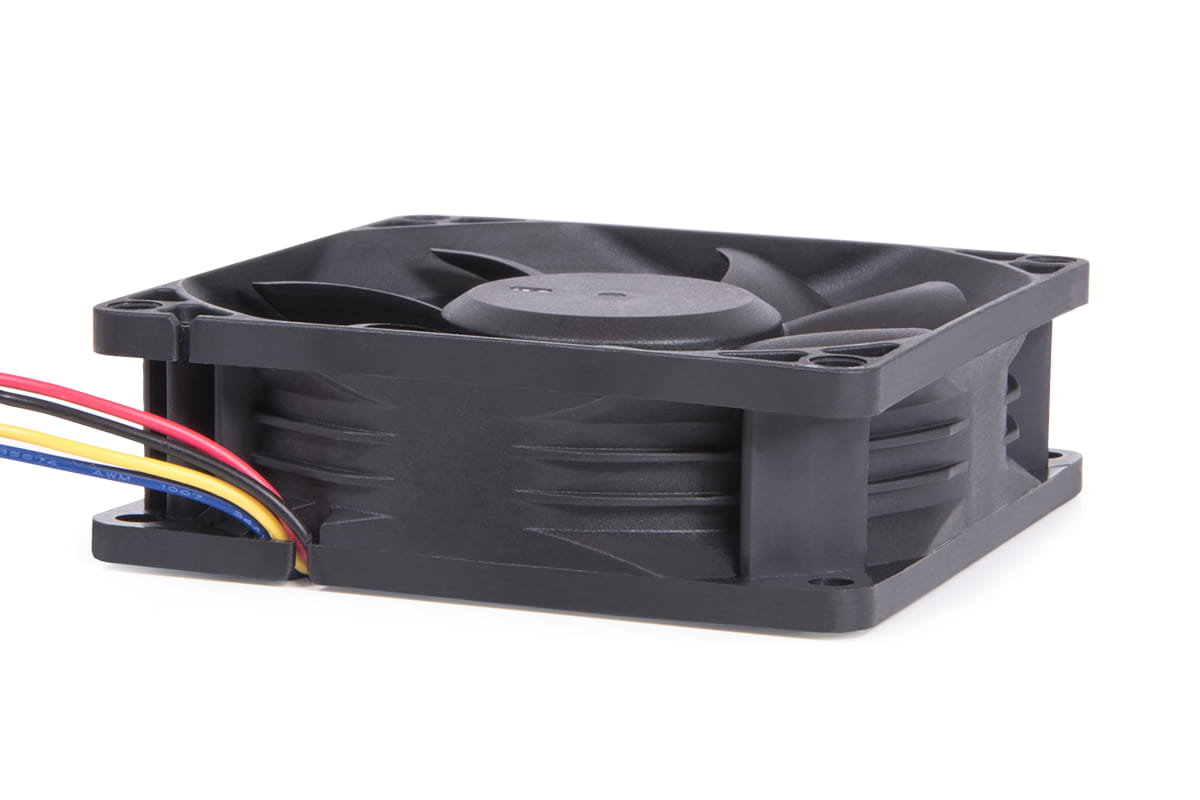

Alphacool ES 80mm 800-6,000rpm Fan ( 80x80x25mm ) - Two Ball Bearing - PWM (JE8025B12V)

  • L80
  • 4250197135795
  • 0,105 kg
  • Images may differ slightly from the original
€12.98 * €28.98 * (55.21% Saved)

Prices incl. VAT plus shipping costs

Liefertermin: in 5 - 6 Wochen

Recommended accessories
Extra Price
LK Phobya Y-Kabel 4Pin PWM auf 3x 4Pin PWM - Schwarz 60cm EOL
1x
Phobya Y-Kabel 4Pin PWM auf 3x 4Pin PWM - Schwarz 60cm
€5.28*
1011110 Phobya Y-cable 4Pin PWM to 4x 4Pin PWM 60cm - black
1x
Phobya Y-cable 4Pin PWM to 4x 4Pin PWM 60cm - black
€6.97*

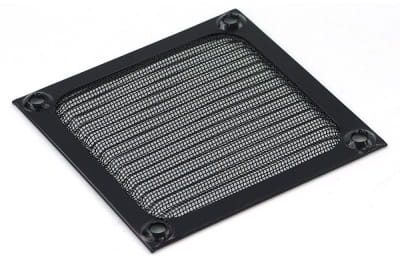

LZ fan filter 80mm color black EOL
1x
fan filter 80mm color black
€1.79*
LZ Lüfterschrauben, 4 Stück 16mm - silber
1x
Lüfterschrauben, 4 Stück 16mm - silber
€2.29*
LK Phobya Y-cable 4Pin PWM 2x 4Pin PWM - Black 10cm
1x
Phobya Y-cable 4Pin PWM 2x 4Pin PWM - Black 10cm
€4.48*
The Alphacool ES fans have been specially developed for use in servers and workstations and,... more
Product information

The Alphacool ES fans have been specially developed for use in servers and workstations and, unlike usual, do not offer a 2 or 3-pin DC power connection, but a 4-pin PWM control.

PWM control
Instead of the usual 2 cables or the 3-pin connector Alphacool now also uses a 4-pin PWM connector for enterprise fans, which is supported by more and more server mainboards. Via the 4-pin PWM connector, the fan always receives full voltage and is controlled by pulse width modulation. This allows the fan to be controlled over a much wider speed range. A considerable amount of energy can be saved whilst controlling the fans in server racks and with 0% PWM control, the fans can even be stopped completely. The fan also offers a soft start, which increases the service life of the fan and reduces the risk of injury. At speeds of several thousand revolutions per minute, no parts of the body should get between the fan blades.

Double ball bearings
Unlike classic plain bearing, Alphacool ES fans have a double ball bearing for increased service life under full load. Double ball bearings are generally regarded as the highest quality bearings in terms of durability and quality. This also ensures a high level of running smoothness in terms of minimal vibration.

Protection circuits
All Alphacool Enterprise fans have multiple protection circuits. If the fans are blocked, they automatically try to restart at reduced speed after a few seconds. Thanks to the soft start, including the emergency start function, the fan can be blocked for up to 72 hours without suffering damage. In case of wrong polarity when connecting the fan, a burn-out of the electronics for at least 5 seconds is impossible. If the fan is connected incorrectly for a short time, this is no problem.

The Alphacool ES fans for servers and workstations offer an extremely high air flow and an extremely high static pressure. They are therefore ideal for use on radiators or as particularly powerful case fans.



Technical data
Dimensions (L x W x H)80 x 80 x 25mm
Speed800-6000rpm
BearingTwo ball bearing

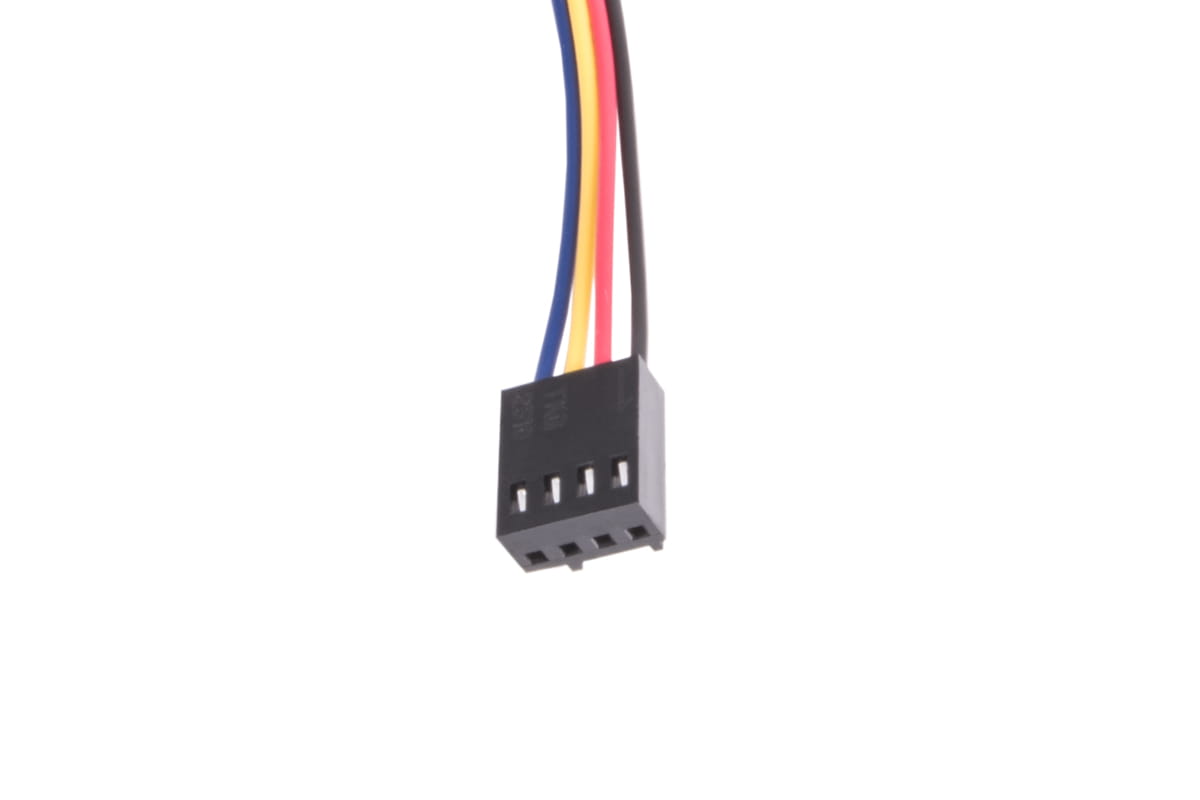

Connection4-Pin PWM
Cable length30cm
Operation voltage7 - 14V
Start voltage min.7V
Power consumption0,66 - 0,85A (7,92 - 10,2W)
Static pressure14,29 mm H2O
Max. air flow130,83 m³/h
Noise50 dB(A)
MTBF70.000h
colorblack

Security features
Automatic ShutdownAutomatic switch-off if the fan is blocked
Automatic restartingRestart attempt after 2-6 seconds if blocked
Damage due to blockingIt is guaranteed that the fan will not be damaged if it is blocked for up to 72 hour

Warranty: 3 years
🔗 Warranty Terms

Technical details mehr
Technical details
Hersteller: Alphacool
Nennspannung: 12V DC
Startspannung: 7V
Stromanschluss: 4Pin
RPM Signalübertragung: Ja
LED: nicht vorhanden
Lautstärkebereich: 30 - 49,9 dB(A)
Größe: 80mm
Abmessungen: 80 x 80 x 25mm
Luftförderbereich: 100 - 149 m³/h
Lebensdauer (bei 25°C): 70.000 h
Leistungsaufnahme: 10,2W
Nenndrehzahl: 6000 U/min
Druck: 14,29 mm H2O
Luftförderleistung: 130,93 m³/h
Lautstärke: 50 dB(A)
Nenndrehzahlbereich: 800 - 6000 U/min
Farbe Rahmen: schwarz
Farbe Rotor: schwarz
