ANK Alphacool ES Schnellverschlusskupplung G1/4 IG Female - Schottverschraubung PushIn Industry

Article no.: 17658
EAN: 4250197176583
Weight: 0,027 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€12.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool ES Quick Connect Coupling TPV PushIn Male Industry Version

€7.98*

Alphacool ES Quick Connect Coupling G1/4 OT Male - PushIn Industry Version

€6.99*

Alphacool ES Quick Connect Coupling G1/4 IT Male - PushIn Industry Version

€6.99*

Alphacool ES Quick Connect Coupling G1/4 IT Male - bulkhead fitting PushIn Industry

€8.98*

The Alphacool ES quick-release couplings of the Industry Version have been specially developed... more

Close menu

Product information

The Alphacool ES quick-release couplings of the Industry Version have been specially developed for professional use in data centers, workstations, and industrial applications. They provide maximum reliability in continuous operation and allow cooling circuits to be connected or disconnected quickly, safely, and with minimal fluid loss.

Thanks to their robust design and the PushIn system, installations can be easily expanded or maintained. All couplings in this series are mutually compatible and also fit the already available sets. For a complete connection, one male and one female coupling are always required.

A key advantage of the Industry Version is its low weight. Made of high-quality nylon, the couplings are non-conductive and prevent short circuits – a crucial factor in modern server environments with high component density. The ultra-light material also makes handling and installation significantly easier.

Unlike conventional quick-release couplings, which often create high flow resistance due to narrow water passages, this series has been developed for optimized flow. This keeps resistance to a minimum while ensuring maximum cooling performance.

For maximum safety, a double-seal design is used as usual to ensure absolute leak-tightness. In addition, a locking clip prevents the coupling from accidentally opening.

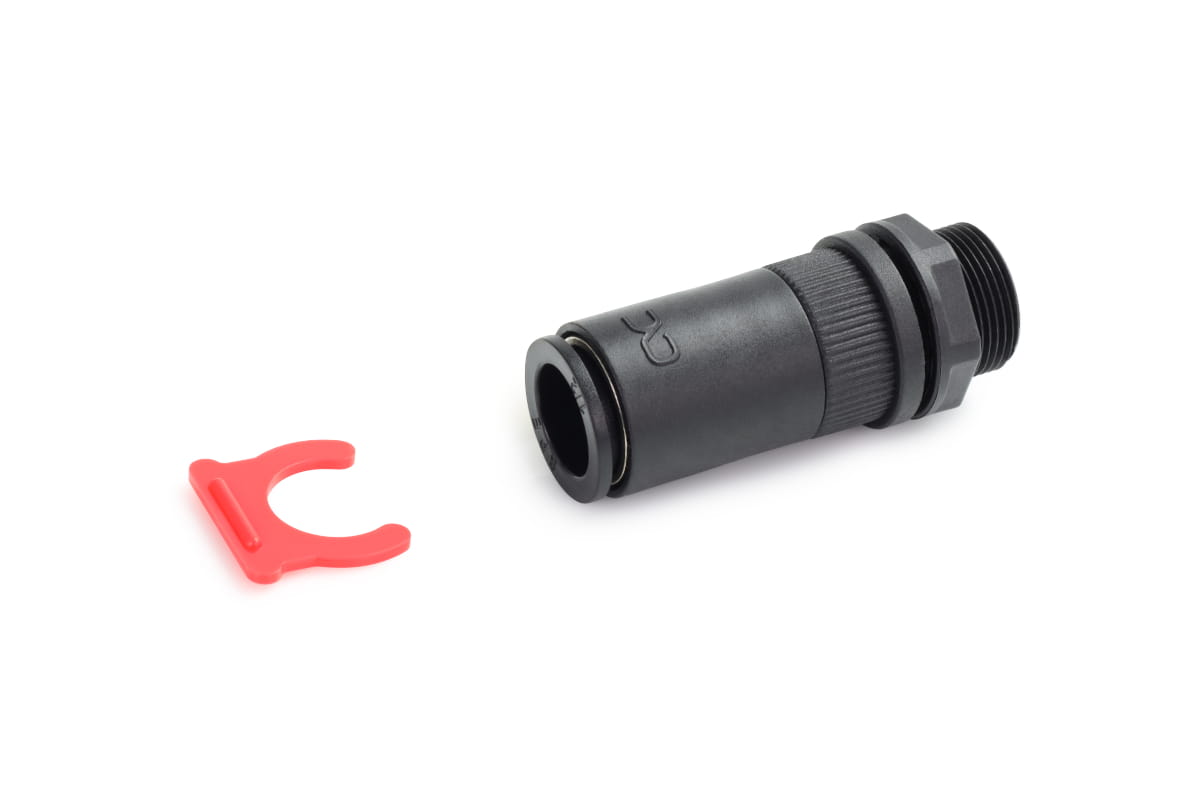

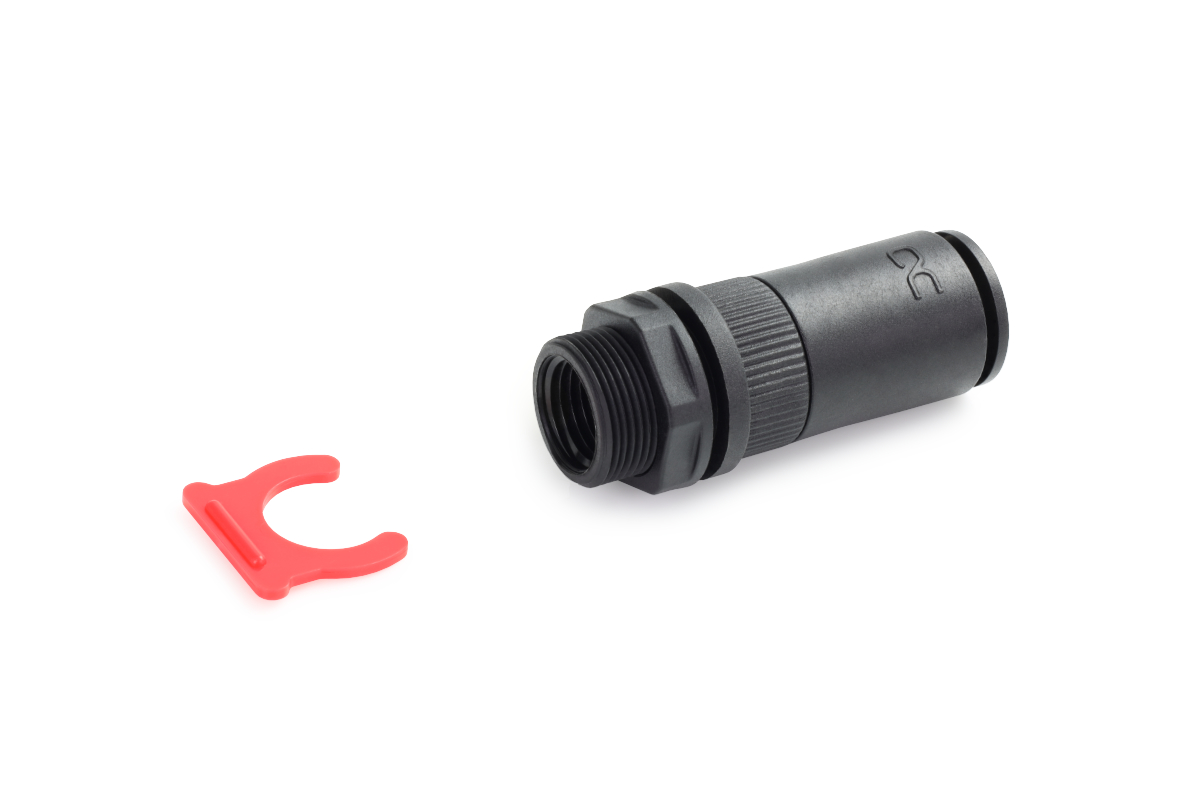

The bulkhead fitting with G1/4 inner thread and female PushIn connection is designed for installation through case or panel walls. This allows for clean and stable routing of tubing.

Note
When disconnecting the coupling, a few drops may escape.

Technical data
Abmessungen (L x D)	55 x 20 mm
Net weight	16 g
Pressure tested	8 bar
Max working temperature	60°C
Bore diameter	6 mm
Material	Nylon
Thread	Inner thread G1/4"
Case feedthrough	Bulkhead fitting
Type of quick release connector	Push In
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
