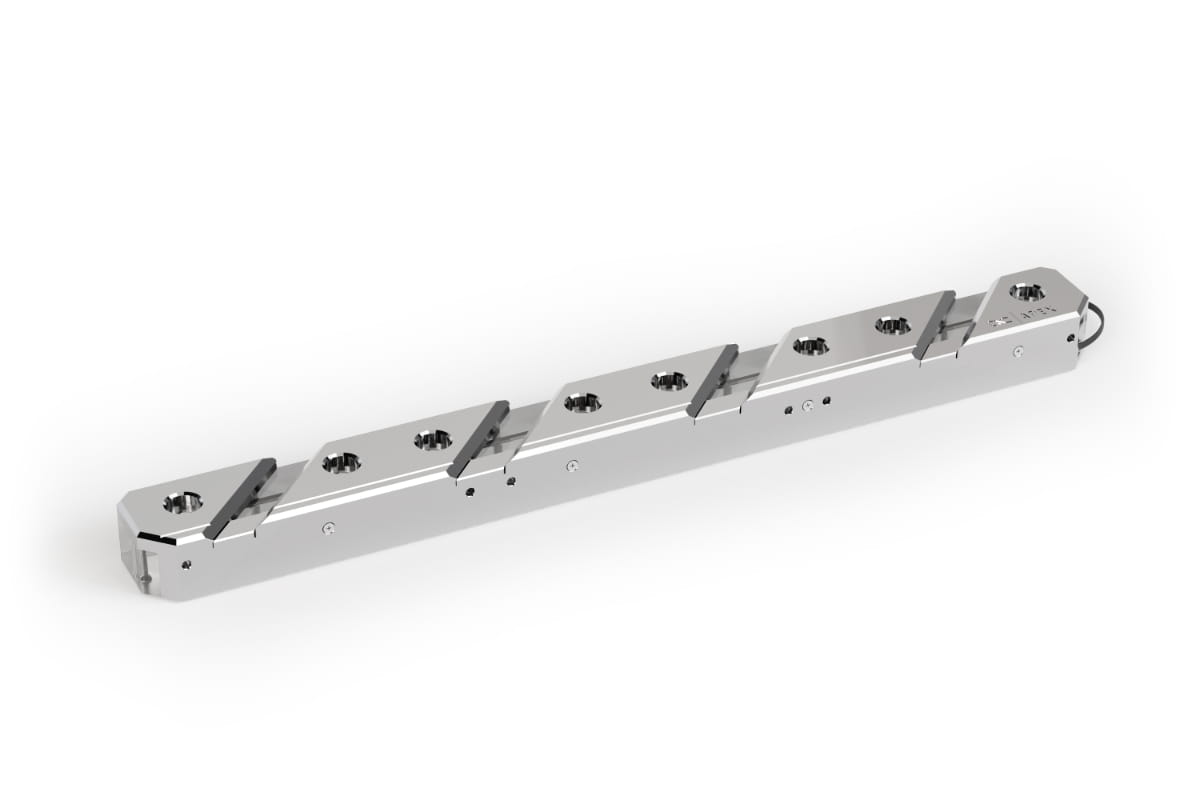

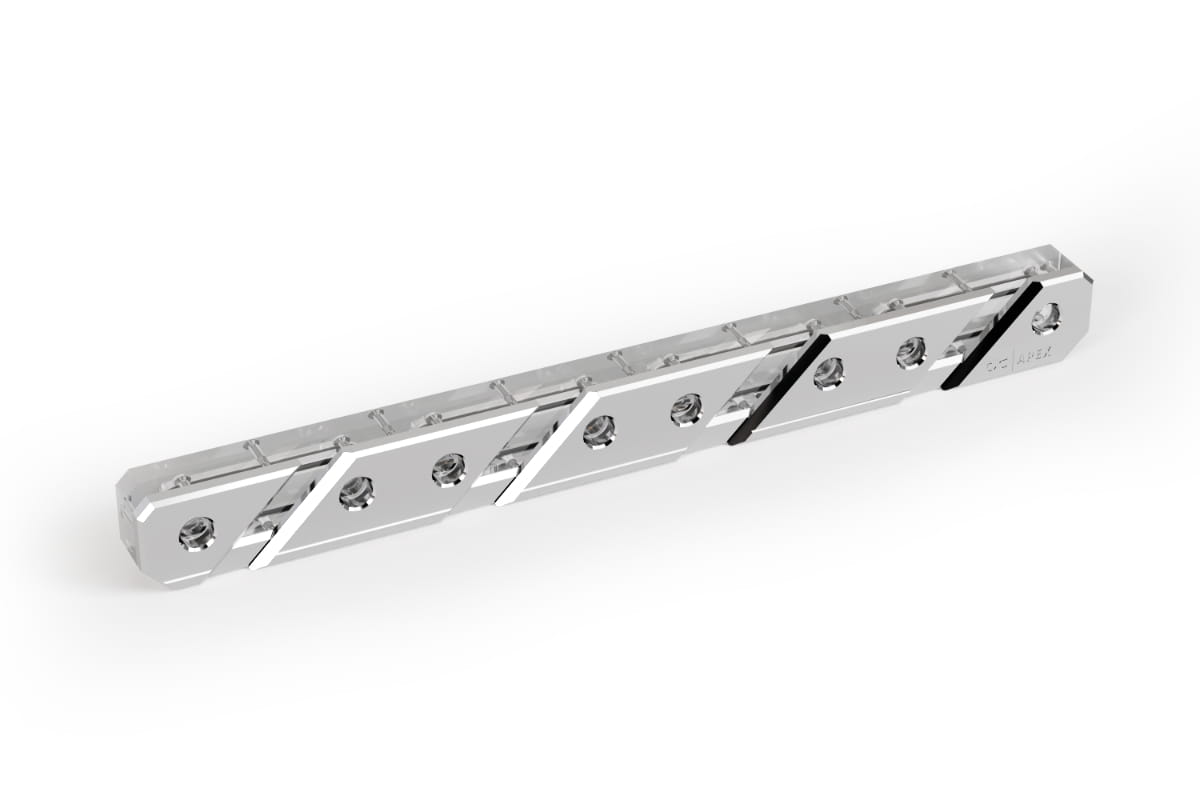

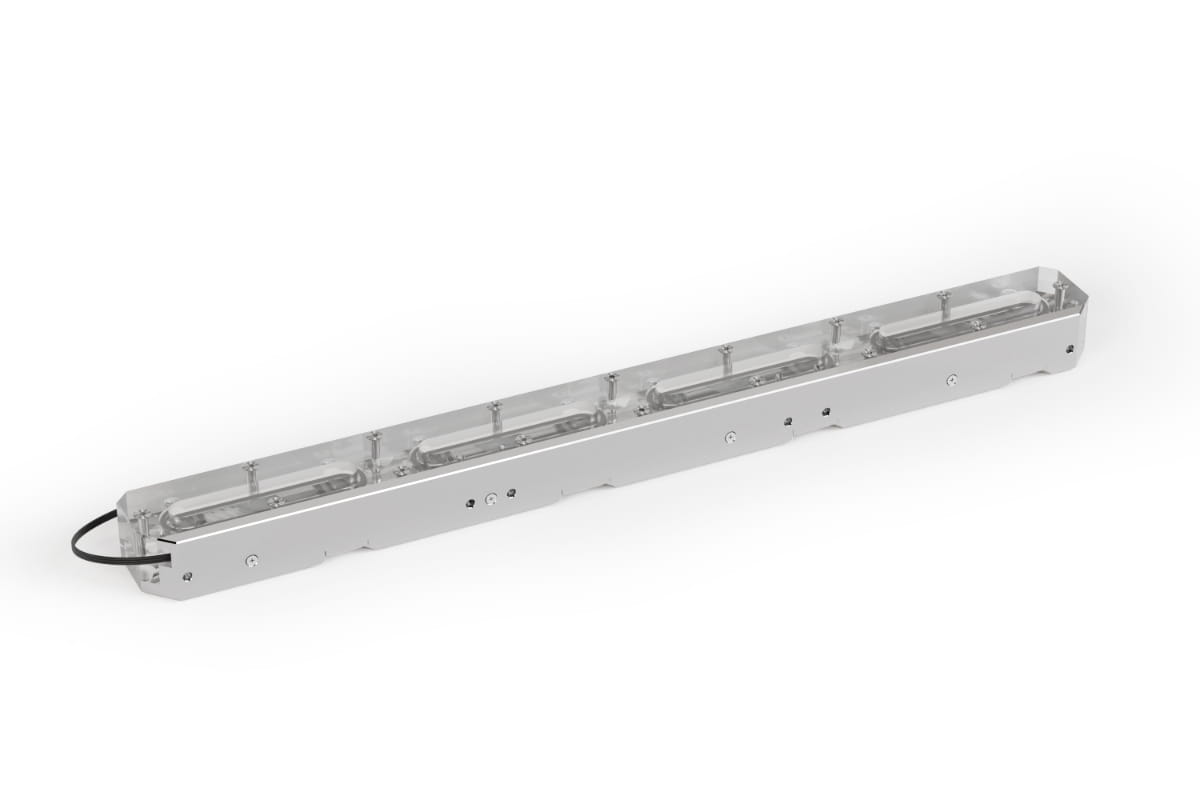

The Apex Manifold 360mm is the ideal solution for a visually unique custom water-cooling build. Thanks to its numerous connection options, it enables especially clean tubing runs and creates a neat, organized appearance inside the system.

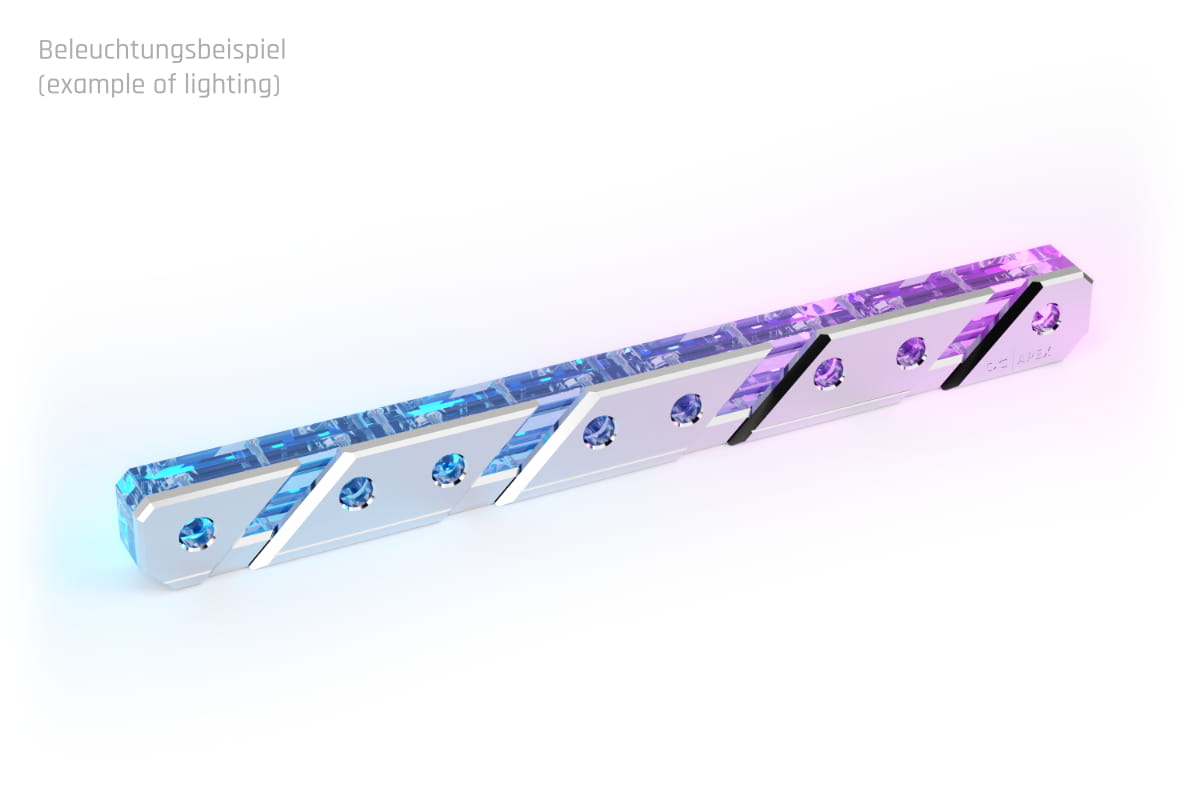

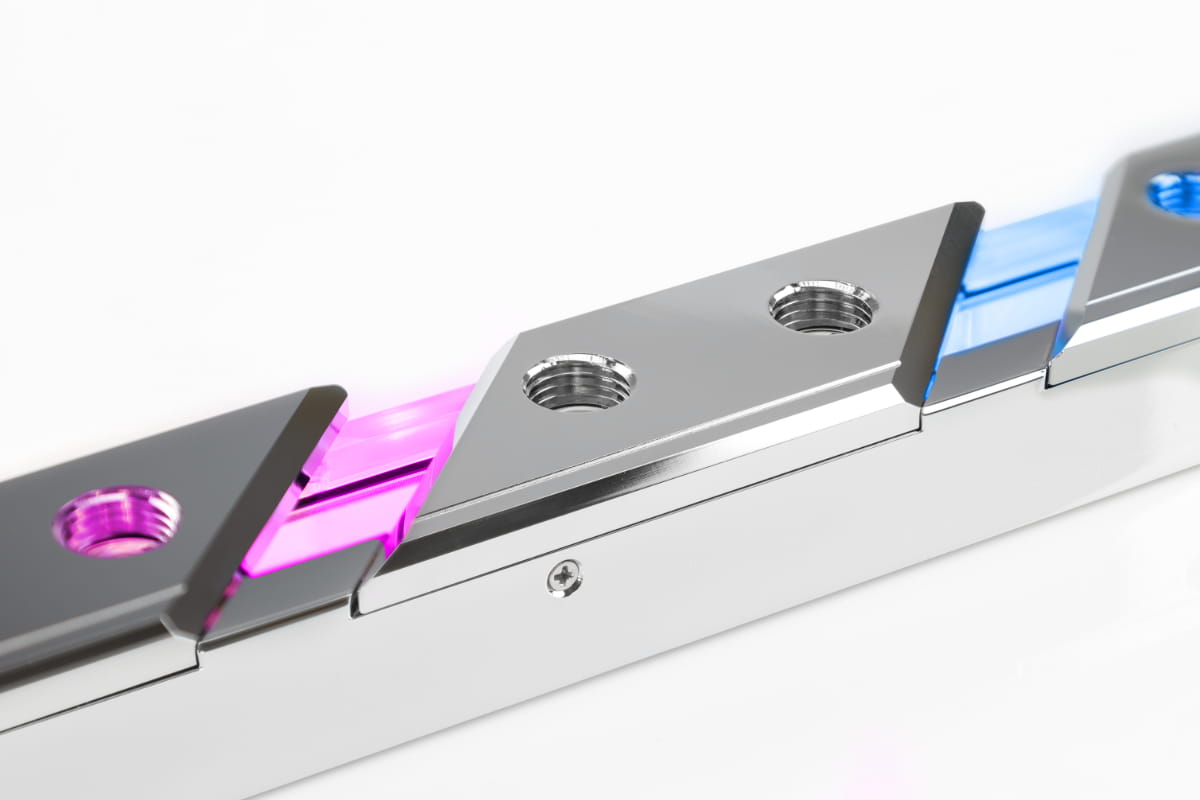

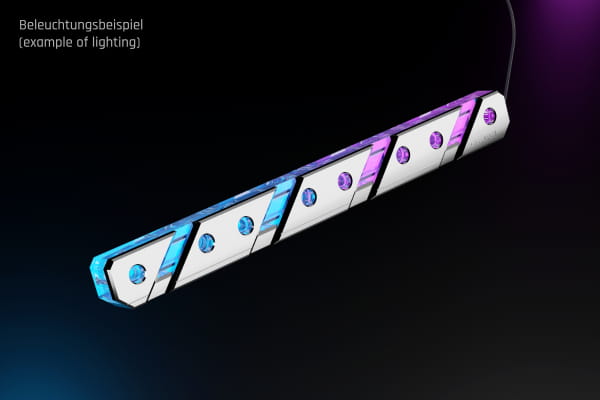

Four chambers and eight G1/4" inlet and outlet ports offer versatile options for integrating various components into the water-cooling loop. This allows hard tubes or soft tubes to be routed particularly straight and easily, giving the entire custom loop an exceptional look. The Apex Manifold 360mm supports the connection of at least three components and stands out with high-quality brass threads, which effectively help prevent the risk of leaks caused by cracking, integrated aRGB lighting that can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB Controller (item no. 15360), and the distinctive Apex design featuring chrome-plated brass elements and clear acrylic.

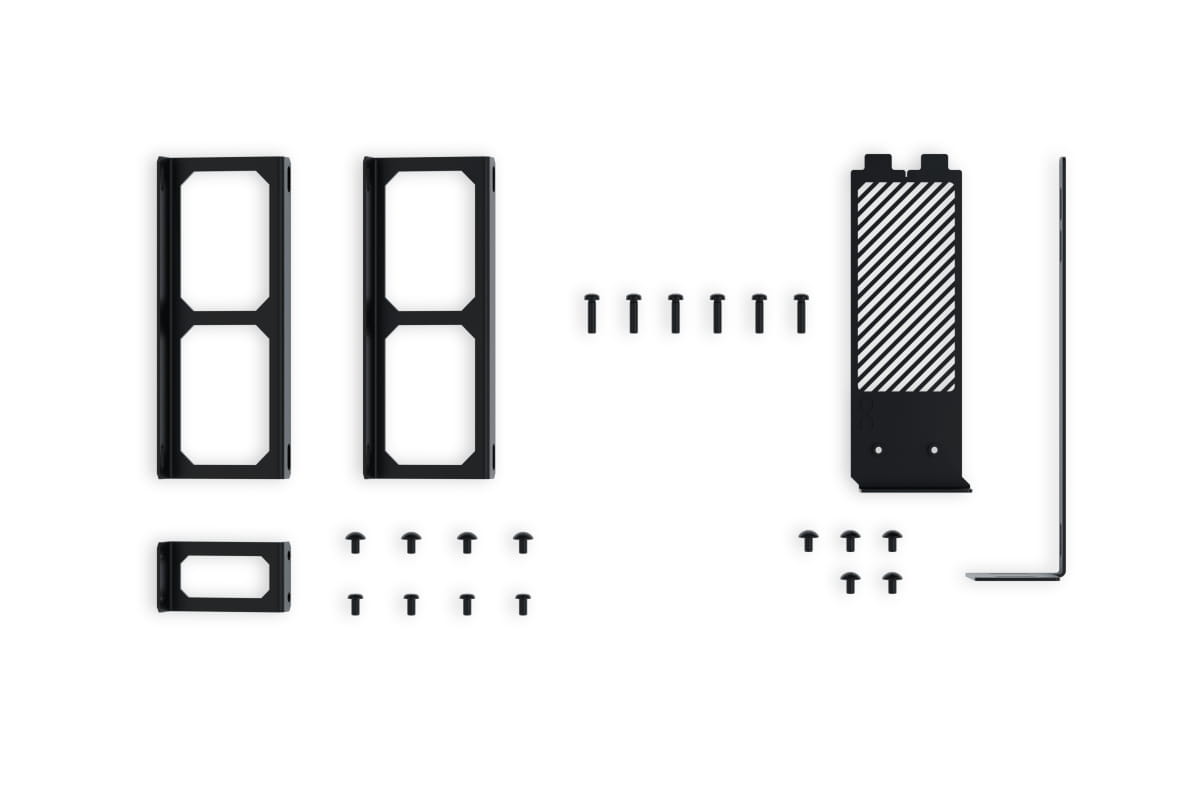

Thanks to its various mounting options, the Apex Manifold 360mm can be installed flexibly in a wide range of positions inside the case. It can be mounted directly to a radiator, both with and without fans. In addition, the Apex Manifold 360mm can be mounted next to water-cooling components such as tube reservoirs. This is made possible by an extensive mounting kit. Mounting to the PCIe bracket can also be achieved using the included kit.
The Apex Manifold 360mm can be mounted either front-facing or rotated by 90° on the bracket. This allows it to be optimally adapted to the system layout and integrated even more effectively into the water-cooling loop.

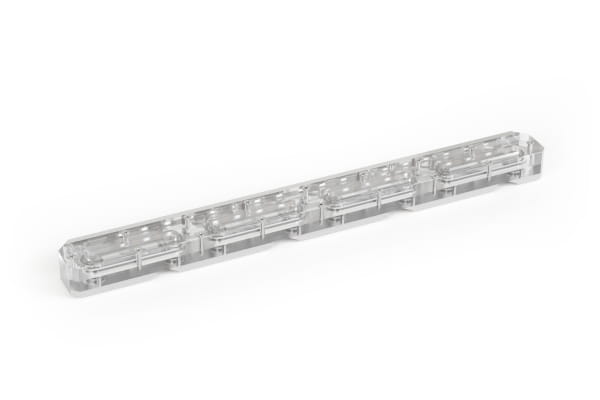

With its transparent acrylic body in the Apex design, the manifold not only improves the structure of the loop, but also elevates the overall aesthetics of the water-cooling system to a new level.
| Technical data | |
| Dimensions (L x W x H) | 360,00 x 36,00 x 24,00 mm |
| Material | Acrylic |
| Threads | 8x G1/4“ brass thread |
| Maximum working temperature | 60 °C |
| Working pressure | 0.0 - 1.0 Bar |
| Pressure tested | 0.8 Bar |
| Maximum pressure | 2.0 Bar |
| Quantity digital aRGB LEDs | 18 |
| Power digital aRGB LEDs | 5V |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Weight | 764g |
| Color | Chrome | Transparent |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
