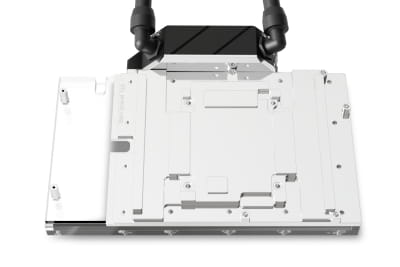

Alphacool Eiswolf 2 AIO - 360mm RTX 4090 Founders Edition with Backplate

  • 14485
  • 4250197144858
  • 5,24 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€159.98 * €269.98 * (40.74% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ZSO Alphacool Eisplateau anti-static work and assembly mat 120x60cm
1x
Alphacool Eisplateau anti-static work and assembly mat 120x60cm
€59.98*
WAC Alphacool Eisblock XPX Aurora Edge - Acrylic Black Digital RGB PHT EOL
1x
Alphacool Eisblock XPX Aurora Edge - Acrylic Black Digital RGB
€59.98*
ROH Alphacool Eisbaer TPV Extension Set (hose and connections)
1x
Alphacool Eisbaer TPV Extension Set (hose and connections)
€15.39*
WAKZ Alphacool Aurora Vertical GPU Mount with Riser Cable
1x
Alphacool Aurora Vertical GPU Mount with Riser Cable
€74.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
WZS Alphacool spray bottle Core 500ml
1x
Alphacool spray bottle Core 500ml
€4.98*
The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based... more
Product information

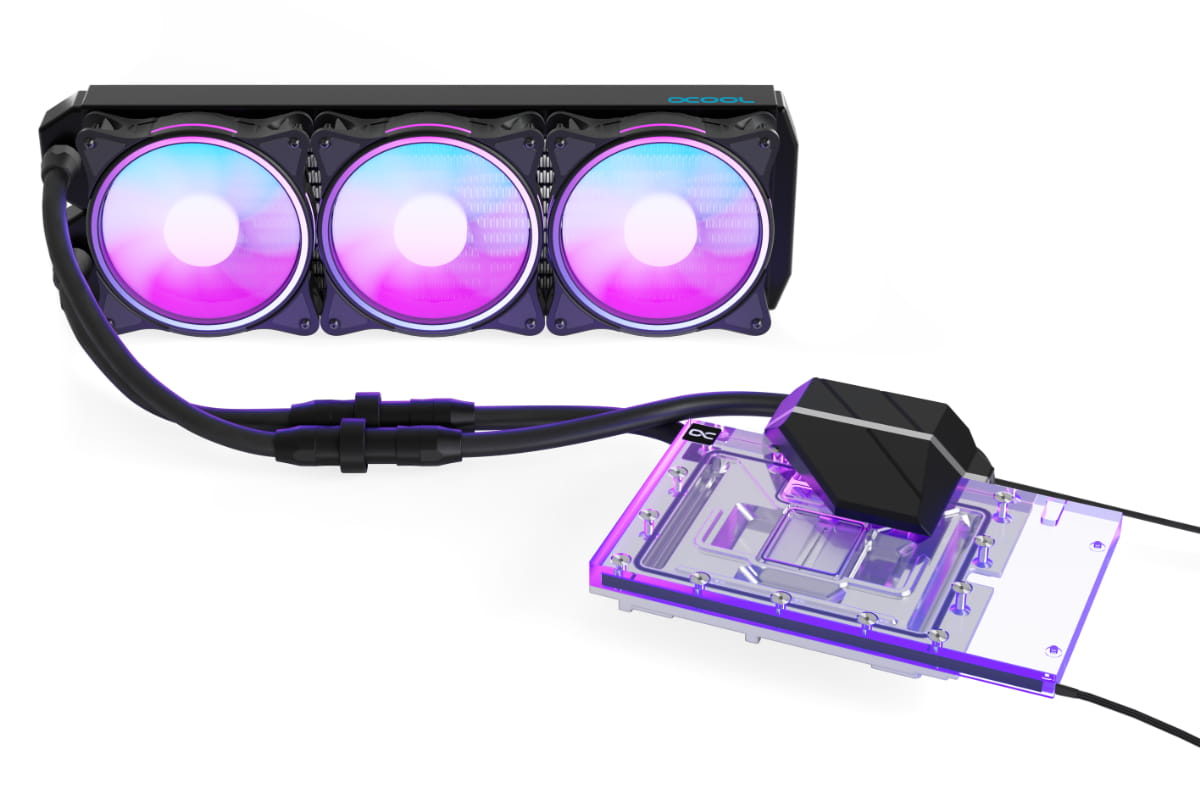

The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.

Fullcover Waterblock?

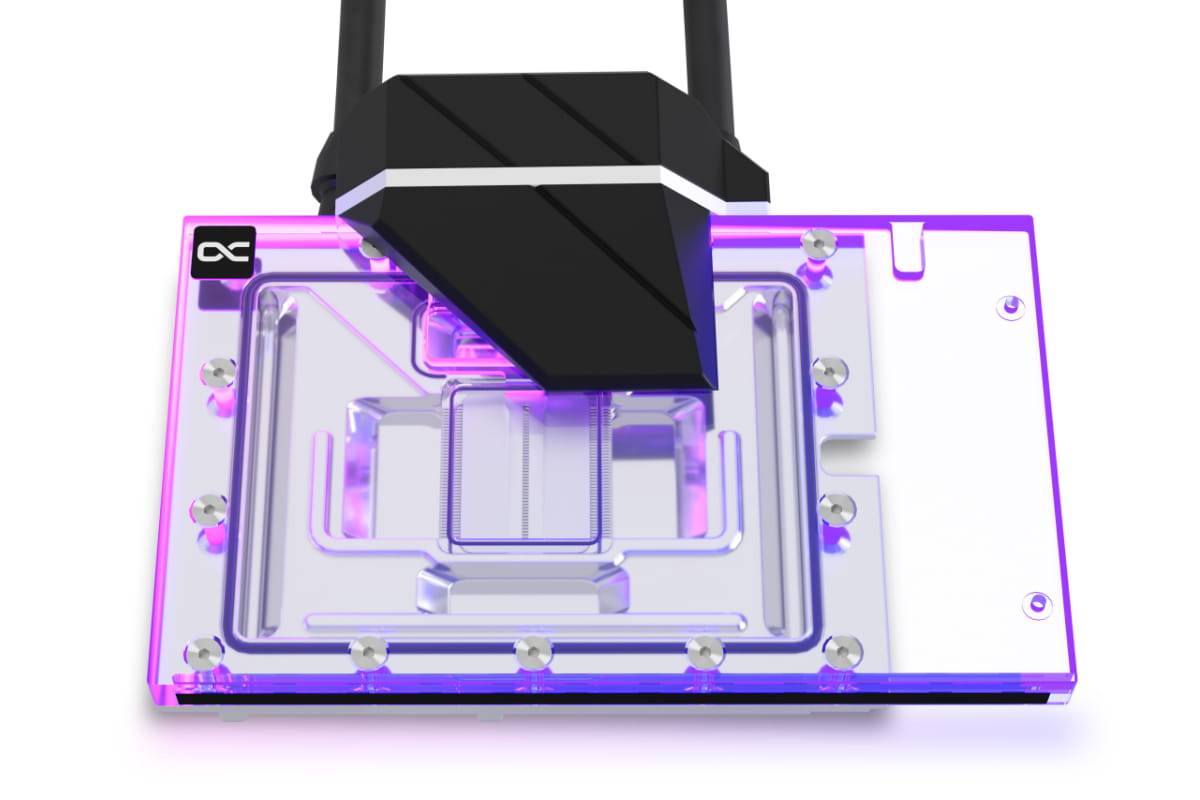

The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Pump

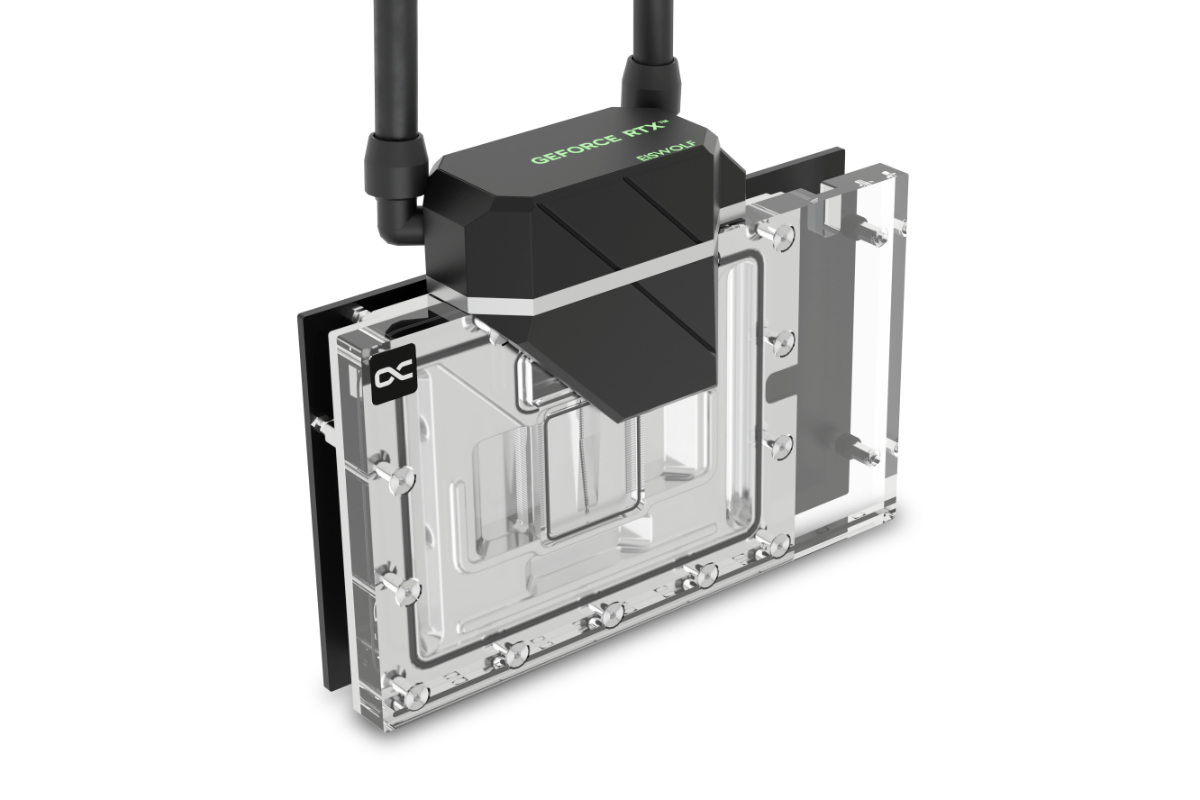

The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.

Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.

Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.

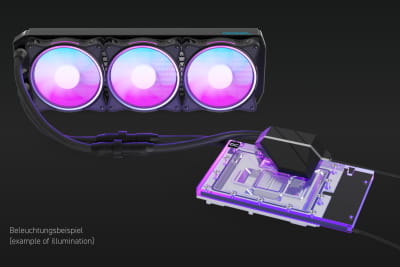

Lighting and fans
The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. static pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.

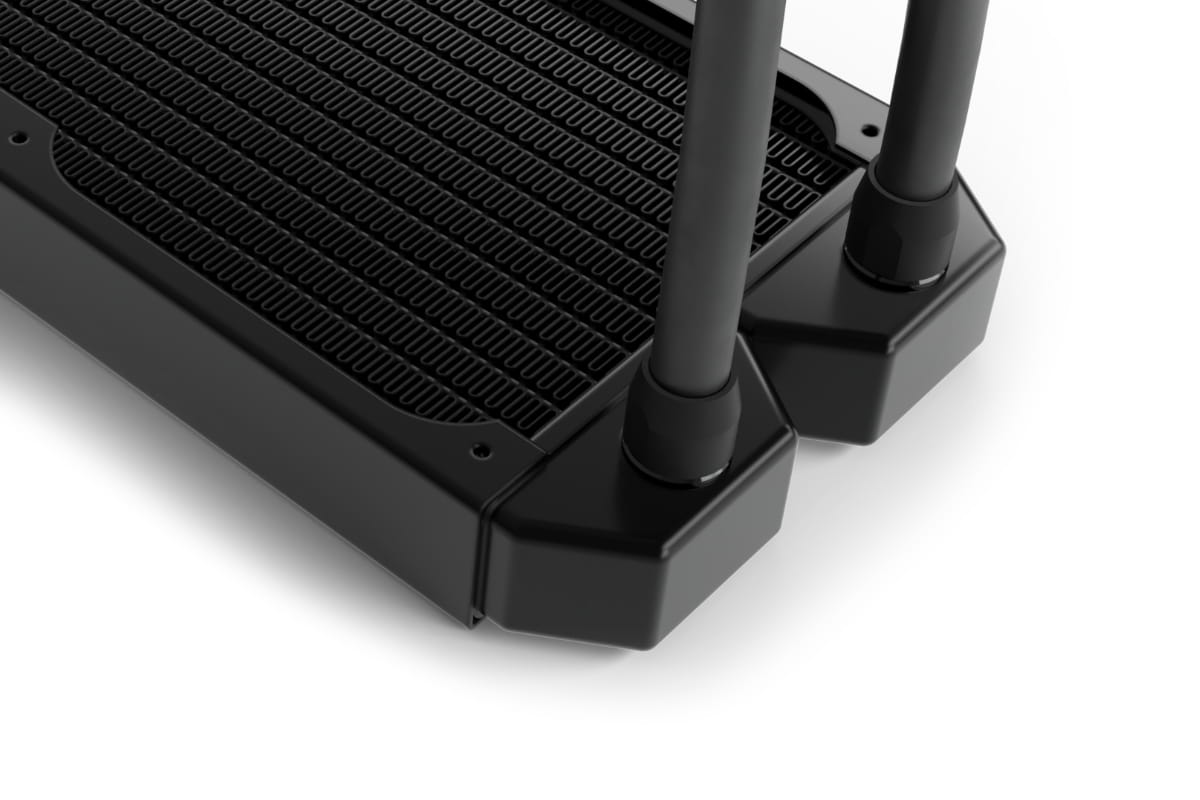

NexXxoS Radiator
As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.

The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.

Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.



Compatibility:
- Nvidia GeForce RTX 4090 Founders Edition, 24GB GDDR6X (900-1G136-2530-000)



Technical data radiator
L x W x H395 x 124 x 30mm (+/- 3%)
Material cooling fins, chambers & channelsCopper
Material threadsBrass
Material outer housingstainless steel
G 1/4“ threads2 x for tubes (+ 1x Fillport G1/4“)
For fan size120 mm
Options for fan assembly3 x one-sided / 6 x both-sided

Technical data cooler and pump
L x W x H205,42 x 156,89 x 47,8mm
Material cooler bottomChrome plated copper
Material cooler topacrylic
Threads2 x G1/4“
Pump typeDC-LT 2
Pump speed2600 rpm (+/- 10%)
Head of delivery1 m
Maximum flow rate72 L/h
Voltage6-13.5V DC
Power consumption3.2W
MTBF50.000 h

Technical data liquid
Colorclear
Ingredient 1Destilled water (CAS-number 7732-18-5)
Ingredient 2Glysantin (CAS-number 1017-21-1)
Working temperatures-15 C° / +90 °C

Technical data quick fasteners
L x D95 x 27mm
MaterialNylon
For tube size12,7 / 7,6mm
ColorBlack

Technical data fittings
L x D straight fitting24 x 18mm
Quantity straight fittings2x
L x B x H 90° fitting35 x 27 x 17mm
Quantity 90° fittings2x
For tube size12,7 / 7,6mm
Material fittingsBrass

Technical data tube
Length50cm
Material tubeTPV (EPDM/PP)
ColorMatt black
Tube size12,7 / 7,6mm
Hardness grade35 Shore-A to 50 Shore-D
Working temperature-50 to +155 °C

Technical data fan
Speed0 - 2500 RPM
Static pressure3,17 mm H2O
Air flow rate119,8 m³/h
BearingsSleeve bearing
Fan connector4-Pin PWM
Connection Digital aRGB3-Pin JST + 3-Pin 5V
Dimensions120 x 120 x 25mm
Net weight187g
Max working temperature60°C

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Vorbefüllt: Ja
Radiatorgröße: 360mm
Radiatordicke: 29 - 39mm
Radiatorabmessung: 395 x 124 x 30mm
Sockel: Nvidia GeForce
Schlauchabmessungen: 12,7/7,6mm
