Connection adapter for ultra flow cooler 200 to G1/4

RAKZ Anschlussadapter für Ultra-Durchlaufkühler 200 auf G1/4

Article no.: RAKZ
EAN: 4049469090258
Weight: 0,008 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€5.69 *

Prices incl. VAT plus shipping costs

in stock

Special adapter for the ultra-flow coolers. The adapter is screwed onto the plastic nut at the... more

Close menu

Product information

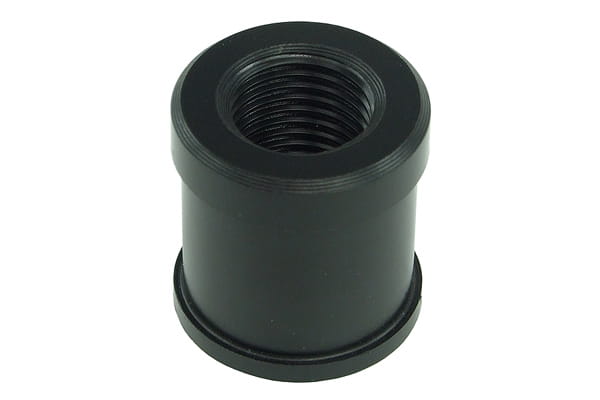

Special adapter for the ultra-flow coolers. The adapter is screwed onto the plastic nut at the top instead of the hose connection and seals using the seals supplied with the flow cooler.

Technical data:
Compatible with Hailea Ultra Flow Cooler 200
Material: POM
Suitable for connections with G1/4 inch
Not compatible with Hailea Ultra Titan 150, 300, 500, 1500 and 2000

For a flow cooler, 2 of these adapters are required.

Installation instructions:

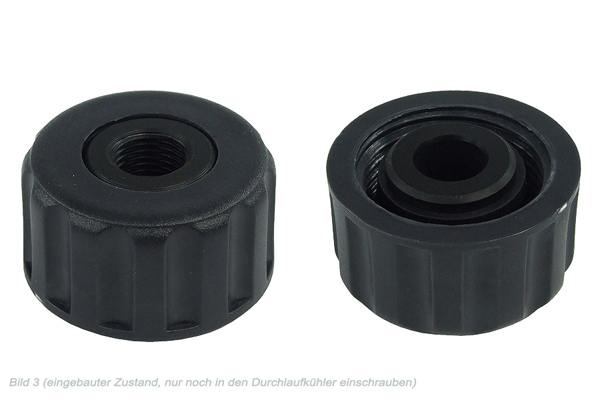

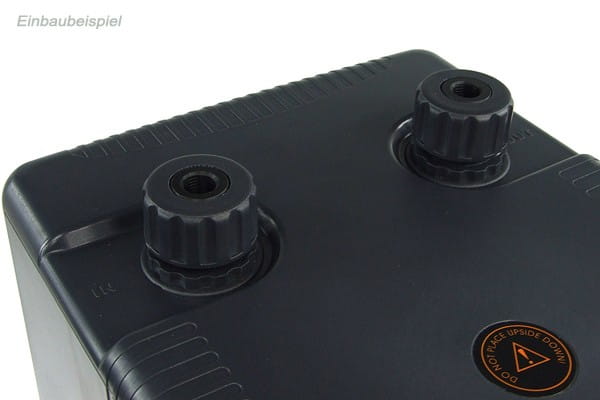

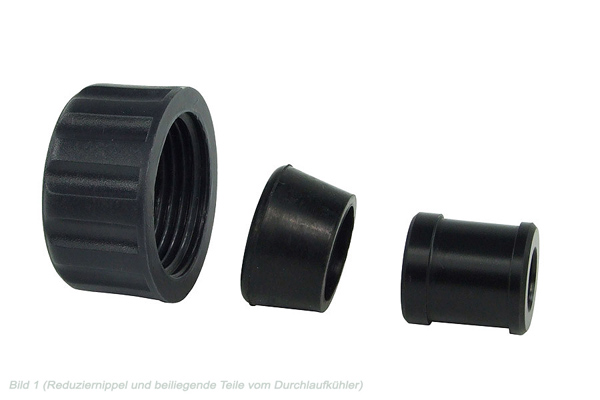

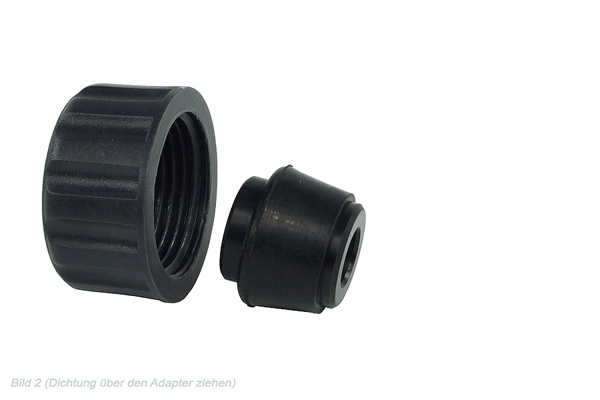

The adapter is mounted on the chiller instead of the thick standard connection. To do this, the seal must be removed from the standard connection and then reassembled with the adapter and the fastening screw as shown in the photos.
