The Alphacool Apex Distro Plate is the ultimate visual upgrade for the Hyte Y70 and Y70 Touch Infinite. Specifically designed for this case, it replaces the front cover and takes any custom water cooling setup to the next level. A must-have for those who want to combine top performance with premium design.
The Alphacool Apex product line stands for absolute perfection. Crafted with premium materials and advanced engineering, the Distro Plate guarantees a truly high-end product. The chrome-plated G1/4" fittings, made from solid brass, prevent leaks caused by cracks as they are not screwed directly into the acrylic. Instead, the two-piece fittings feature an O-ring and interlock during installation, ensuring a secure and reliable seal within the acrylic.

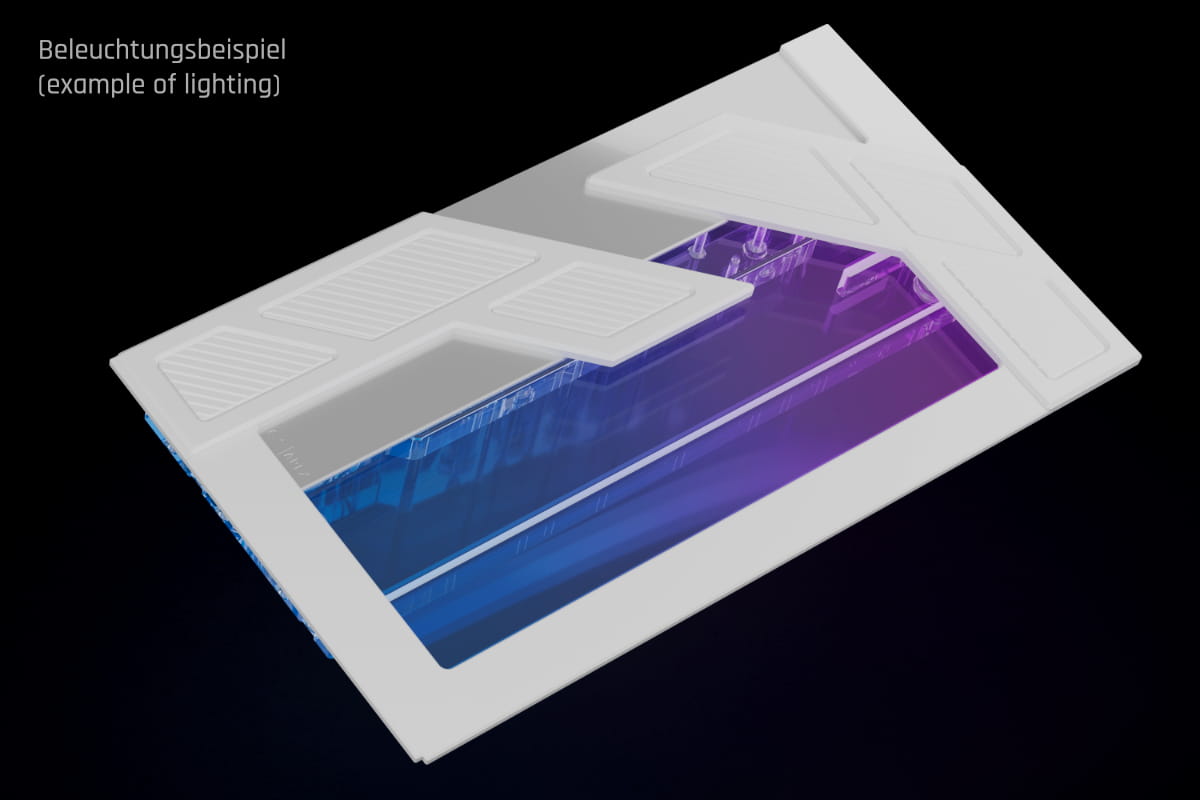

Made from high-grade acrylic glass, the Apex Distro Plate offers a clear view of the water cooling loop. Its integrated aRGB lighting creates an impressive play of colors, perfectly showcasing the case. The Distro Plate is available in two variants that differ only in color. Both the black and white versions perfectly match the Y70’s case colors and blend seamlessly into the design.
A newly developed pump mount sets new standards: the Apex Distro Plate supports both D5/VPP and DDC pump formats.
The Y70 case offers numerous customization options. The Apex Distro Plate is perfectly adapted to these configurations. The Distro Plate replaces the front cover and can be securely and easily mounted using the original screws and mounting bracket of the case.
Note: The Apex Distro Plate for the Y70 and Y70 Touch infinite is exclusively compatible with this case. A pump is not included in the scope of delivery.
| Technical data | |
| Dimensions (L x W x H) (in mm) | 403,40 x 230,00 x 41,30 |
| Material cover | Aluminium (AlMg0,7Si) |
| Material reservoir | Plexi (LXN865) |
| Material connection thread | Brass (CuZn39Pb3) |
| Max. filling volume (in ml) | approx. 372 |
| Threads | 8x G1/4" + 1x fill port and 1x drain port |
| Maximum torque G1/4 thread (in Nm) | 1,00 |
| Maximum torque M2 thread (in Nm) | 0,13 |
| Maximum torque M2,5 thread (in Nm) | 0,27 |
| Maximum torque M3 thread (in Nm) | 0,48 |
| Maximum torque M4 thread (in Nm) | 1,12 |
| Maximum operating temperature (in °C) | 60 |
| Minimum operating temperature (in °C) | -20 |
| Pressure tested (in Bar) | 0,8 |
| Quantity digital aRGB LEDs | 11 |
| Power digital aRGB LEDs | 5V |
| LED current (in A) | 0,06 |
| LED power (in W) | 3,3 |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Pump compatibility | VPP/D5 |
| Color | white, transparent |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
