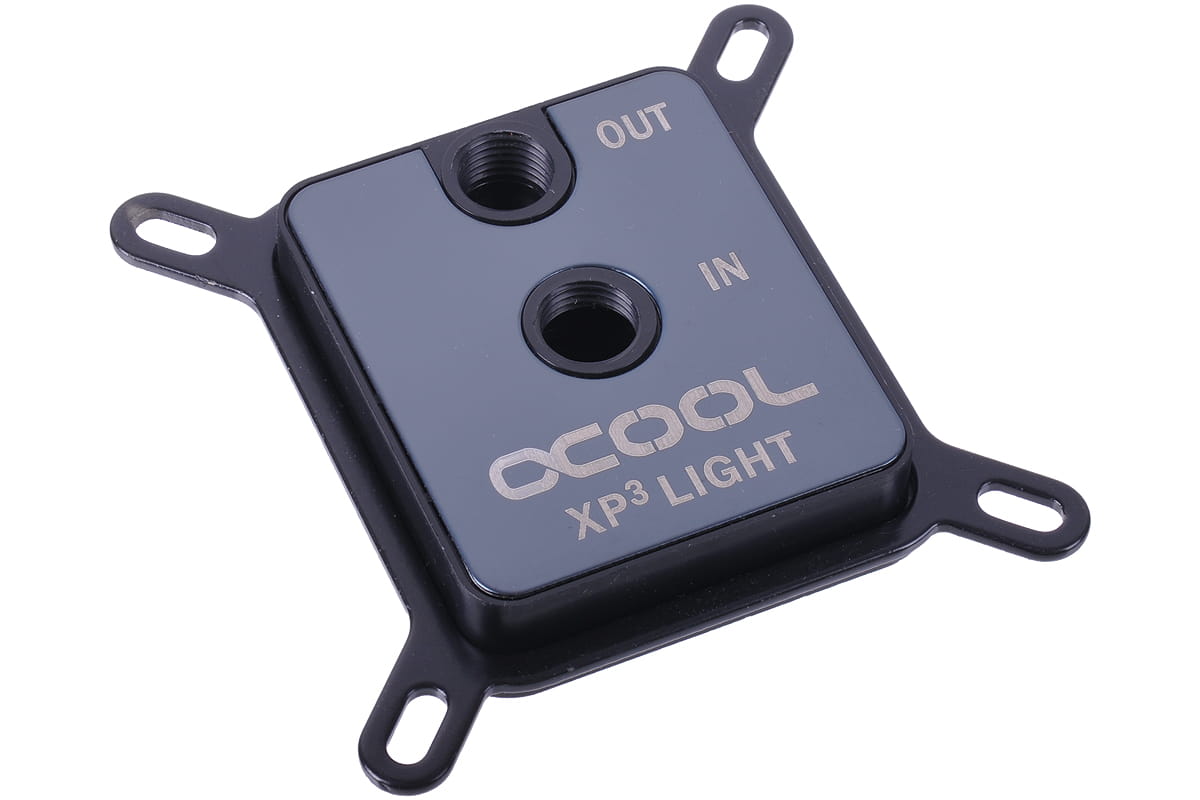

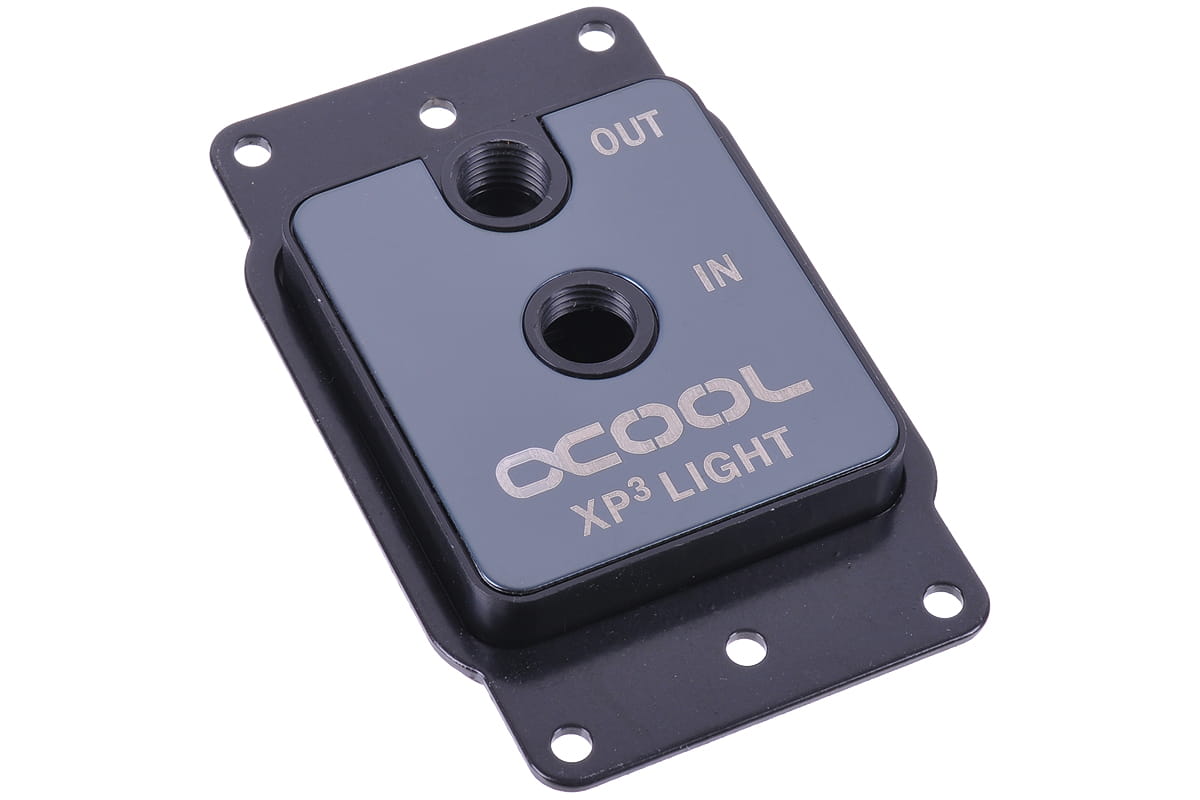

Alphacool NexXxoS XP³ Light - Black V.2 -

  • 12164
  • 4250197121644
  • 0,277 kg
  • Es sind weniger als 5 Artikel verfügbar
  • Images may differ slightly from the original
€22.98 *

Prices incl. VAT plus shipping costs

in stock

Only few companies can look back to such a long history of experience and tradition in CPU water... more
Product information

Only few companies can look back to such a long history of experience and tradition in CPU water block development and manufacturing as Alphacool. In the young water cooling sector, from 2004 to 2007, Alphacool aced many tests with the NexXxos HP and NexXxos XP CPU water block series. A multitude of awards and 1st places were the reward for offering the best water block on the market. With the "Alphacool HF 14 Yellowstone", Alphacool continued water block development.

Since the beginning of 2010, Alphacool has been developing and testing the successor for over 14 months. Never in company history had such an effort been made towards improvement of a product, but the goal was clear: The new Alphacool NexXxoS XP³ was not only being developed to better its predecessors, but also exceed the cooling performance of all other products on the market.
Different tests have already proven that the goal has been achieved and that Alphacool has created a true flagship water block.


Technical features

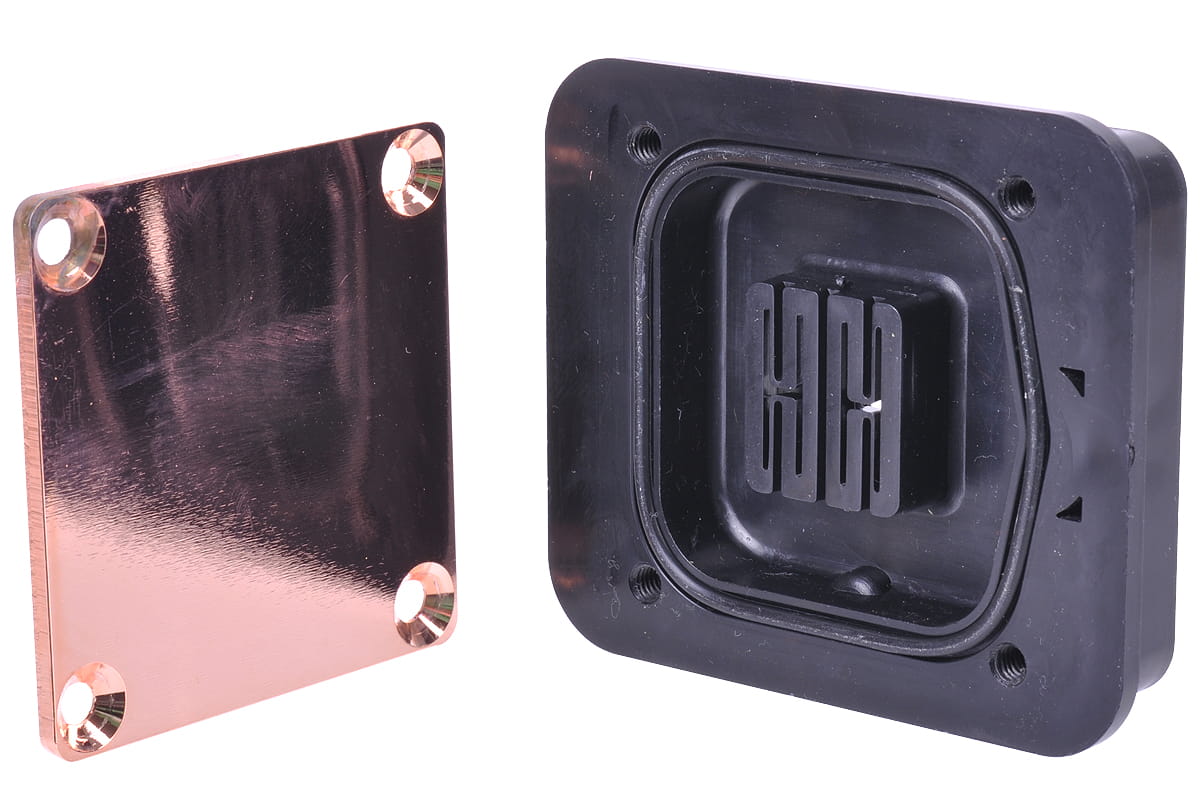

Cross-slotted structure
Having been patented for the NexXxoS XP in 2004, the cross-slot technology in the cooling plate was developed even further. An even finer structure of fins and channels now ensures stunning performance. The remaining pins are 0.4x1mm wide and have a height of 2.5mm. With this technology, it is possible to transfer great amounts of thermal energy very quickly from cooling plate to coolant..

Backflow channels
The patented backflow channels were also improved and optimized for maximum flow rates. Coolant can now be drained very efficiently above the pin structure, reducing flow resistance and improving cooling performance.

Injection
A multitude of approaches for ideal coolant injection into the cooling structure exist, and many of them show great potential in computer simulation.
Alphacool went one step further, and has actually realized many different technologies and tested them under real-life conditions. These prototypes were combined with different backflow possibilities, until an ideal solution was found: Slotted acentric injection in combination with backflow channels in opposite directions allowed a performance improvement which also worked on larger chips and Multi-core processors.

Coolant recirculation
Unlike many current water blocks, where the recirculation of the coolant was only seen as a secondary issue, the NexXxoS XP³ was also optimized in this point. Hence it features an unusually large collection reservoir all along the pin structure of the water block. This allows coolant flow from all directions, removing it from the pin structure in a highly effective manner.

Size
Both in regard to cooling plate dimensions (56x56mm) as well as top plate dimensions (57x67mm, plus mount), the XP³ has grown to be a full-size water block. Main advantage of the larger dimensions is optimal cooling of multi-core processors.

Mount
The XP³ features a circumferential elevated strip, offering a secure hold for the mounting plate. This new feature allows switching of the cooling plate without having to disassemble and open the water block.
With water blocks from the competition, installation of a different mounting plate is often a hassle without the necessary technical know-how, and not many users have the experience to be able to disassemble a complicated water block and reassemble it correctly without damaging it.

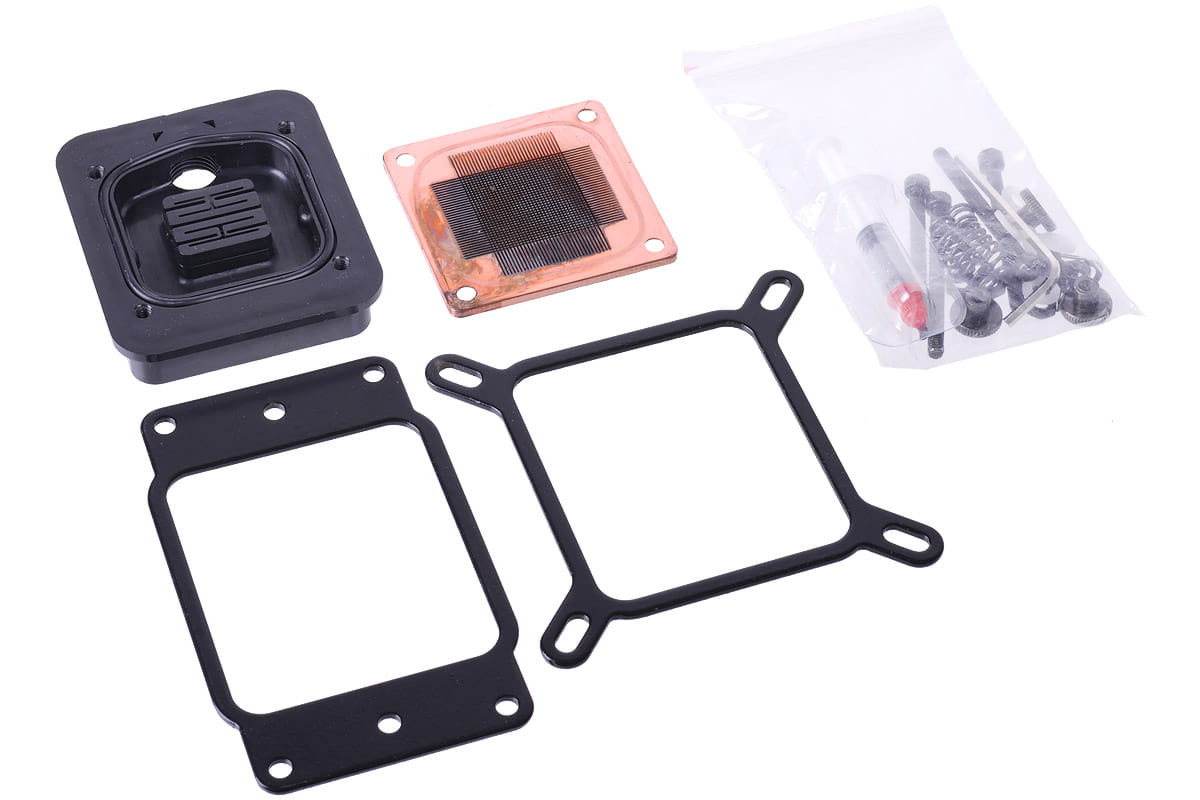

Such worries are now thing of the past! Included with the water block come two mounting plates, one for installation Intel sockets, the other for use with AMD processors.

Versions
Two versions will be available upon release: For budget-oriented users, the affordable entry-level version with Acetal is the right choice. For those looking for something a bit more advances, a version with brass top and elegant black nickel plating is available.
Cooling performance of the Acetal version is only approximately 2°C behind the performance of the brass version, meaning that the Acetal version delivers top-notch performance at an affordable price.

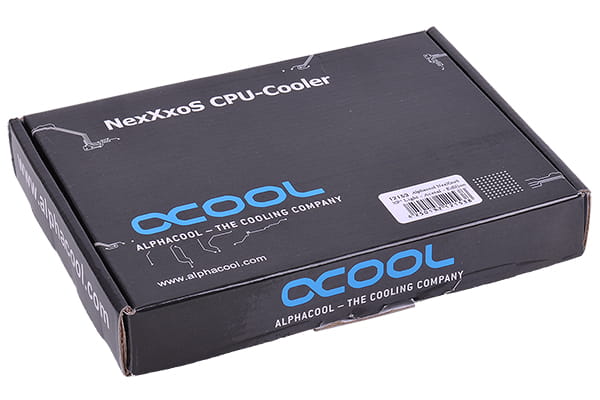

The cooler is enclosed in foam rubber in the packaging to protect it from scratches and transport. There is a protective film on the underside which must be removed before installation.



Compatibility:
Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5



Technical data
Dimensions CPU water block without bracket (LxWxH)57 x 67 x 14mm
Dimensions CPU water block with bracket (LxWxH)63 x 73 x 14mm
Weigth310g
Max working temperature60°C
Material cooling platenickel plated copper
Material cooler topAcetal
Connections2 x G1/4"

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Anschluss: 2x G1/4"
Abmessungen (L x B x H: 63 x 73 x 14mm
Material Bodenplatte: Kupfer
Sockel: AMD AM3(+), AMD AM4, AMD AM5, Intel 115x, Intel 2011(-3), Intel 2066, Intel LGA 1200, Intel LGA 1700
Material Deckel: Kohlefaser
