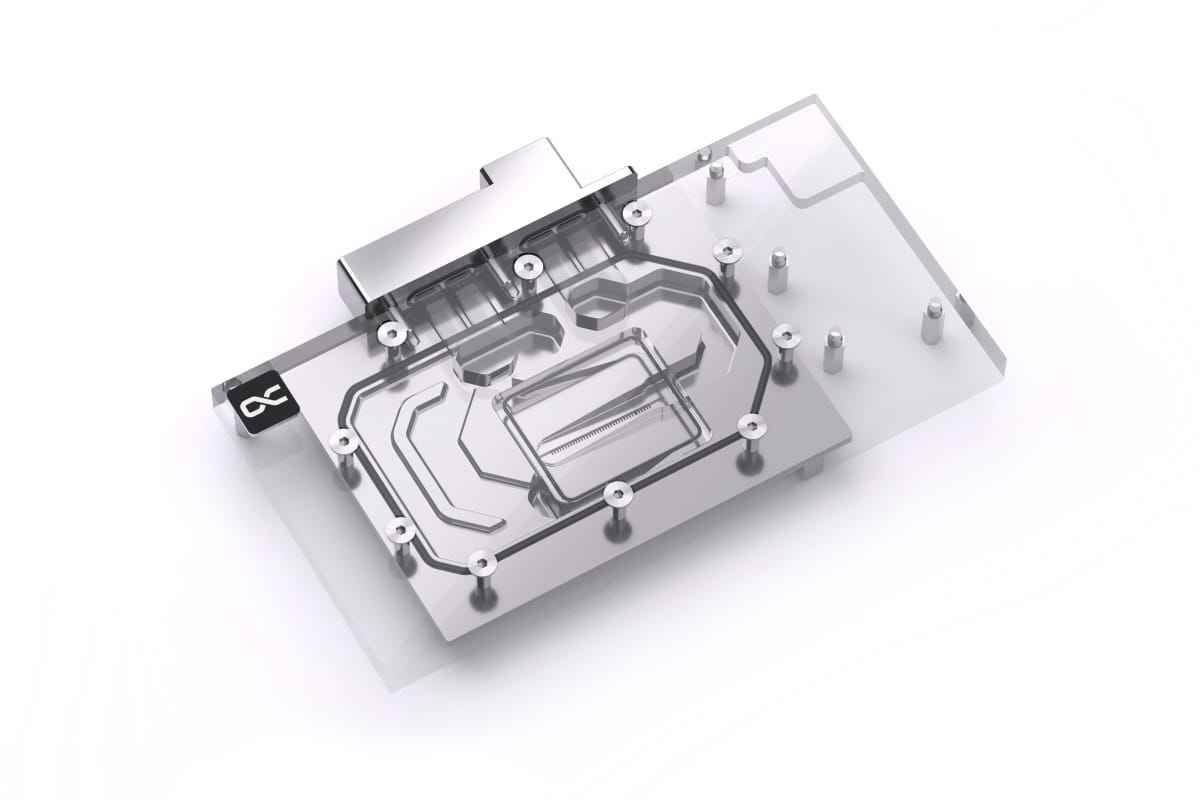

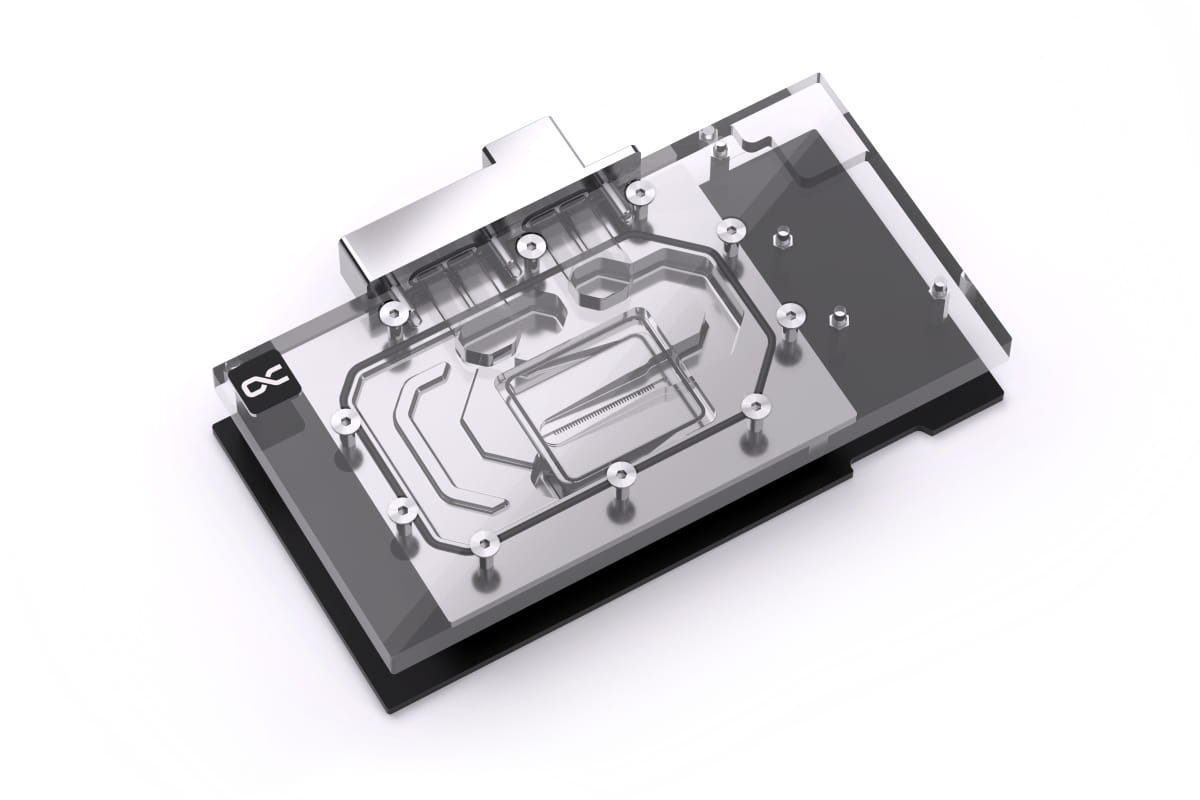

The Alphacool Eisblock Aurora Arc Pro B60 Creator offers the perfect balance of aesthetics and performance.
Engineered specifically for Intel Arc Pro B60 ASRock Creator graphics cards, this GPU water block is precisely matched to the card’s PCB layout. It combines technical refinement and optimized coolant flow with a sleek, minimalist design.
Technical Highlights

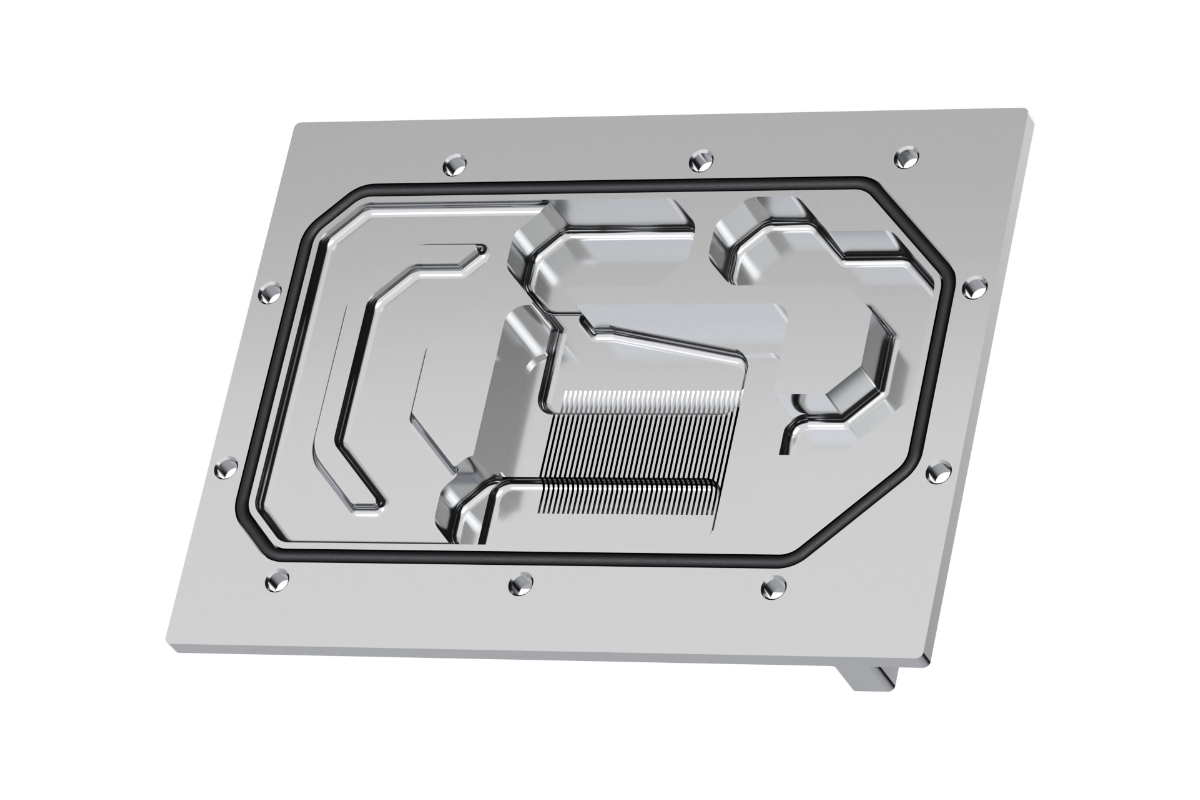

The fin structure is based on the proven cooling technology of previous Eisblock generations and has been specifically adapted to meet the demands of the Arc B60 GPU. With a thickness of 0.4 mm and a fin spacing of 0.4 mm, it ensures excellent coolant flow while delivering strong thermal performance.
The jet plate features an integrated inlay that helps distribute water pressure more evenly across the fins, improving heat absorption. The refined inlet design further enhances the angle and direction of the coolant flow for maximum efficiency.
Chromed Copper
The block is made entirely of chromed copper. Compared to nickel plating, chrome offers a harder, more durable surface that is more resistant to scratches and chemical influences. Alphacool uses only copper for the cooling plate due to its nearly twice-as-high thermal conductivity compared to aluminum.
90° Terminal
The Alphacool Eisblock Arc Pro B60 Creator is equipped with a 90° terminal. Thanks to the practical arrangement of the inlets and outlets, the cooler can be installed particularly easily in server chassis and workstation PCs. The terminal is made of chrome-plated brass, providing high resistance to scratches and chemical influences.
| Technical data | |
| Dimensions (L x W x H) | 185,76 x 118,15 x 35,15 |
| Material cooler | Chome-plated copper |
| Material cooler top | PMMA (LXN865) |
| Threads | 2 x G1/4" |
| Material Connection thread | Brass (CuZn39Pb3) |
| Maximum torque G1/4 thread (in Nm) | 1,00 |
| Maximum torque M2 thread (in Nm) | 0,13 |
| Maximum torque M4 thread (in Nm) | 1,12 |
| Maximum operating temperature (in °C) | 60 |
| Recommended working temperature (in °C) | 20 |
| Minimum operating temperature (in °C) | -20 |
| Maximum tested pressure (in bar) | 4,00 |
| Recommended working pressure (in bar) | 0,00 - 2,00 |
| Thickness of the cooling plate | 3,1 |
| Thickness of cooling fins (in mm) | 0,40 |
| Distance between cooling fins (in mm) | 0,40 |
| Cooling technology | Jet engine |

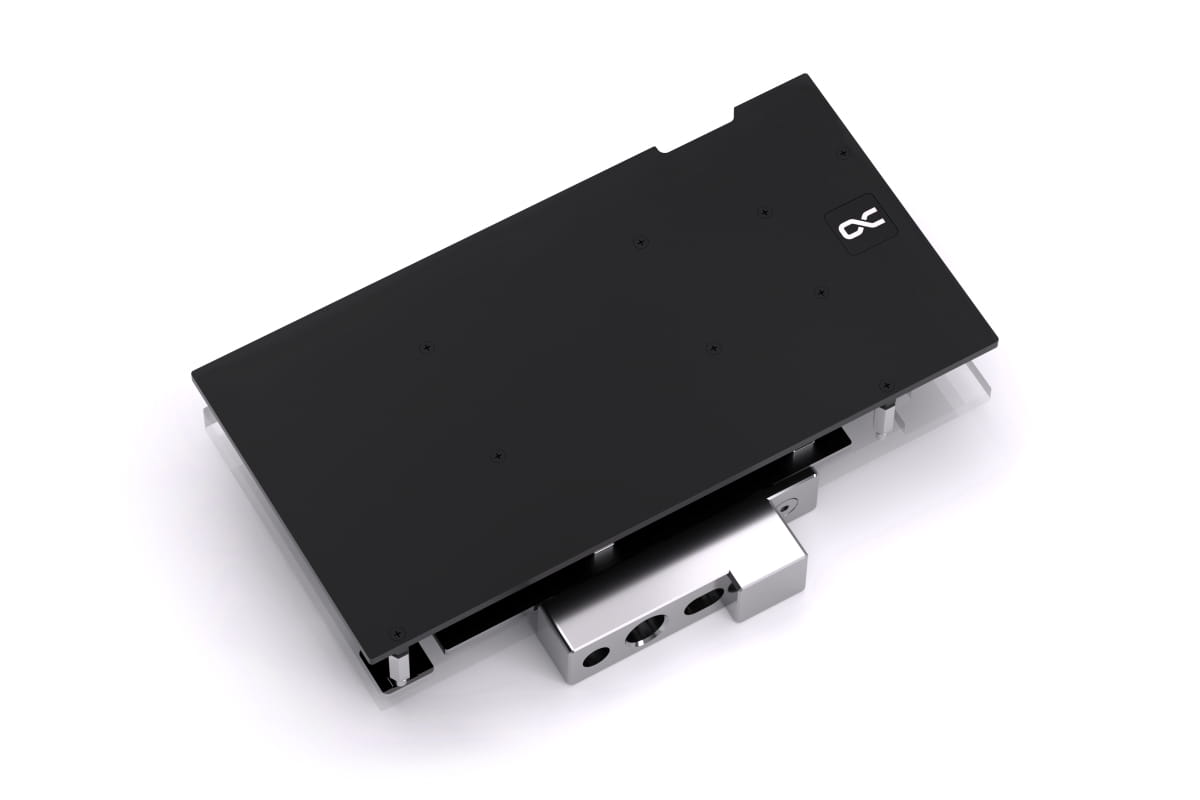

| Technical data Backplate | |
| Dimensions (L x W x H) | 185,76 x 96,15 x 3,00 |
| Material | Aluminium (AlMg0,7Si) |
| Color | Black |
| Technical data Thermal pads | |
| Thermal conductivity of thermal pads (in W/mK) | 7 |
| Thermal pads Hardness ASTM 2240 | 35 Shore 00 |
| Technical data Thermal paste | |
| Evaporation rate | Less than 0,5 |
| Density (g/cm3) | 3,2 (Test method ASTM D2196) |
| Viscosity | 150~200*10³ (Test method ASTM D2196) |
| Operating temperature (°C) | -40°C to 120°C |
| Breakdown voltage (V/mil) | 250 (Test method ASTM D149) |
| Thermal impedance (°C in 2/W) | 0.1 +/- 0.01 (Test method ASTM D5470) |
| Maximum operating pressure (psi) | 40 |
| Quantity (in gramm) | 1 |
| Color | Grey |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
