- Article no.: 11345
- EAN: 4250197113458
- Weight: 5,097 kg
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
ready for shipment in 1-3 days

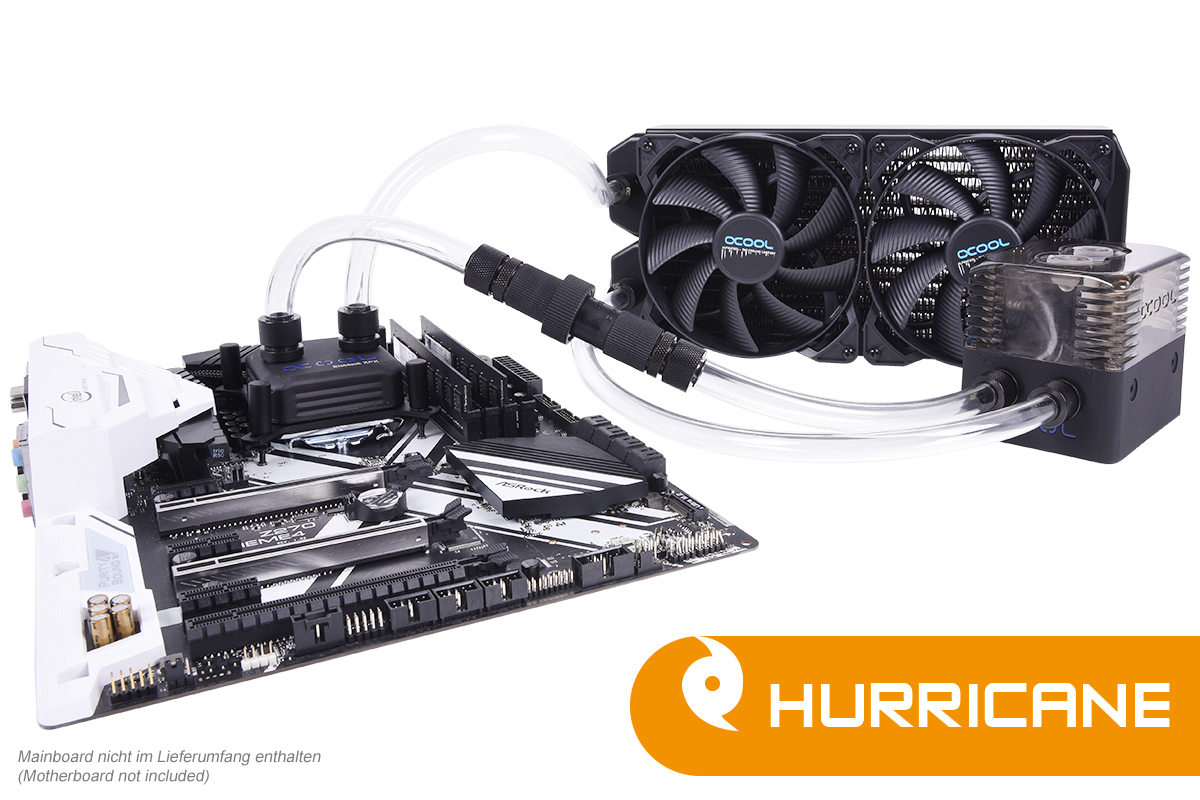

With the new Eissturm sets you get all the components you need for your start into the world of water cooling. The sets are not only for beginners but also for professionals. All components used are optimally matched and come from Alphacool's high-end series. Alphacool makes no compromises when it comes to materials and relies on pure copper or brass for all metals. This guarantees outstanding cooling performance. With the set you can easily cool your CPU and you can also integrate any graphics card cooler into the circuit. Thanks to the enclosed quick-release fastener, they do not have to empty or modify the circuit.
The products in detail:

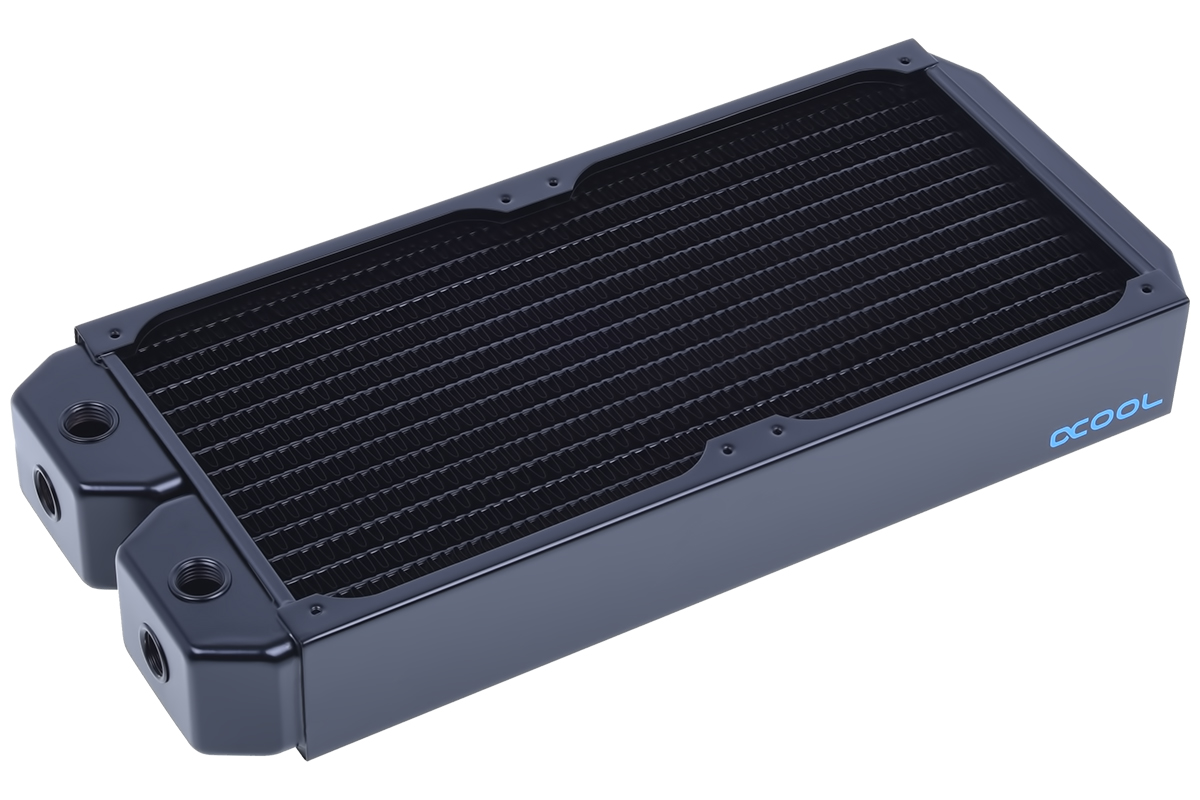

Radiator: NexXxoS XT45 Full Copper 280 mm
For many years Alphacool has been a leader in the field of radiators. Due to the consistent use of pure copper for the cooling fins, antechambers and ducts, Alphacool radiators lead the field in terms of performance. The Alphacool NexXxoS radiators offer outstanding performance when using slow-speed fans and offer a high performance reserve when a lot of heat has to be dissipated. This allows them to cover a wide range of applications.

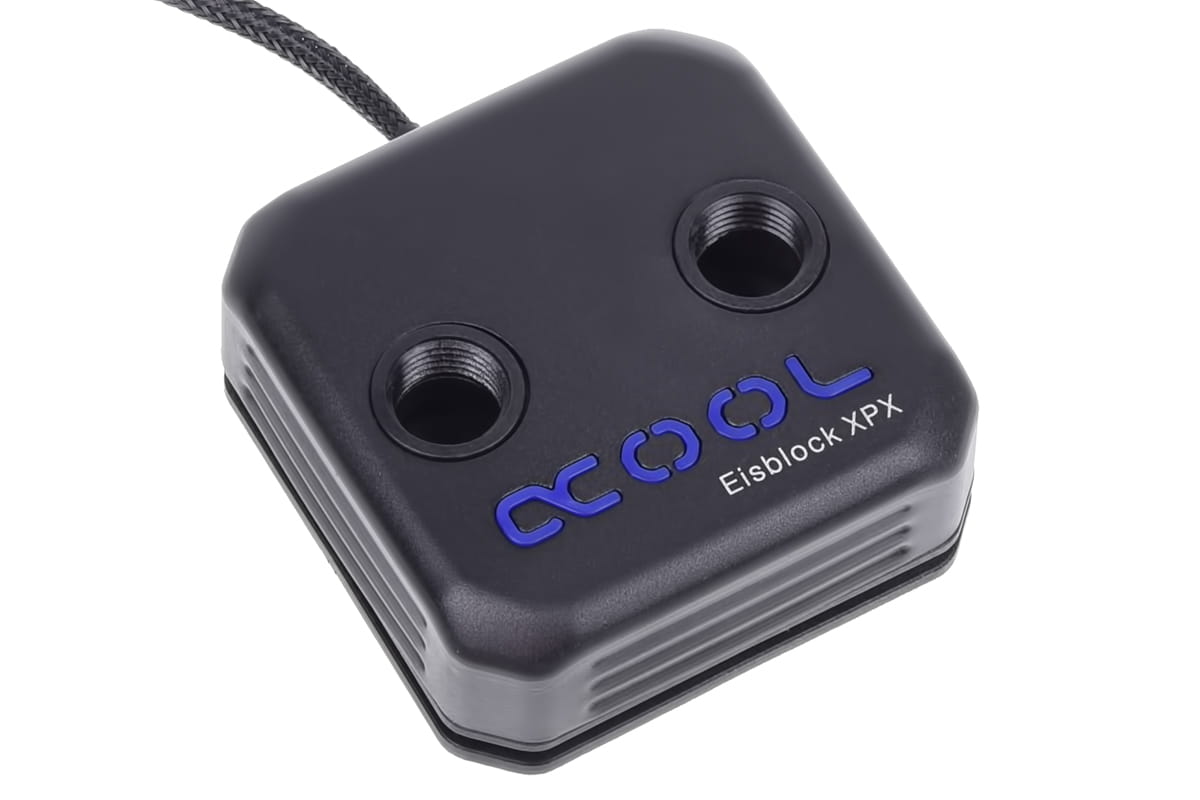

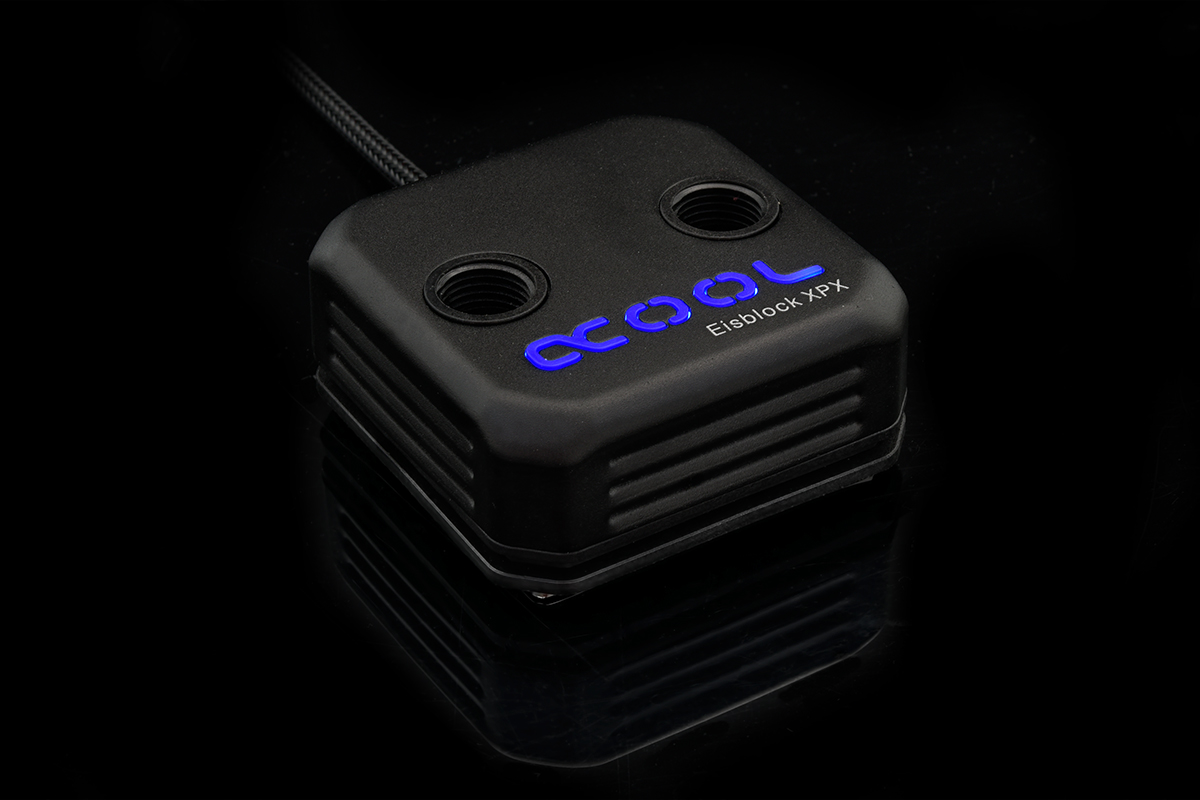

CPU Cooler: XPX
The Alphacool Eisblock XPX cooler has repeatedly been voted the most powerful CPU cooler on the market in independent tests. In addition to excellent workmanship, care was also taken to ensure that the cooler base is large enough for CPUs that rely on eight or more physical CPU cores. If you want to customize your CPU cooler, you can use modding kits from Alphacool. The CPU cover, the screw caps and the mounting frame can be exchanged for other colors.

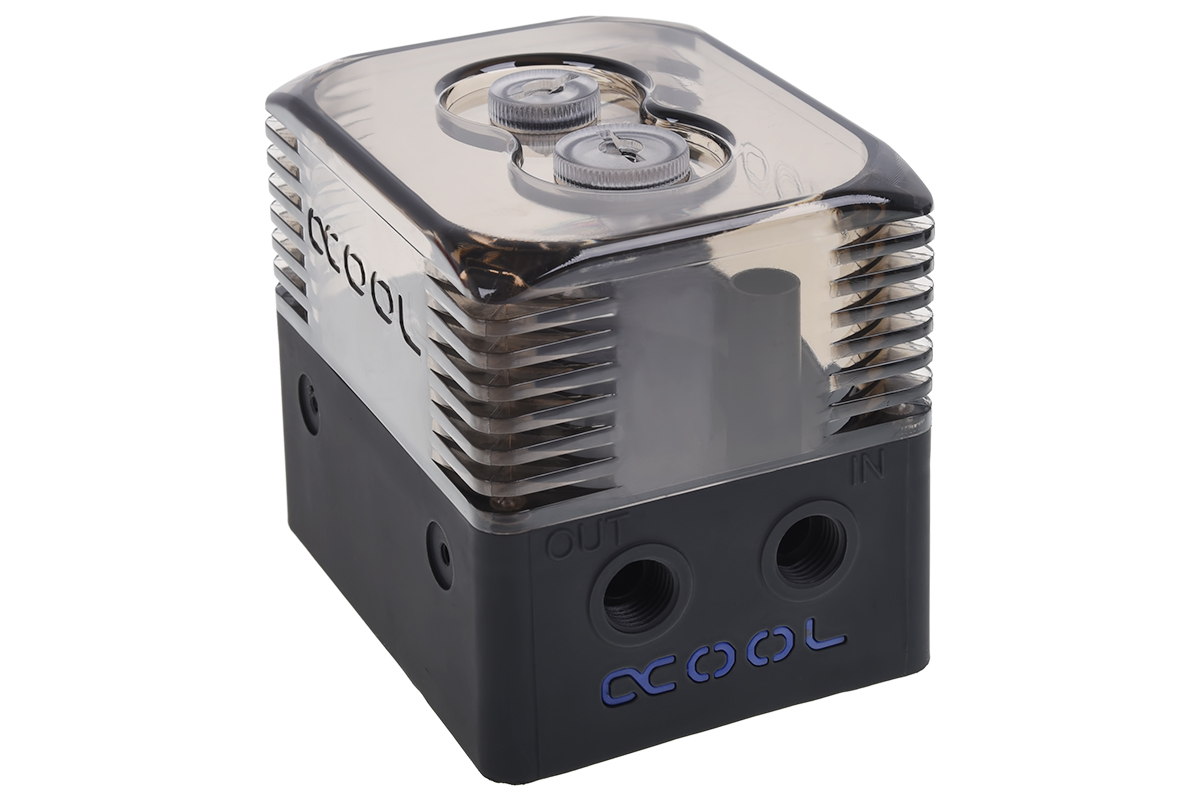

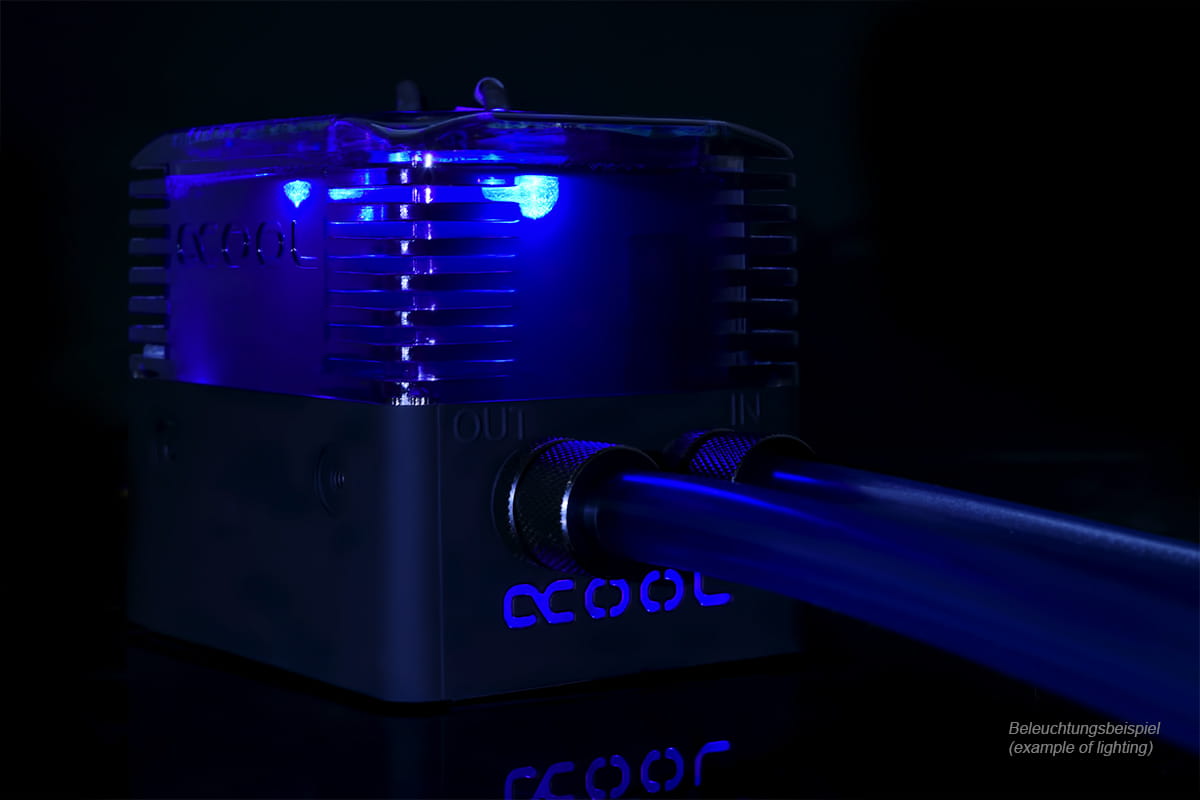

The Eisstation reservoir is a relatively compact AGB solution with integrated pump top. The pump is completely enclosed by the housing while the water is visible in the transparent nylon housing. Nylon is much more resistant than plexiglass and almost unbreakable. It is mounted either in the "5 ¼" bay or via a Velcro mat that can be positioned freely in the housing.

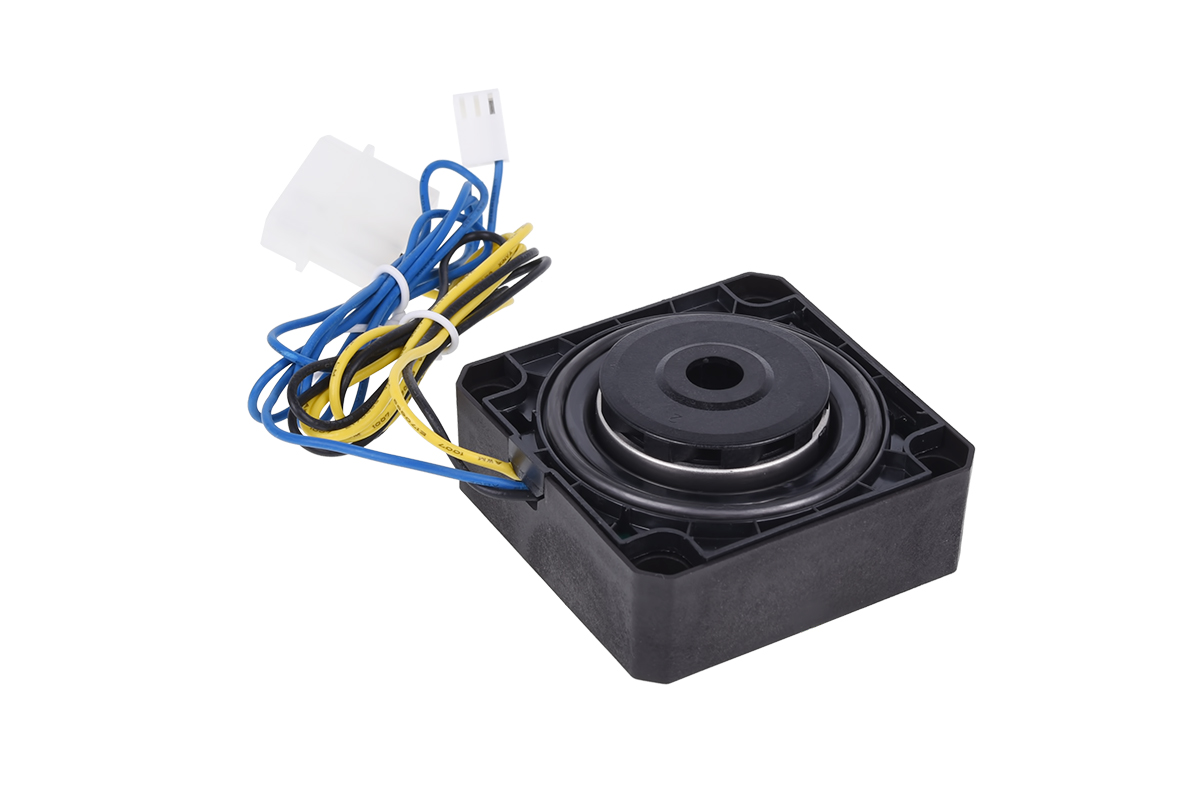

Alphacool has further optimised the classic DDC pump and with the DDC310 has launched a version that runs extremely quietly and in most cases does not require any further control. The DDC310 is a perfect compromise between performance and volume. It is strong enough to operate even larger water circuits, but remains so quiet that it is barely perceptible from a housing. The design is slightly more compact than that of the VPP755, which can result in an advantage in very narrow housings.

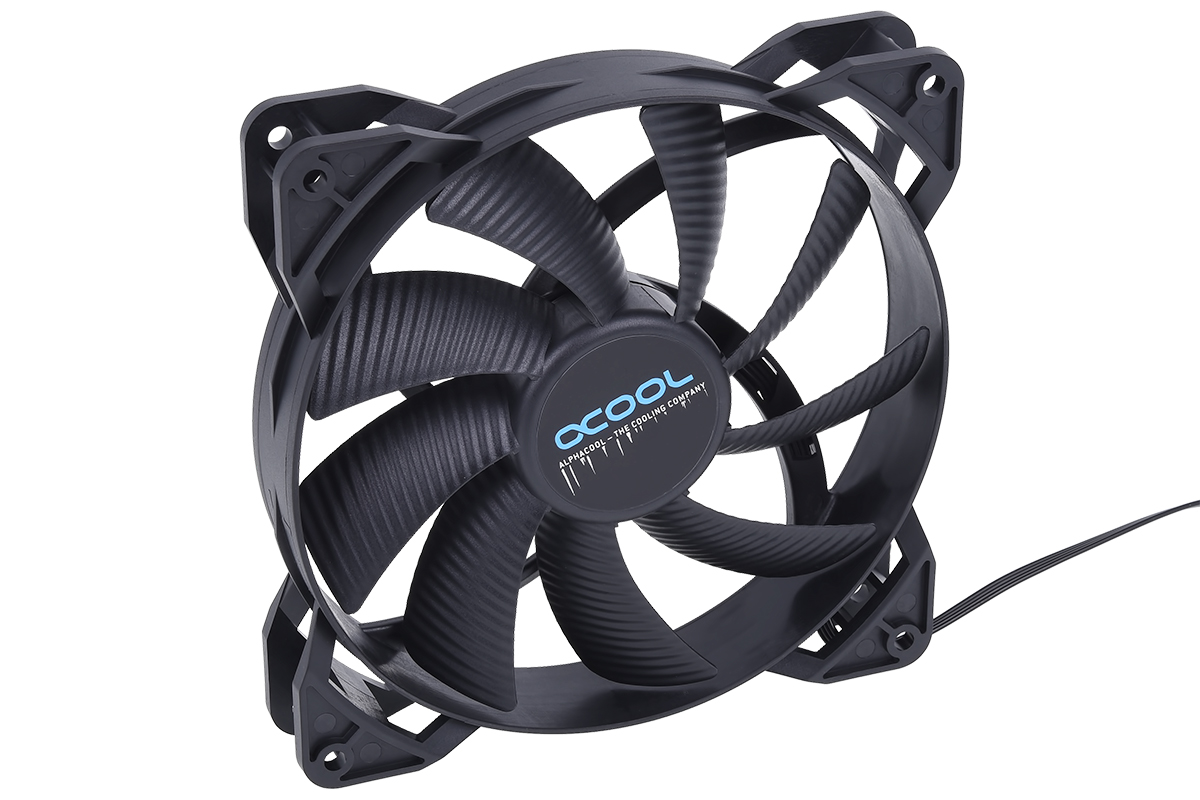

Fans: Eiswind Pure Edition
The new Eiswind fans in the Pure Edition are based on the worldwide popular be quiet! fans. The finely ribbed fan blades ensure optimum air flow and targeted turbulence to minimize background noise. The high-quality rifle bearing also contributes to smooth running. The fans can be controlled via the 4-pin PWM connector. The fans can be controlled over a wide speed range.
Connections and quick-release connector:
Alphacool makes no compromises when it comes to connections. All connections are from the high-end Eiszapfen series and are made entirely of anodized brass. Thanks to the wide ribbed outer surface, the connections can be screwed in very easily. The union nut presses the hose firmly against the connection and contributes to safety. The enclosed quick release fastener makes the set Eisbaer Ready. Many products such as the Eiswolf GPX-Pro cooler, the external water cooling solution Eiswand and other Alphacool products rely on this quick release fastener. In this way, they can easily and quickly combine or separate the products from each other again.
The set includes everything you need for the start. Hoses, the necessary liquid, a filling aid, Y-adapter for the fans and much more. The manual is very extensive with many pictures describing all parts in their function. With an ice storm set you get the perfect set for your water cooling.
Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 2011 / 2011-3 / 2066 / 1700
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5
|Technical data CPU cooler|
|Produkt:||Eisblock XPX CPU - Intel/AMD - Deep Black|
|Dimensions (LxWxH):||65 x 65 x 30mm|
|Cooler bottom material:||Copper|
|Lid material:||Aluminium, sandblasted|
|Socket compatibility Intel:||775 / 1056 / 1155 / 1150 / 1151 / 1200 / 2011 / 2011-3 / 2066 / 1700|
|Socket compatibility AMD:||AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5|
|Technical data pump|
|Product:||Laing DDC 310|
|Voltage range:||6 - 13,2 V|
|Power consumption:||10 W|
|Flow rate:||200 L/h|
|Maximum head:||2,4 m|
|Power connection:||4Pin Molex, 3-Pin|
|Technical data reservoir|
|Dimensions (LxWxH):||102 x 82 x 85mm|
|Threads:||3x G1/4“ ; 1x G3/8“|
|Power connection Logo LED:||3-Pin|
|Technical data radiator|
|Product:||NexXxoS XT45 Full Copper 280 mm|
|Dimensions (LxWxH):||324 x 144 x 45 mm|
|Pressure tested:||1,5 bar|
|Fins per inch:||16|
|Technical data fans|
|Product:||Eiswind Pure Edition 140 - 1350 rpm|
|Voltage range:||5 - 13,2 V DC|
|Rated speed:||400 - 1300 rpm|
|Power consumption:||4,8 W|
|Fan efficiency:||130 m³/h|
|Air pressure:||0,97 mm H² 0|
|Volume:||35.8 db (A)|
|Technical data quick connector|
|Product:||HF Schnellverschlusskupplungsset G1/4|
|Dimensions (LxD):||60 x 26 mm|
|Technical data tube|
|Product:||PVC 13/10mm Ultra Clear 3,3m (BPA free)|
|Technical data liquid|
|Product:||CKC Cape Kelvin Catcher|
|Technical data fittings|
|Product:||Eiszapfen 13/10mm Fitting G1/4|
|Tubing size:||13/10 mm|
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
