Alphacool NexXxoS ST30 Full Copper 420mm Radiator V.2

Article no.: 14281
EAN: 4250197142816
Weight: 1,19 kg
Images may differ slightly from the original

€99.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Alphacool Eiszapfen 13/10mm compression fitting G1/4 - chrome sixpack

€33.98*

Alphacool 13/10 compression fitting 45° revolvable G1/4 - Deep Black

€5.98*

Alphacool HF 13/10 compression fitting G1/4 - deep black

€3.98*

Alphacool 13/10 compression fitting 90° revolvable G1/4 - Chrome

€5.98*

It’s the best system because it’s your system! Only be satisfied with perfection! The new... more

Close menu

Product information

It’s the best system because it’s your system! Only be satisfied with perfection! The new Alphacool NexXxos V.2 radiators will take you to the next level!

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

New and yet proven

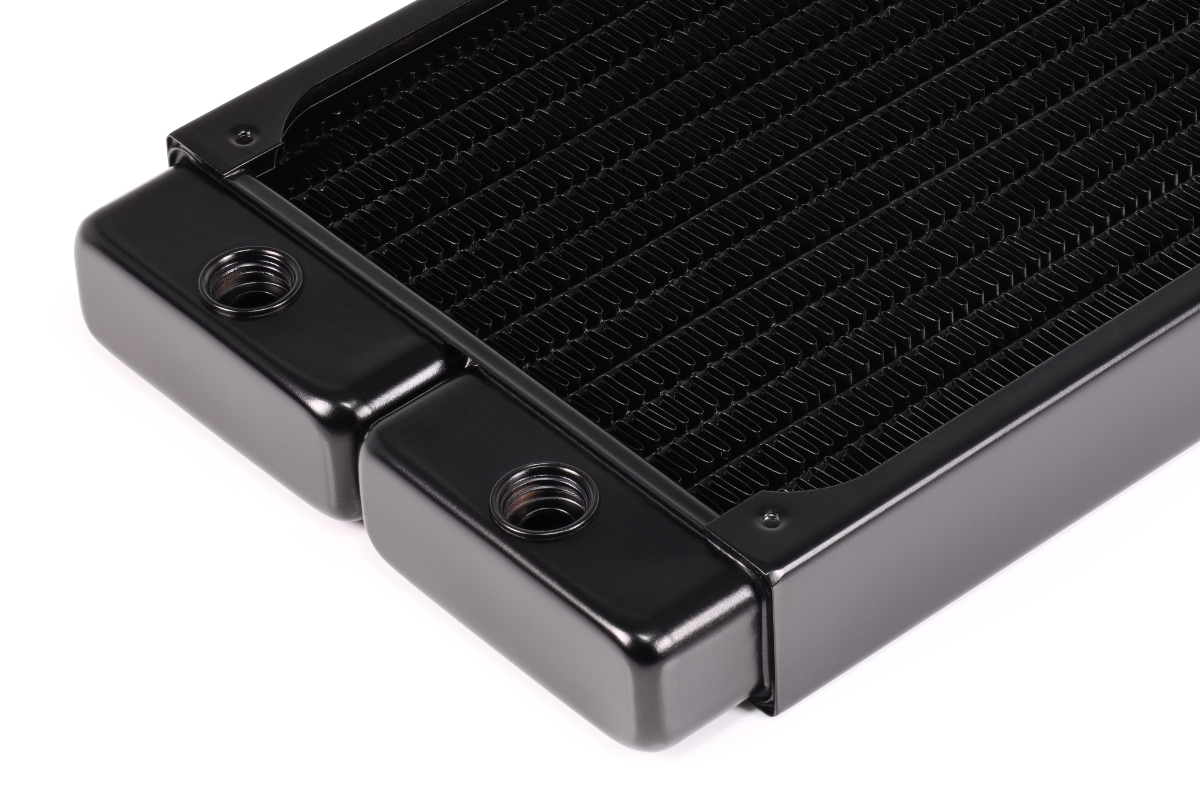

Alphacool also has been able to combine the best quality with the most beautiful design for the NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In addition, the NexXxos ST30 V.2 radiators now also have a G1/4“; connection at the opposite end chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator in any position, the possibilities are unlimited.

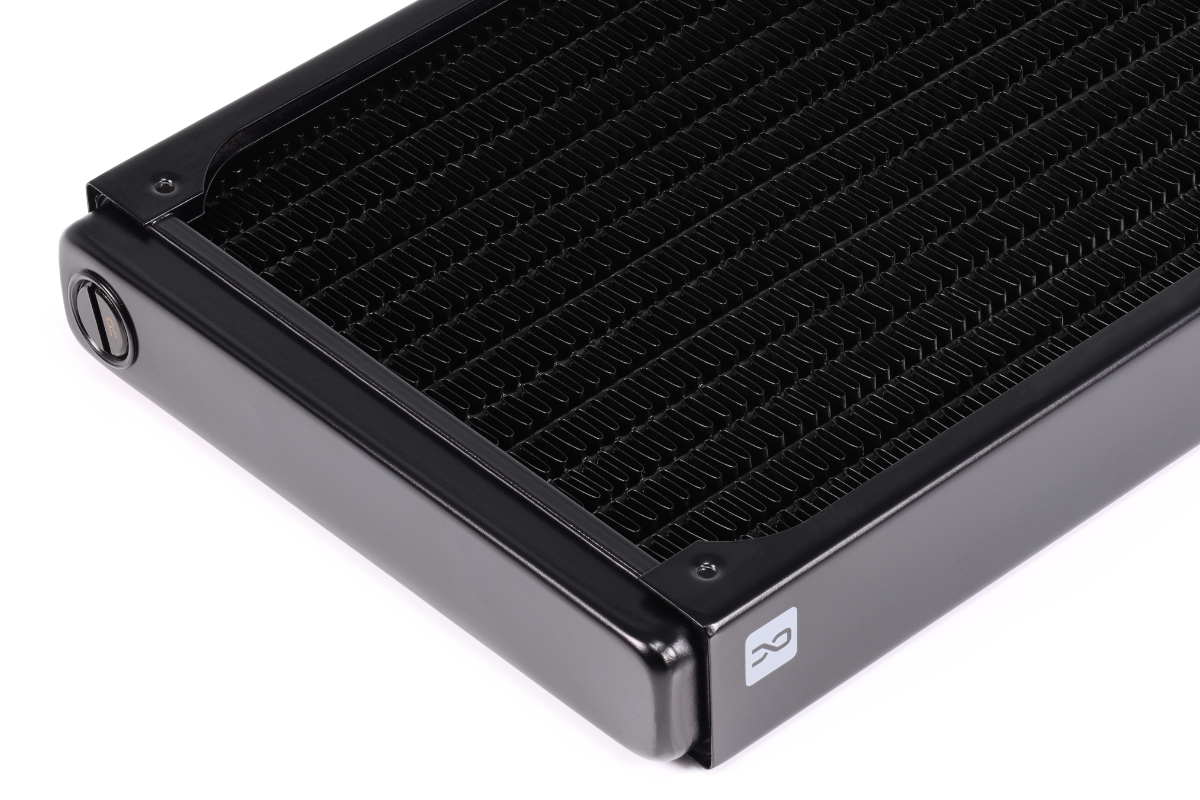

Countersunk screw plugs - anything but ordinary
For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator. Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you remain individual and unique.

Solid copper - the best performance at the highest level
As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance.Rely on the No. 1 in materials.

Different sizes - same quality
The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its special shape, installation is child's play, even with the larger radiators. Decide for yourself which size is perfect for your system and always choose the best quality.

ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.

Technical data
L x W x H	460 x 124 x 30 mm
Net weight	911 g
Max working temperature	180 °C
Material cooling fins	copper
Material cooling chanels	copper
Prechamber material	copper
Material outer housing	steel
Fins per Inch	15
Threads	5 x G1/4“
Thread size fan mounting	M3
Fan size	140 mm
Fan slots	3 one-sided / 6 double-sided
Pressure tested	0,8 bar

Technical details mehr

Technical details

Kühlkanäle:	Kupfer
Farbe:	schwarz
Lüftergewinde:	M3
Anzahl Lüfter:	3
Lamellen:	Kupfer
Gehäuse:	Stahl
Druckgetestet:	1,5 Bar
Hersteller:	Alphacool
Dicke:	29 - 39mm
Lüftergröße:	140mm
Anschluss:	5x G1/4"
Fins per inch:	15
Abmessungen (L x B x H):	460 x 144 x 30mm
